Description

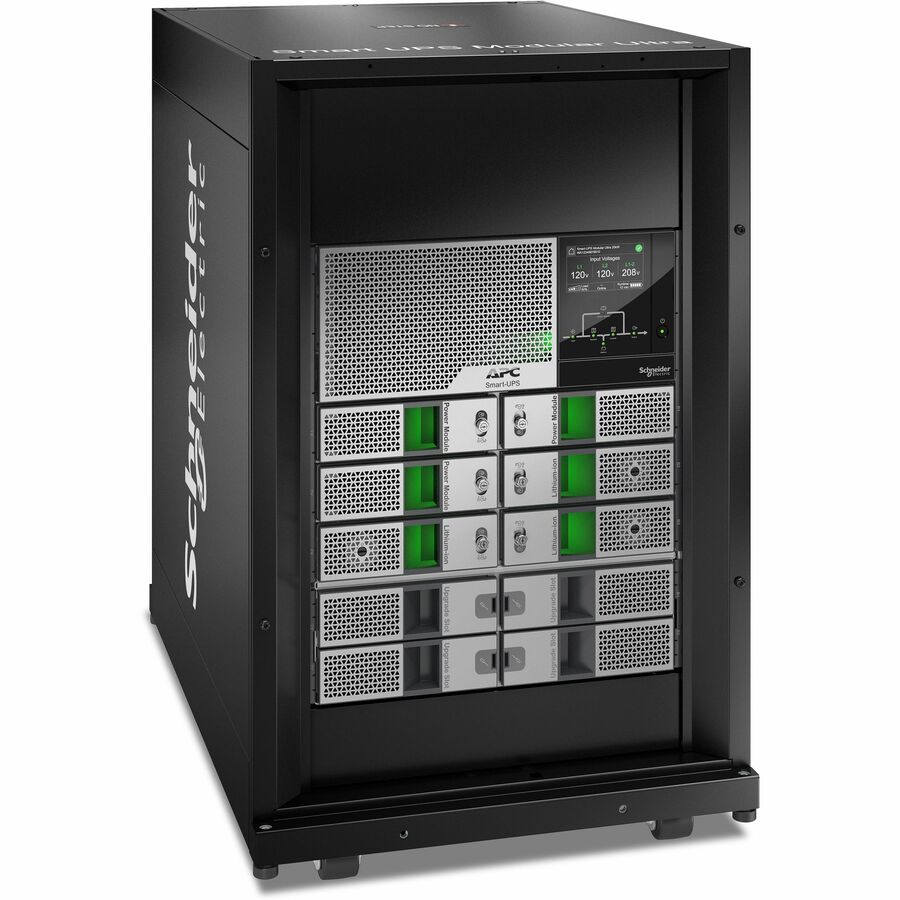

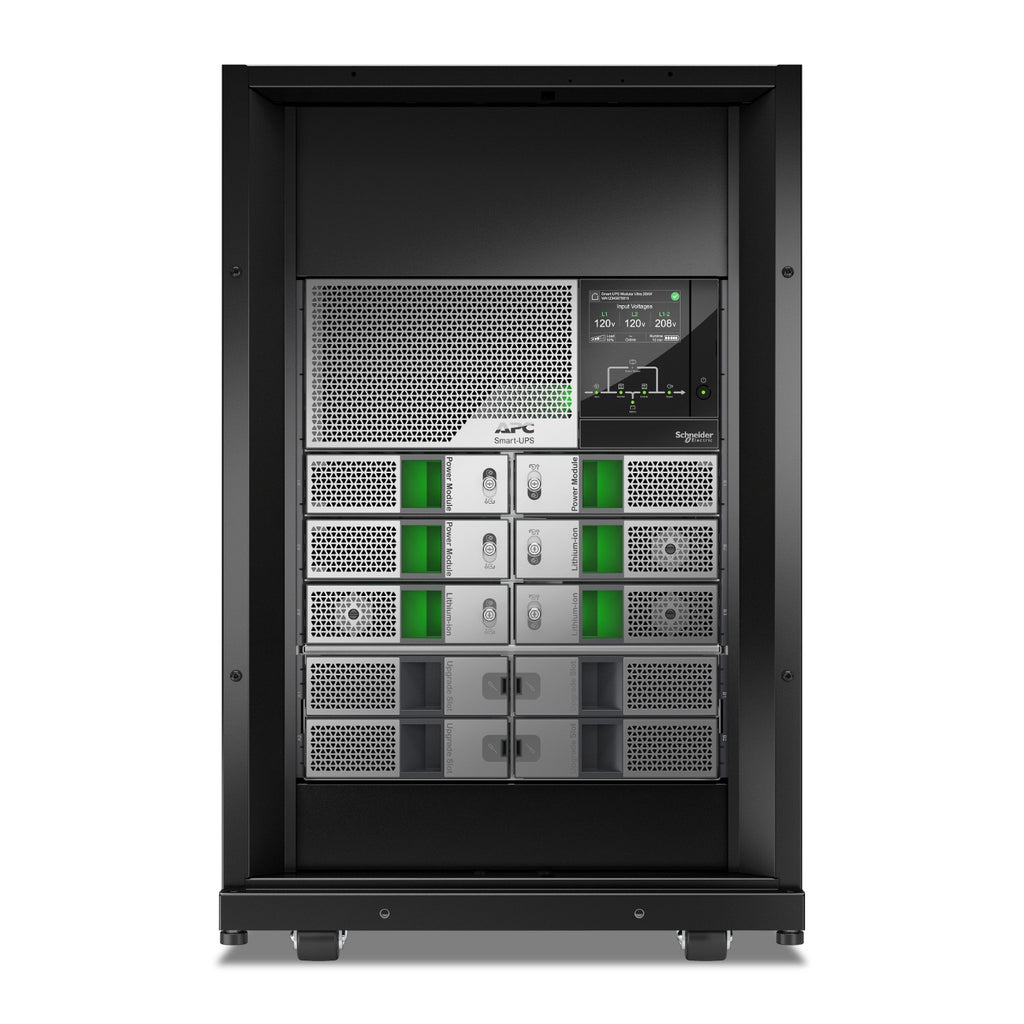

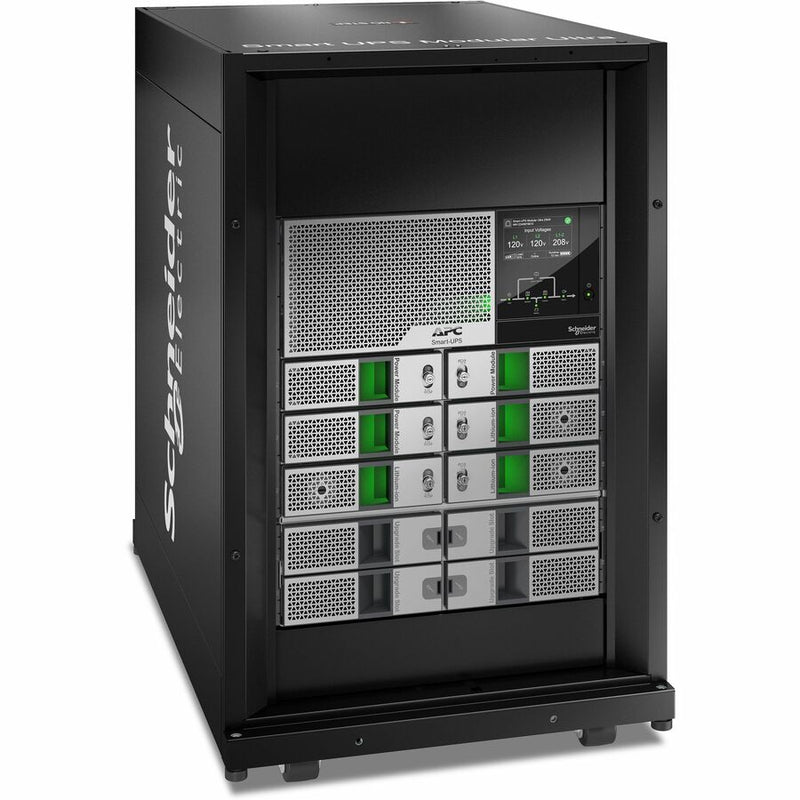

The APC Smart-UPS Modular Ultra SRYL15K20XLT18 is a compact 18U tower UPS chassis delivering 15kW of scalable, N+1 redundant power protection—expandable to 20kW. With up to 3 lithium-ion battery modules and 3 power modules preinstalled, this unit offers 2.5x the power density in 50% less space. Featuring hot-swappable modules, built-in bypass, and advanced network management, it's ideal for edge and critical IT environments. Engineered with sustainability in mind, it’s the most eco-efficient UPS of its class, supporting lower embodied carbon. Includes a 1-year Secure Network Management Card subscription.
| Category | Details |
|---|---|
| Model | SRYL15K20XLT18 |
| Power Capacity | 15kW (scalable to 20kW, N+1 Redundant) |
| Form Factor | Tower, 18U |
| Input Voltage | 208V / 240V AC |
| Output Voltage | 120V / 240V AC |
| Waveform | Pure Sine Wave |
| Power Modules | 3 (Preinstalled) |
| Battery Modules | 3 Lithium-ion |
| Battery Life | 8–10 years |
| Runtime | 5 minutes 46 seconds at full load |
| Input Connection | Hard Wire 4-wire (2PH+N+G) |
| Input Frequency | 40–70 Hz |
| Max Input Current | 75 A |
| Topology | Double Conversion Online |
| Bypass | Built-in Bypass |
| Efficiency | ENERGY STAR V2.0 Certified |
| Network Management | Included (1-Year Secure NMC Subscription) |
| User Interface | Touch Screen LCD |
| Emergency Power Off | Yes |
| Color | Black and Silver |
| Dimensions (HxWxD) | 37.09 x 23.6 x 35.4 in (942 x 600 x 900 mm) |
| Net Weight | 491.6 lbs (223 kg) |
| Operating Temp. | 32–104 °F (0–40 °C) |
| Operating Altitude | 0–3000 m (9842 ft) |
| Noise Level | 68 dB |
| Certifications | ENERGY STAR V2.0 (USA) |
| GTIN | 731304622017 |
| Warranty | 5-Year |
