Description

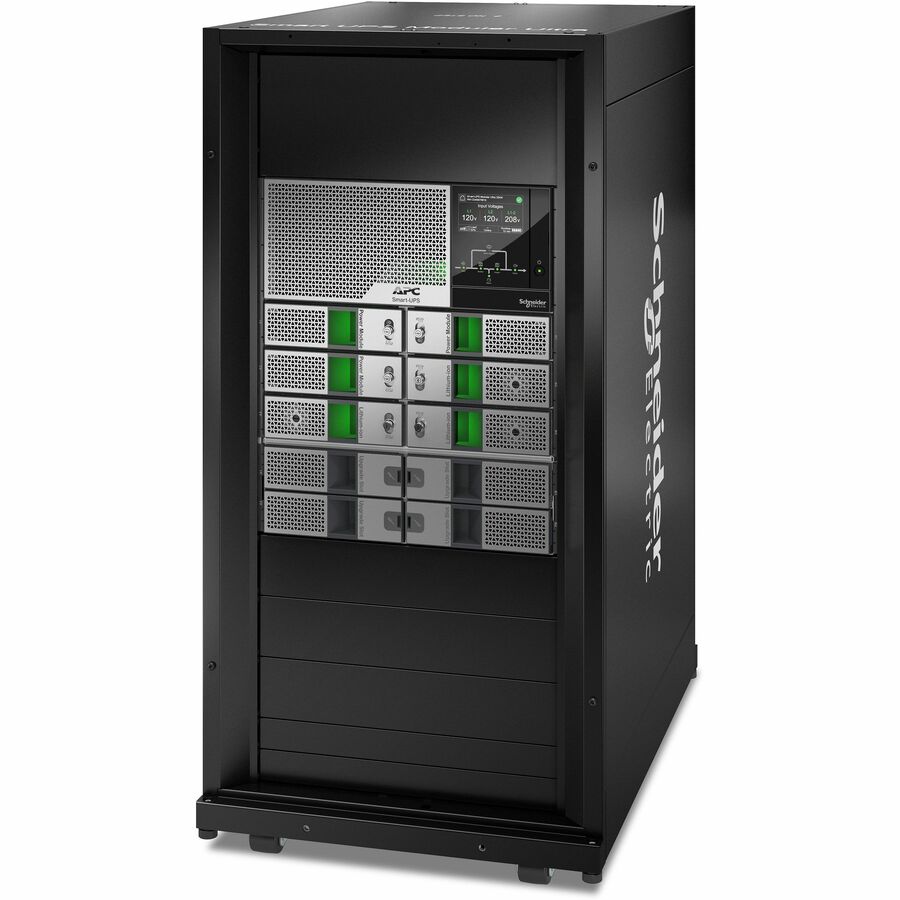

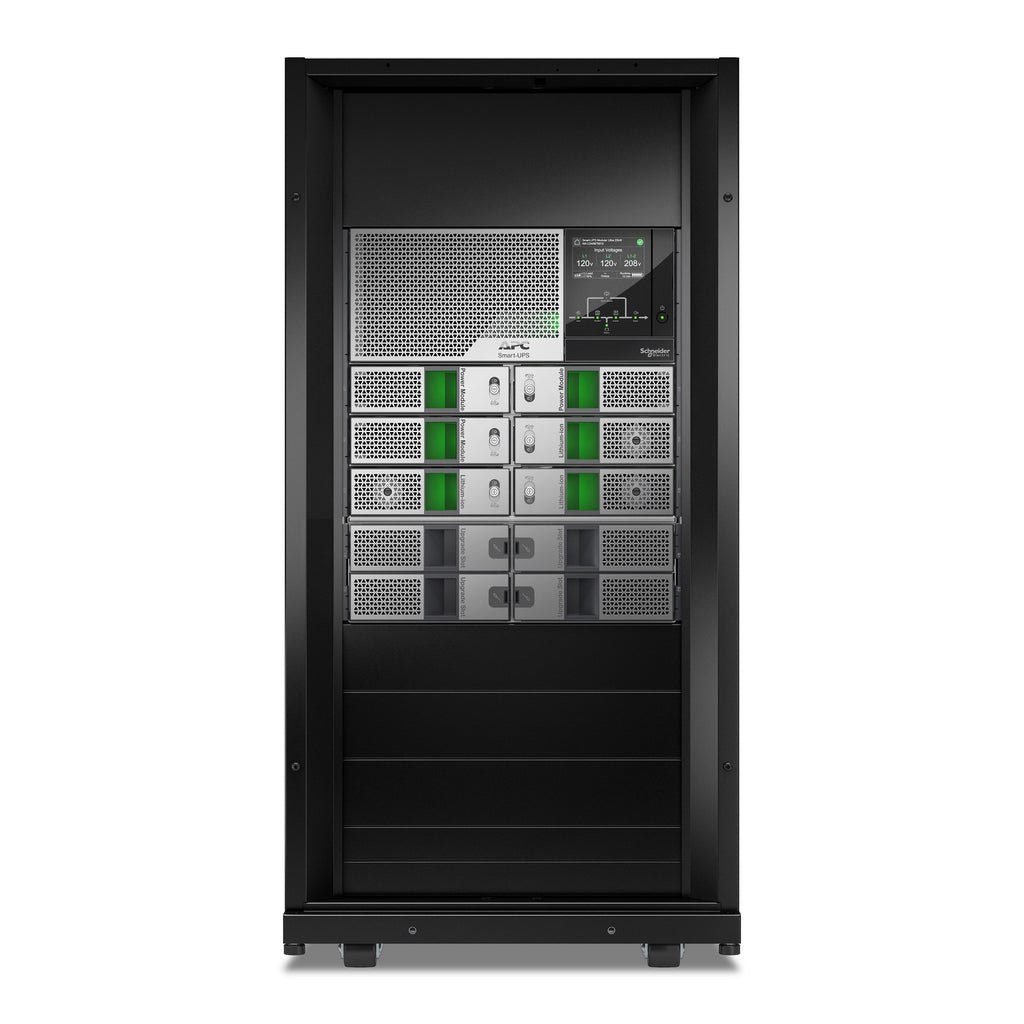

The APC Smart-UPS Modular Ultra SRYL15K20XLT24 delivers high-performance, scalable power protection for mission-critical applications. With 15kW of online double-conversion power, expandable to 20kW N+1 redundancy, this compact 24U tower UPS offers exceptional efficiency and lithium-ion longevity. Designed for edge computing and data-centric environments, it includes hot-swappable modules, a network management card, and a touchscreen LCD—ensuring seamless monitoring, reliability, and space optimization in high-density deployments.
| Category | Details |
|---|---|
| Model | SRYL15K20XLT24 |
| UPS Type | On-Line Double Conversion |
| Rated Power | 15kW / 15kVA |
| Scalability | Up to 20kW N+1 Redundant |
| Form Factor | Tower, 24U |
| Battery Type | Lithium-ion (3 modules included) |
| Battery Life | 8–10 years |
| Input Voltage | 208/240V AC |
| Input Frequency | 40–70 Hz |
| Output Voltage | 120V / 240V AC |
| Output Waveform | Pure Sine Wave |
| Run Time (Full Load) | ~5 minutes 46 seconds @ 15kW |
| Efficiency | ENERGY STAR V2.0 Certified |
| Bypass | Built-in Static Bypass |
| Overload Handling | 125% for 60s, 150% for 30s |
| Communication | Pre-installed Network Management Card |
| Display Interface | Touch Screen LCD |
| EPO (Emergency Power Off) | Yes |
| Dimensions (HxWxD) | 47.2 x 23.6 x 35.4 in (1198 x 600 x 900 mm) |
| Net Weight | 234 kg (515.9 lb) |
| Noise Level | 68 dB |
| Operating Temp | 0–40°C (32–104°F) |
| Altitude | 0–3000 m (operating), 0–15000 m (storage) |
| Certifications | ENERGY STAR V2.0 |
| Warranty | 5 Years |
| GTIN | 731304622086 |
