Description

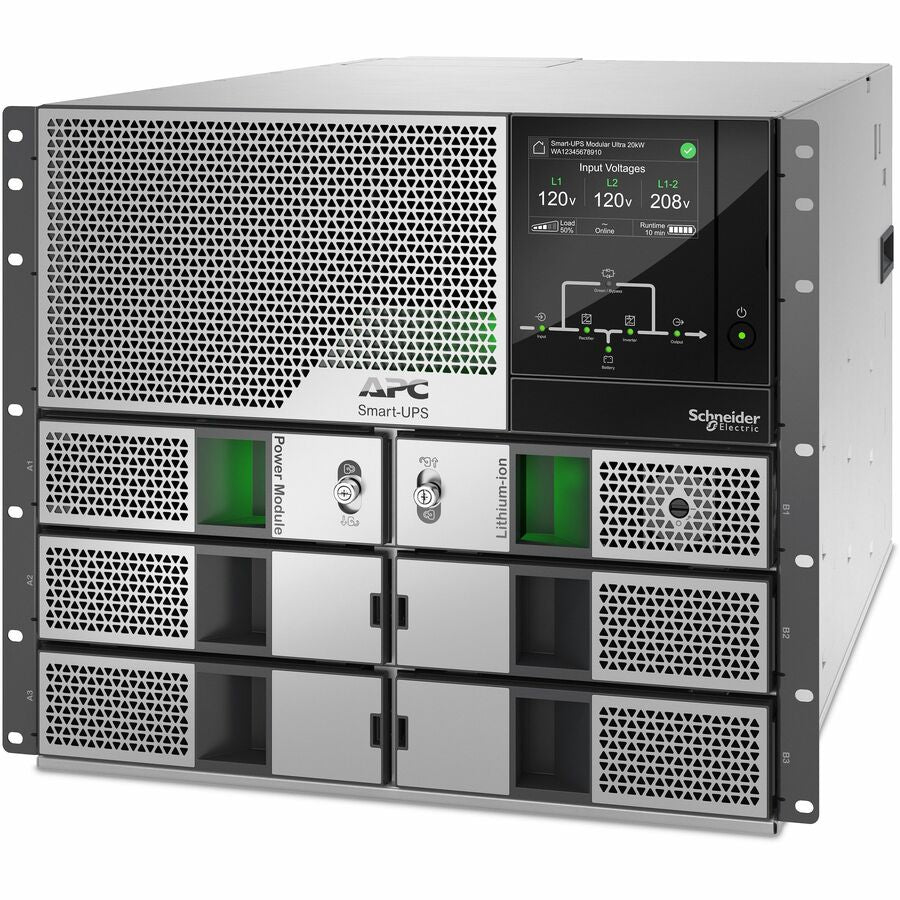

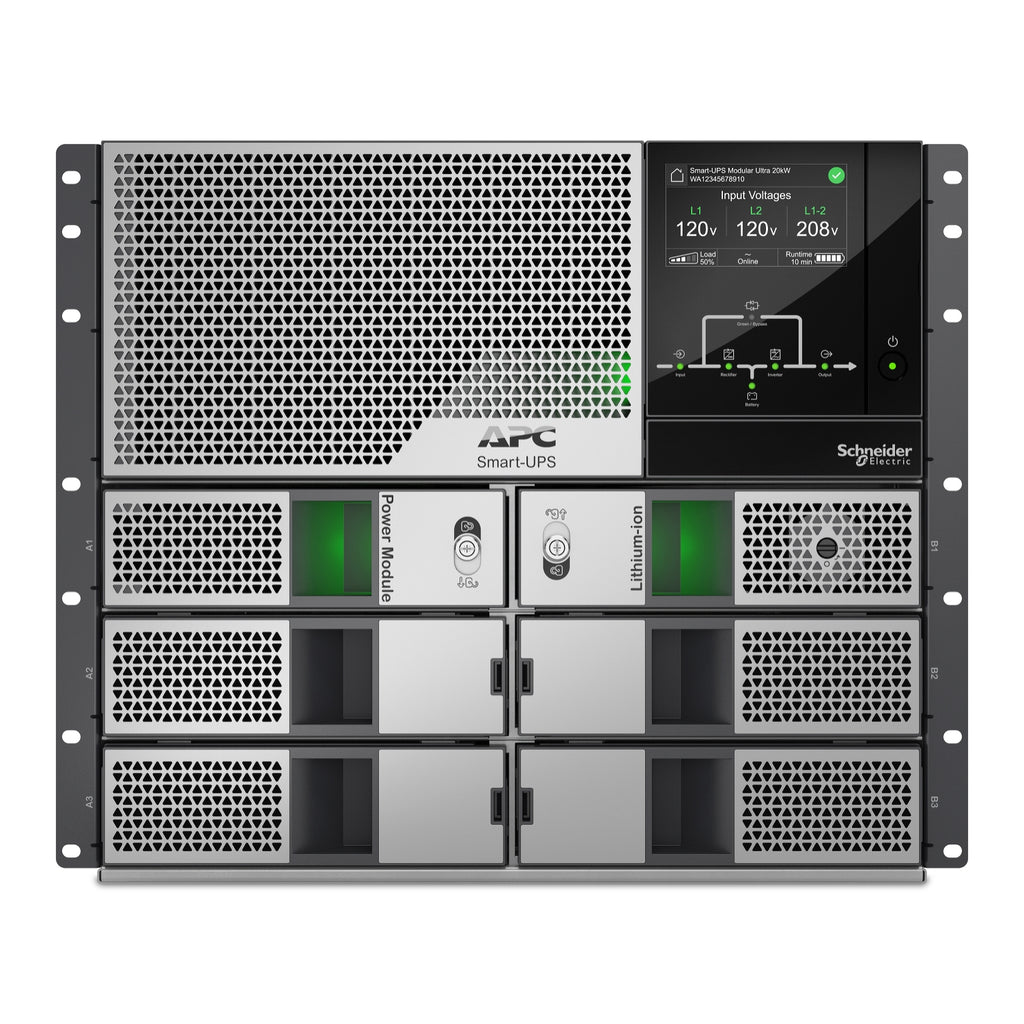

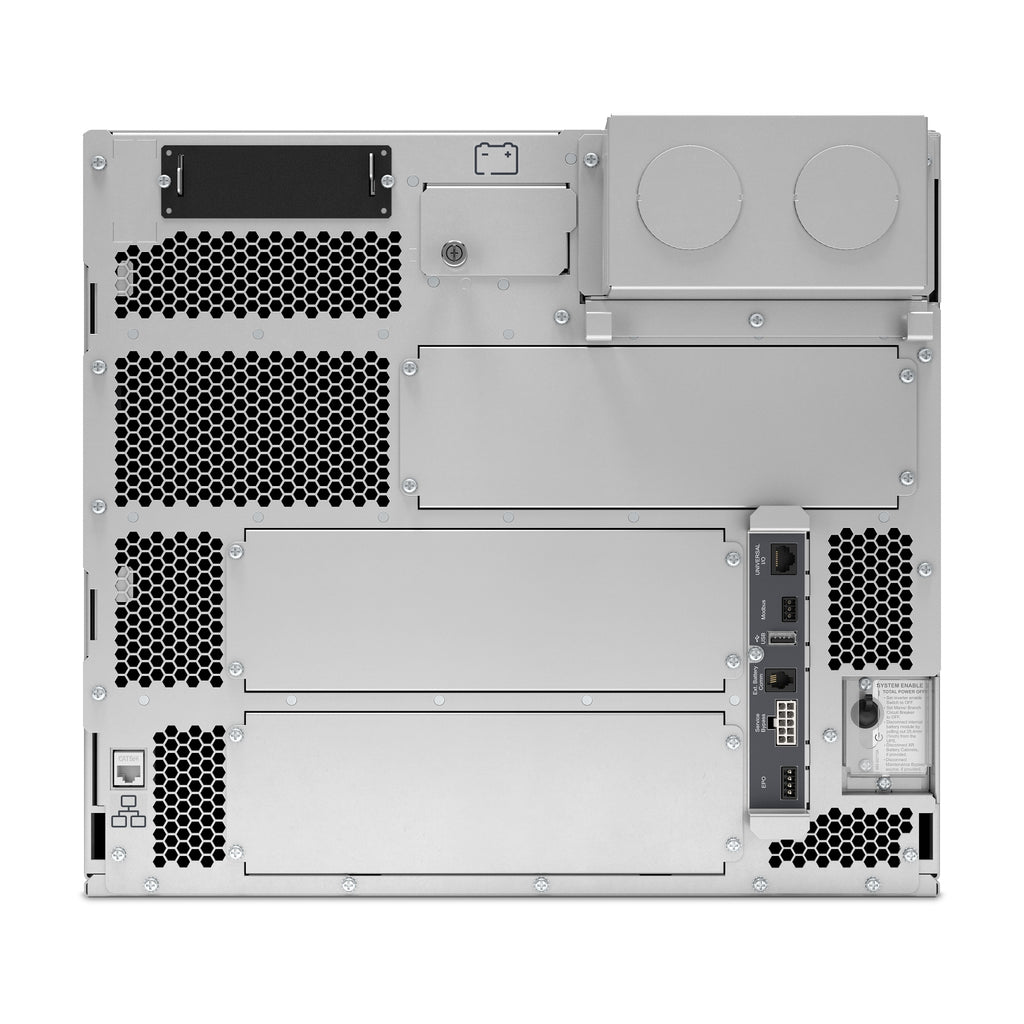

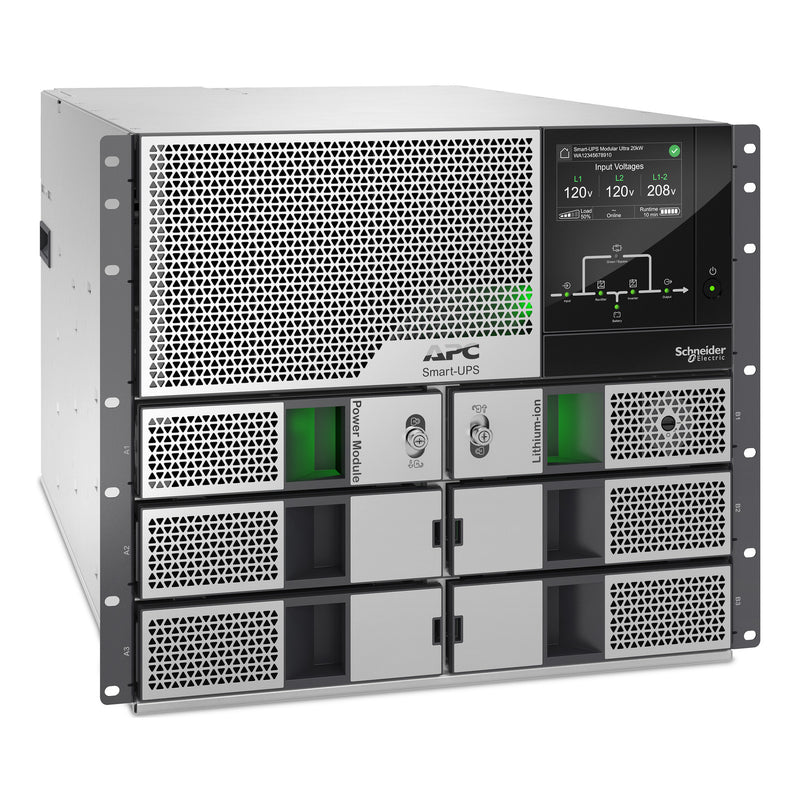

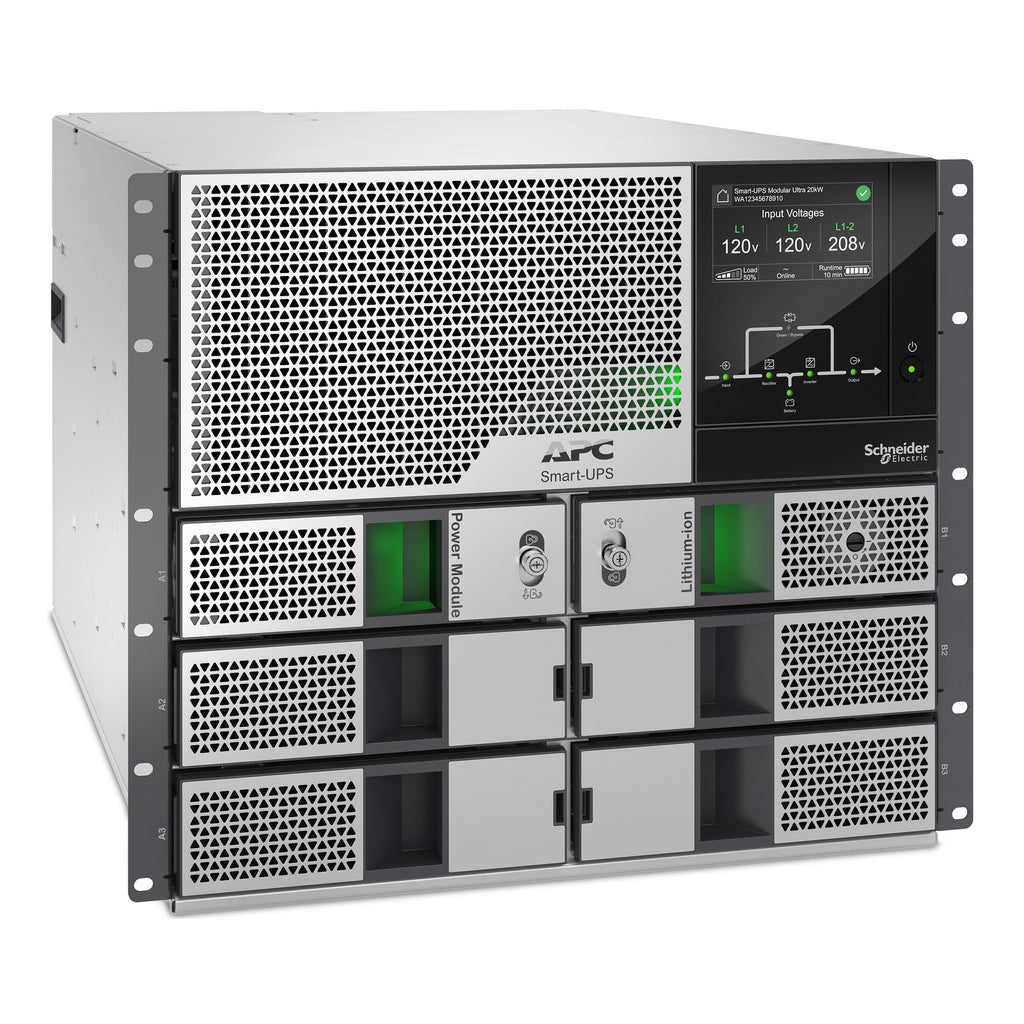

The APC Smart-UPS Modular Ultra (SRYL5K20RMXLT) delivers industry-leading power density, offering 5kW of online double-conversion protection, scalable up to 20kW N+1. Housed in a compact 9U rackmount chassis and powered by lithium-ion technology, this modular UPS is 50% smaller and 60% lighter than comparable models—enabling easier installation with fewer personnel. The 125A chassis supports up to four 5kW power modules and battery modules (sold separately), with built-in redundancy and a pre-installed network management card. Designed for performance and sustainability, it's ideal for mission-critical edge and distributed IT environments.
| Specification | Details |
|---|---|
| Model | SRYL5K20RMXLT |
| Power Capacity | 5kW (Scalable to 20kW N+1) |
| Form Factor | Rackmount 9U |
| Power Modules Installed | 1 (1x 5kW) |
| Power Module Slots | 5 total (1 installed, 4 available) |
| Battery Modules Installed | 1 |
| Battery Slots | 4 total |
| Battery Type | Lithium-ion (8–10 year life) |
| Input Voltage | 208/240V AC |
| Output Voltage | 120V / 208V / 240V |
| Topology | Double Conversion Online |
| Waveform Type | Sine wave |
| Input Frequency | 40–70 Hz |
| Input Connection | Hard Wire 4-wire (2PH+N+G) |
| Max Input Current per Phase | 27 A |
| Mounting Options | Front / Rear / Side (Horizontal) |
| Network Management | 1-Year NMC Subscription Included |
| Communication | USB, LCD Touchscreen, SmartSlot Card |
| Redundancy | Yes (N+1) |
| Certifications | ENERGY STAR V2.0, cULus, FCC |
| Noise Level | 68 dB |
| Operating Temp | 32–104 °F (0–40 °C) |
| Weight | 159.8 lbs (72.5 kg) |
| Dimensions (H x W x D) | 15.4 x 17.3 x 27.6 in |
| Warranty | 5 Years |
| GTIN | 731304420071 |
