Description

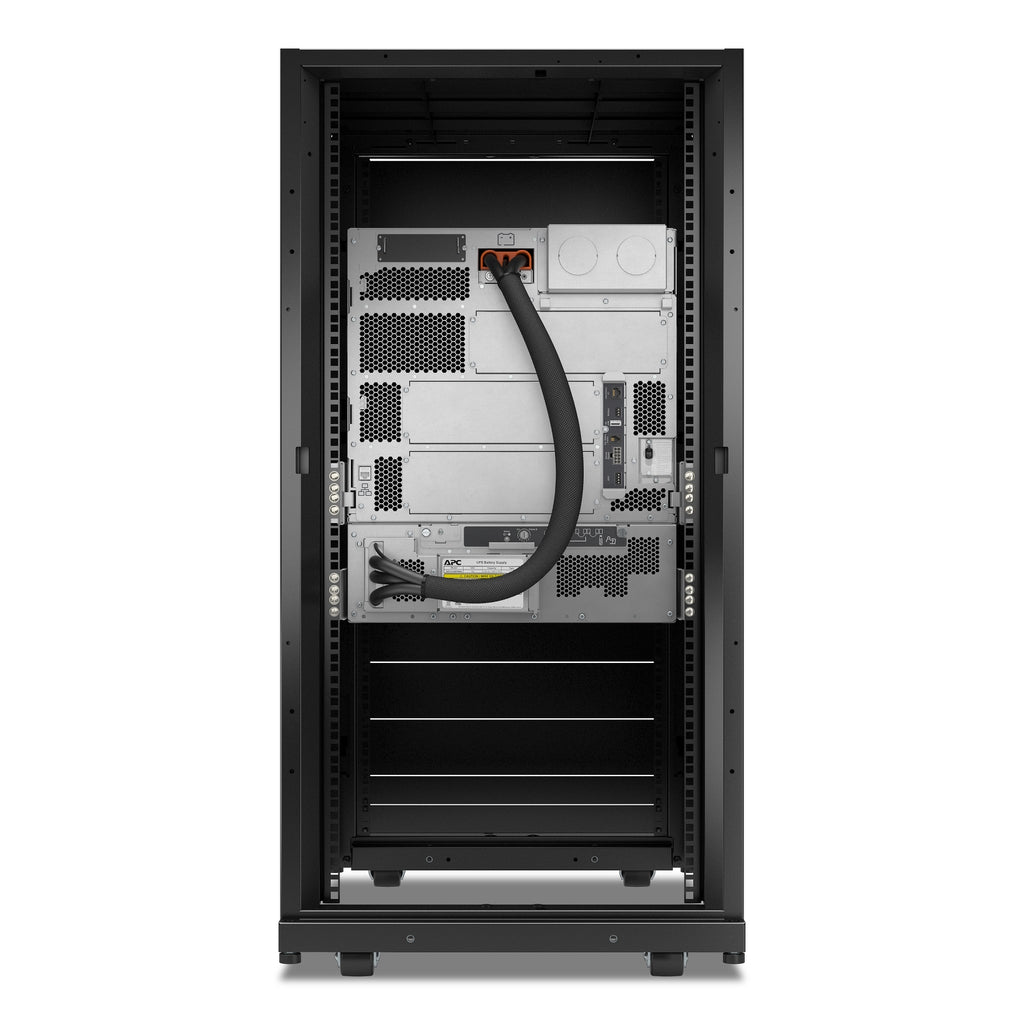

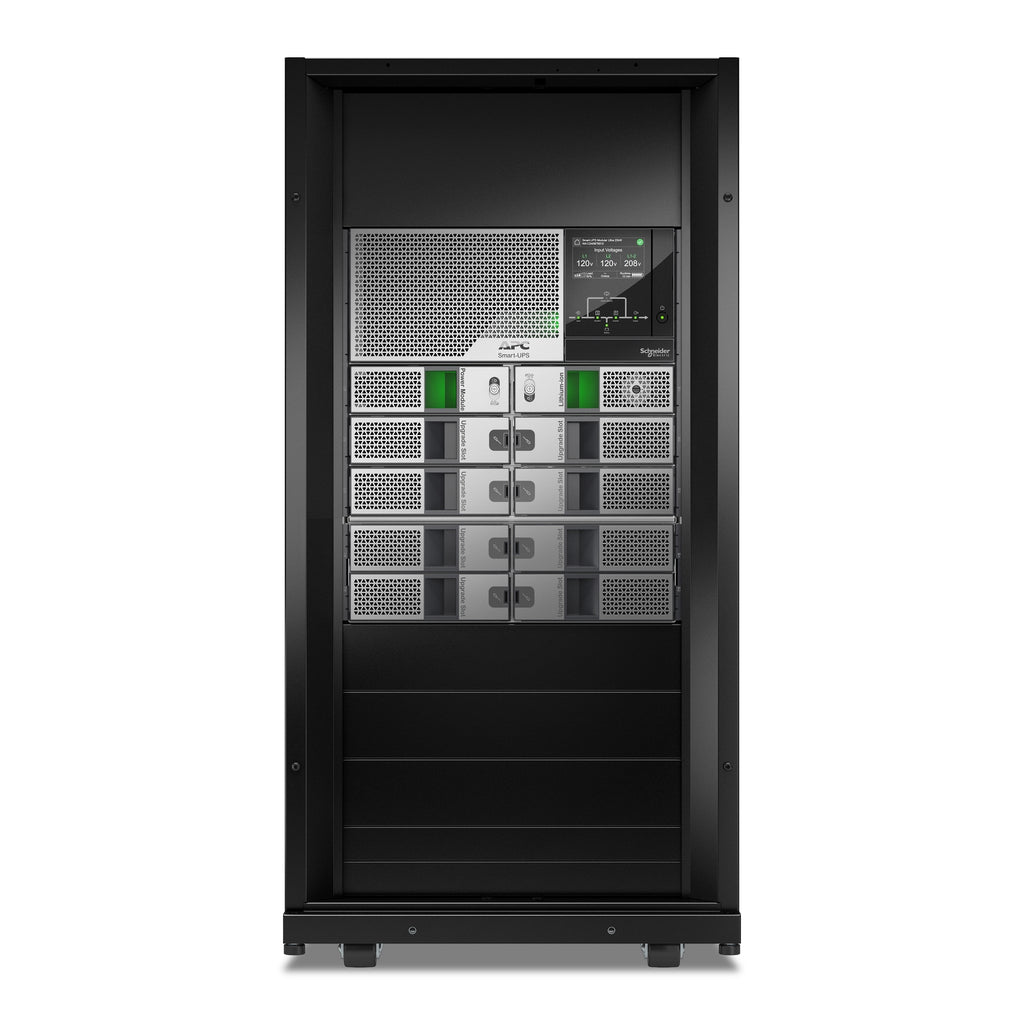

The APC Smart-UPS Modular Ultra SRYL5K20XLT24 delivers robust, scalable power protection in a compact 24U tower form. Starting at 5kW and expandable to 20kW with N+1 redundancy, this modular UPS system offers lithium-ion battery technology, liveswap design, and integrated network management for superior performance in edge or distributed IT environments. The system includes one power module and one battery module with a 5-year warranty and EcoStruxure readiness for remote monitoring and management.
| Category | Details |
|---|---|
| Model | SRYL5K20XLT24 |
| Product Type | Uninterruptible Power Supply (UPS) |
| Form Factor | Tower, 24U |
| Power Capacity | 5000W / 5000VA (Scalable to 20kW, N+1) |
| Battery Type | Lithium-Ion (Li-Ion) |
| Battery Modules | 1 included (8–10 year life) |
| Power Modules | 1 installed (5kW) |
| Input Voltage | 208/240V AC |
| Output Voltage | 120V / 240V AC |
| Waveform | True Sine Wave |
| Input Frequency | 40–70 Hz |
| Bypass Type | Built-in Bypass |
| Mounting Location | Front |
| Color | Black and Silver |
| Interface | Touchscreen LCD |
| Remote Management | Network Management Card (1-Year Subscription) |
| EcoStruxure Ready | Yes |
| Run Time (Full Load) | Approx. 5 min 49 sec @ 5000W |
| Certifications | ENERGY STAR V2.0 (USA) |
| Acoustic Level | 68 dB |
| Operating Temp | 32–104°F (0–40°C) |
| Dimensions (HxWxD) | 47.2 x 23.6 x 35.4 in (1198 x 600 x 900 mm) |
| Net Weight | 430.3 lb (195.2 kg) |
| Package Weight | 479.64 lb (217.56 kg) |
| GTIN | 731304622062 |
| Warranty | 5 Years |
