Description

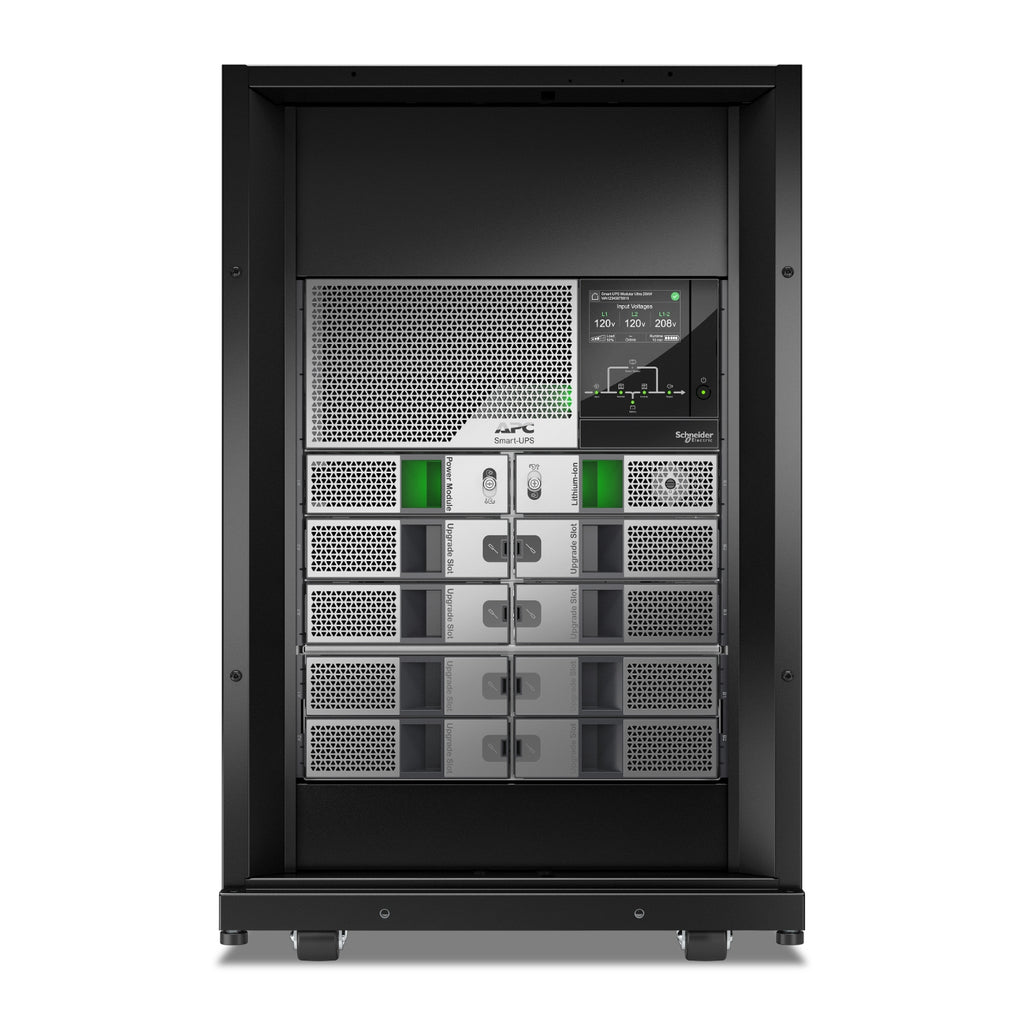

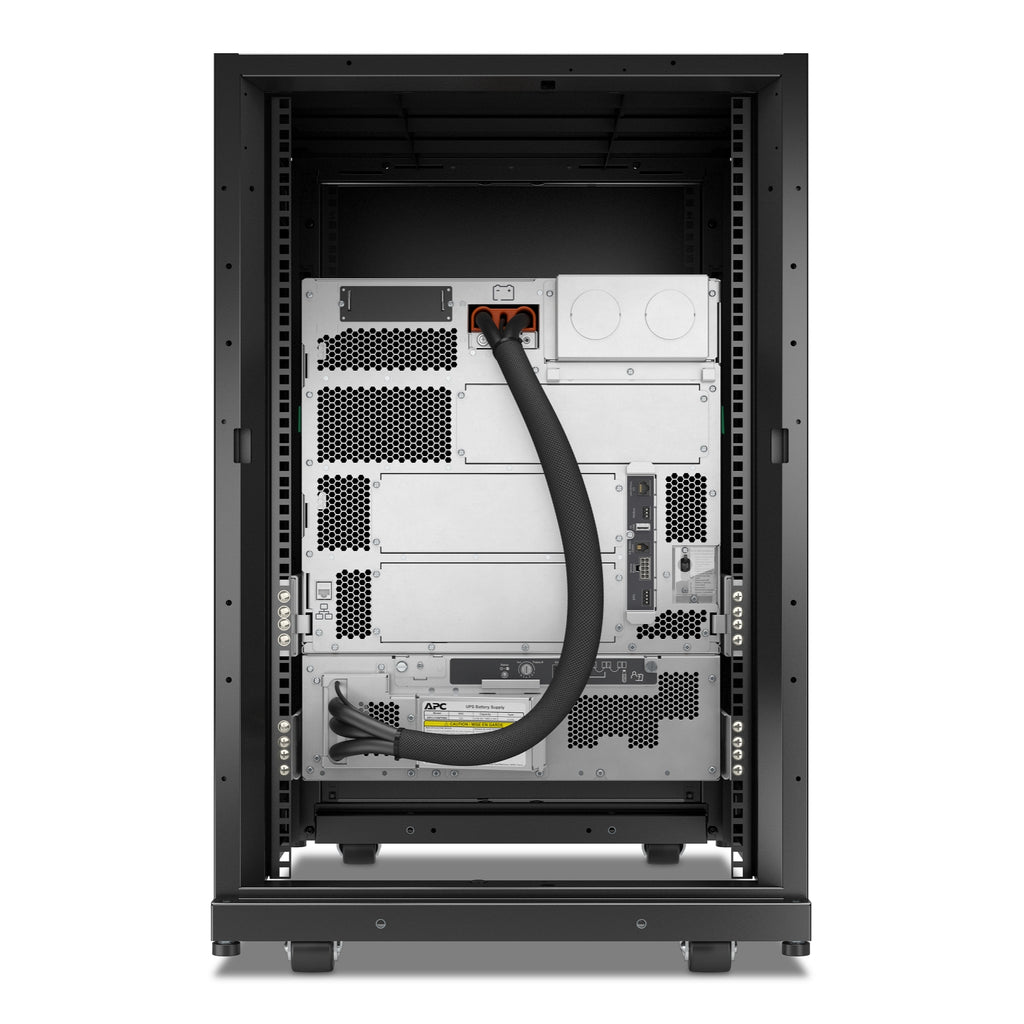

The APC Smart-UPS Modular Ultra SRYL5K20XLT18 delivers scalable, high-efficiency power protection in a compact 18U tower design. Equipped with 1 x 5kW power module and 1 battery module, it supports live-swap capability and can scale up to 20kW N+1. Featuring lithium-ion batteries for long life and reduced maintenance, this UPS is up to 50% smaller and lighter than comparable systems. Engineered for sustainability and edge environments, it includes a 1-year Secure Network Management Card subscription and delivers clean, reliable power with ENERGY STAR certification.
| Category | Details |
|---|---|
| Model Number | SRYL5K20XLT18 |
| Product Type | Uninterruptible Power Supply (UPS) |
| Topology | Double Conversion Online |
| Power Capacity | 5kW (scalable to 20kW N+1) |
| Voltage (Input/Output) | 208/240V AC / 120V, 240V AC |
| Battery Type | Lithium-ion (Li-Ion) |
| Battery Modules Installed | 1 |
| Battery Design Life | 8–10 years |
| Runtime at Full Load | 5 minutes 49 seconds @ 5kW |
| UPS Form Factor | Tower (18U) |
| Mounting Location | Front |
| Network Management | Included (1-Year Subscription) |
| Display Interface | Touch Screen LCD |
| Input Frequency | 40–70 Hz |
| Input Connector | Hard Wire 4-wire (2PH+N+G) |
| Max Input Current/Phase | 27 A |
| Output Waveform | Sine Wave |
| Bypass Type | Built-in Bypass |
| Overload Capacity | 60s @ 125%, 30s @ 150% |
| Efficiency Rating | ENERGY STAR V2.0 Certified |
| Sustainability | Best-in-class embodied carbon reduction |
| Acoustic Level | 68 dB |
| Dimensions (HxWxD) | 37.09 x 23.6 x 35.4 in (942 x 600 x 900 mm) |
| Net Weight | 184.2 kg (406.09 lb) |
| Operating Temp | 0–40 °C (32–104 °F) |
| Altitude (Operating) | Up to 3000 m (9842.5 ft) |
| Warranty | 5 Years |
| GTIN | 731304621997 |
