Description

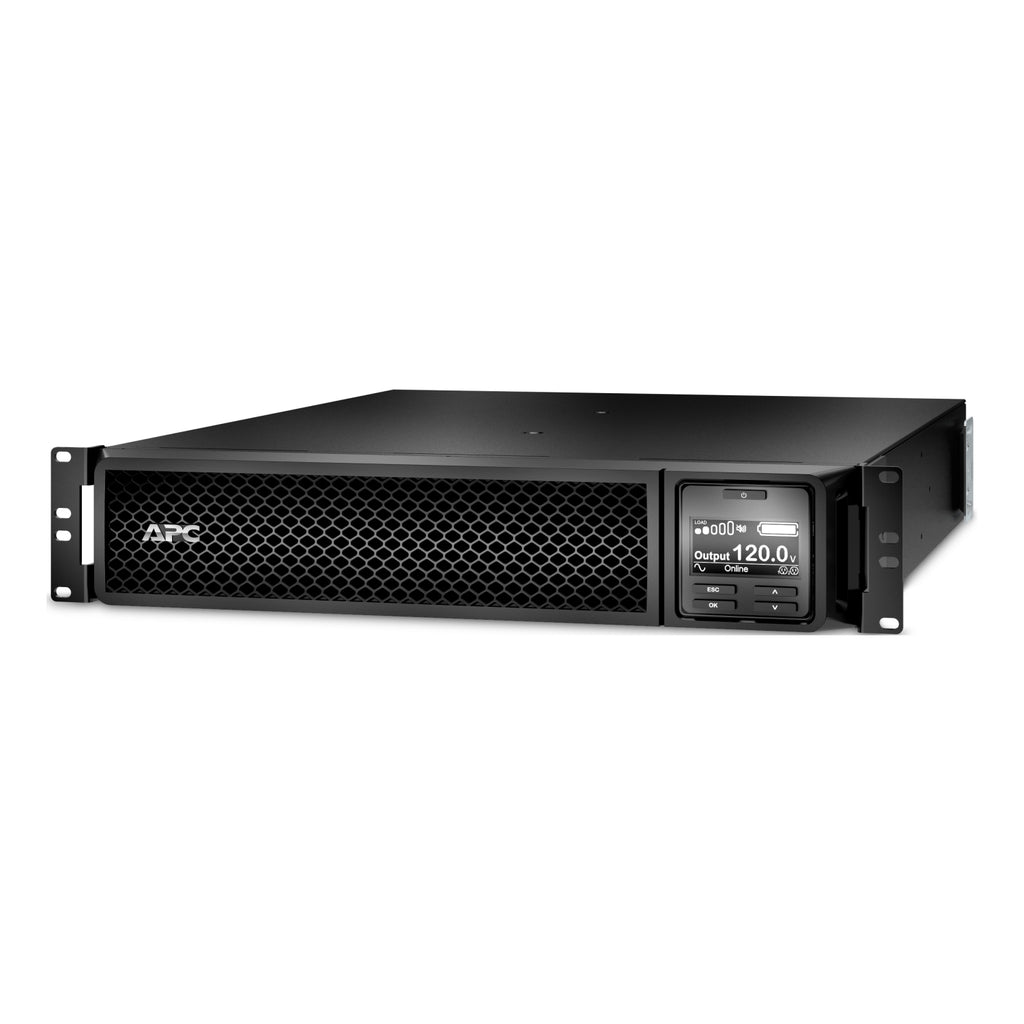

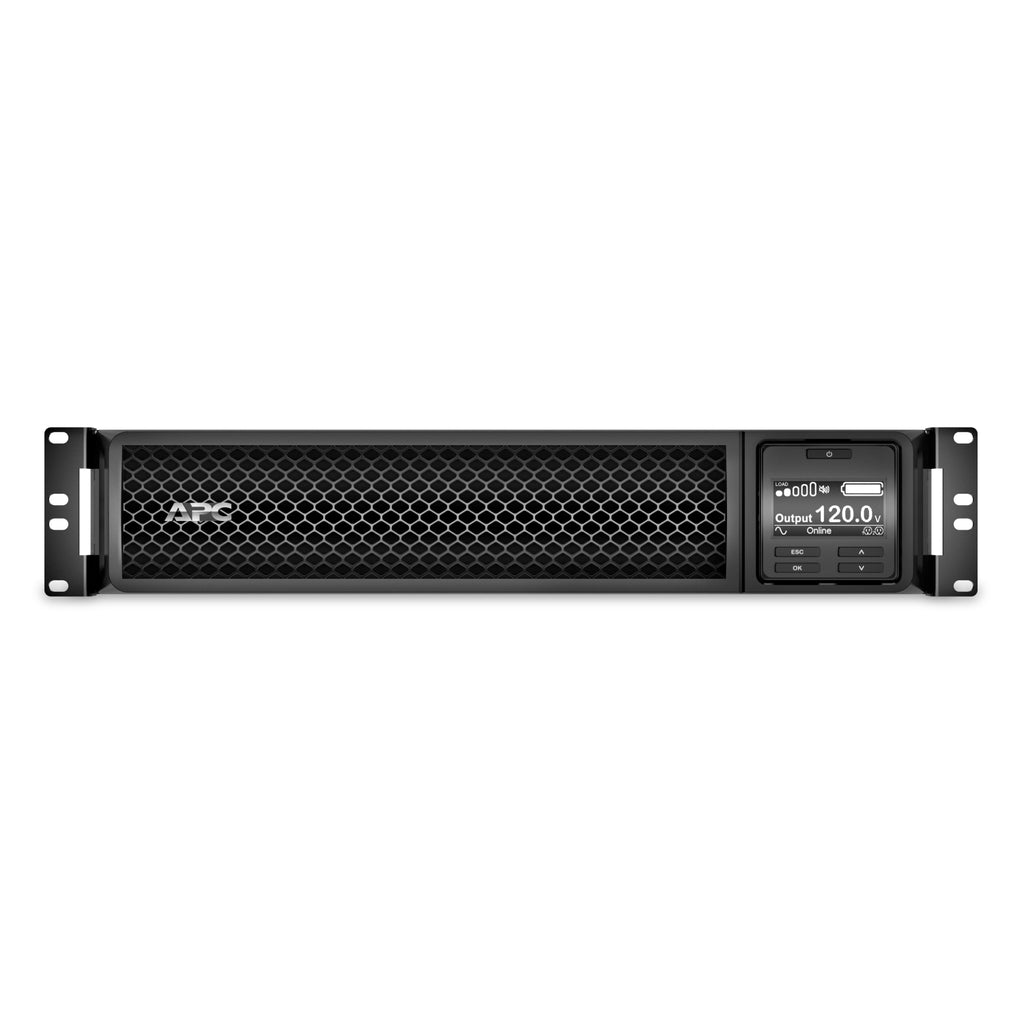

The APC Smart-UPS On-Line SRT1000RMXLA delivers high-performance double-conversion power protection for mission-critical IT equipment. With a 1000VA/900W capacity, this 2U rackmount UPS ensures clean, continuous power and zero transfer time during outages. Equipped with a pre-installed Network Management Card 3 and environmental monitoring, it provides real-time remote management via web, SNMP, or EcoStruxure™ IT.
Featuring 6 NEMA 5-15R outlets, extended runtime compatibility, and ENERGY STAR® V2.0 certification, the SRT1000RMXLA guarantees efficiency and reliability. Designed with a lead-acid 48V battery, USB and serial connectivity, and an included rail kit, it’s ideal for server rooms, network closets, and edge computing environments requiring scalable power backup.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT1000RMXLA |
| Product Type | Online Double-Conversion UPS |
| Form Factor | Rackmount 2U |
| Power Capacity | 1000 VA / 900 W |
| Input Voltage | 120 V AC, 1 Phase |
| Output Voltage | 120 V AC, 1 Phase |
| Input Connection | NEMA 5-15P |

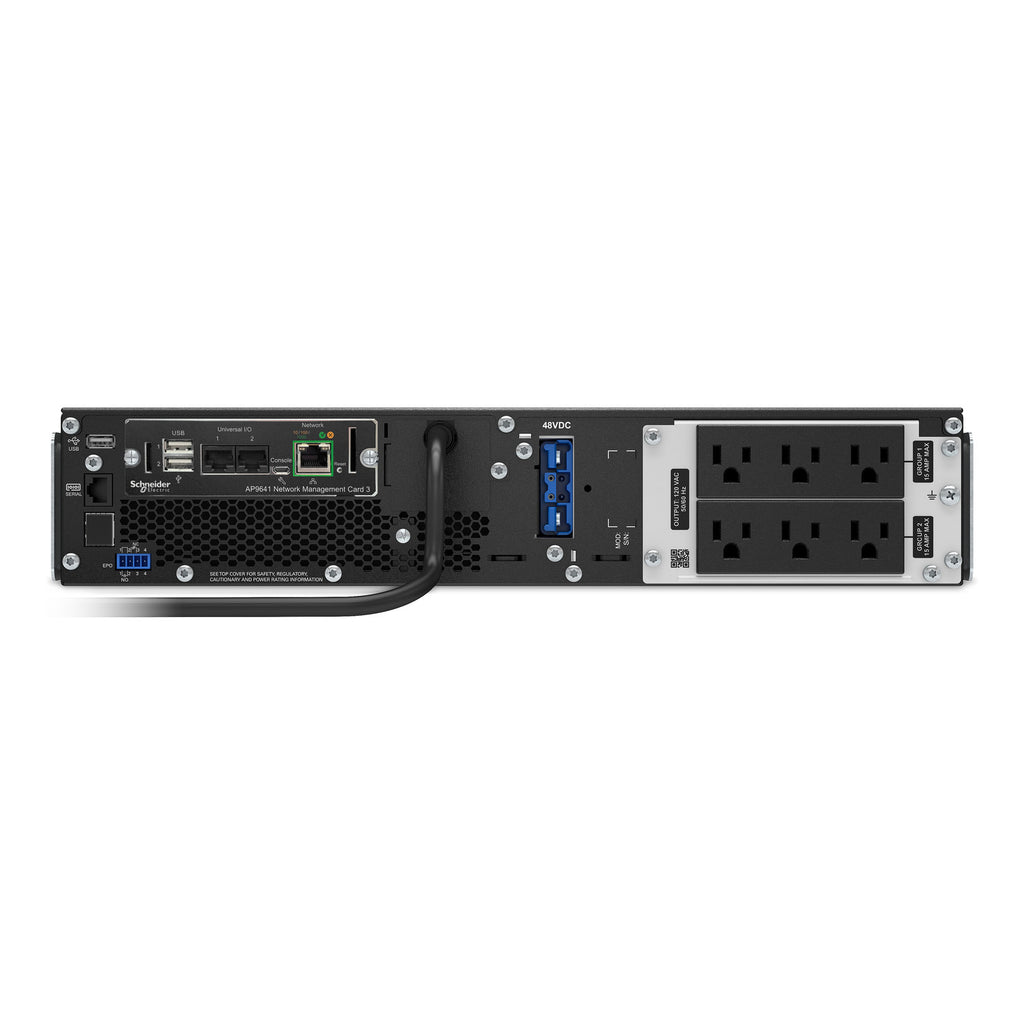

| Output Connections | 6 × NEMA 5-15R |
| Battery Type | Lead-acid, 48 V |
| Runtime Expandability | Yes (Extended Runtime Supported) |
| Typical Recharge Time | 3 hours |
| Replacement Battery | APCRBC155 |
| Network Management | Pre-installed Network Management Card 3 (with Environmental Monitoring) |
| Connectivity | USB, Serial Port, EPO (Emergency Power Off) |
| Bypass Type | Built-in Static Bypass |
| Waveform | Pure Sine Wave |
| Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Efficiency | ENERGY STAR® UPS V2.0 Certified |
| Acoustic Noise Level | 50 dBA |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Relative Humidity | 0–95% non-condensing |

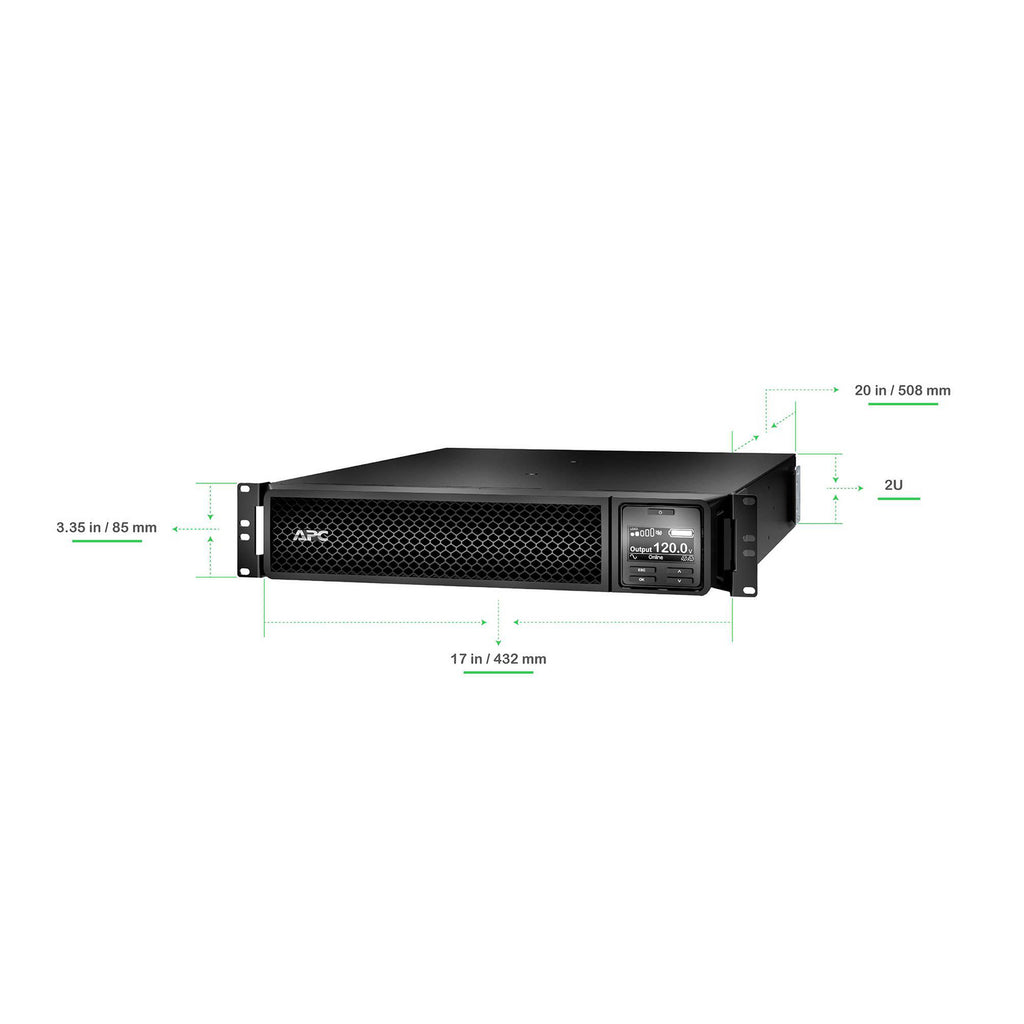

| Dimensions (H × W × D) | 3.3 × 17.0 × 20.0 in (85 × 432 × 508 mm) |
| Net Weight | 48.5 lb (22 kg) |
| Package Weight | 71.8 lb (32.6 kg) |
| Included Accessories | Network Card, USB Cable, Temperature Probe, Rack Hardware, Rails, Installation Guide |
| Certifications | ENERGY STAR® V2.0 (USA), RoHS, REACh Compliant |
| Protection Rating | IP20 |
| Warranty | 3-Year Warranty (UPS), 2-Year Warranty (Battery) |
| GTIN | 731304329978 |
