Description

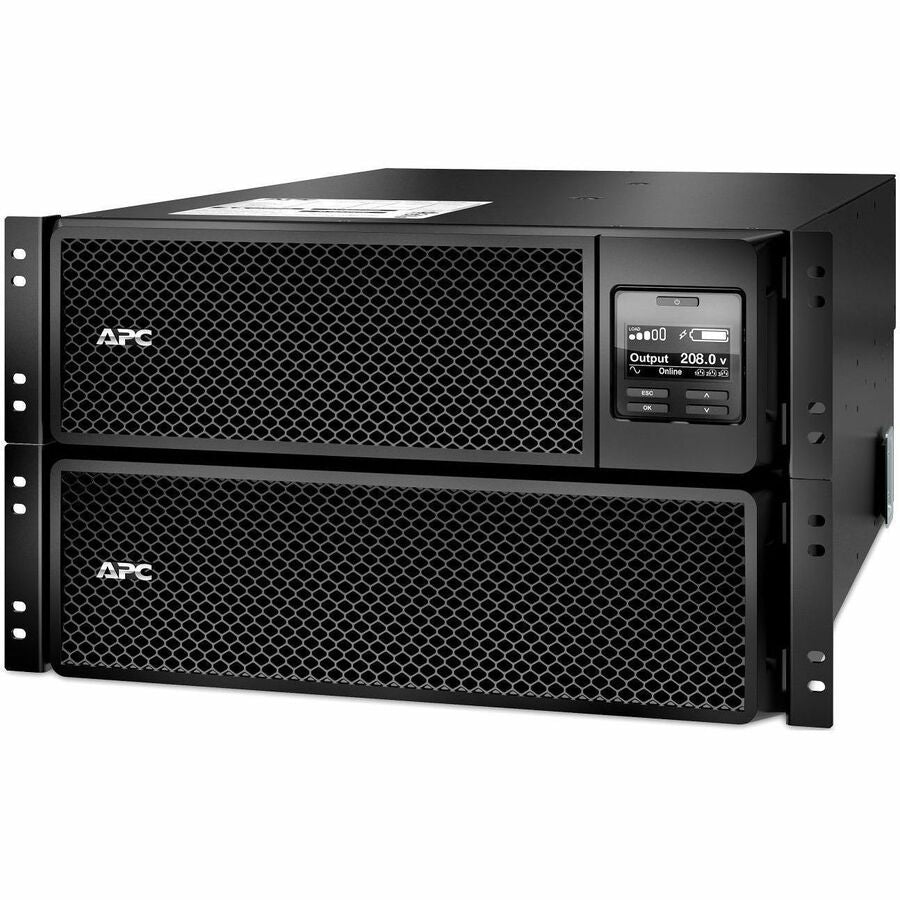

The APC SRT10KRMXLT-A Smart-UPS On-Line is a high-density, true double-conversion UPS designed for critical servers, networking equipment, and light industrial applications. Delivering 10kVA/10kW of reliable power in a compact 6U rackmount form factor, it ensures continuous uptime with pure sine wave output and advanced battery management.
This model supports hard wire 3-wire (2P+E) input and features 4x NEMA L6-20R and 2x NEMA L6-30R output receptacles. It comes with a pre-installed Network Management Card for remote monitoring, a SmartSlot for additional accessories, and support for EcoStruxure IT integration.
The UPS includes rack-mounting hardware, temperature probe, USB cable, and is backed by a 3-year warranty (UPS) and 2-year warranty (battery). Compatible replacement battery cartridge: APCRBC140.
| Specification | Details |
|---|---|
| Model | SRT10KRMXLT-A |
| Form Factor | Rackmount 6U |
| Power Capacity | 10kVA / 10kW |
| Input Voltage | 208V (also supports 240V) |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V (also supports 240V) |

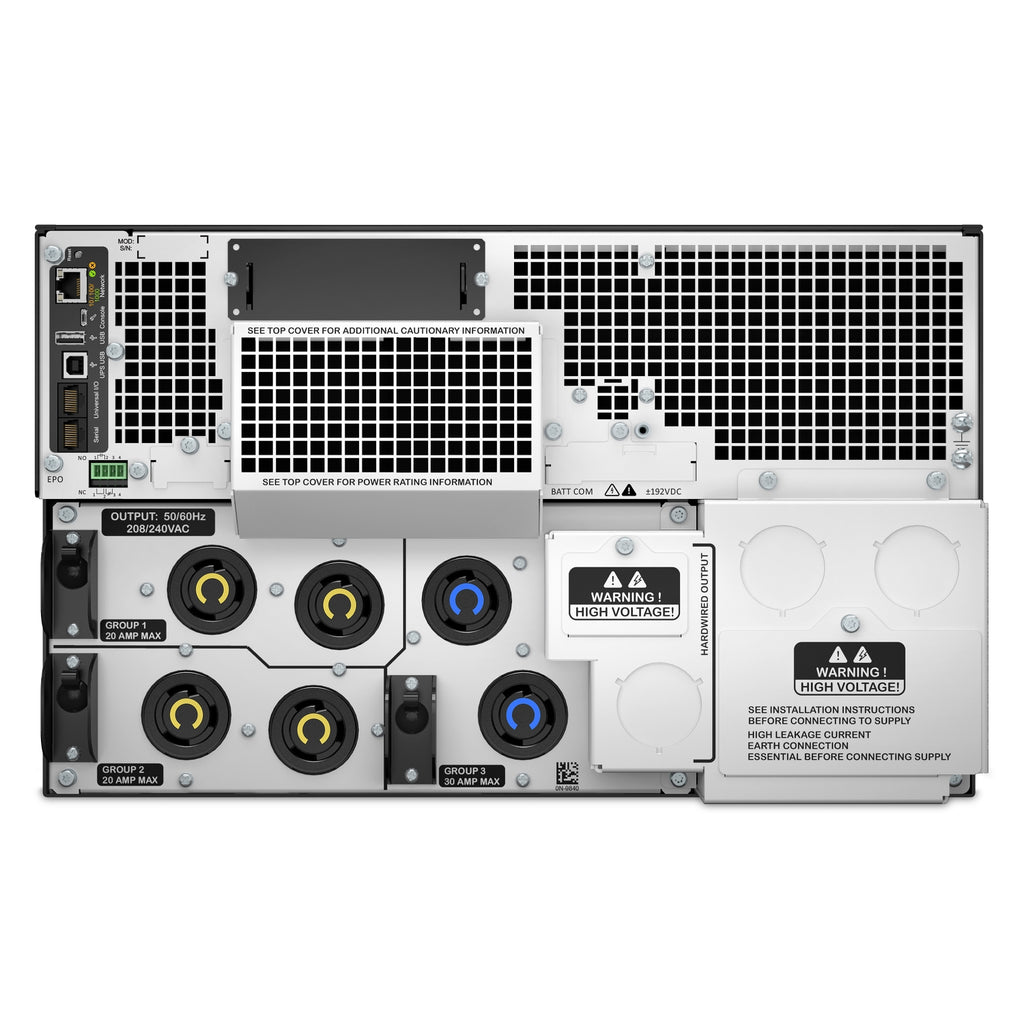

| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Waveform | Pure Sine Wave |
| Topology | Double Conversion Online |
| Runtime Extension | Supported |
| Included Battery | None (compatible with APCRBC140, qty 2) |
| Battery Type | Lead-acid, ±192V |
| Recharge Time | 1.5 hours |
| Efficiency | ENERGY STAR V2.0 certified |
| Bypass Type | Internal (automatic and manual) |
| Dimensions (HxWxD) | 10.35 x 17.01 x 28.15 in (263 x 432 x 715 mm) |
| Weight | 245.99 lb (111.58 kg) |
| Rack Mount Kit | Included |
| Environment Monitoring | Yes, via NMC card |
| Communications Ports | USB, SmartSlot, EPO |
| Certifications | UL 1778, FCC Part 15 Class A, NOM, TAA, BAA |
| Operating Temp | 0–40°C |
| Audible Noise | 55 dBA |
| Warranty | 3 years (UPS), 2 years (battery) |
