Description

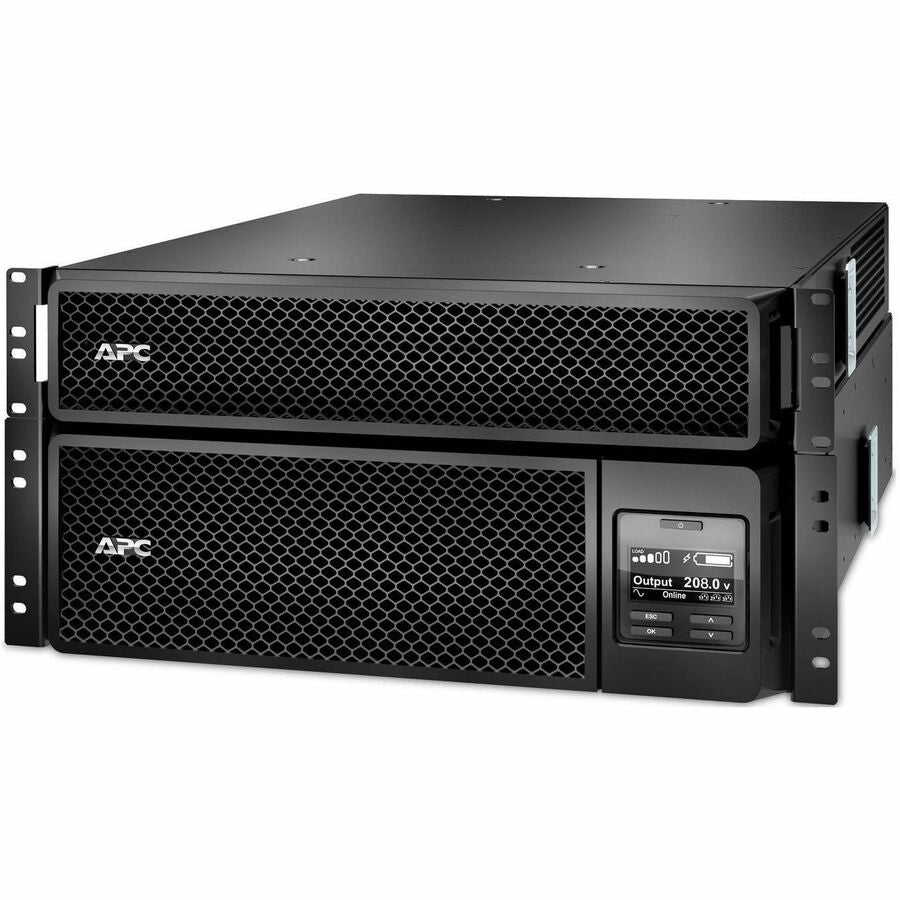

The APC Smart-UPS On-Line SRT5KRMXLT-5KTF-A is a high-performance double-conversion UPS designed to ensure uninterrupted power for mission-critical servers, network hardware, medical labs, and light industrial environments. With 5000VA/4800W capacity, this 5U rackmount UPS includes an integrated transformer for 208V to 120V output conversion and delivers clean sine wave power with extended runtime capabilities. It features 12 NEMA 5-20R, 2 NEMA L6-20R, and 2 NEMA L6-30R outlets, plus SmartSlot and a pre-installed Network Management Card for advanced remote monitoring. Compliant with BAA/TAA and made in the USA, it’s ideal for government and enterprise use. Includes rack rails, USB cable, documentation, and a 3-year warranty (2 years for the battery).
| Specification | Details |
|---|---|
| Model | SRT5KRMXLT-5KTF-A |
| Topology | Double Conversion Online |
| Power Capacity | 5kVA / 4.8kW |
| Input Voltage | 208V (NEMA L6-30P) |
| Output Voltage | 120V (transformed from 208V) |

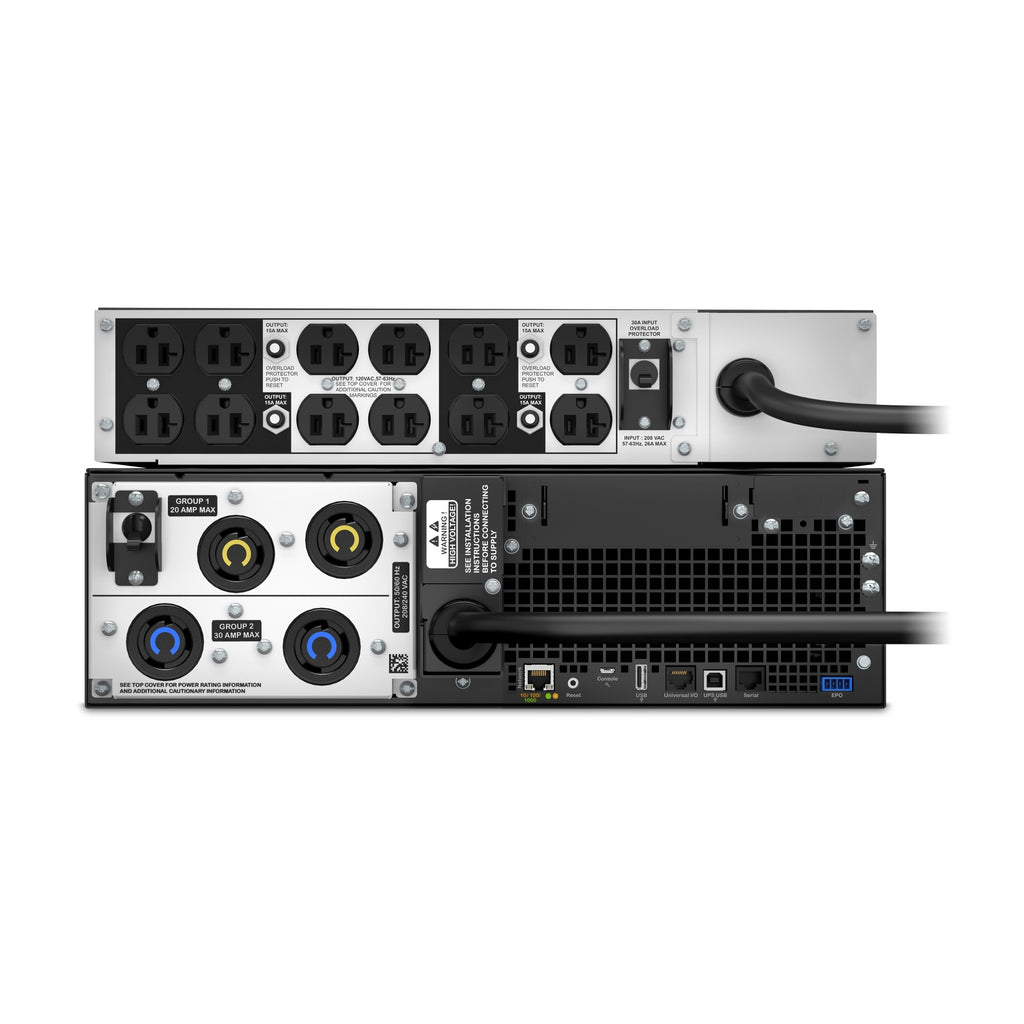

| Output Connections | 12 × NEMA 5-20R, 2 × NEMA L6-20R, 2 × NEMA L6-30R |
| Rack Size | 5U |
| Mounting | Rackmount with included rail kit |
| Battery Type | Lead-Acid, 192V |
| Replacement Battery | APCRBC140 |
| Battery Recharge Time | 1.5 hours |
| Battery Life | 3–5 years |
| Extendable Runtime | Not currently available |
| Communication | SmartSlot, Network Management Card 3 (pre-installed) |
| Waveform Type | Pure Sine Wave |
| Efficiency | High-efficiency mode available |
| Alarms | Audible and visual, severity-prioritized |
| Certifications | ENERGY STAR V2.0, BAA, TAA |
| Color | Black |
| Dimensions (HxWxD) | 8.58 × 17.01 × 28.31 in (218 × 432 × 719 mm) |
| Weight | 217.99 lbs (98.88 kg) |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Included Accessories | USB cable, user manual, rail kit, NMC, warranty card |
| Warranty | 3 years (UPS), 2 years (battery) |
