Description

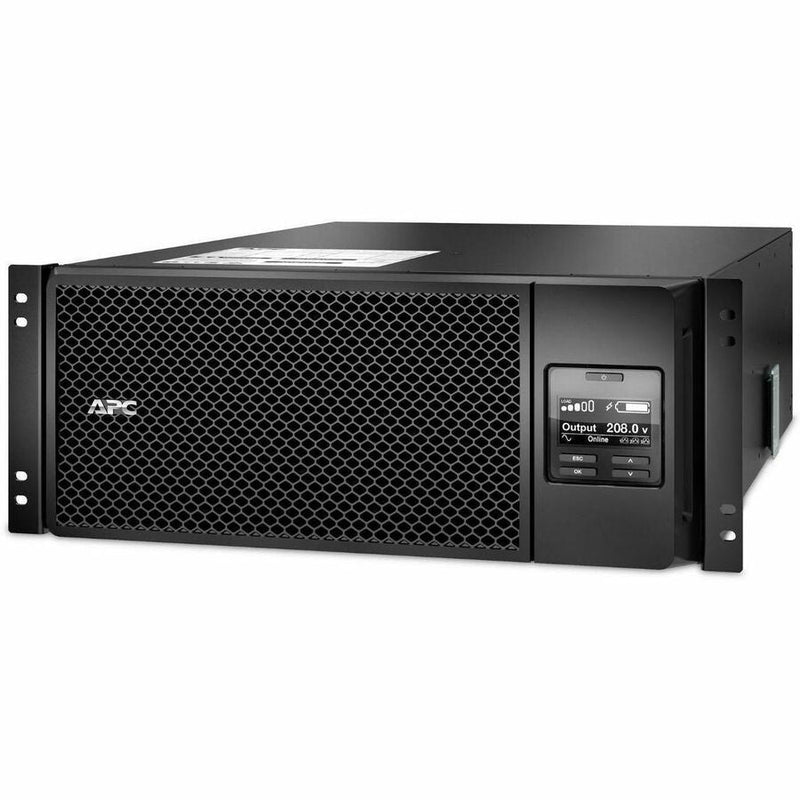

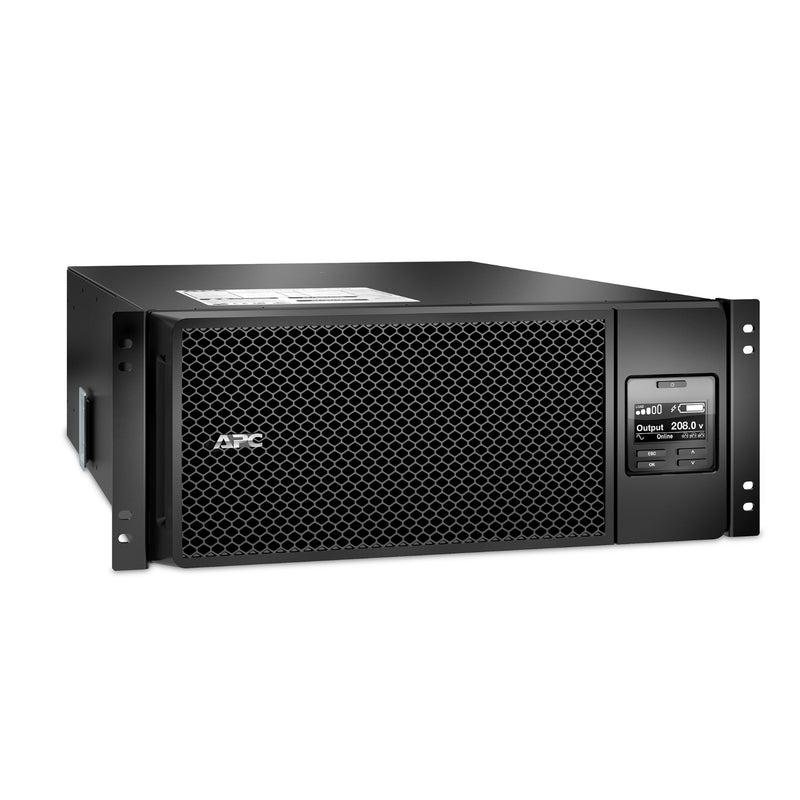

The APC Smart-UPS On-Line SRT6KRMXLT-A is a high-performance 6kVA/6kW double-conversion UPS designed to provide clean, continuous power for critical IT equipment. With a compact 4U rackmount form factor, this UPS is ideal for servers, storage systems, networking gear, medical labs, and industrial environments. It features 2x NEMA L6-20R and 3x NEMA L6-30R outlets, Hard Wire 3-wire input, and includes a pre-installed Network Management Card for remote control and monitoring. It supports extended runtime (external battery modules sold separately) and integrates with EcoStruxure IT for advanced energy and infrastructure visibility.
| Feature | Details |
|---|---|
| Model Number | SRT6KRMXLT-A |
| Topology | Double Conversion Online |
| Form Factor | Rackmount 4U |
| Input Voltage | 208V (also supports 240V) |
| Output Voltage | 208V (configurable to 240V) |
| Power Capacity | 6kVA / 6kW |
| Input Connection | Hard Wire 3-wire (2PH + G) |

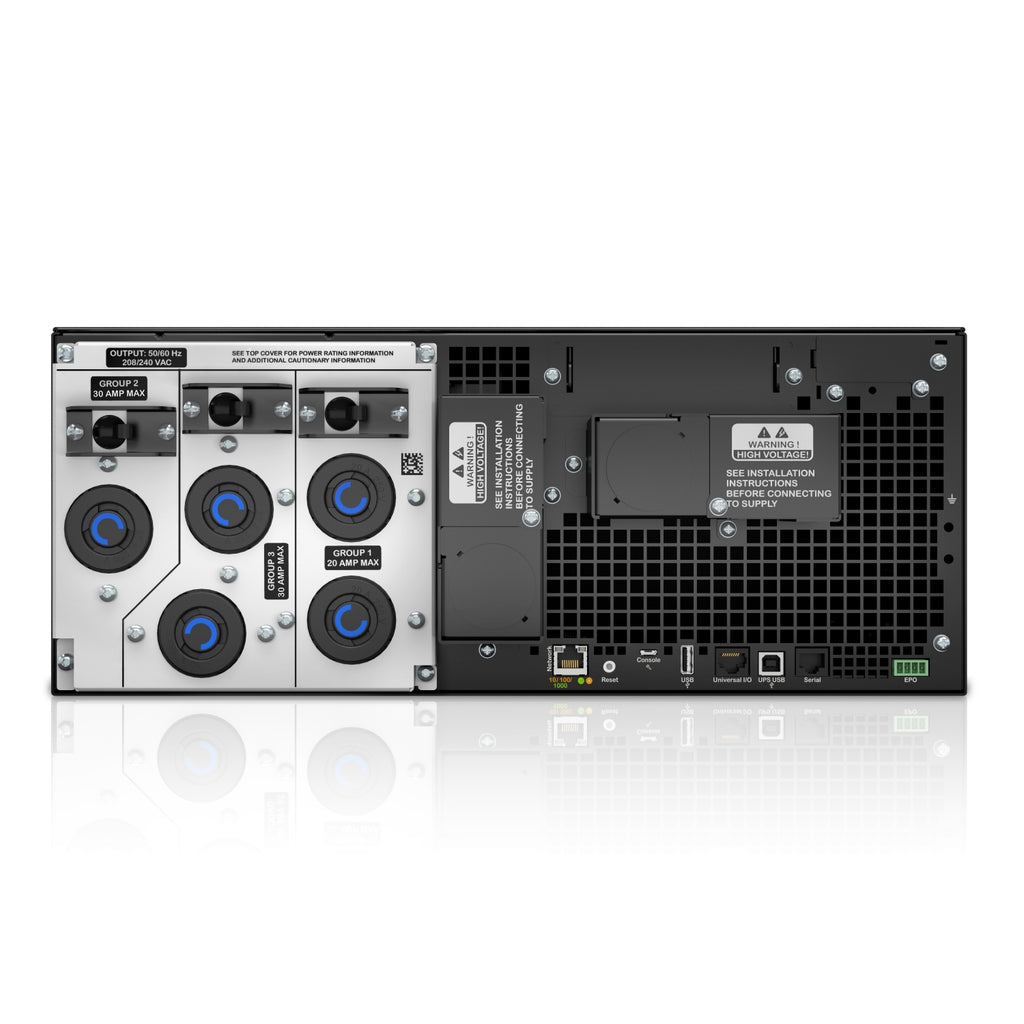

| Output Connections | 2x NEMA L6-20R, 3x NEMA L6-30R |
| Waveform Output | Pure Sine Wave |
| Runtime Expandable | Yes (Battery Module: APCRBC140) |
| Included Accessories | Rail kit, USB cable, temperature probe, software CD, docs |
| Battery Type | Lead-Acid, 192V, recharge in 1.5 hours |
| Battery Warranty | 2 years (Battery), 3 years (UPS unit) |
| Mounting Options | Horizontal rack mount |
| Network Management | Embedded Network Card + SmartSlot |
| Environmental | 0–40°C, 0–95% RH, 0–10,000 ft operating altitude |
| Certifications | ENERGY STAR® V2.0, TAA, BAA, UL 1778, FCC Part 15 Class A |
| Dimensions (H x W x D) | 6.85 x 17.01 x 28.31 in (174 x 432 x 719 mm) |
| Weight | 134.99 lbs (61.23 kg) |
| Replacement Battery | APCRBC140 |
