Description

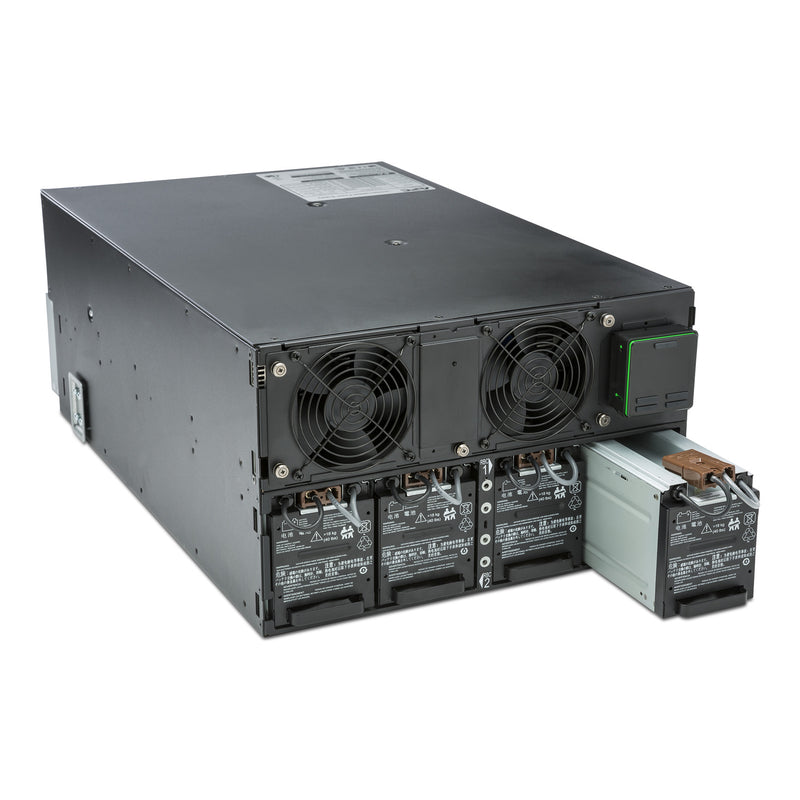

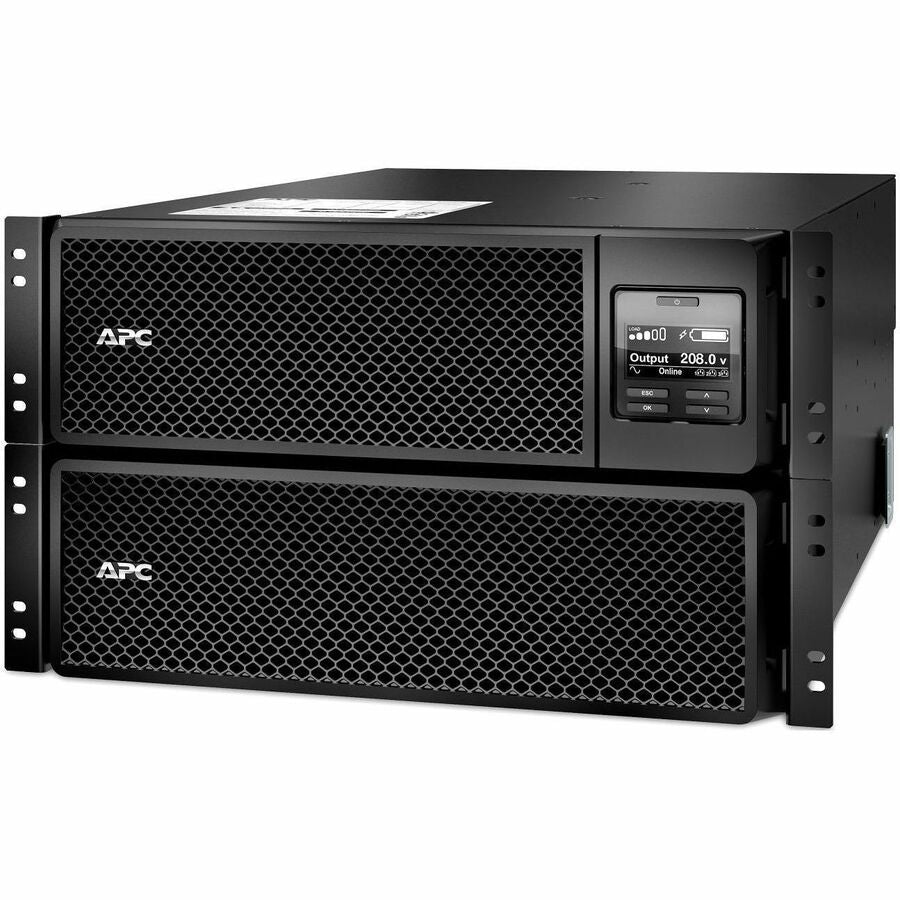

The APC Smart-UPS On-Line SRT8KRMXLT-A delivers robust, double-conversion power protection for servers, storage, networking, and industrial-grade equipment. This high-performance 8kVA/8kW UPS provides pure sine wave output in a 6U rackmount form, featuring six NEMA outlets (4x L6-20R, 2x L6-30R) and hardwire input. It includes an integrated Network Management Card and a SmartSlot for enhanced monitoring and communication. Ideal for IT environments, labs, and critical infrastructure, this TAA-compliant UPS offers extended runtime capability (battery modules sold separately) and includes rail kits, mounting hardware, USB cable, and temperature probe. Compatible replacement battery: APCRBC140.
| Specification | Details |
|---|---|
| Model | SRT8KRMXLT-A |
| Form Factor | Rackmount 6U |
| Power Capacity | 8kVA / 8kW |
| Input Voltage | 208V (also supports 240V) |
| Input Connection | Hard Wire 3-wire (2PH + G) |
| Output Voltage | 208V / 240V |

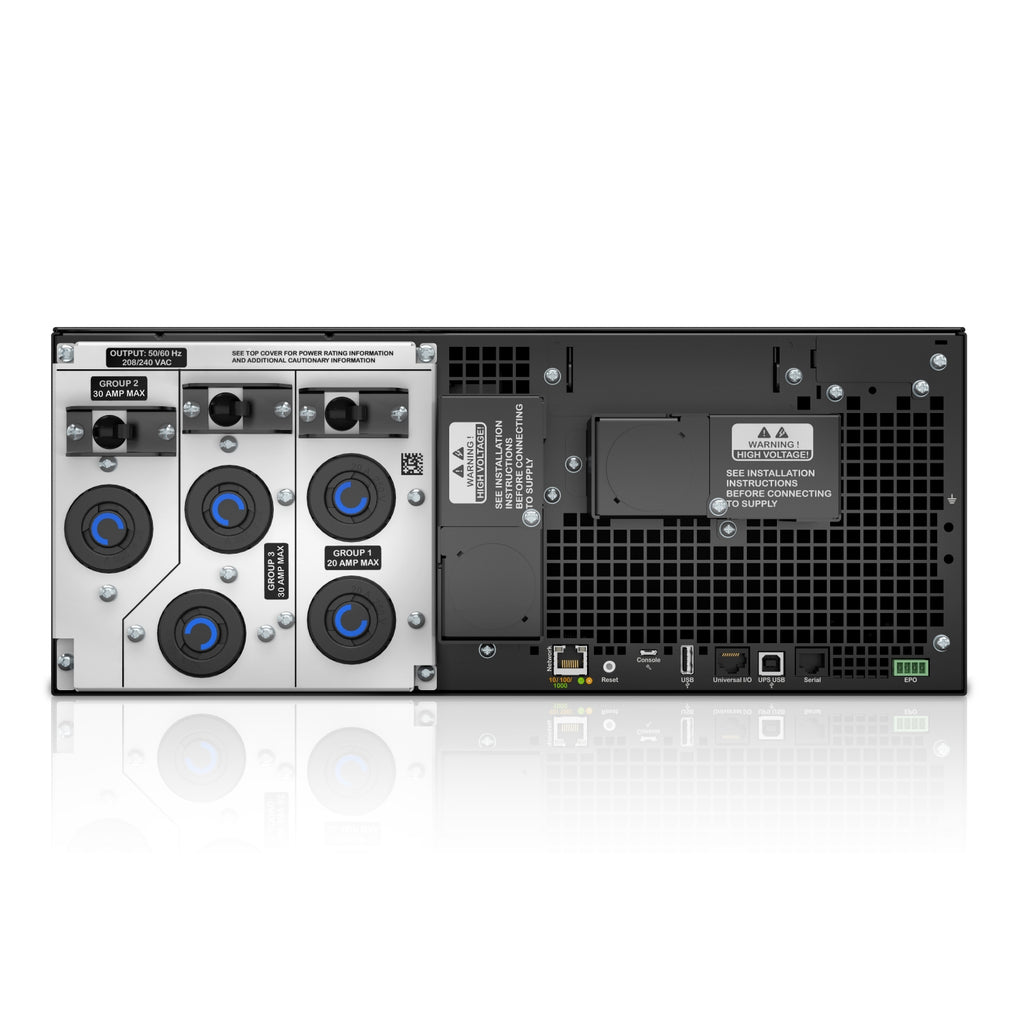

| Outlets | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Battery Type | Lead-acid, Ā±192V |
| Runtime Extendable | Yes (0 batteries included; uses APCRBC140) |
| Recharge Time | 1.5 hours |
| Pre-installed Card | Network Management Card 3 |
| SmartSlot Available | 1 (for optional accessories) |
| Waveform Output | Pure Sine Wave |
| Bypass Type | Internal (Automatic & Manual) |
| USB/Serial Port | USB included |
| Mounting Accessories | Rail kit, mounting brackets, support rails included |
| Operating Temp Range | 0ā40Ā°C (32ā104Ā°F) |
| Noise Level | 55 dBA |
| Weight | 245.99 lbs (111.58 kg) |
| Certifications | ENERGY STAR V2.0, UL 1778, FCC Part 15 Class A |
| Compliance | TAA, BAA (via COTS) |
| Warranty | 3 years UPS / 2 years battery |
