Description

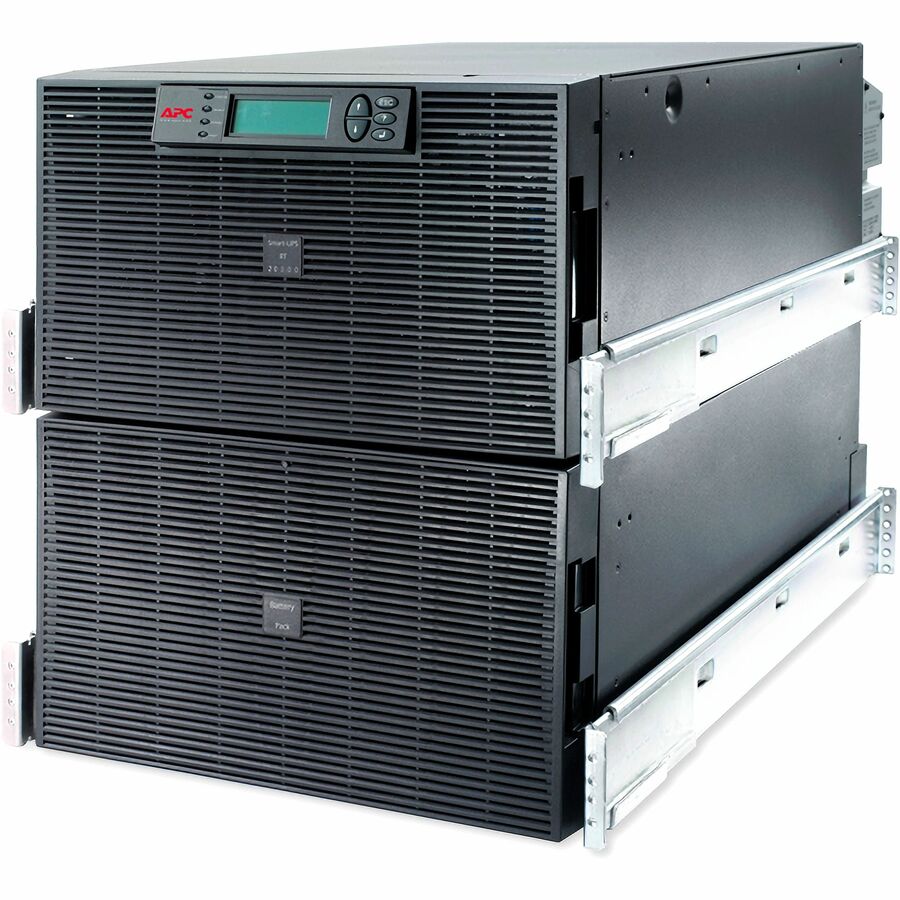

The APC Smart-UPS RT SURT20KRMXLT is a high-performance, 20kVA double-conversion online UPS ideal for mission-critical power protection. Designed for high-demand environments, it features a robust 16000W output, 208V input/output, and a 12U rackmount form factor. With 4x NEMA L6-20R and 2x NEMA L6-30R outlets, an intuitive LCD interface, and included SNMP management card, this UPS ensures scalable runtime, reliable power, and centralized monitoring. Suitable for data centers, network closets, and enterprise IT.
| Category | Details |
|---|---|
| Brand / Series | APC by Schneider Electric / Smart-UPS RT |
| Model | SURT20KRMXLT |
| Topology | Double-Conversion Online |
| Power Capacity | 20,000 VA / 16,000 W |
| Voltage (Input/Output) | 208V / 208V (Configurable to 240V) |
| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R, 1x Hardwire 3-wire (2PH + G) |
| Form Factor | 12U Rackmount |
| Battery Type | Lead-Acid, 4x APCRBC140 Modules |
| Runtime (Full Load) | 4 min 53 sec |
| Efficiency | 93% (on battery) |
| Management | LCD Display, SmartSlot, Network Management Card 2 (Pre-installed) |
| Bypass | Built-in Static & Optional External Bypass |
| Dimensions (HxWxD) | 20.98 x 17.01 x 30.43 in (53.3 x 43.2 x 77.3 cm) |
| Weight | 546.15 lb (247.73 kg) |
| Noise Level | 59 dBA |
| Mounting Mode | Rack-mounted |
| Certifications | UL 1778 |
| Operating Temp | 32–104 °F (0–40 °C) |
| Humidity Tolerance | 0–95% RH (non-condensing) |
| Included Accessories | SNMP Card, Rack Mount Kit, RS-232 Cable, CD, User Manual |
| Warranty | 2-Year Repair or Replace |
