Description

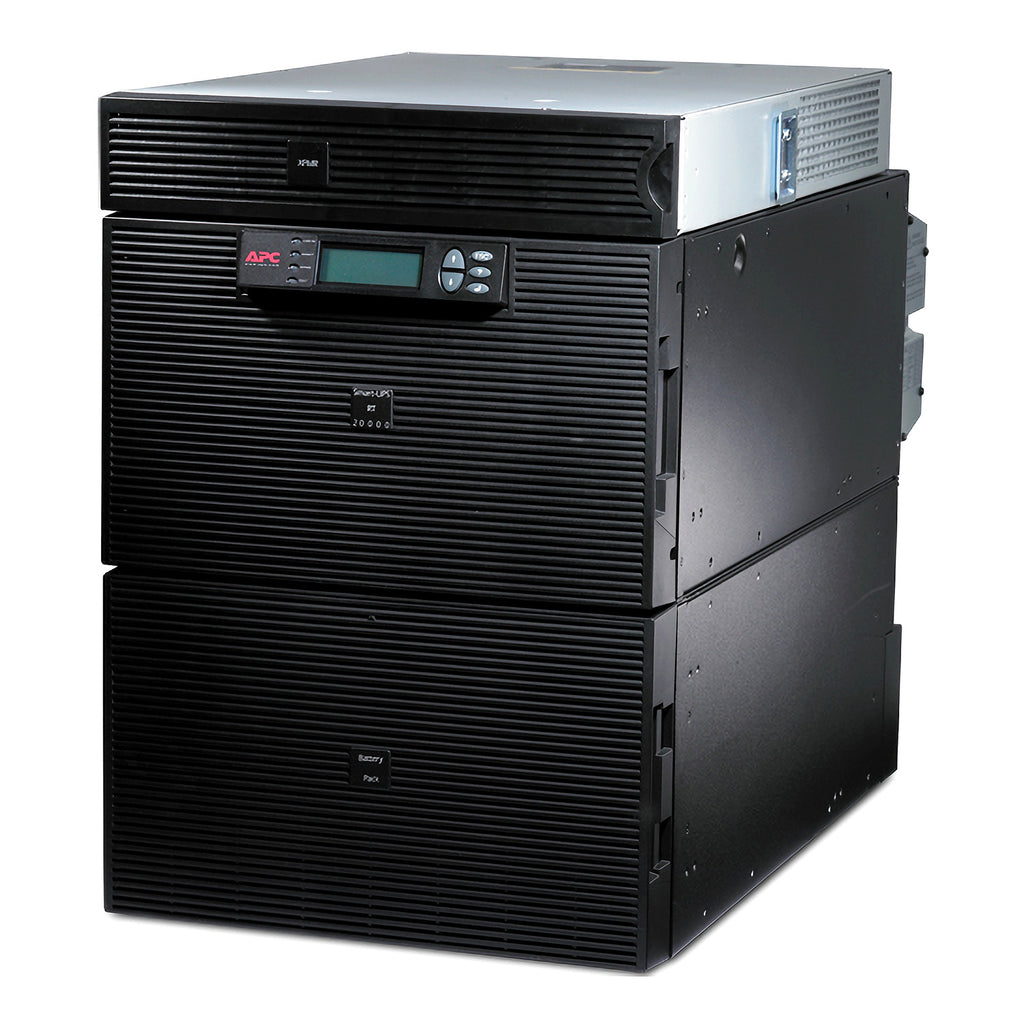

The APC Smart-UPS RT SURT20KRMXLT-TF5 delivers high-performance, double-conversion online power protection for high-demand environments. This 20kVA rackmount UPS includes a transformer for 208V to 120V output conversion, making it ideal for mixed voltage loads. It supports extended runtime and comes with 17 output receptacles including NEMA 5-20R, L6-20R, and L6-30R. With a 14U rackmount form factor, built-in LCD, and intelligent network management, it ensures critical uptime and centralized monitoring for servers, data centers, and sensitive electronics.
| Feature | Details |
|---|---|
| Model Number | SURT20KRMXLT-TF5 |
| Brand | APC by Schneider Electric |
| Topology | Double Conversion Online |
| Power Capacity | 20 kVA / 16,000 Watts |
| Input Voltage | 208V |
| Output Voltage | 208V / 120V (via Transformer) |
| Rack Size | 14U |

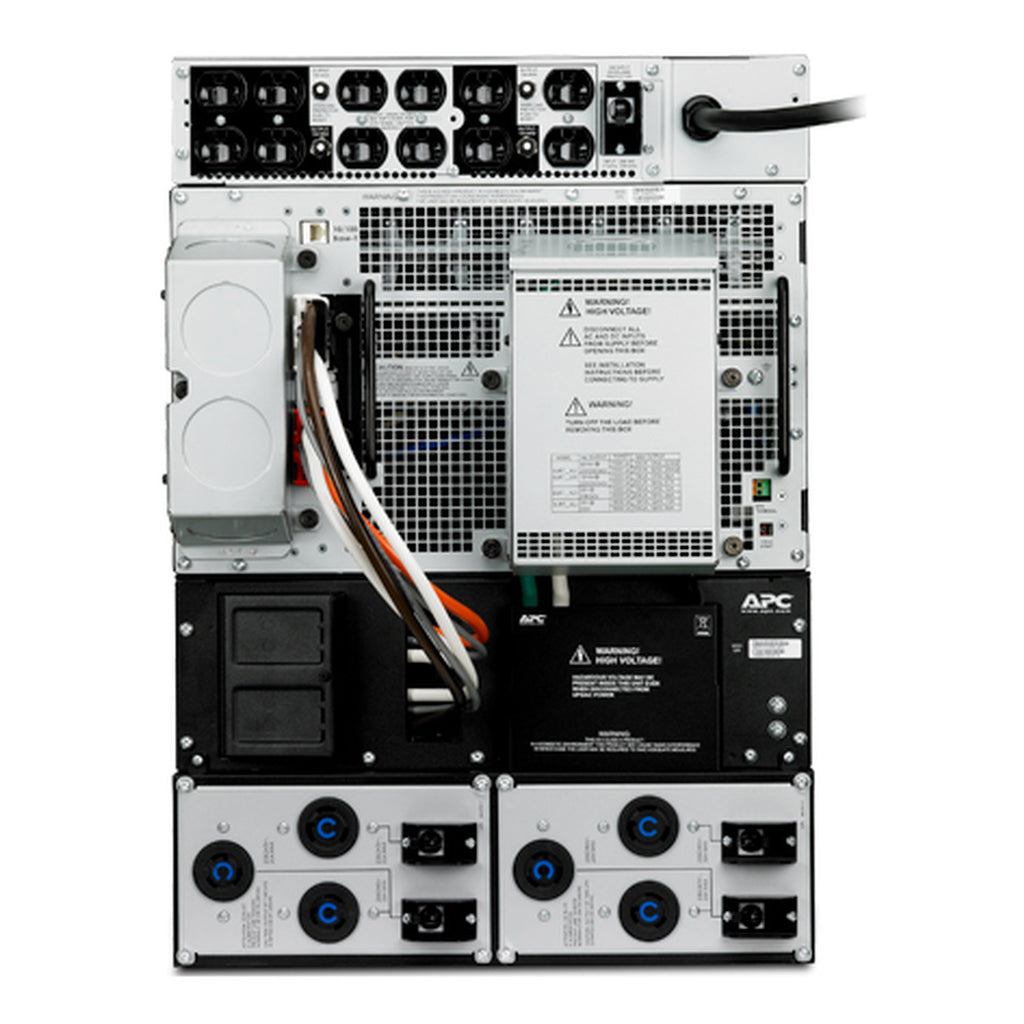

| Output Connections | 12x NEMA 5-20R, 4x NEMA L6-20R, 1x NEMA L6-30R |
| Bypass | Static & Manual Internal Bypass |
| Waveform Type | Pure Sine Wave |
| Battery Type | Lead-Acid |
| Included Batteries | 4x APCRBC140 Modules |
| Recharge Time | 2.5 Hours |
| Typical Runtime at Full Load | 4 minutes 53 seconds @ 16,000W |
| Efficiency (on battery) | Up to 93% |
| Mounting | Rackmount (with support rails) |
| Display | LCD Panel |
| Network Management | Pre-installed NMC with environmental monitoring |
| Weight | 641.35 lb (290.91 kg) |
| Dimensions (H x W x D) | 24.49 x 17.01 x 30.43 in (62.2 x 43.2 x 77.3 cm) |
| Noise Level | 59 dBA |
| Operating Temp | 32–104 °F (0–40 °C) |
| Humidity Tolerance | 0–95% (non-condensing) |
| Certifications | UL 1778 |
| Warranty | 2 Years (Repair or Replace) |
