Description

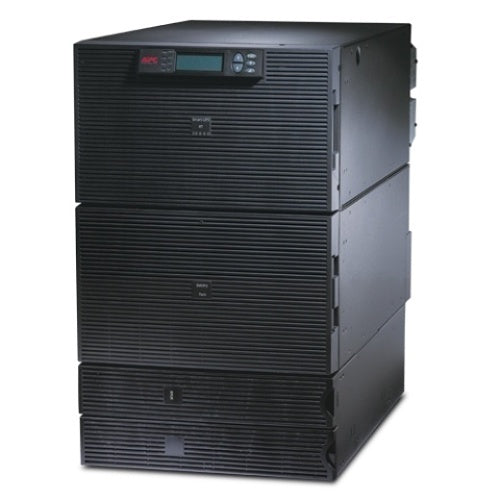

The APC Smart-UPS RT SURT20KRMXLT-1TF10K delivers high-density, double-conversion online power protection with scalable runtime for mission-critical systems. This 20kVA UPS supports a wide range of NEMA output connections and includes an integrated step-down transformer from 208V to 120V, making it suitable for mixed-load environments. With 11 battery-backed outlets, SNMP manageability, and flexible tower or rack installation, it's ideal for enterprise-level data centers or sensitive IT infrastructure. Comes with software, management accessories, and a 2-year factory warranty.
| Category | Details |
|---|---|
| Manufacturer | APC by Schneider Electric |
| Part Number | SURT20KRMXLT-1TF10K |
| UPS Type | Online, Double Conversion |
| Form Factor | Rack-mountable / Tower, 16U |
| Rated Capacity | 20kVA / 16,000W |
| Input Voltage | 208V AC, 3-wire hardwired |
| Output Voltage | 208V AC / 120V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform | Pure Sine Wave |
| Runtime (Full Load) | 4.9 minutes |
| Runtime (Half Load) | 15.3 minutes |
| Battery Type | Maintenance-free sealed lead-acid |
| Recharge Time | 2.5 hours |
| Manageability | SNMP, Serial, RJ-45; PowerChute Software included |
| Bypass | Automatic, Static, Internal & External (Optional) |
| Emergency Power Off | Yes |

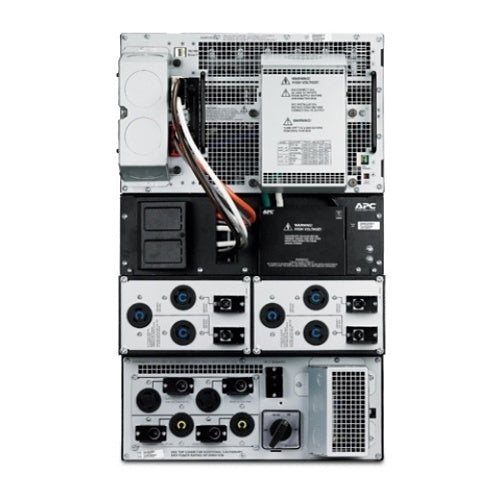

| Outlets | 2x L14-30R, 2x L5-20R, 2x L6-30R, 4x L6-20R (Total: 11 battery/surge) |
| Color | Black |
| Dimensions (HxWxD) | 27.9" x 17" x 30.4" |
| Weight | 766.61 lbs |
| Shipping Weight | 966 lbs |
| Rack Height | 16U |
| Warranty | 2-Year Repair or Replace |
| Certifications | RoHS, Green Premium, REACH |
| Country of Origin | Philippines |
| Package Contents | UPS unit, SNMP card, RS-232 cable, rail kit, PowerChute software, manual |
