Description

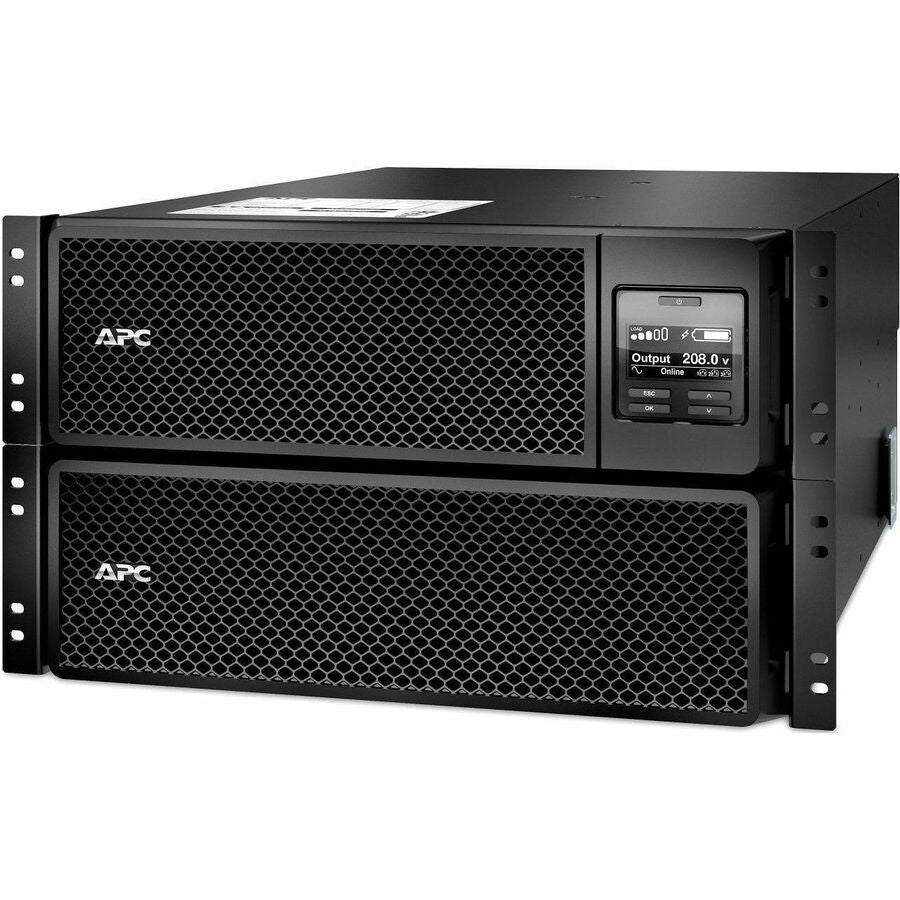

The APC Smart-UPS SRT10KRMXLTUS is a high-performance double-conversion online UPS designed for enterprise IT environments, critical servers, and industrial applications. With a 10kVA/10kW capacity in a compact 6U rackmount form, it delivers continuous, clean sine wave power with zero transfer time.

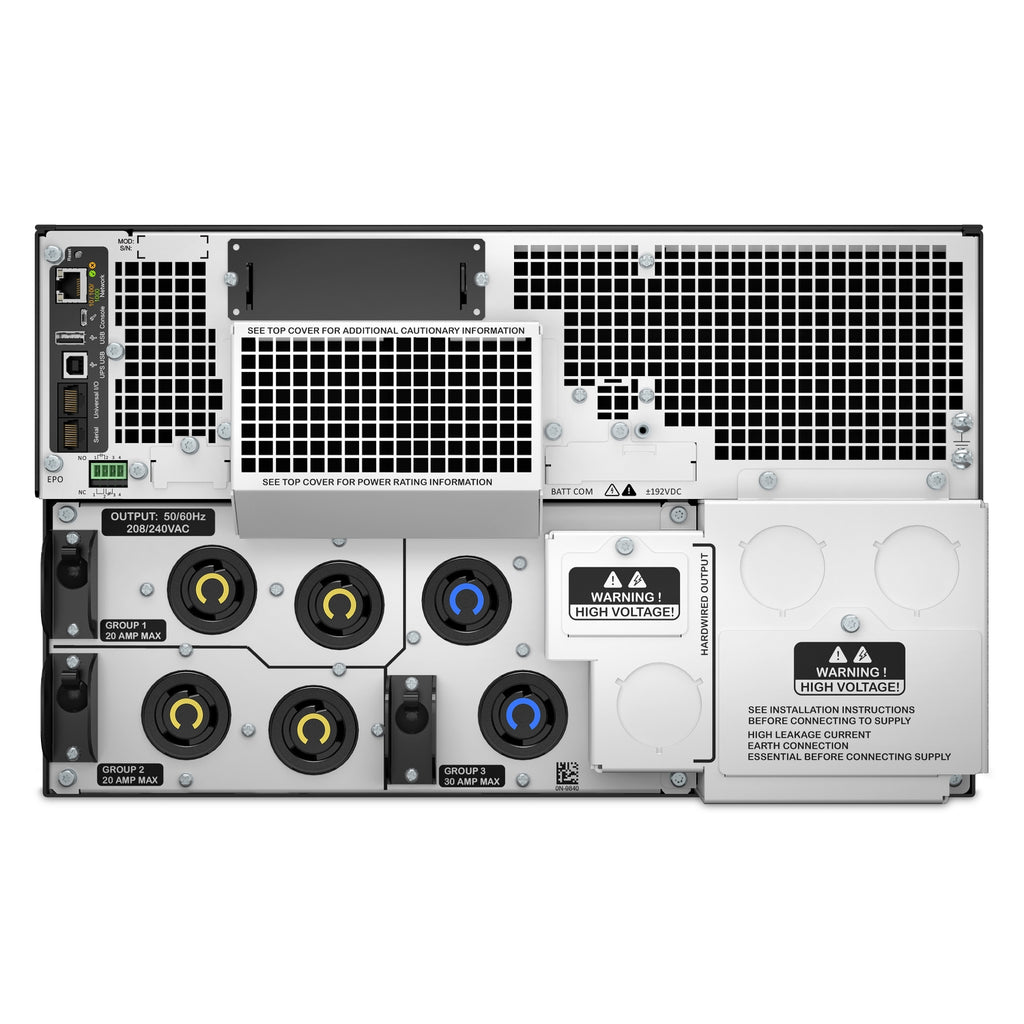

Equipped with 4x NEMA L6-20R and 2x NEMA L6-30R outlets, a hard-wired 3-wire (2P+E) input, and a factory-installed Network Management Card, this UPS supports remote monitoring and control. It includes a SmartSlot for expansion cards like dry contact I/O.
Supports up to 10 external battery packs (SRT192RMBP2) for extended runtime and uses APC replacement battery APCRBC140. Includes rail kit and PowerChute Network Shutdown software. TAA compliant and ENERGY STAR® certified.
| Category | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | SRT10KRMXLTUS |
| Form Factor | Rackmount 6U |
| Input Voltage | 208V (Hard Wire 3-wire: 2PH + G) |
| Output Voltage | 208V / 240V |
| Output Connections | 4x NEMA L6-20R, 2x NEMA L6-30R |
| Power Capacity | 10kVA / 10kW |
| Topology | Double Conversion Online |
| Battery Type | Lead-Acid, APCRBC140 |
| Extendable Runtime | Yes, up to 10x SRT192RMBP2 battery packs |
| Recharge Time | 1.5 hours |
| Network Management | Pre-installed Network Management Card 3 + SmartSlot |
| Communication Ports | USB, EPO, SmartSlot |
| Software Included | PowerChute Network Shutdown |
| Color | Black |
| Dimensions (H x W x D) | 10.35 in x 17.01 in x 28.15 in (263 mm x 432 mm x 715 mm) |
| Weight | 245.99 lbs (111.58 kg) |
| Operating Temp | 32–104 °F (0–40 °C) |
| Certifications | ENERGY STAR V2.0, TAA Compliant |
| Warranty | 3 years (UPS), 2 years (Battery) |
| Replacement Battery | APCRBC140 |
| Surge Energy Rating | 480 Joules |
| Max Efficiency | Viewable via Efficiency Graph (Web) |
| GTIN | 731304740834 |
| Country of Origin | Mexico (MX) |
