Description

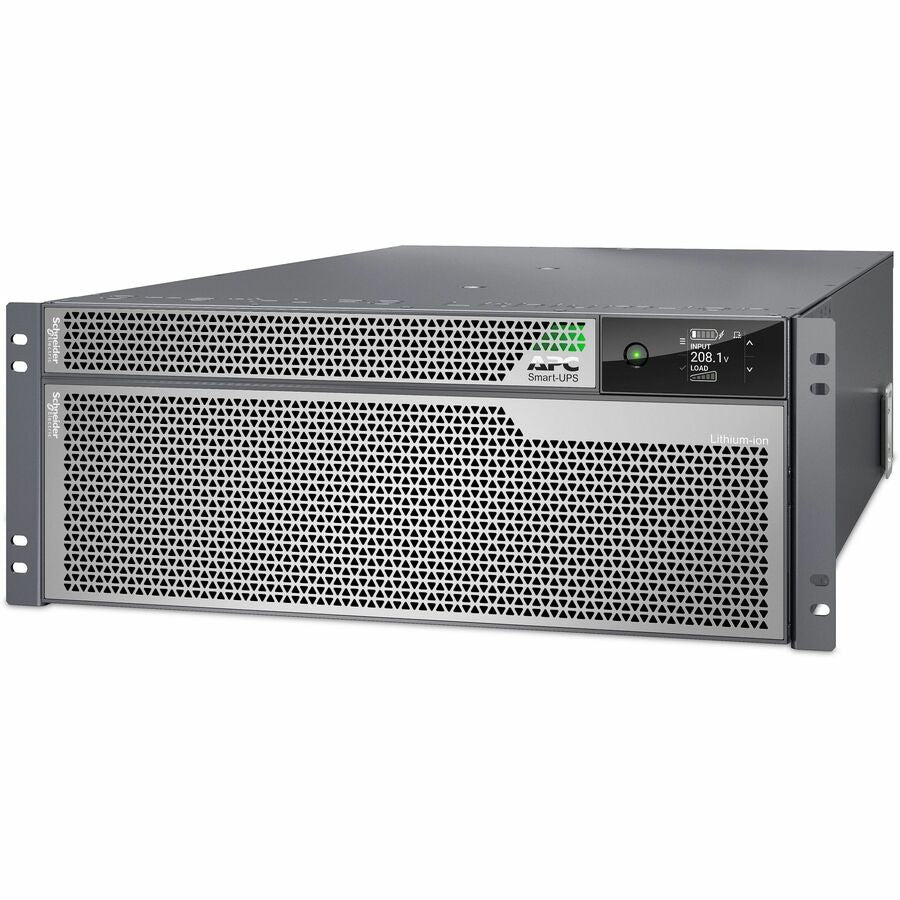

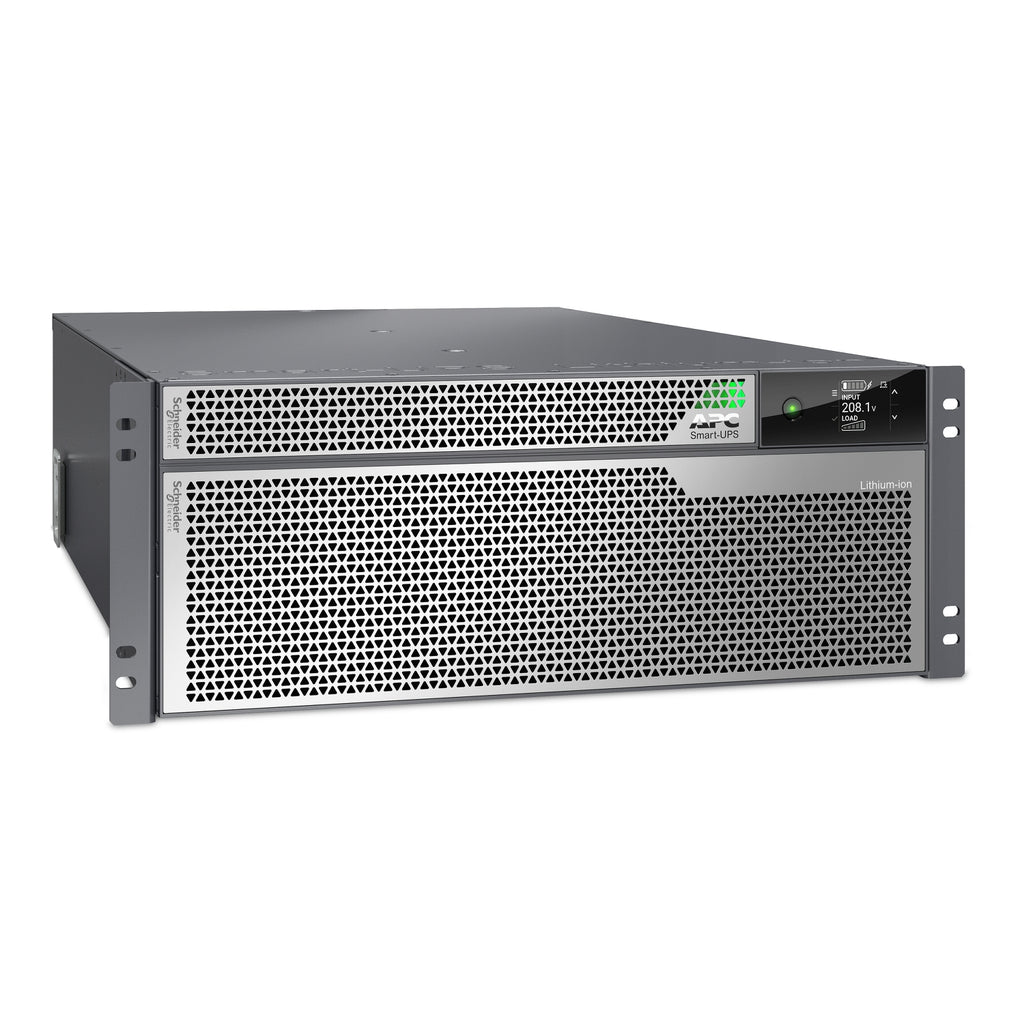

The APC Smart-UPS Ultra SRTL10KRM4UT delivers 10kVA/10kW of double-conversion online power protection in a compact 4U rack/tower convertible design. Engineered with high-efficiency lithium-ion batteries, it offers up to 3x longer battery life than traditional VRLA. With support for up to 10 external battery packs, it ensures scalable extended runtime. The unit features a rotatable LCD display for flexible mounting, 4 NEMA outlets, and EcoStruxure™ Ready network management for remote monitoring. Includes rack mounting kit, temperature probe, and a 1-year Secure NMC subscription. Backed by a 5-year repair or replace warranty.
| Specification | Details |
|---|---|
| Power Capacity | 10000VA / 10000W |
| Form Factor | 4U Rack/Tower Convertible |
| Input Voltage | 208V AC (208/240V compatible) |
| Input Connection Type | Hard Wire 3-wire (2PH + G), 58A |
| Output Voltage | 208V AC |

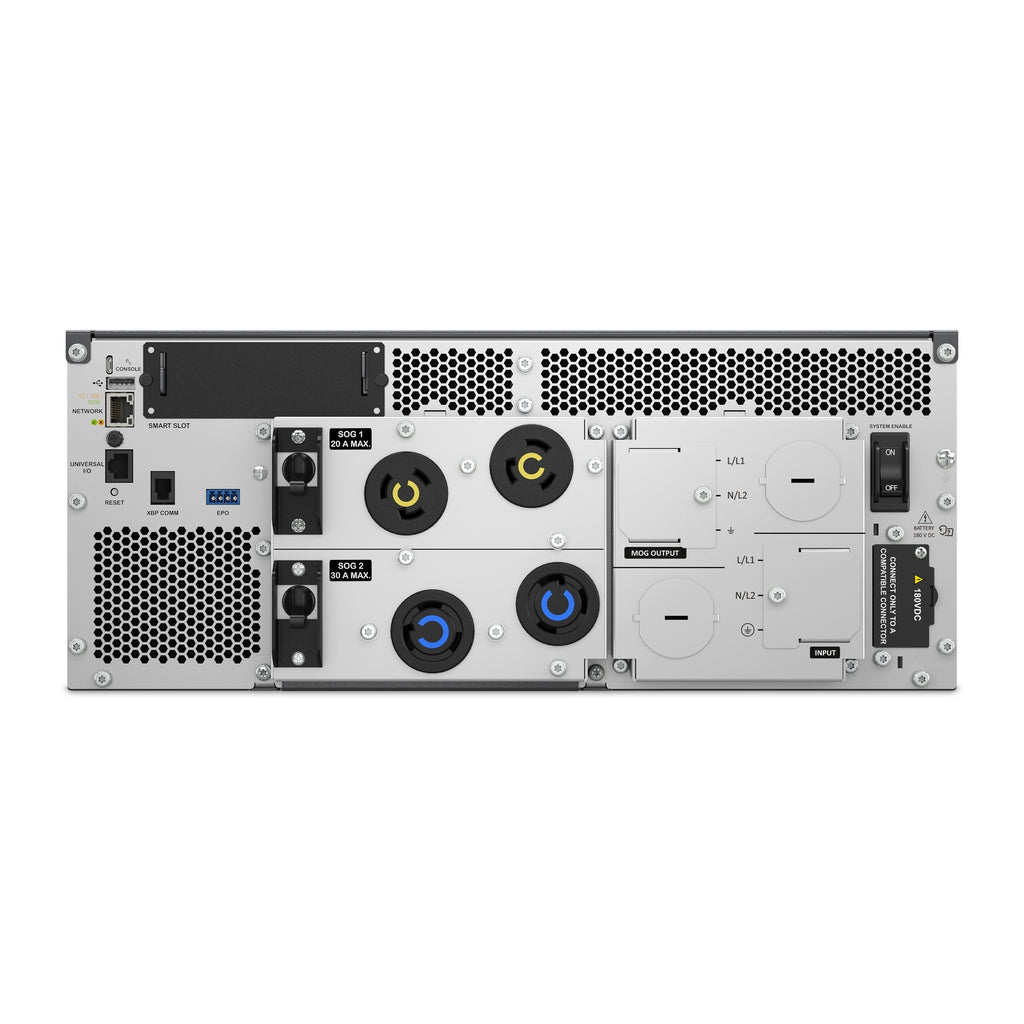

| Output Connections | 2 × NEMA L6-30R, 2 × NEMA L6-20R, 1 × Hard Wire 3-wire (2PH + G) |
| Battery Type | Lithium-ion (Li-Ion), 180V, 1200W charge power |
| Extendable Runtime | Supports up to 10 external battery packs (SRTL180RM2UBP) |
| Full Load Runtime (10kW) | 5 minutes |
| Half Load Runtime (5kW) | 11 minutes |
| Recharge Time | 1.5 hours |
| Display | Auto-rotating multifunction LCD |
| Management | EcoStruxure™ Ready, Network Management Card pre-installed |
| Emergency Power Off (EPO) | Yes |
| Surge Protection | 1410 Joules |
| Certifications | cULus, ENERGY STAR V2.0, UL 1778 |
| Dimensions (H × W × D) | 6.9 in × 17.01 in × 32.8 in (175 mm × 432 mm × 832 mm) |
| Net Weight | 121.3 lbs (55 kg) |
| Included Accessories | Rail kit, USB cable, temperature probe, stabilization feet, strain relief |
| Warranty | 5-Year Repair or Replace |
