Description

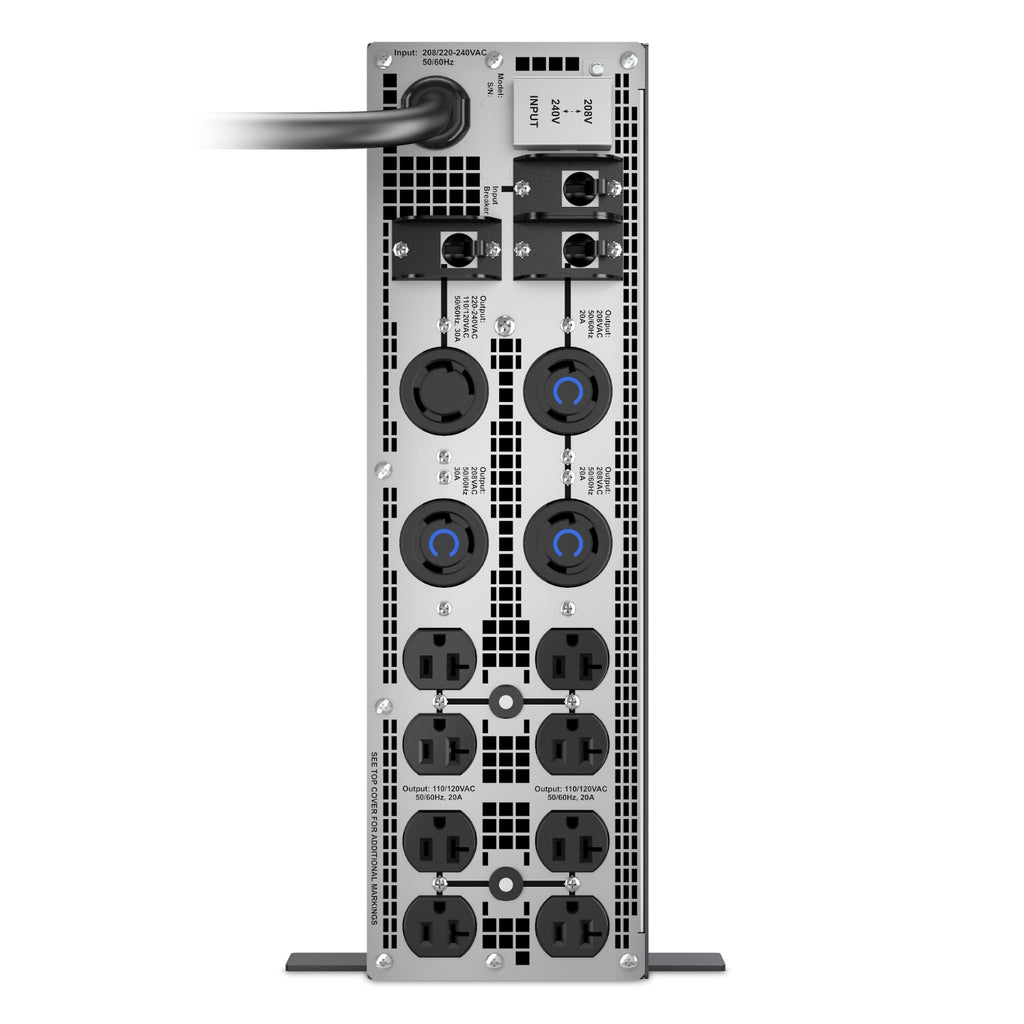

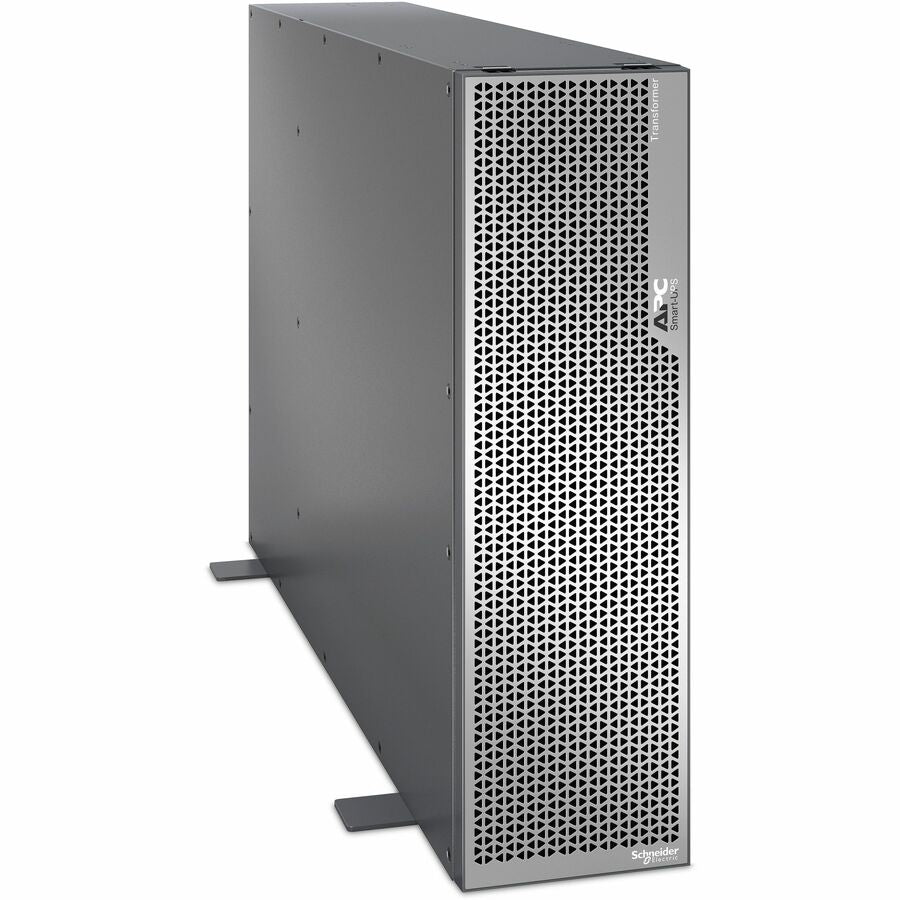

The APC Smart-UPS Ultra SRTL5KTF is a 5kVA 3U height isolation/step-down transformer, ideal for converting 208V UPS output to 120V for compatible devices. With multiple NEMA outlet types—including (8) 5-20R, (2) L6-20R, (1) L6-30R, and (1) L14-30R—it supports a wide range of power needs in edge, data center, or commercial IT environments. Ships in tower configuration, rack-mountable with optional SRTRK2 rail kit. Comes with a 5-year repair or replace warranty and 1-year Secure Network Management Card subscription included.
| Category | Details |
|---|---|
| Product Type | Step-Down Transformer |
| Model | SRTL5KTF |
| Power Rating | 5kVA / 5000 VA |
| Input Voltage | 208V |
| Output Voltage | 120V (selectable 110V/120V/208V/240V) |
| Input Connection Type | NEMA L6-30P |
| Output Connections | (8) 5-20R, (2) L6-20R, (1) L6-30R, (1) L14-30R |
| Frequency | 50/60 Hz |
| Cable Length | 3 ft (0.9 m) |
| Form Factor | 3U Tower or Rackmount (w/ rail kit) |
| Dimensions (HxWxD) | 17.01 x 5.12 x 25.98 in (43.2 x 13 x 66 cm) |
| Weight | 125 lbs (56.7 kg) |
| Certifications | UL 1778, CSA |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | 5–113°F (-15–45°C) |
| Relative Humidity | 0–95% (non-condensing) |
| Altitude (operation/storage) | Up to 10,000 ft / 50,000 ft |
| Included | User Manual |
| Warranty | 5 Years Repair or Replace |
| Subscription | 1-Year Secure Network Management Card |
| GTIN | 731304437048 |
