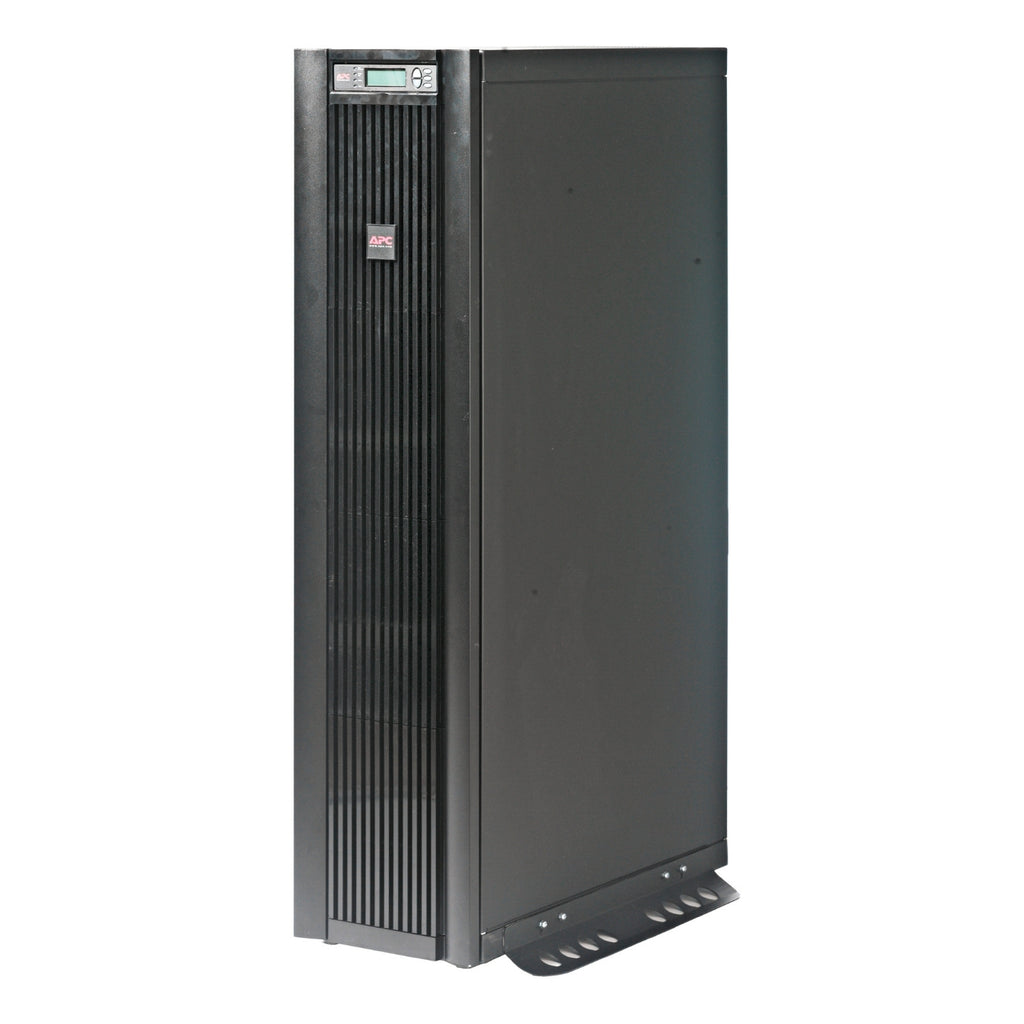

APC Smart-UPS VT 10kVA 208V with 2 Battery Modules, Internal Maintenance Bypass, Parallel Capable

Roll over image to zoom in Click on image to zoom

APC Smart-UPS VT 10kVA 208V with 2 Battery Modules, Internal Maintenance Bypass, Parallel Capable

Name: APC Smart-UPS VT 10kVA 208V with 2 Battery Modules, Internal Maintenance Bypass, Parallel Capable
Brand: APC
SKU: SUVTP10KF2B2S
Price: 9878.99 USD
Availability: InStock

Save $4,896.01

APCSKU: SUVTP10KF2B2S

Price:

$9,878.99 $14,775.00

For purchases above $5,000, please request a formal quote. Orders are payable via Wire Transfer only. Quotes include lead time and shipping. Leasing and financing available for qualified business customers.

Shipping calculated at checkout

Stock:

Only 0 units left

Quantity:

⚙️ Authorized Pro AV Dealer
All products are brand-new and factory-sealed with full manufacturer warranty.

💬 Need pricing or availability confirmation?
Chat with us using the button below — or call (800) 283-7181 to speak directly with an AV expert.

Free Standard Shipping

Share this product

The APC Smart-UPS VT SUVTP10KF2B2S delivers reliable centralized three-phase power protection in a compact tower form factor. Engineered for small data centers, commercial facilities, and branch offices, this 10kVA UPS includes 2 hot-swappable battery modules, internal maintenance bypass, and parallel capability for redundancy or scalability. It features dual-mains input, double-conversion online topology, and comes equipped with a network management card for remote monitoring. Ideal for mission-critical environments requiring consistent power and runtime expandability.

Category	Details
Model	SUVTP10KF2B2S
Topology	Double Conversion Online
Power Rating	10,000 VA / 8,000 W
Battery Modules Included	2 (VRLA, Hot-swappable)
Expandable Runtime	Yes
Estimated Runtime @ Full Load	~18 minutes
Recharge Time	~5 hours
Input Voltage	208V 3-Phase (Configurable to 220V)
Input Frequency	40–70 Hz
Max Input Current/Phase	27 A
Output Voltage	120V, 208V, 3-Phase (Configurable to 220V)
Max Output Current	31 A
Output Waveform	Sine Wave
Bypass Type	Built-in Static & Maintenance Bypass
Redundancy	Yes
Efficiency	High efficiency at full load
Interface Ports	RS-232, Network Management Card 2
Height x Width x Depth	59.02 x 14.02 x 32.01 in
Weight	874.84 lbs (396.82 kg)
Noise Level	54 dBA
Operating Temperature	32–104 °F (0–40 °C)
Humidity Range	0–95% RH (non-condensing)
Altitude	Up to 3,333 ft operating; up to 50,000 ft storage
Certifications	UL 1778, cUL Listed
Included Accessories	Battery Modules, Network Card, RS-232 Cable, Brackets, CD Software, Installation Guide, User Manual
Warranty	1-Year Repair or Replace + Start-Up 5x8
