Description

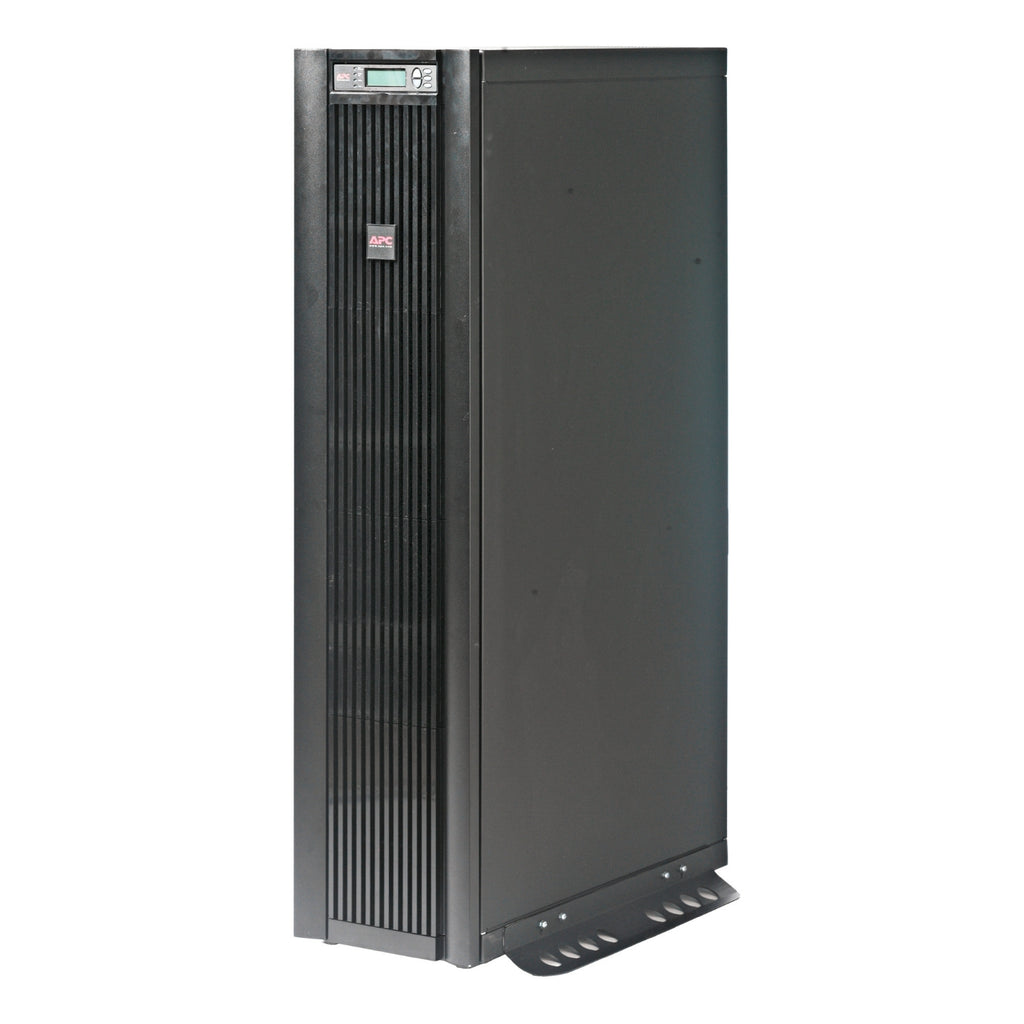

The APC Smart-UPS VT SUVTP10KF1B2S delivers reliable, centralized three-phase power protection in a compact footprint. Designed for small data centers, retail stores, and branch offices, this 10 kVA tower UPS features scalable runtime with hot-swappable VRLA batteries, dual mains input, and built-in maintenance and static bypasses. Equipped with a Network Management Card and shipped with installed battery and power modules, the unit ensures high availability, ease of installation, and efficient operation. Parallel capability and start-up service included for business continuity from day one.
| Category | Details |
|---|---|
| Model | SUVTP10KF1B2S |
| Topology | Double Conversion Online |
| Rated Power | 10,000 VA / 8,000 W |
| Input Voltage | 208V 3-phase (Other: 220V) |
| Output Voltage | 120V, 208V, 208V 3-phase (Configurable to 220V) |
| Input Connector | Hard Wire 5-wire (3PH + N + G) |
| Output Connector | 1x Screw Terminals |
| Bypass Type | Built-in Maintenance & Static Bypass |
| Run Time (Full Load) | 5 min 31 sec at 8000 W |
| Battery Type | VRLA, 1 Battery Module Installed, Expandable to 2 |
| Recharge Time | 5 Hours |
| Battery Life | 3–5 Years |
| Efficiency | View efficiency graph (software-dependent) |
| Power Module Slots | 1 Filled, 0 Free |
| Network Management | Included (Pre-Installed SmartSlot Card) |
| Audible Alarms | Prioritized by severity |
| Dimensions (H x W x D) | 59.02 x 14.02 x 32.01 in (149.9 x 35.6 x 81.3 cm) |
| Weight | 672.4 lb / 305 kg |
| Mounting | Tower (Not rack-mountable) |
| Operating Temp | 32–104 °F (0–40 °C) |
| Noise Level | 54 dBA |
| Altitude | Operating: 0–3333 ft, Storage: 0–50000 ft |
| Humidity | 0–95% (Operating & Storage) |
| Warranty | 1 Year On-Site Repair or Replace with Factory Authorized Start-Up |
| Included Accessories | Battery & Power Modules, Start-Up Service, CD with Software, Manual, Cables |
