Description

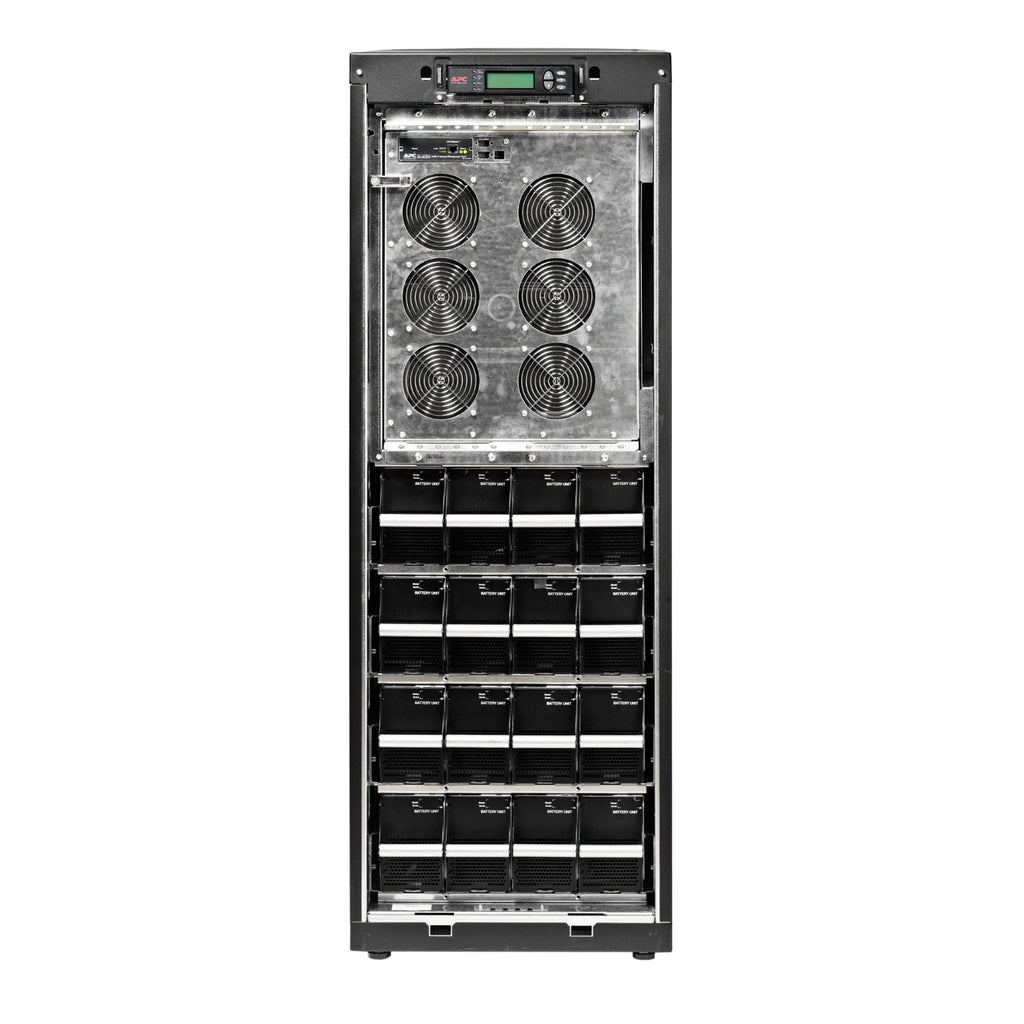

The APC Smart-UPS VT SUVTP10KF3B4S delivers centralized three-phase power protection in a compact footprint. Designed for small data centers, branch offices, retail spaces, and applications with dense power demands, this UPS system offers 10kVA / 8kW of reliable output power. It features 3 hot-swappable VRLA battery modules, expandable to 4 for extended runtime, and is equipped with dual-mains input, integrated maintenance bypass, and parallel capability.
The included APC Network Management Card provides remote monitoring and environmental control via web/SNMP, with full integration into InfraStruXure Manager. With double conversion online topology and scalable runtime, the SUVTP10KF3B4S ensures high availability and efficiency, making it one of the most manageable and serviceable UPS units in its class.
| Category | Details |
|---|---|
| SKU | SUVTP10KF3B4S |
| Rated Power | 10,000 VA / 8,000 W |
| Battery Modules | 3 included, expandable to 4 |
| Runtime | Up to 31 minutes (at full load) |
| Battery Type | VRLA |
| Recharge Time | 5 hours |
| Input Voltage | 208V 3-phase (also supports 220V) |
| Output Voltage | 120V / 208V / 208V 3-phase / 220V |
| Bypass | Built-in Maintenance & Static Bypass |
| Topology | Double Conversion Online |
| Form Factor | Tower |
| Dimensions (HxWxD) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Net Weight | 1117.35 lb (506.82 kg) |
| Interfaces | RS-232, SmartSlot, Network Management Card |
| Mounting | Floor-standing only |
| Environmental | 0–40°C operation; 0–95% RH |
| Certifications | UL 1778, cUL Listed |
| Noise Level | 54 dBA |
| Warranty | 1 Year Repair/Replace with Start-Up Service |
