Description

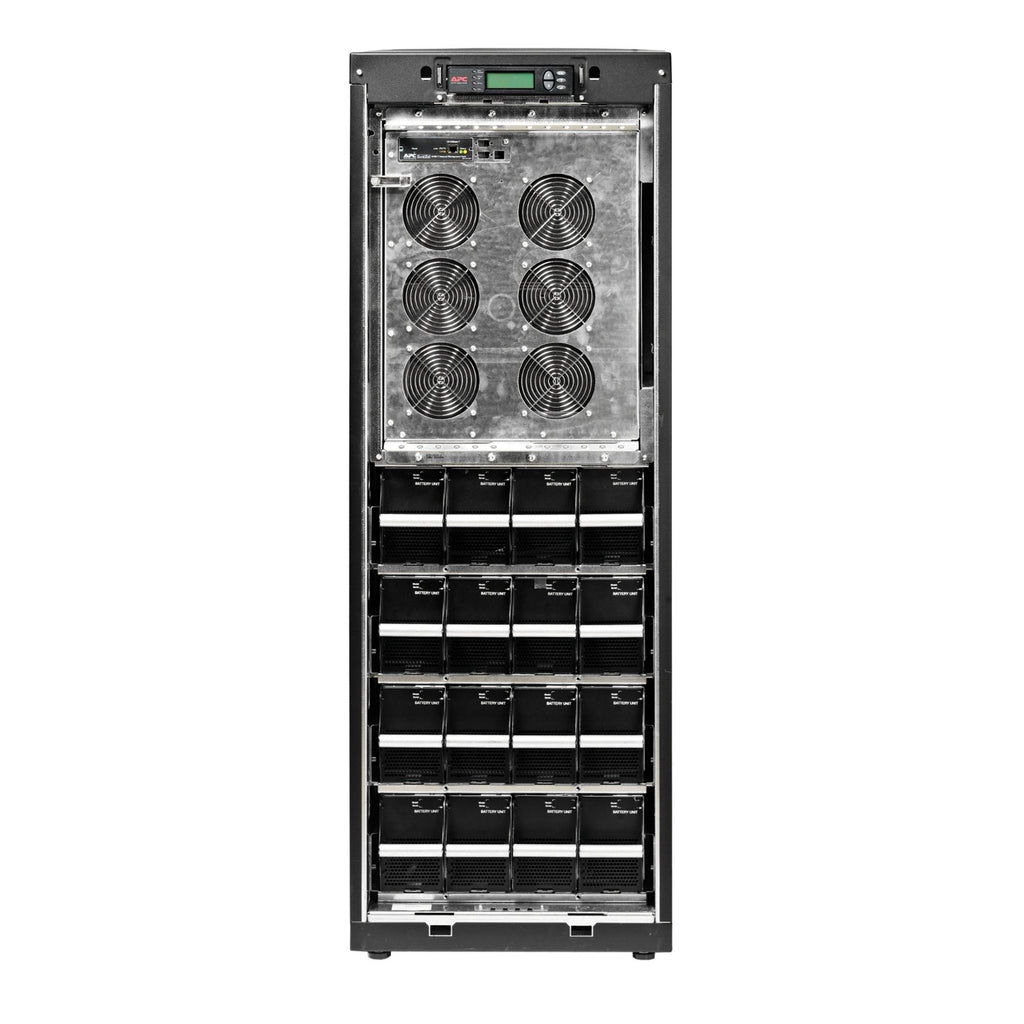

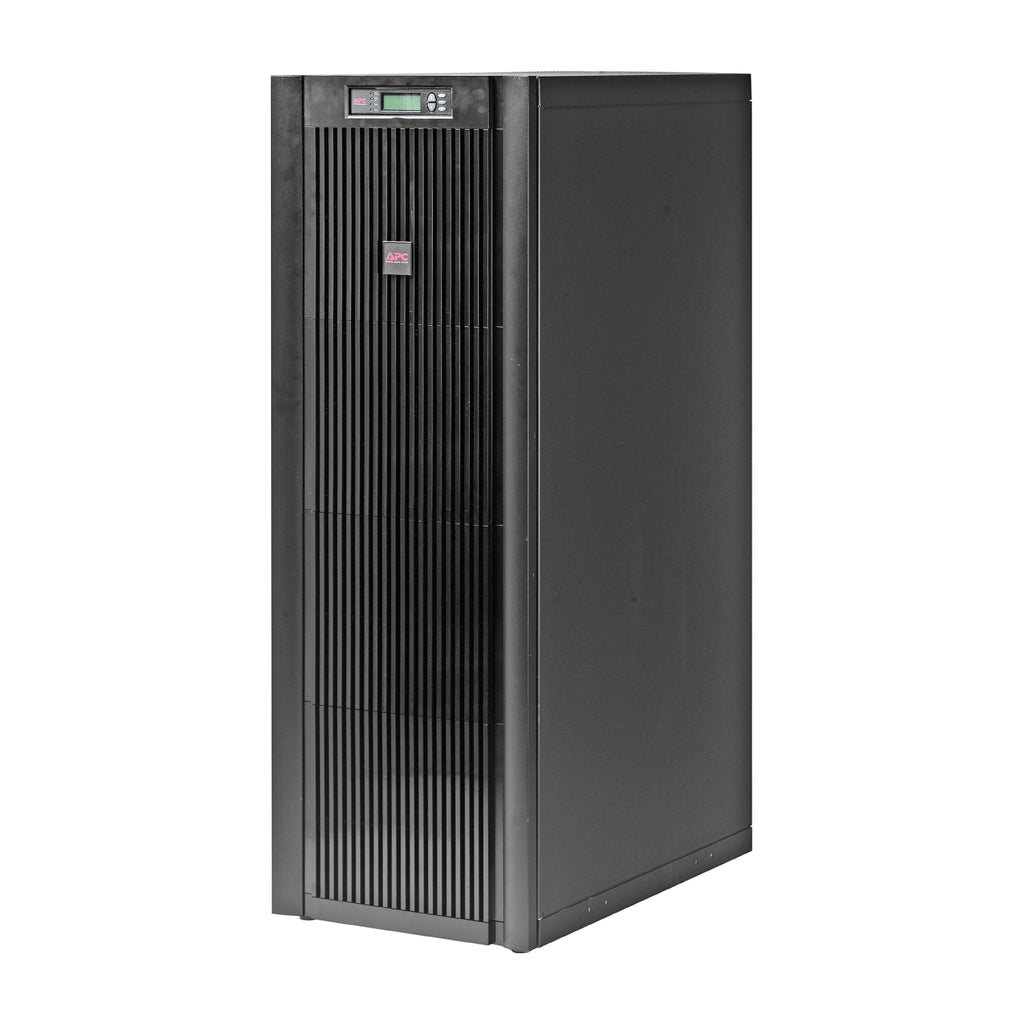

The APC Smart-UPS VT SUVTP10KF2B4S delivers centralized three-phase power protection in a compact, tower form factor. Designed for small data centers, large retail stores, and regional offices, this 10kVA UPS features dual-mains input, scalable runtime, and a high-efficiency double conversion topology. Integrated with a Network Management Card, it offers remote monitoring and management via Web/SNMP and supports InfraStruXure Manager. With built-in maintenance and static bypasses and parallel capability, this UPS is engineered for optimal uptime, easy deployment, and simplified maintenance.
| Category | Details |
|---|---|
| Model | SUVTP10KF2B4S |
| Power Capacity | 10,000 VA / 8,000 W |
| Input Voltage | 208V 3-phase / 220V (Other) |
| Output Voltage | 120V / 208V / 208V 3-phase / 220V (Other) |
| Topology | Double Conversion Online |
| Run Time at Full Load | 18 minutes |
| Efficiency | View Efficiency Graph |
| Battery Type | Lead-Acid, +/-192V |
| Battery Modules | 2 installed (Expandable to 4) |
| Recharge Time | 5 hours |
| Bypass Options | Internal Static & Maintenance Bypass |
| Parallel Capability | Yes |
| Management Interface | Web/SNMP via Network Management Card |
| Input Connection | Hard Wire 5-wire (3PH + N + G) |
| Output Connection | Hard Wire 4-wire & 5-wire, Screw Terminals |
| Mounting | Tower (Not rack-mountable) |
| Dimensions (H x W x D) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 1117.35 lbs (506.82 kg) |
| Included Equipment | Battery Modules, Network Mgmt Card, RS-232 Cable, Start-Up Service, CD, Manuals, Bolt Down Brackets |
| Emergency Power Off | Yes |
| Lead Time | Usually Ships within 2 Weeks |
