Description

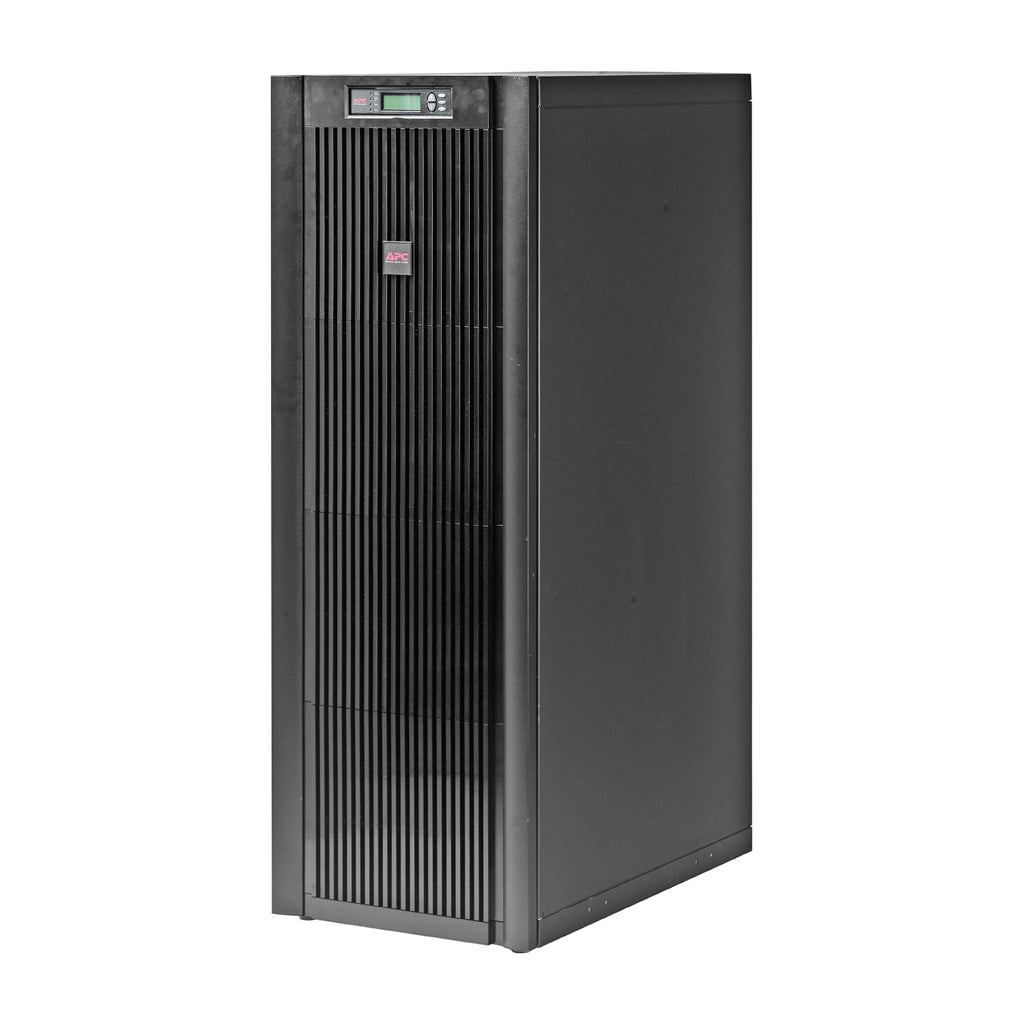

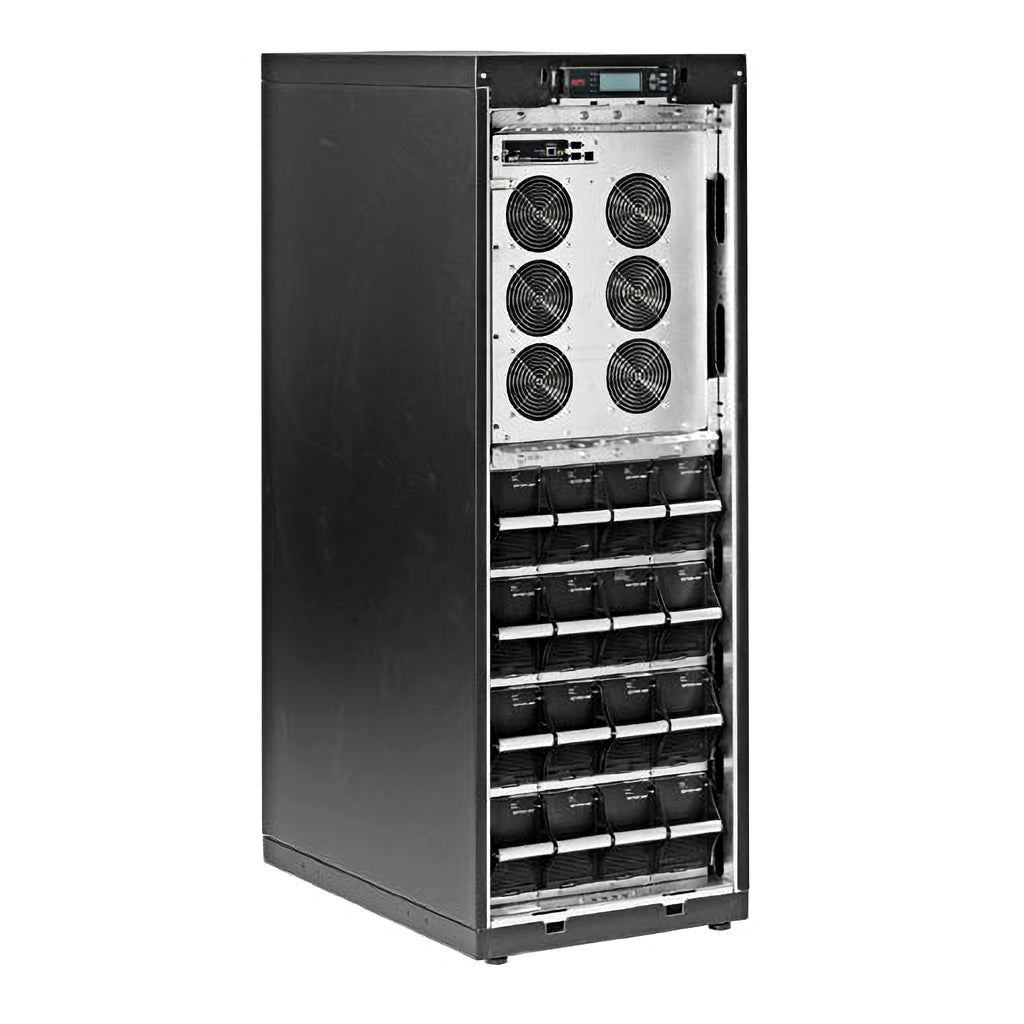

The APC Smart-UPS VT SUVTP15KF2B4S delivers centralized three-phase power protection for critical IT and commercial environments. With 15kVA capacity and 12kW output, this double-conversion online UPS is ideal for small data centers, enterprise branch offices, and mission-critical retail sites. It features dual-mains input, hot-swappable batteries, built-in maintenance and static bypass, and comes with 2 battery modules (expandable to 4). Network management and environmental monitoring capabilities are included for remote control and peace of mind. Start-Up Service 5x8 is bundled for hassle-free deployment.
| Category | Details |
|---|---|
| Model | APC SUVTP15KF2B4S |
| Power Capacity | 15kVA / 12kW |
| Topology | Double Conversion Online |
| Input Voltage | 208V 3-Phase (Configurable to 220V) |
| Output Voltage | 120V, 208V, 208V 3-Phase, 220V |
| Output Connections | 1 Ć Hard Wire 5-wire (3PH + N + G) |
| Bypass | Built-in Maintenance & Static Bypass |
| Battery Type | VRLA |
| Battery Modules | 2 Installed (Expandable to 4) |
| Runtime at Full Load | ~9 minutes 59 seconds |
| Recharge Time | Approx. 5 hours |
| Efficiency | Up to 165ā240V, 0.98 PF |
| Redundancy | Yes |
| Management | Network Management Card 2 with Environmental Monitoring |
| Mounting Type | Tower (Not Rack-Mountable) |
| Dimensions (HxWxD) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 914.9 lbs (415 kg) |
| Operating Temp | 32ā104Ā°F (0ā40Ā°C) |
| Certifications | UL 1778, cUL Listed |
| Noise Level | 54 dBA |
| Warranty | 1-Year Repair or Replace with Start-Up Service |
