Description

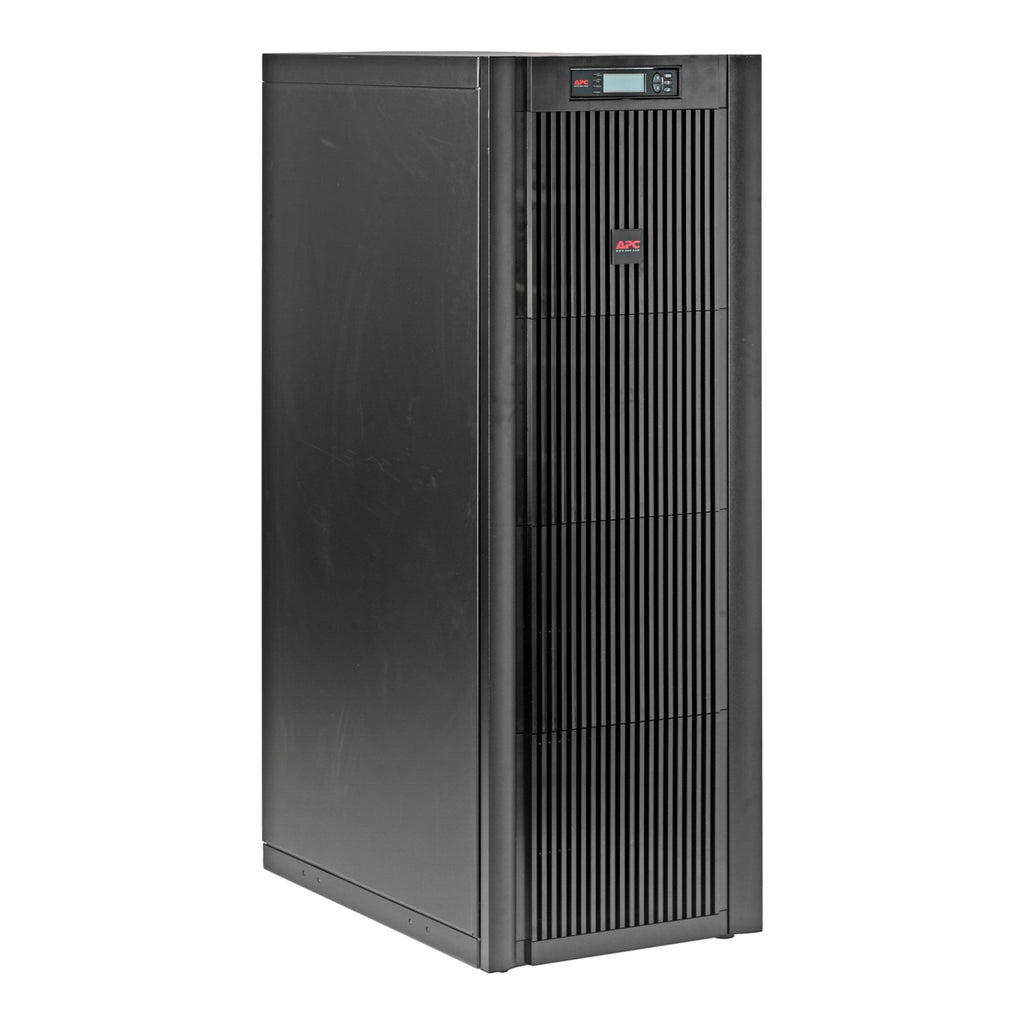

The APC Smart-UPS VT SUVTP20KF4B4S is a 20kVA three-phase tower UPS that delivers reliable, centralized power protection for mission-critical environments such as small data centers, regional offices, and retail locations. Featuring 4 battery modules, internal maintenance bypass, and parallel capability, this unit ensures high availability and operational continuity. With dual-mains input, scalable runtime, and included Start-Up 5x8 service, the system provides efficiency, flexibility, and ease of deployment for demanding power needs.
| Category | Details |
|---|---|
| SKU | SUVTP20KF4B4S |
| Brand | APC by Schneider Electric |
| Form Factor | Tower |
| Power Capacity | 20 kVA / 16 kW |
| Input Voltage | 208V 3-phase (also supports 220V) |
| Output Voltage | 120V / 208V / 208V 3-phase (configurable) |
| Battery Type | VRLA |
| Runtime (at full load) | Approx. 18 minutes with 4 battery modules |
| Battery Recharge Time | 5 hours |
| Bypass | Built-in Maintenance and Static Bypass |
| Topology | Double Conversion Online |
| Parallel Capability | Yes |
| Redundant Configuration | Yes |
| Efficiency | Up to 96% |
| Input Frequency Range | 40 – 70 Hz |
| Output Waveform | Sine Wave |
| Max Output Current | 61 A |
| Communication | Network Management Card, RS-232 |
| Included Equipment | Battery & power modules installed, NMC, software CD, manuals, Start-Up 5x8 |
| Dimensions (HxWxD) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 1386.91 lbs (629.09 kg) |
| Mounting | Floor-standing |
| Noise Level | 55 dBA |
| Operating Temp | 32°F to 104°F (0°C to 40°C) |
| Certifications | UL 1778, cUL Listed |
| Warranty | 1 Year Repair or Replace + Start-Up Service |
