Description

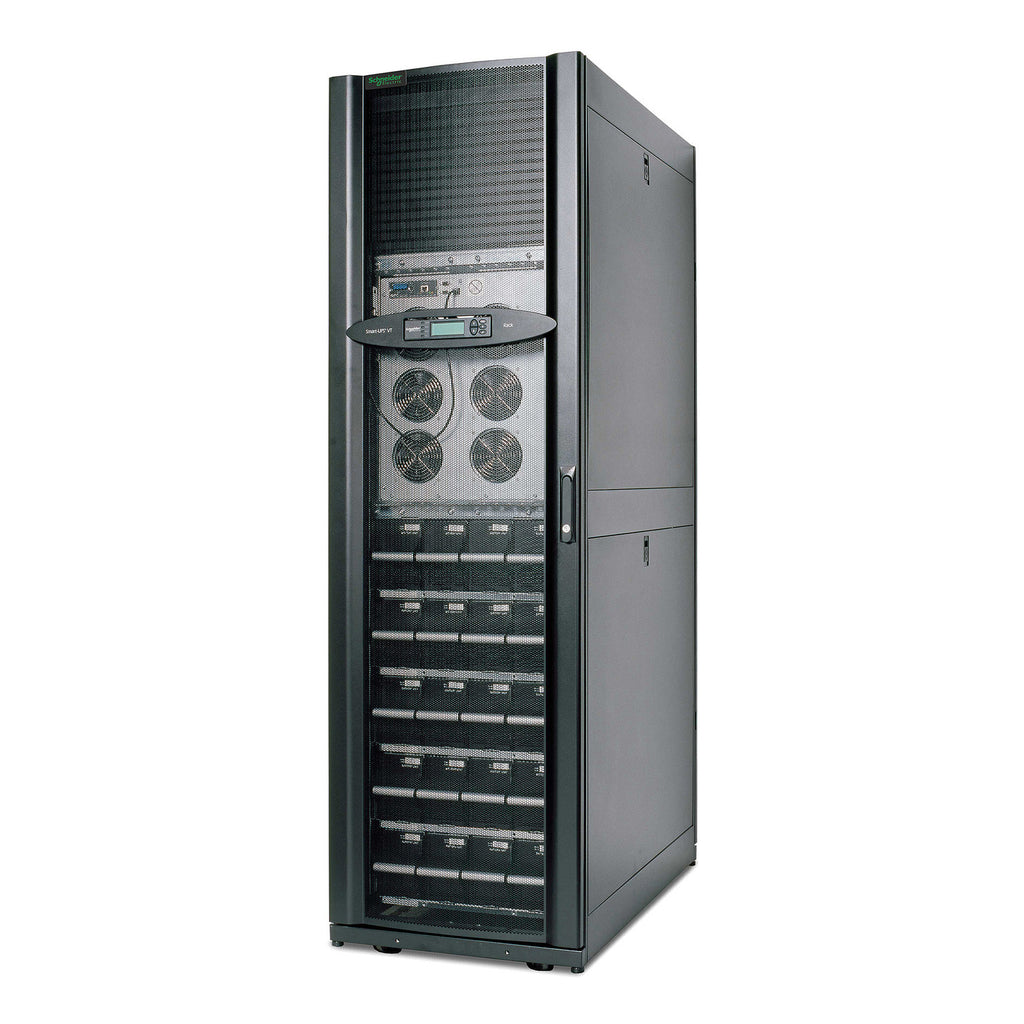

Protect mission-critical loads while saving valuable floor space with the APC Smart-UPS VT SUVTR20KF3B5S. This rack-mounted, three-phase UPS delivers 20 kVA / 16 kW of double-conversion online power in a single 42U-high enclosure that also houses an integrated PDU, hot-swappable power and battery modules, and a Network Management Card 2 with environmental monitoring. Three VRLA battery modules are pre-installed—providing about 11 minutes at full 16 kW load—and you can add two more to extend runtime as your needs grow. Soft-start circuitry reduces generator and wiring requirements, while built-in static and maintenance bypasses enable zero-downtime servicing. Ideal for small data centers, regional offices, retail hubs, and densely packed server rooms, Smart-UPS VT keeps you online, efficient, and in control.
Key Benefits
-
High-density power – 20 kVA / 16 kW in a single rack footprint
-
True online, double conversion for the tightest voltage and frequency regulation
-
Scalable runtime – 3× VRLA battery modules included, slots for 2× more
-
Integrated distribution – 5× NEMA L21-20 outlets plus hard-wire output
-
Remote visibility – Web/SNMP management, environmental monitoring, EPO
-
Soft-start feature cuts generator/transformer sizing costs
-
Hot-swappable power and battery modules for fast, tool-less maintenance
-
UL 1778 & cUL listed, NEMA 1, 1-year repair/replace with on-site start-up
| Attribute | Value |
|---|---|
| Part Number | SUVTR20KF3B5S |
| Topology | Double-conversion online |
| Rated Power | 20 kVA / 16 kW |
| Input Voltage / Phases | 208 V 3Φ (soft-start) • configurable 220 V |
| Input Frequency | 40 – 70 Hz |
| Max Input Current / Phase | 53 A (80 A switch capacity) |
| Output Voltage | 120 V, 208 V, 208 V 3Φ • configurable 200/220 V 3Φ |
| Max Output Current | 61 A |
| Output Connections | 5 × NEMA L21-20 • 1 × HW 5-wire (3Φ + N + G) |
| Battery Type / Qty | VRLA, 3 modules included (SYBT4) |
| Battery Slots / Expansion | 5 total • 3 filled / 2 free |
| Runtime @ Full Load (16 kW) | ≈ 11 min 30 s (with 3 modules) |
| Recharge Time | ≈ 3 h to 90 % |
| Efficiency | High-efficiency mode available (see graph) |
| Bypass | Static & maintenance bypass (internal) |
| Network Management | NMC 2 with environmental sensors |
| Form Factor / Rack Units | Rack-mount, 42U (78.5 in / 199.5 cm high) |
| Dimensions (H × W × D) | 78.54 × 23.62 × 42.32 in (199.5 × 60 × 107.5 cm) |
| Weight (Net) | 1,447 lb / 656 kg |
| Acoustics | 58 dBA |
| Operating Temp / RH | 32 – 104 °F (0 – 40 °C) • 0 – 95 % non-condensing |
| Certifications | UL 1778, cUL, NEMA 1 |
| Included Accessories | PDU, power modules pre-installed, 3 × battery modules, NMC 2, software CD, RS-232 cable, user & install guides, on-site start-up |
| Warranty | 1-year repair/replace (includes start-up service) |
