Description

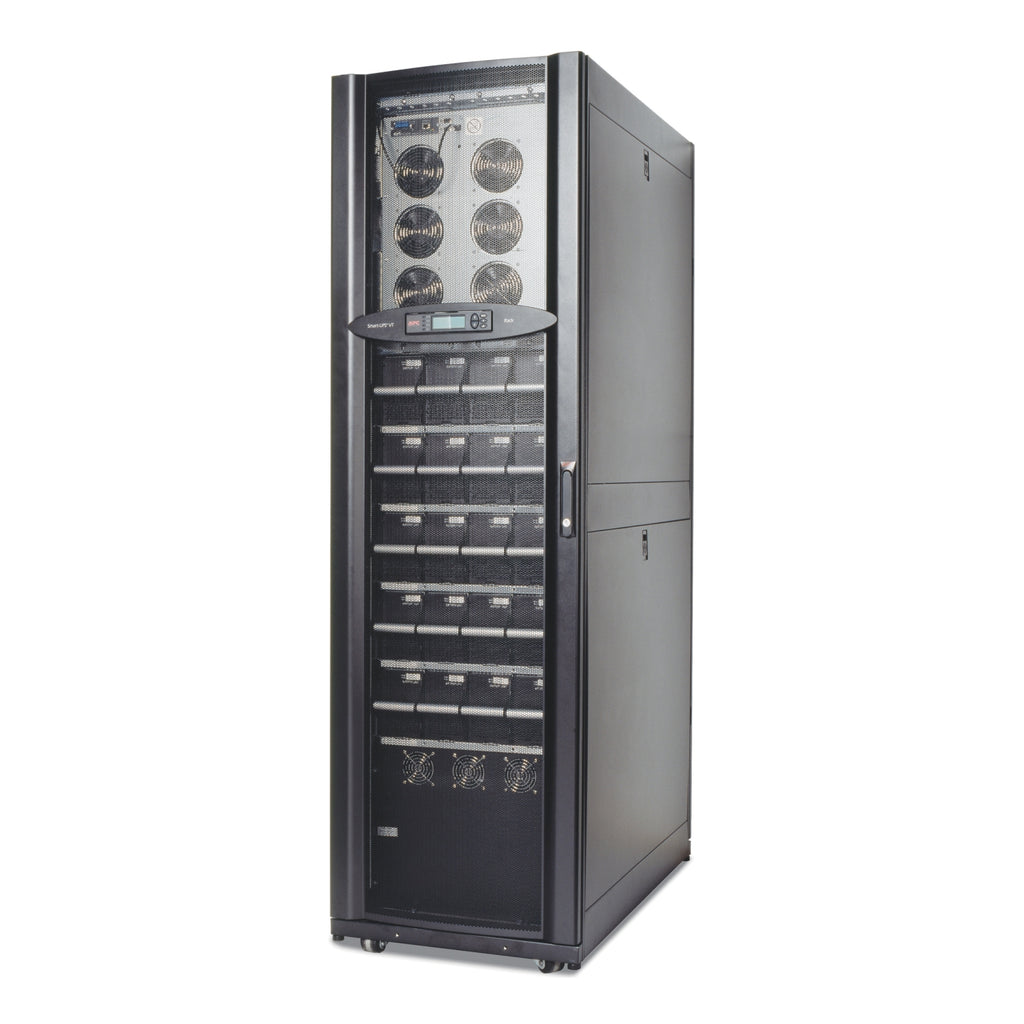

The APC Smart-UPS VT SUVTRT20KF4B5S delivers reliable and centralized 3-phase power protection in a compact rack-mounted form. Designed for high-performance IT and industrial environments, it includes an isolation transformer, 4 battery modules (expandable to 5), factory-installed PDU, and startup service. With online double-conversion topology, this UPS ensures seamless and clean power to critical loads. Its robust design, scalability, and advanced manageability make it ideal for demanding applications.
Key features:
-
20kVA / 16kW load capacity
-
Integrated isolation transformer and PDU
-
Hardwired 3-phase input/output for high compatibility
-
Built-in static and maintenance bypass
-
Includes APC Network Management Card for remote monitoring
| Category | Details |
|---|---|
| Product Type | Rack-mounted 3-Phase UPS |
| Model Number | SUVTRT20KF4B5S |
| Power Capacity | 20 kVA / 16,000 W |
| Topology | Double Conversion Online |
| Input Voltage | 208V 3-Phase (Hard Wire 5-wire: 3PH + N + G) |
| Output Voltage | 208V 3-Phase (Configurable 200/208/220V), 120V |
| Battery Type | VRLA (4 Battery Modules, Expandable to 5) |
| Run Time (Full Load) | Approx. 18 minutes at 16kW |
| Recharge Time | 3 hours |
| Efficiency (Full Load) | Up to 93% |
| Output Connections | 5 × NEMA L21-20 + 1 × Hardwire 5-wire |
| Bypass Options | Built-in Static & Maintenance Bypass |
| Communication | APC Network Management Card 2, RS-232 |
| Mounting Type | Rack-Mounted |
| Dimensions (H x W x D) | 78.54 x 23.62 x 42.32 in (199.5 x 60 x 107.5 cm) |
| Weight | 2,094.4 lbs (950 kg) |
| Environment Range | 0–40°C Operating Temp, 0–95% Humidity, 58 dBA Noise |
| Certifications | UL 1778, cUL Listed |
| Included Equipment | Network Card, Power Modules Installed, Cables, Manuals, Startup Service |
| Warranty | 1-Year Repair or Replace |
