Description

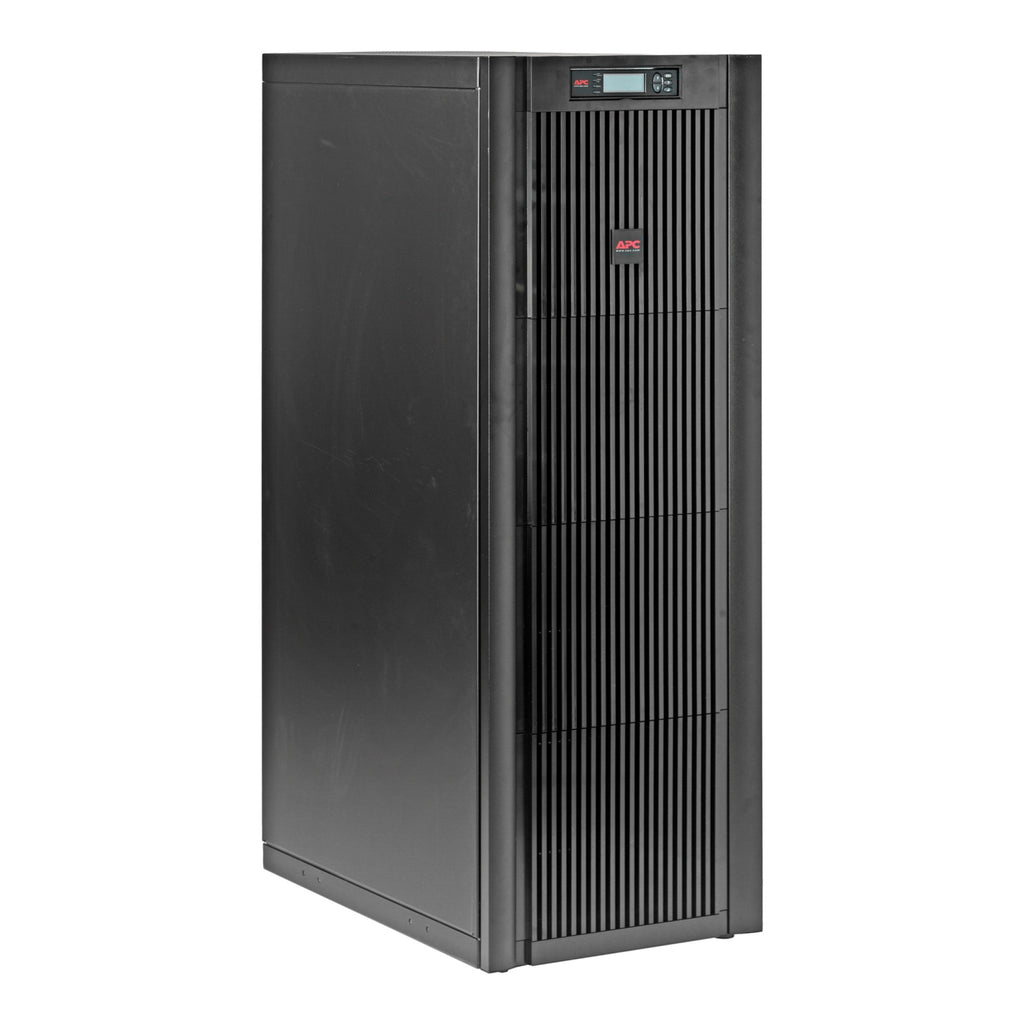

The APC Smart-UPS VT SUVTP30KF4B4S is a high-performance, three-phase uninterruptible power supply (UPS) designed to deliver centralized, scalable power protection for critical applications. Offering 30kVA / 24kW of power, this model includes four pre-installed battery modules and is ideal for small data centers, high-density retail environments, and distributed IT infrastructure. With double conversion online technology, dual-mains input, built-in static and maintenance bypass, and parallel capability, it ensures uninterrupted power with high efficiency and reliability.
Includes factory start-up service (5x8), built-in network management, and environmental monitoring for complete peace of mind.
| Category | Details |
|---|---|
| Model Number | SUVTP30KF4B4S |
| Power Rating | 30,000 VA / 24,000 W |
| Input Voltage | 208V 3-Phase (165ā240V range) |
| Output Voltage | 208V / 120V 3-Phase, configurable to 220V |
| Run Time (Full Load) | ~9 minutes 30 seconds |
| Battery Modules Installed | 4 VRLA battery modules |
| Battery Recharge Time | 5 hours |
| UPS Type | Double Conversion Online |
| Bypass | Static and Internal Maintenance |
| Input Connections | Hard wire 5-wire (3P + N + E) |
| Output Connections | Hard wire 5-wire (3P + N + E) |
| Form Factor | Tower (Not Rack-Mountable) |
| Network Management | Included (with environmental monitoring) |
| Redundancy Support | Yes (Parallel Capable) |
| Efficiency | 0.98 input power factor at full load |
| Certifications | UL 1778, cUL Listed |
| Dimensions (H x W x D) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 1386.91 lb / 629.09 kg |
| Operating Temperature | 32ā104Ā°F (0ā40Ā°C) |
| Noise Level | 55 dBA |
| Warranty | 1 Year Repair or Replace with Start-Up Service |
