Description

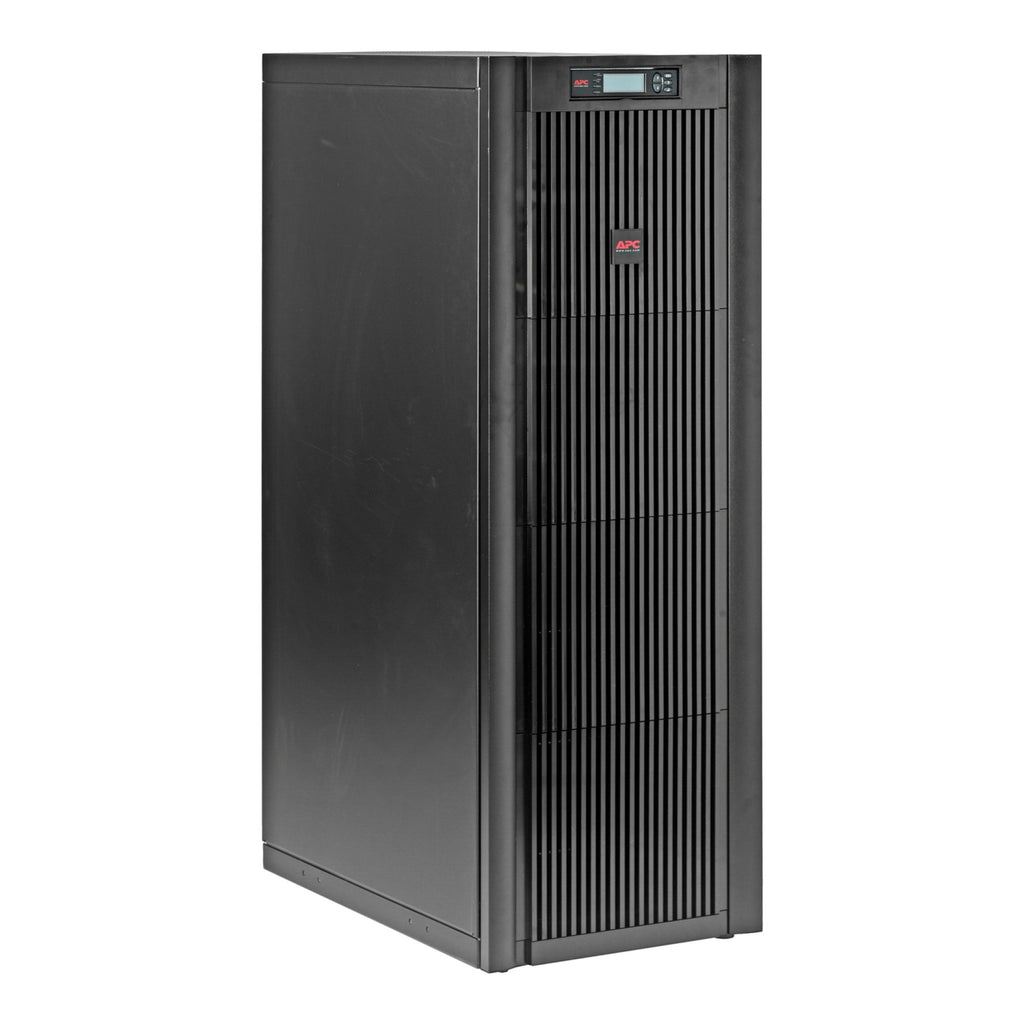

The APC Smart-UPS VT SUVTP30KF3B4S delivers reliable, scalable three-phase power protection in a compact footprint—ideal for small data centers, retail environments, and high-density IT loads. With dual-mains input, built-in maintenance and static bypasses, and expandable runtime through hot-swappable VRLA battery modules, this tower UPS ensures uninterrupted performance and maximum availability. Includes a startup service (5x8), integrated network management, and internal maintenance bypass. Expandable to 4 battery modules and parallel-capable for redundancy or capacity growth.
| Specification | Details |
|---|---|
| Power Capacity | 30kVA / 24kW |
| Input Voltage | 208V 3-phase (Dual mains), also supports 220V |
| Output Voltage | 120V, 208V, 208V 3-phase, configurable to 220V |
| Input Frequency | 40–70 Hz |
| Output Frequency | 60 Hz ±0.1% |
| Bypass Type | Built-in Maintenance and Static Bypass |
| Battery Type | VRLA (3 modules included, expandable to 4) |
| Recharge Time | 3 hours |
| Runtime (Full Load) | ~5 minutes 30 seconds @ 24kW |
| Redundancy | Yes, parallel-capable |
| Efficiency | High-efficiency double conversion |
| Form Factor | Tower (Not rack-mountable) |
| Dimensions (HxWxD) | 59.02 x 20.59 x 32.01 in (149.9 x 52.3 x 81.3 cm) |
| Weight | 1183.49 lbs (536.82 kg) |
| Communication | Network Management Card, RS-232, SmartSlot |
| Certifications | UL 1778, cUL Listed |
| Environmental Operating Temp | 32–104°F (0–40°C), 0–95% RH |
| Noise Level | 55 dBA |
| Warranty | 1 Year Repair or Replace + Start-Up 5x8 |
