Description

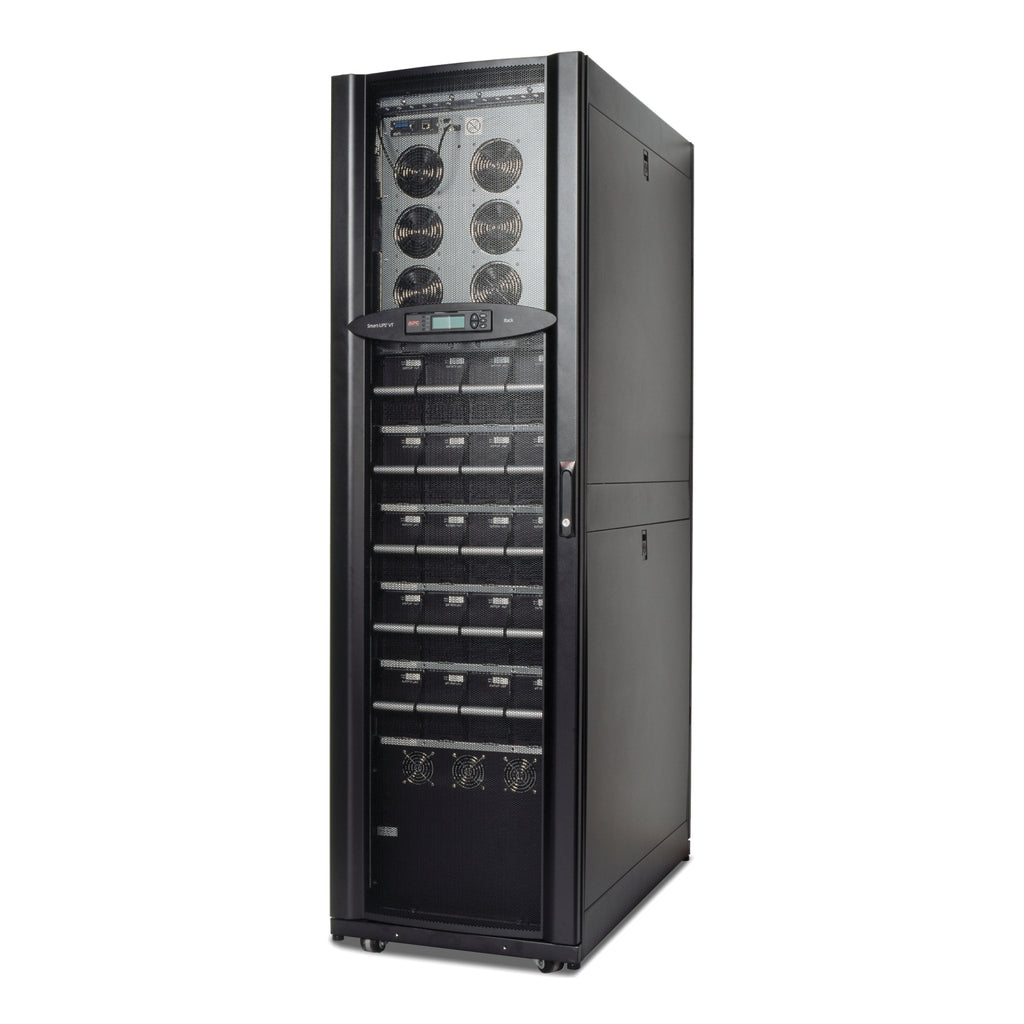

The APC by Schneider Electric SUVTR30KG4B5S Smart-UPS VT is a rack-mounted, three-phase 30kVA UPS engineered for high-density power protection in critical applications such as small data centers, regional offices, and industrial environments. Delivering reliable 480V input and 208V output power, this model features 4 VRLA battery modules (expandable to 5), integrated power distribution unit (PDU), and startup service.
Maximize space and efficiency with this all-in-one power protection system that combines UPS, extended runtime, and network management in a single rack enclosure. Designed with double conversion online topology, built-in maintenance and static bypass, and a high-efficiency power factor of 0.98, this Smart-UPS ensures continuity and resilience under demanding loads.
| Category | Details |
|---|---|
| Model | SUVTR30KG4B5S |
| Type | Rack-mounted 3-phase UPS with PDU & startup |
| Input Voltage | 480V 3-phase |
| Output Voltage | 208V / 208V 3-phase / 120V |
| Power Capacity | 30kVA / 24kW |
| Output Connections | (5) NEMA L21-20, Hardwire 5-wire (3PH+N+G) |
| Battery Type | VRLA, 4 modules included (expandable to 5) |
| Recharge Time | 3 hours |
| Battery Life | 3–5 years |
| Topology | Double Conversion Online |
| Runtime at Full Load | 9 minutes 30 seconds @ 24kW |
| Efficiency (Full Load) | 93.3% |
| Overload Capacity | 60s @ 125%, 30s @ 150% |
| Bypass | Static and maintenance bypass included |
| Management | Network Management Card 2 w/ environmental monitoring |
| Mounting | Rack-mounted (42U height) |
| Dimensions (HxWxD) | 78.54 x 23.62 x 42.32 in (199.5 x 60 x 107.5 cm) |
| Weight | 2094.4 lbs (950 kg) |
| Certifications | UL 1778, cUL Listed |
| Environmental | 32–104°F operating, 0–95% RH, 58 dBA noise level |
| Warranty | 1-year repair/replace with startup service included |
