Description

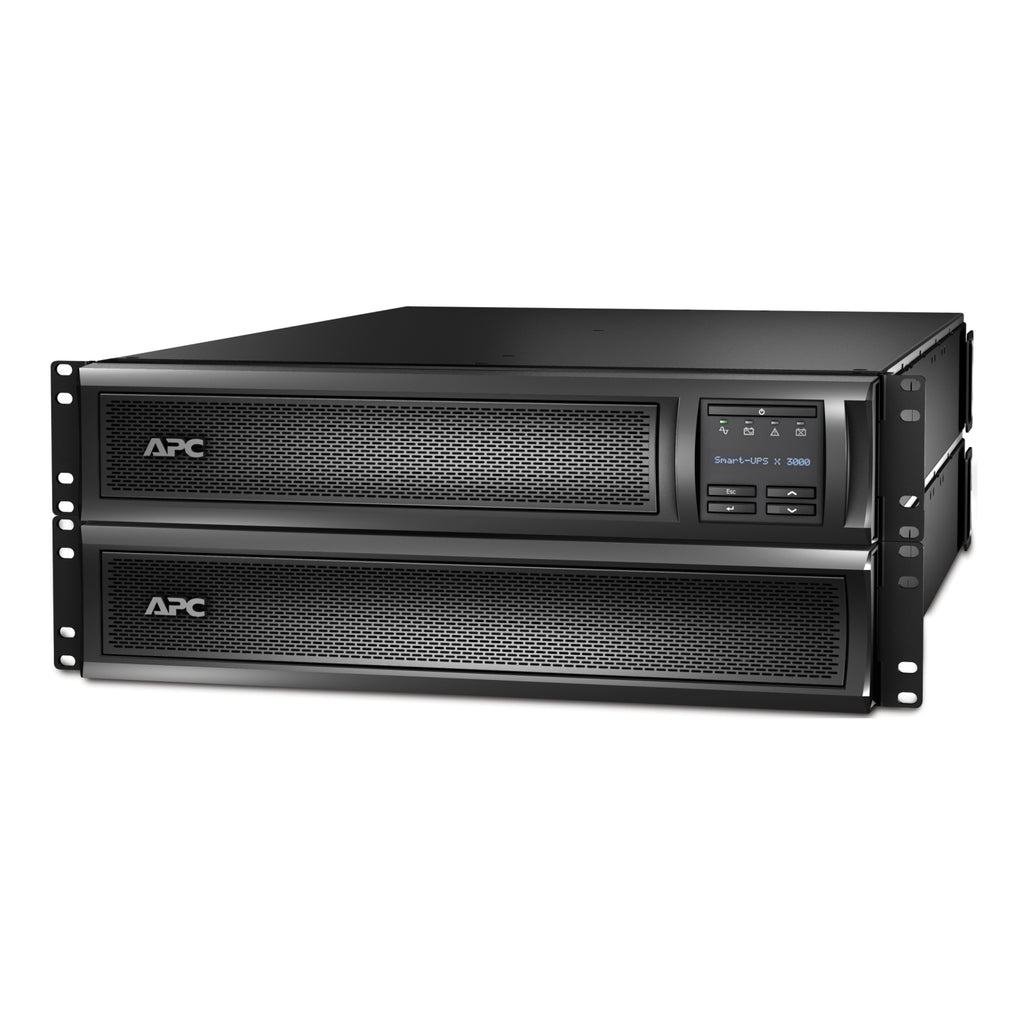

The APC Smart-UPS X SMX3000RMHV2UNC delivers intelligent and efficient power protection for network and server equipment. This 3kVA line-interactive UPS supports both rack and tower configurations in a compact 2U design. With user-selectable output voltage (200–240V), it features 8 IEC C13 and 1 IEC C19 outlets and includes an installed Network Management Card for remote monitoring and control. It supports up to 10 external battery packs for extended runtime and includes the APC temperature sensor (AP9335T). Ideal for small to medium data centers, it enables graceful shutdown of servers, VMs, and HCI clusters via PowerChute Network Shutdown and integrates with EcoStruxure IT. Compatible with APC RBC117 replacement battery.
| Key Specification | Details |
|---|---|
| Model | SMX3000RMHV2UNC |

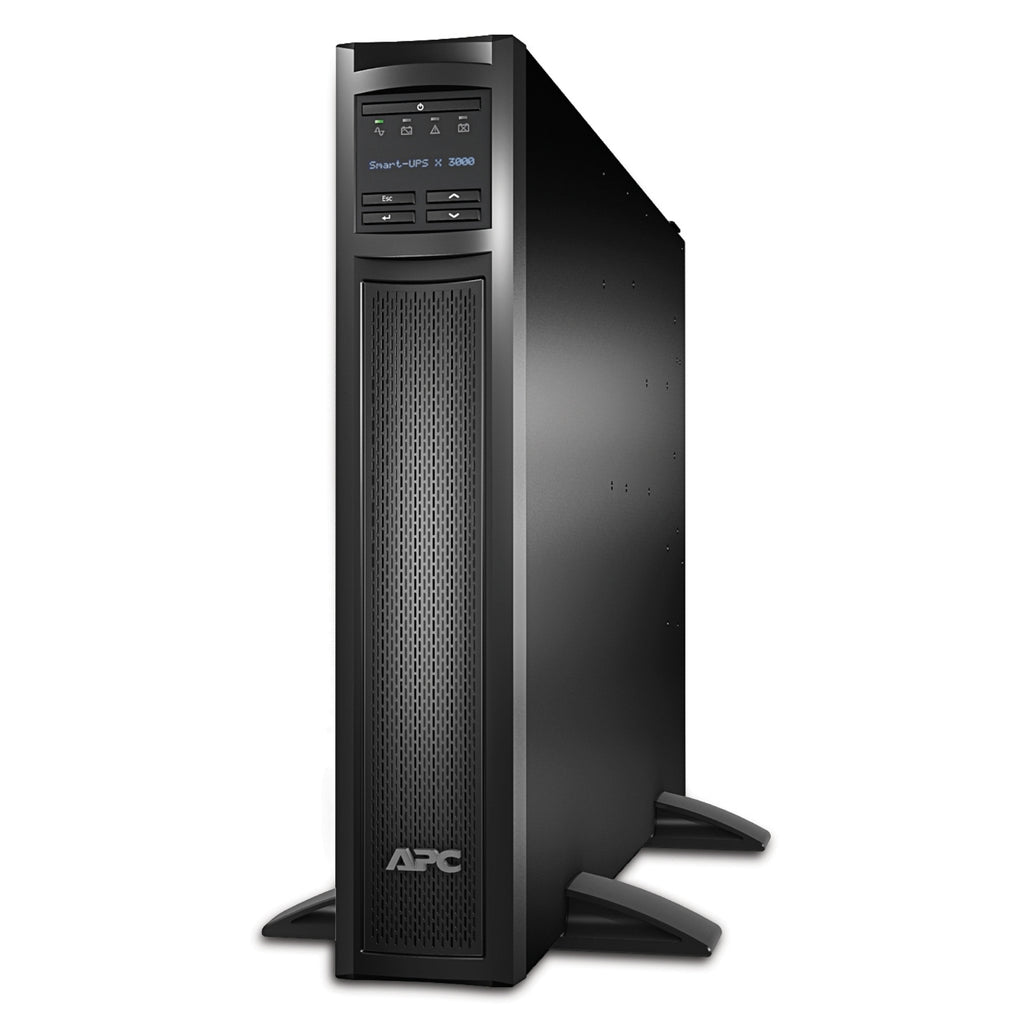

| Form Factor | 2U Rackmount / Tower Convertible |
| Rated Power | 3000VA / 2700W |
| Input Voltage | 208V / 230V (Selectable: 200V–240V) |
| Input Connection | IEC C20, BS1363A, Schuko |
| Output Voltage | 208V / 220V / 230V / 240V |

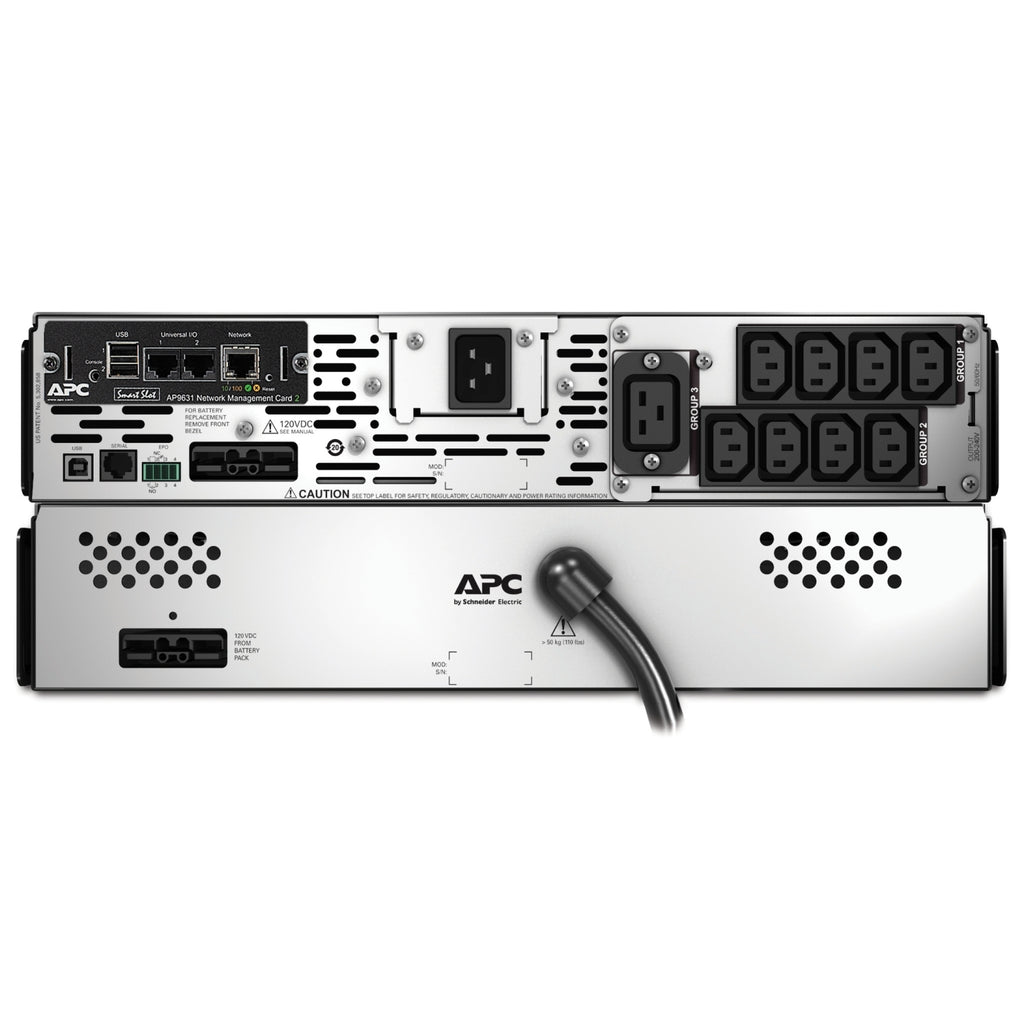

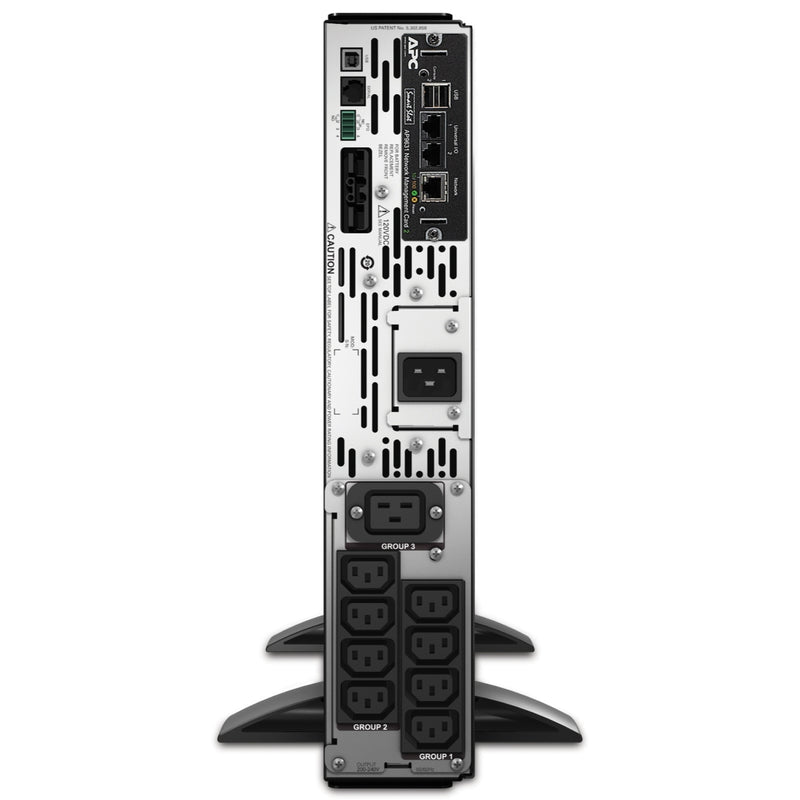

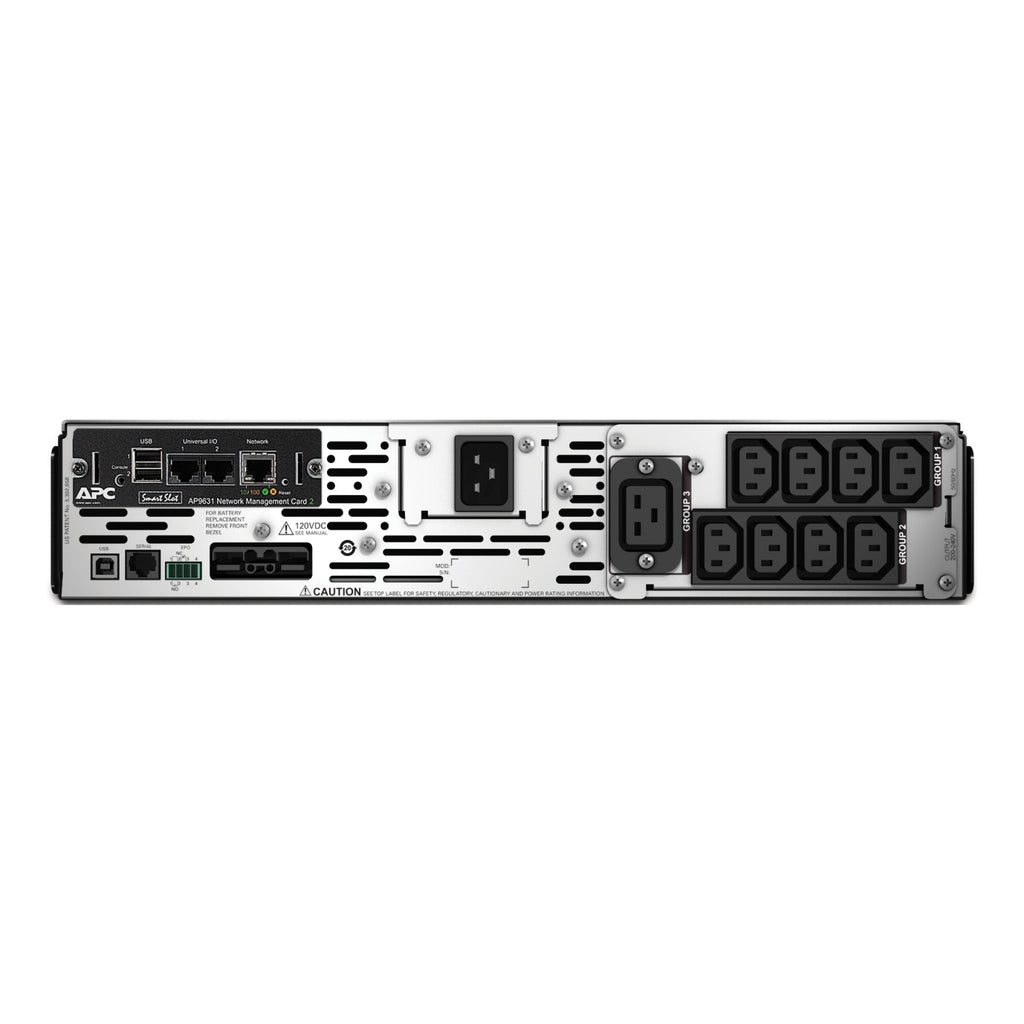

| Outlets | 8x IEC C13, 1x IEC C19 |
| Topology | Line Interactive |
| Waveform | Pure Sine Wave |
| Network Card | Preinstalled (SmartSlot, NMC3 with Environmental Monitoring) |
| Outlet Groups | 3 switchable groups |
| Battery Type | Lead-Acid, User-replaceable |
| Replacement Battery | APC RBC117 |
| Extended Runtime | Supports up to 10 SMX120RMBP2U packs |
| Runtime (Full Load) | ~6 min at 2700W |
| Recharge Time | Approx. 3 hours |
| Management Software | PowerChute Network Shutdown |
| Temperature Sensor | Included (AP9335T) |
| EPO Support | Yes |
| Color | Black |
| Dimensions (HxWxD) | 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm) |
| Weight | 82.28 lbs (37.32 kg) |
| Certifications | CE, VDE, EAC, UK PSTI, GOST |
| Warranty | 3 years on UPS, 2 years on battery |
