Description

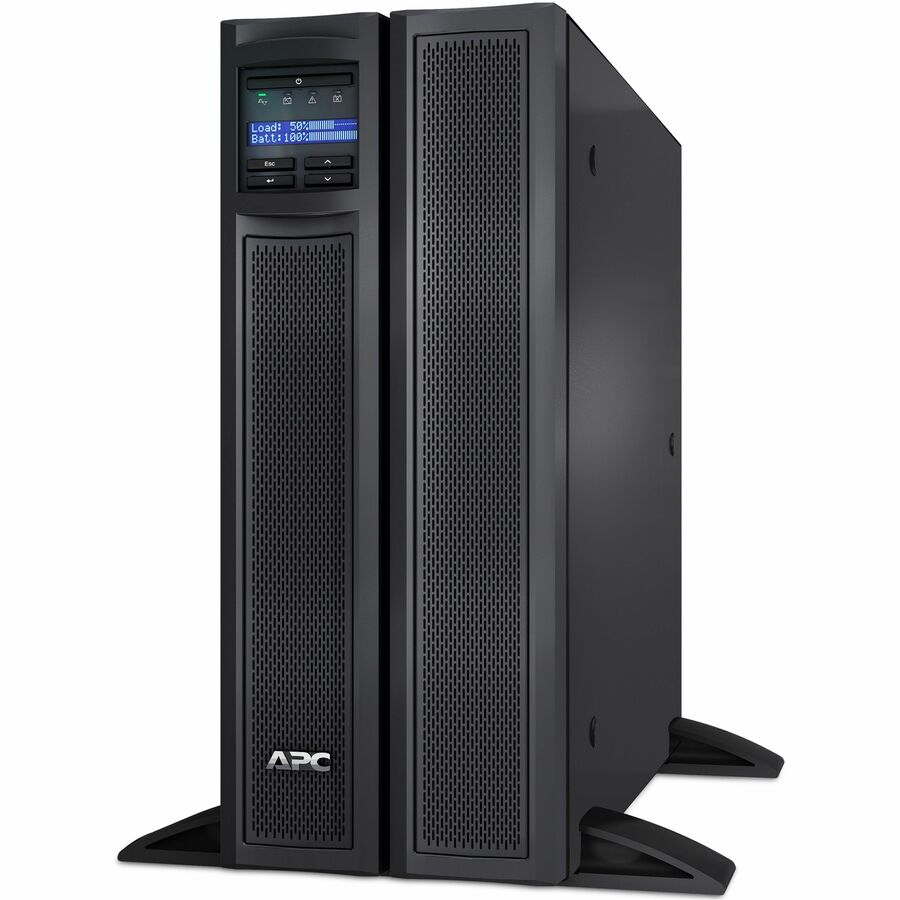

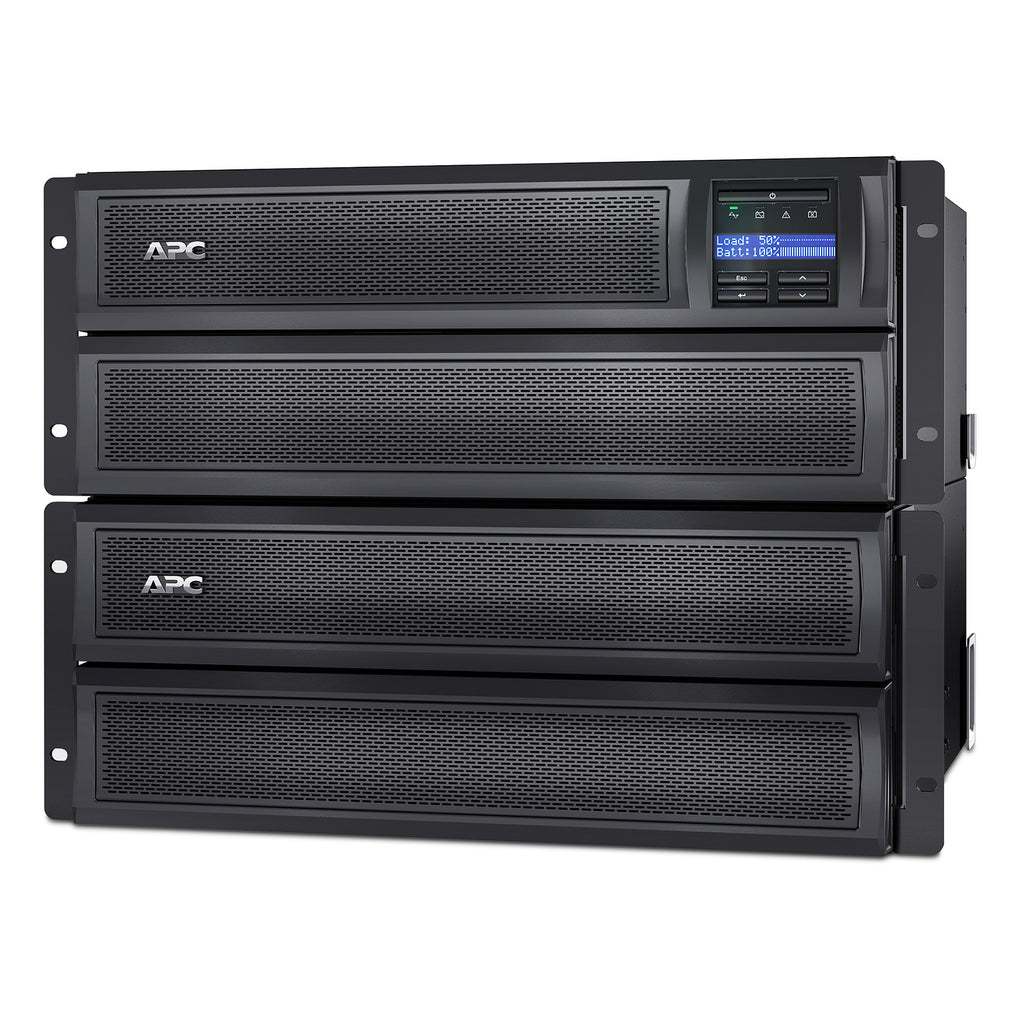

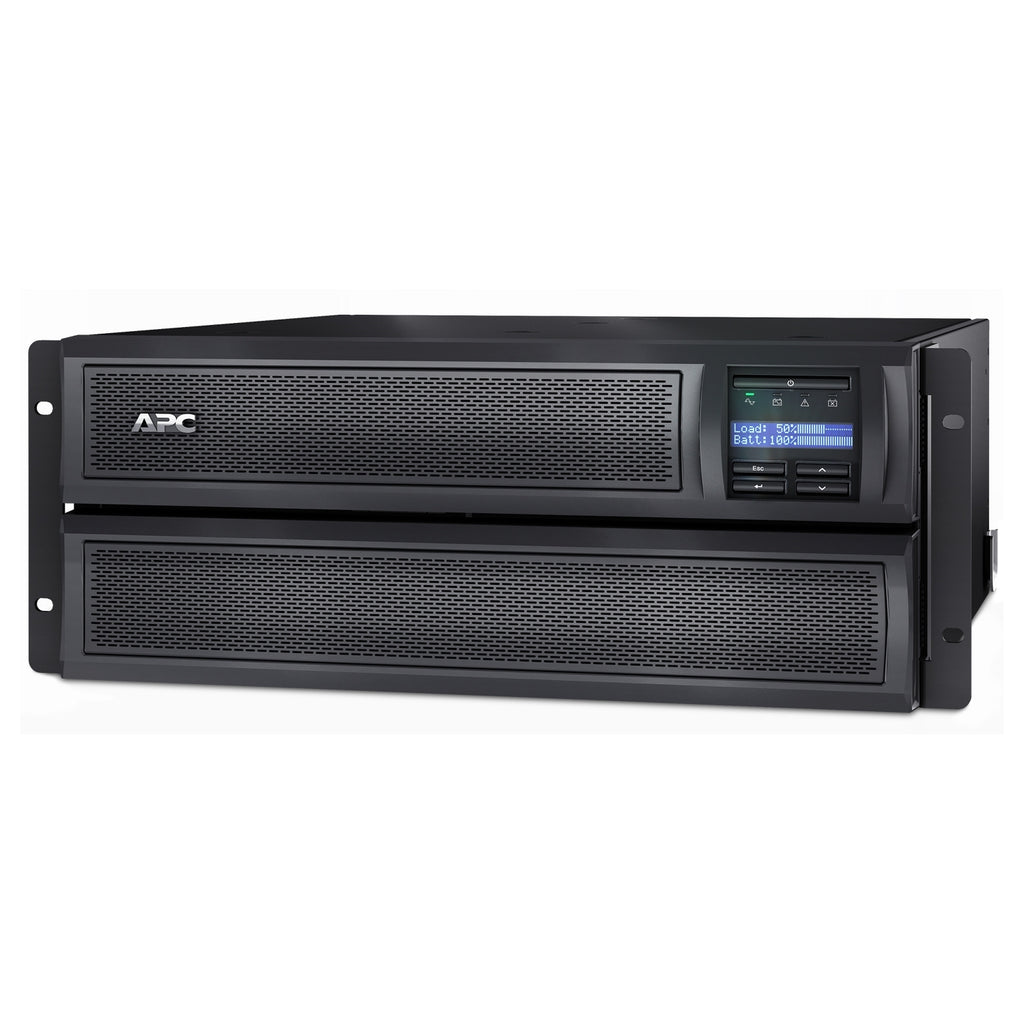

The APC Smart-UPS X SMX3000HVT is a 3kVA/2700W line-interactive UPS designed to keep your critical equipment running during power interruptions. This versatile 4U rack/tower convertible unit delivers pure sine wave output, ideal for servers, networking hardware, and other sensitive electronics. It features 2x NEMA L6-20R, 4x IEC C13, and 2x IEC C19 outlets, a SmartSlot for optional network management, and supports up to 10 external battery packs for extended runtime. Includes user-selectable voltage settings (200V–240V), Emergency Power Off (EPO), and intelligent LCD controls. Replacement battery cartridge APCRBC143 ensures long-term performance.
| Specification | Details |
|---|---|
| Model | APC SMX3000HVT |
| UPS Type | Line Interactive |
| Power Capacity | 3000 VA / 2700 W |
| Form Factor | 4U Rack/Tower Convertible |
| Input Voltage | 208V (User-selectable: 200V–240V) |
| Input Connection | NEMA L6-20P |

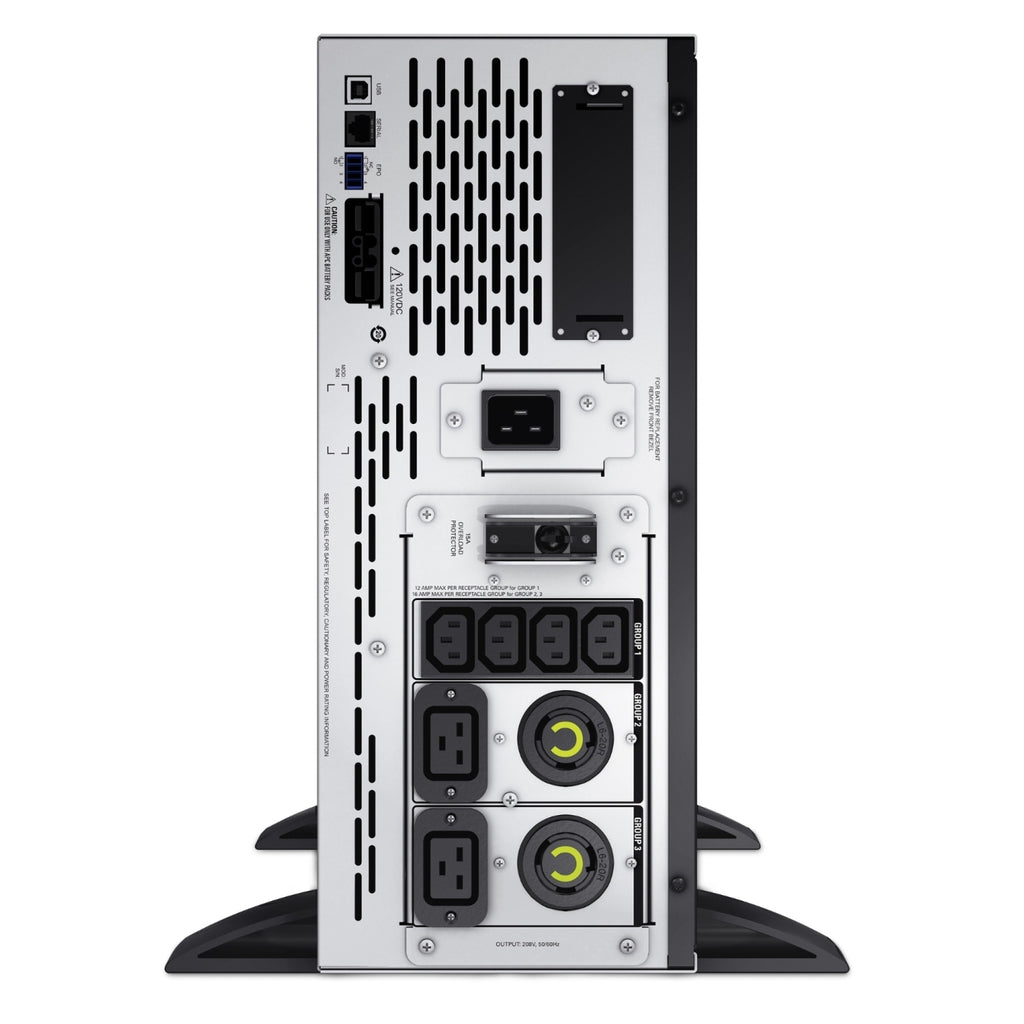

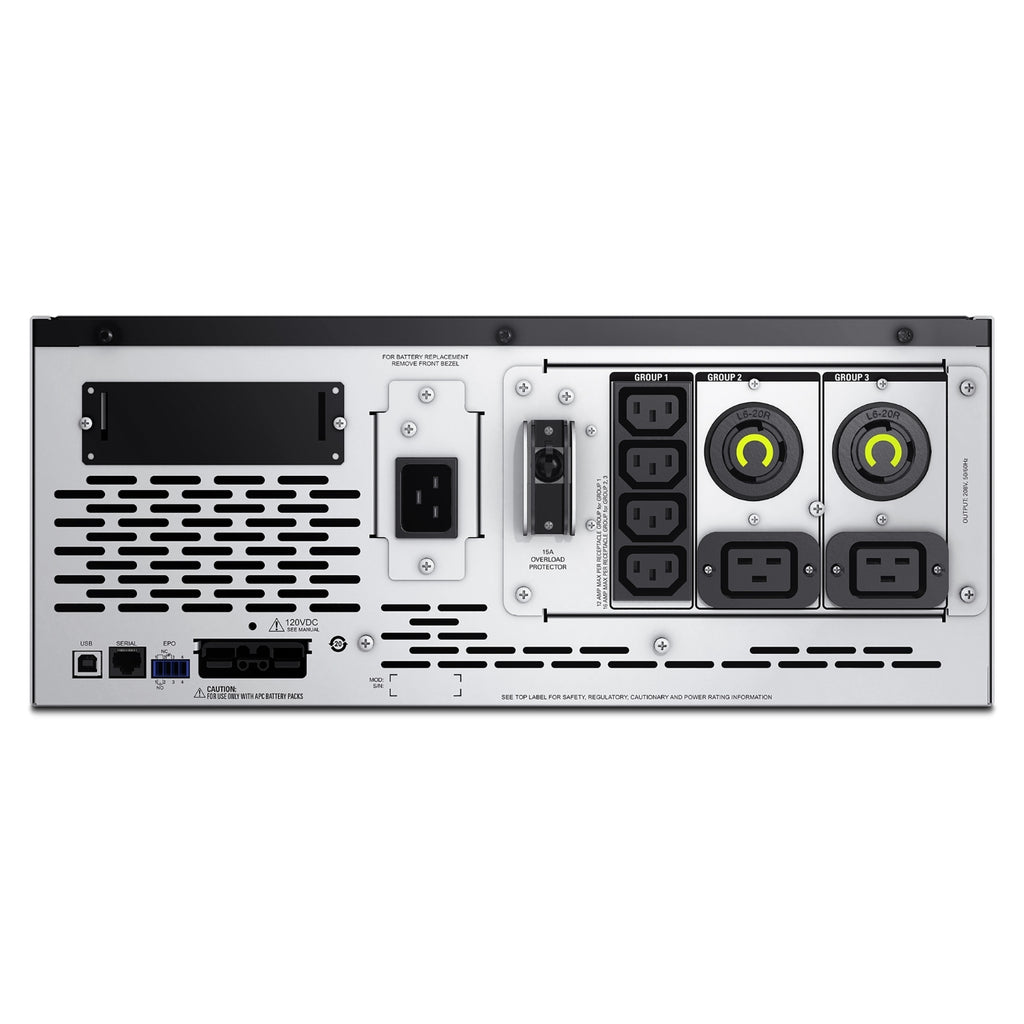

| Output Connections | 2x NEMA L6-20R, 4x IEC C13, 2x IEC C19, 3x IEC Jumpers |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 4 ms typical, 8 ms max |
| Communication Ports | SmartSlot, USB, Serial RS-232 |
| Display | LCD Status Panel with Control Console |
| Surge Protection | 645 Joules |
| Battery Type | Lead-Acid |
| Replaceable Battery | APCRBC143 |
| Runtime at Full Load | Approx. 6 min at 2700W |
| Battery Recharge Time | 3 hours |
| Extendable Runtime | Supports up to 10 SMX120BP external battery packs |
| Mounting | Rack-mountable (rail kit sold separately), tower feet included |
| Dimensions (H x W x D) | 17.01 x 7.01 x 19.02 in (43.2 x 17.8 x 48.3 cm) |
| Weight | 85.19 lbs (38.64 kg) |
| Certifications | CE, CSA, VDE, IRAM, GOST, C-tick |
| Operating Temp | 0 – 40°C |
| Warranty | 3-Year UPS / 2-Year Battery (APCRBC143) |
| Included Accessories | USB cable, RS-232 cable, Rack mount brackets, CD w/ Software, User Manual |
