Description

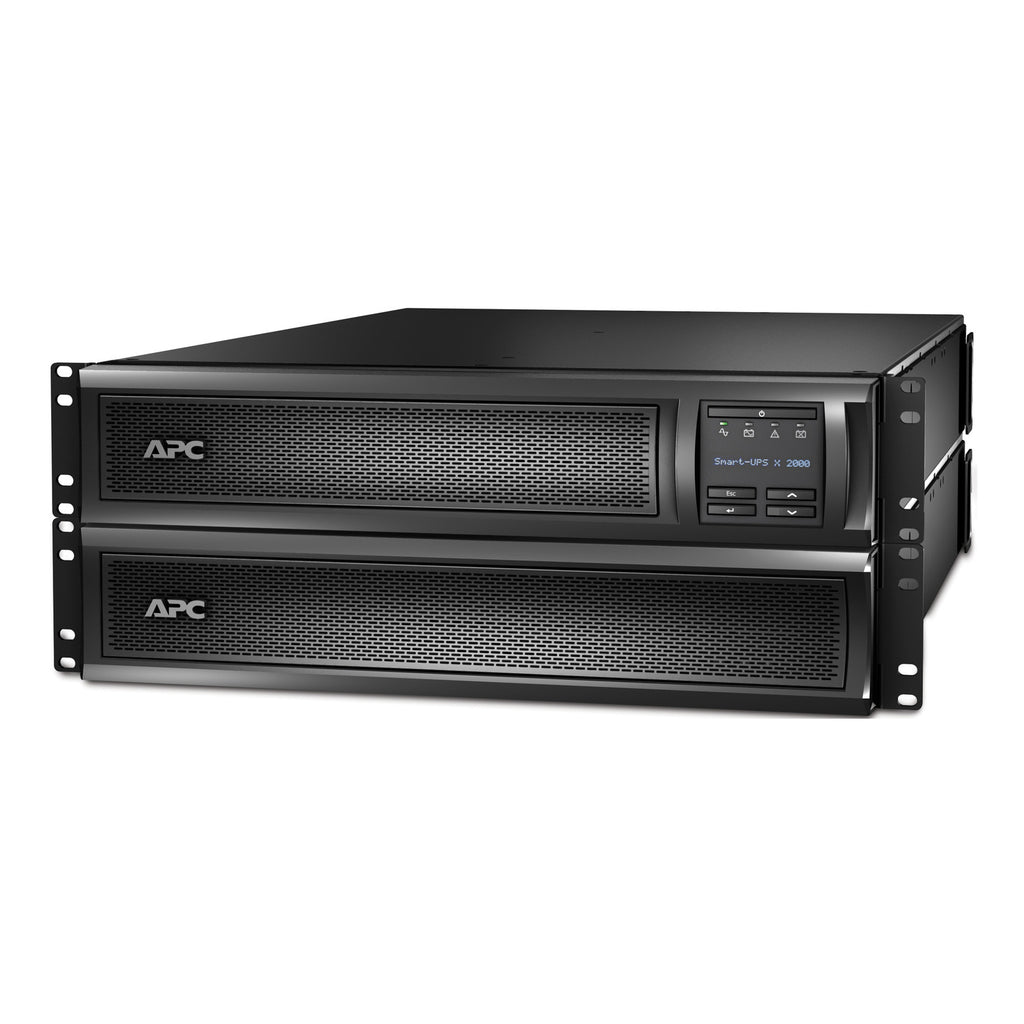

Ensure uninterrupted uptime with the APC Smart-UPS X SMX2000RMLV2U, a high-performance 1920VA/1800W line-interactive UPS built for critical IT and network environments. Designed in a compact 2U rack/tower convertible form factor, it features a pure sine wave output and user-selectable voltage (100V–127V). The unit includes 3x NEMA 5-15R, 3x NEMA 5-20R, and 1x L5-20R outlets powered by a NEMA 5-20P input.
SmartSlot support allows integration with APC's Network Management Card for remote monitoring and graceful shutdowns via PowerChute. Equipped with extended runtime capability, users can add up to 10 external battery packs (SMX120RMBP2U). The system includes rack rails, mounting hardware, and USB/serial cables.
The SMX2000RMLV2U is compatible with APC Replacement Battery Cartridge APCRBC117, offering easy maintenance and full restoration of original backup performance. Emergency Power Off (EPO), switchable outlet groups, and LCD control panel enhance control, safety, and visibility in mission-critical deployments.
| Specification | Details |
|---|---|
| Model | APC Smart-UPS X SMX2000RMLV2U |

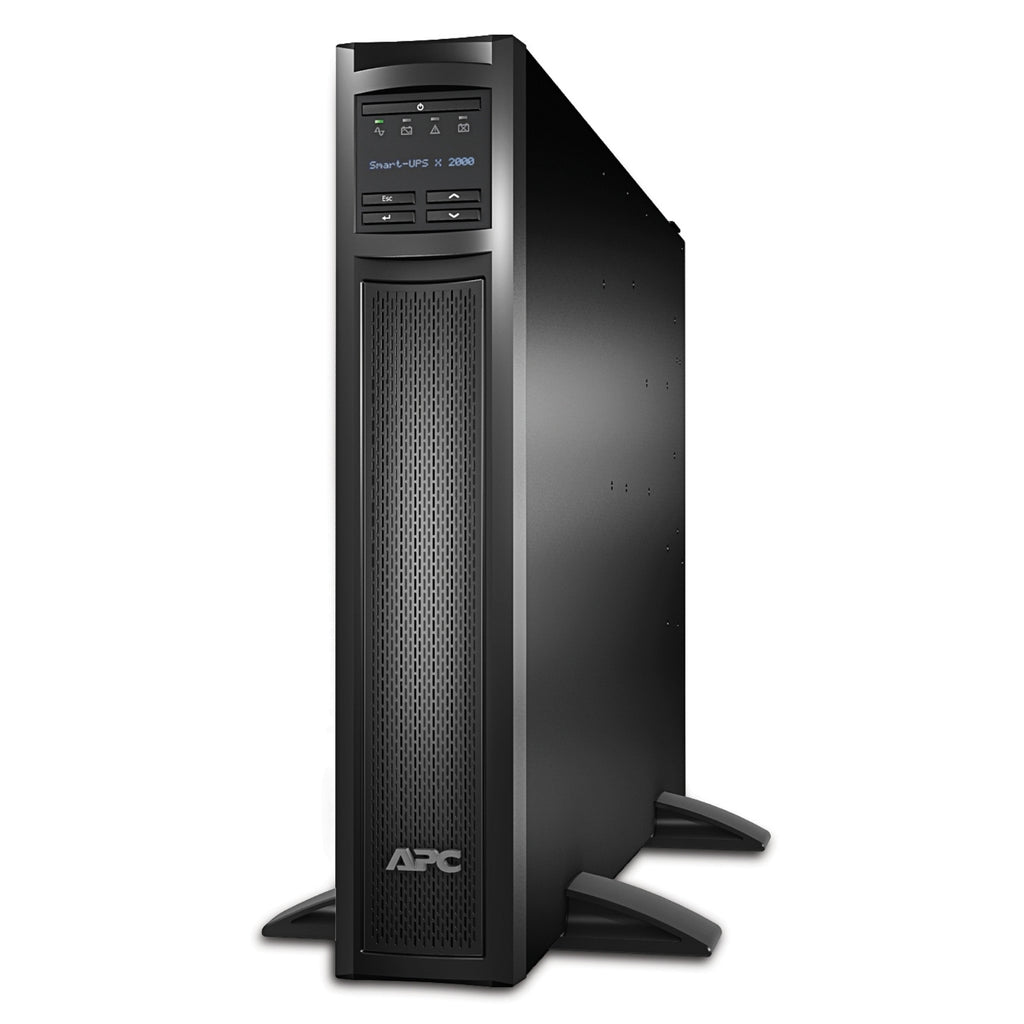

| Form Factor | Rack/Tower Convertible, 2U |
| Power Capacity | 1920VA / 1800W |
| Input Voltage | 100V–127V (NEMA 5-20P) |
| Output Voltage | 100V, 110V, 120V, 127V |

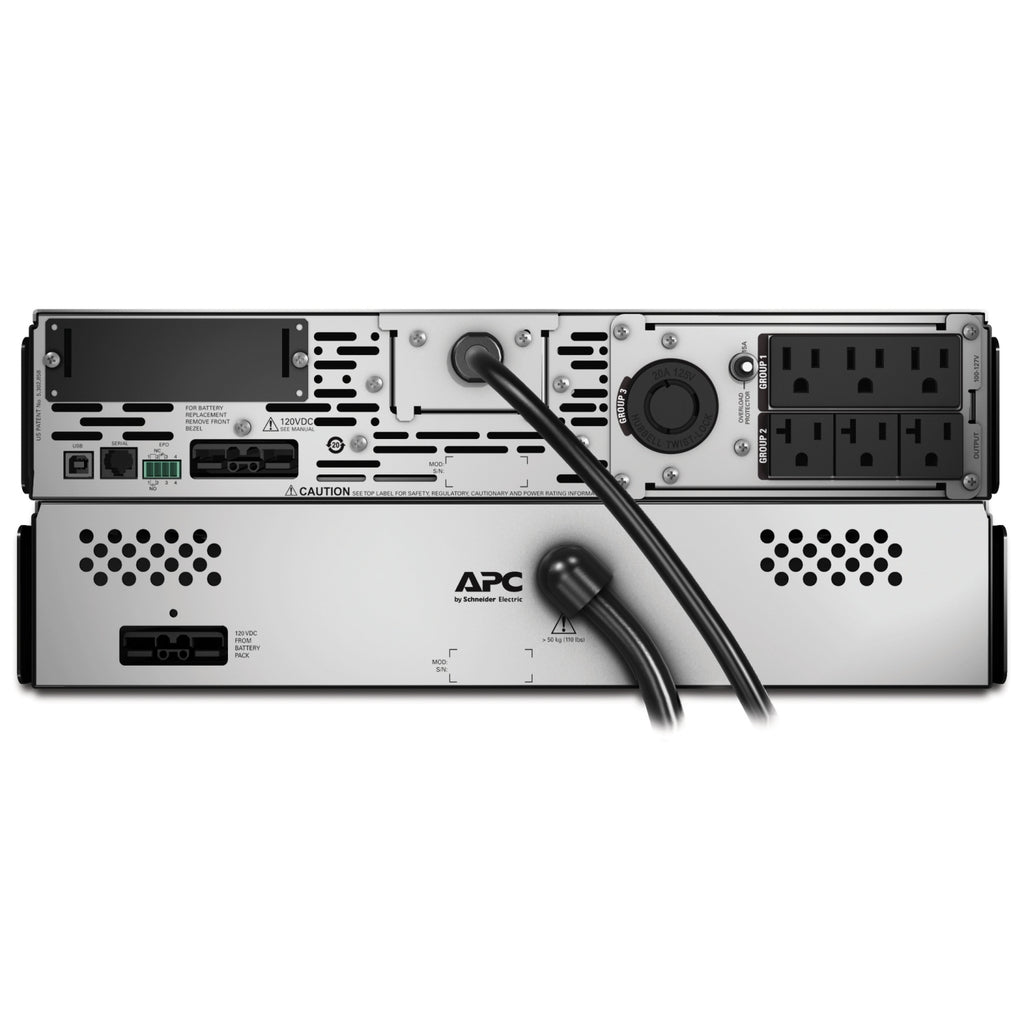

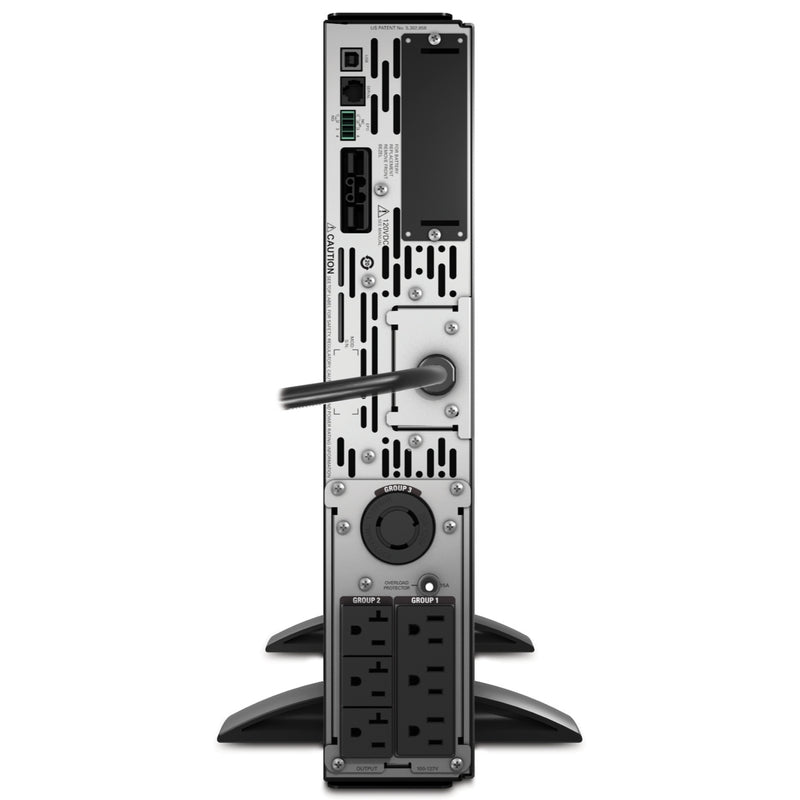

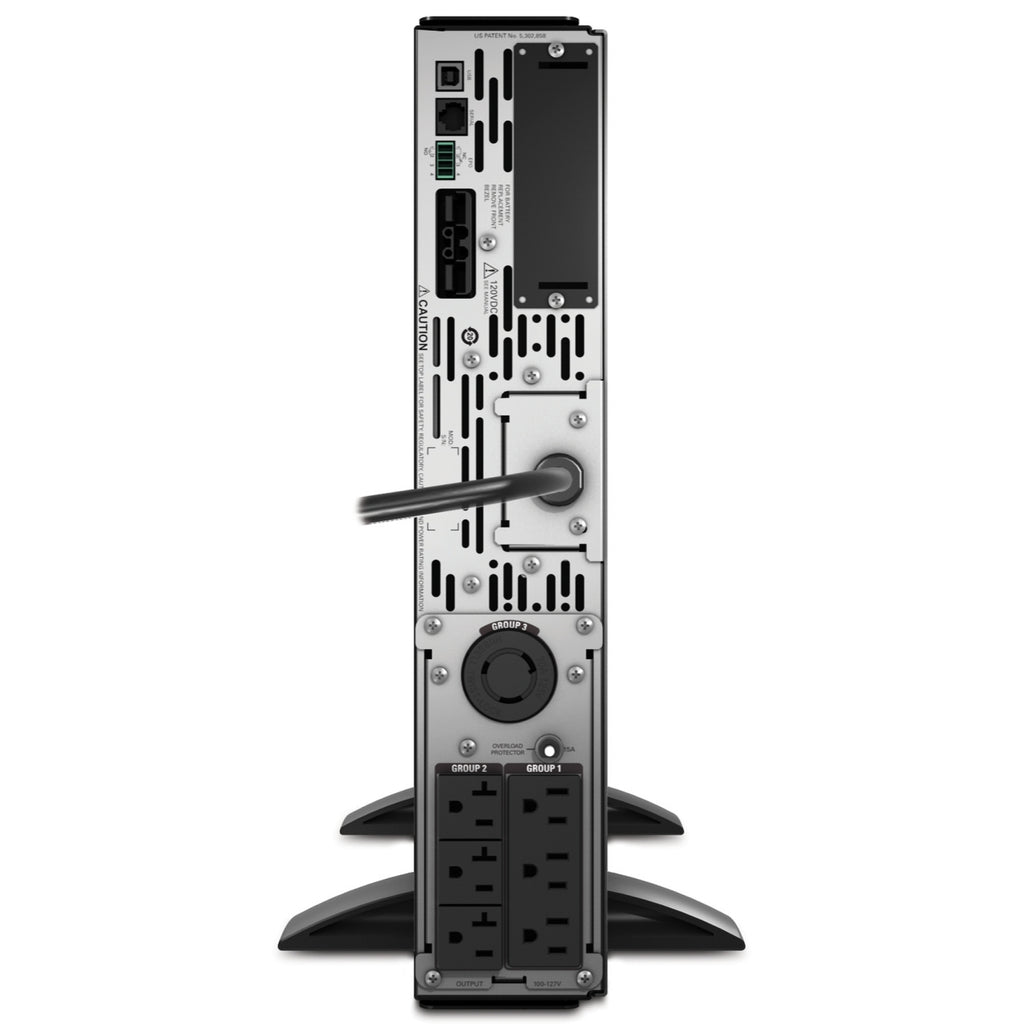

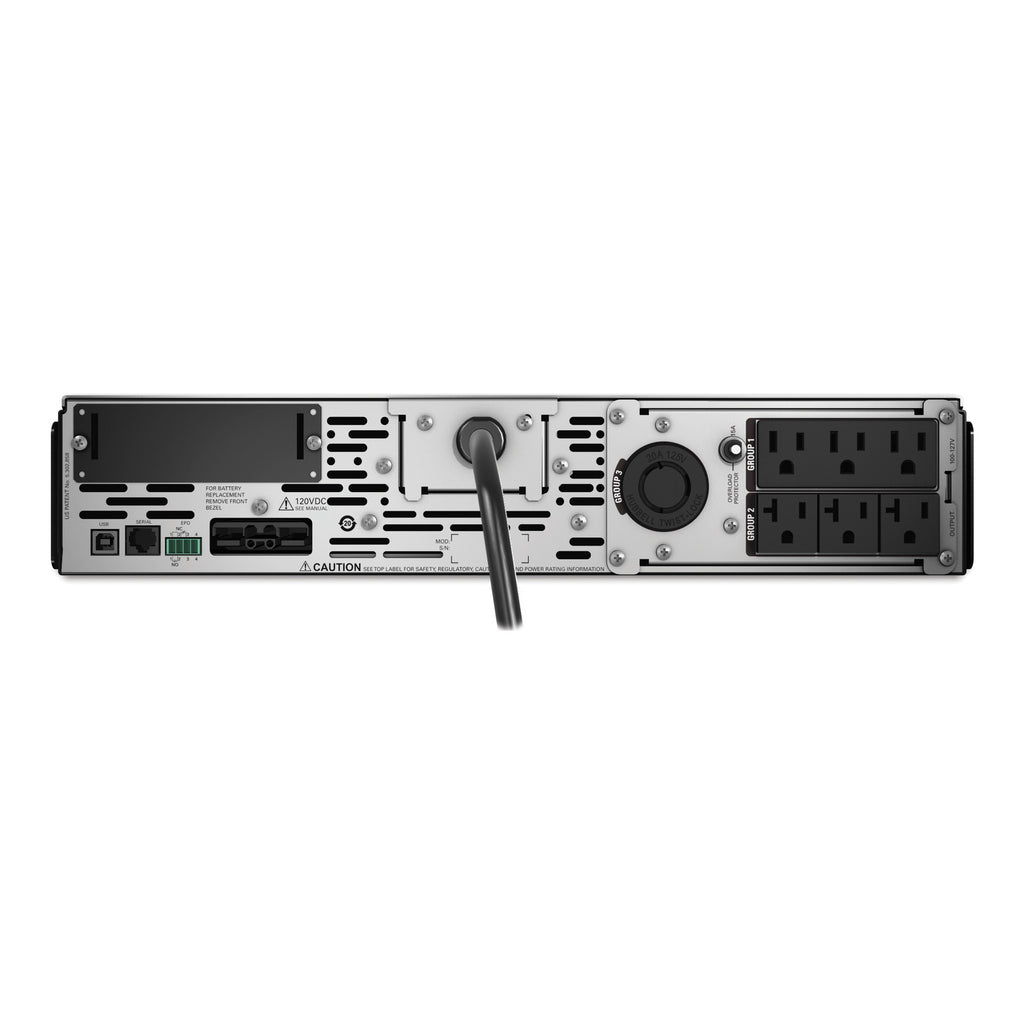

| Output Connections | 3x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-20R |
| Waveform Type | Pure Sine Wave |
| Topology | Line Interactive |
| Battery Type | Lead-acid (user-replaceable) |
| Runtime at Full Load | ~10 min at 1800W |
| Replacement Battery | APCRBC117 |
| External Battery Support | Up to 10 packs (SMX120RMBP2U) |
| Recharge Time | 3 hours typical |
| Management Interface | SmartSlot, USB, Serial |
| Control Panel | Multi-function LCD display |
| Surge Protection | 540 Joules |
| Alarm | Audible alarms with configurable delays |
| Mounting Kit | Rack-mounting brackets, rail kit, stabilizing feet |

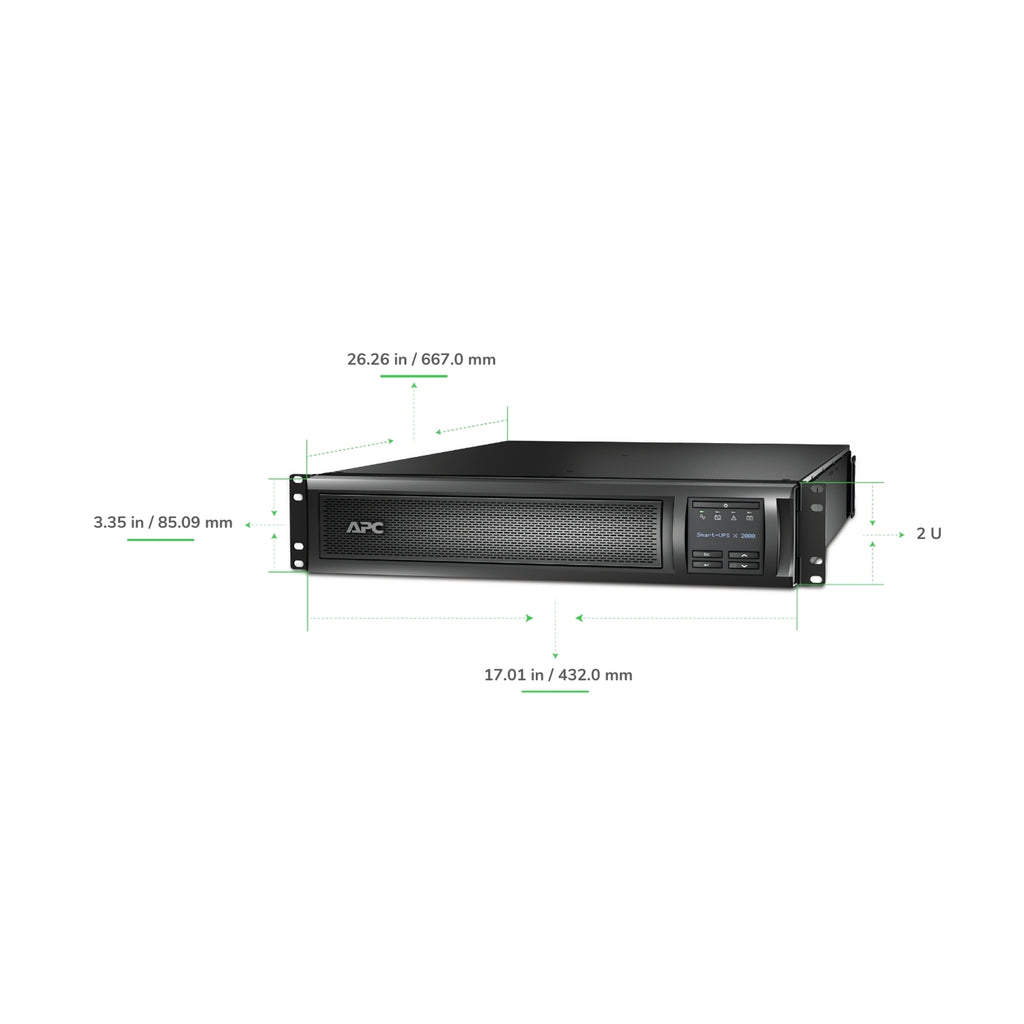

| Dimensions (H x W x D) | 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm) |
| Weight | 84.77 lbs (38.45 kg) |
| Warranty | 3 years UPS / 2 years battery |
| EPO Support | Yes |
| Certifications | BSMI, CSA, NOM, TĂśV, VCCI Class A |
