Description

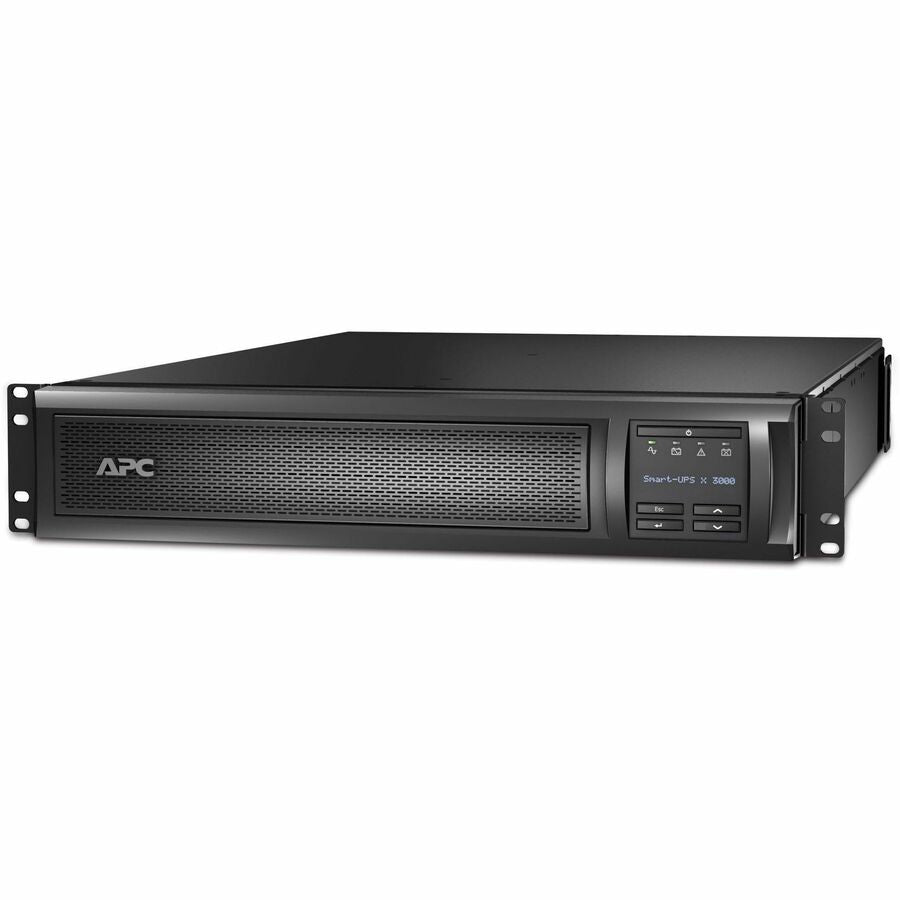

The APC Smart-UPS SMX3000RMLV2U provides intelligent and efficient power protection for critical IT and networking equipment. This 3kVA line-interactive UPS delivers pure sine wave output and features a 2U rack/tower convertible form factor with extended runtime capabilities. Equipped with 3x NEMA 5-15R, 3x NEMA 5-20R, and 1x NEMA L5-30R outlets, it supports vital systems during outages while ensuring surge protection and voltage regulation. With SmartSlot for optional network cards, LCD interface, Emergency Power Off (EPO), and compatibility with external battery packs, this UPS is ideal for high-availability environments.
| Key Features | Details |
|---|---|
| Model | SMX3000RMLV2U |
| Topology | Line Interactive |

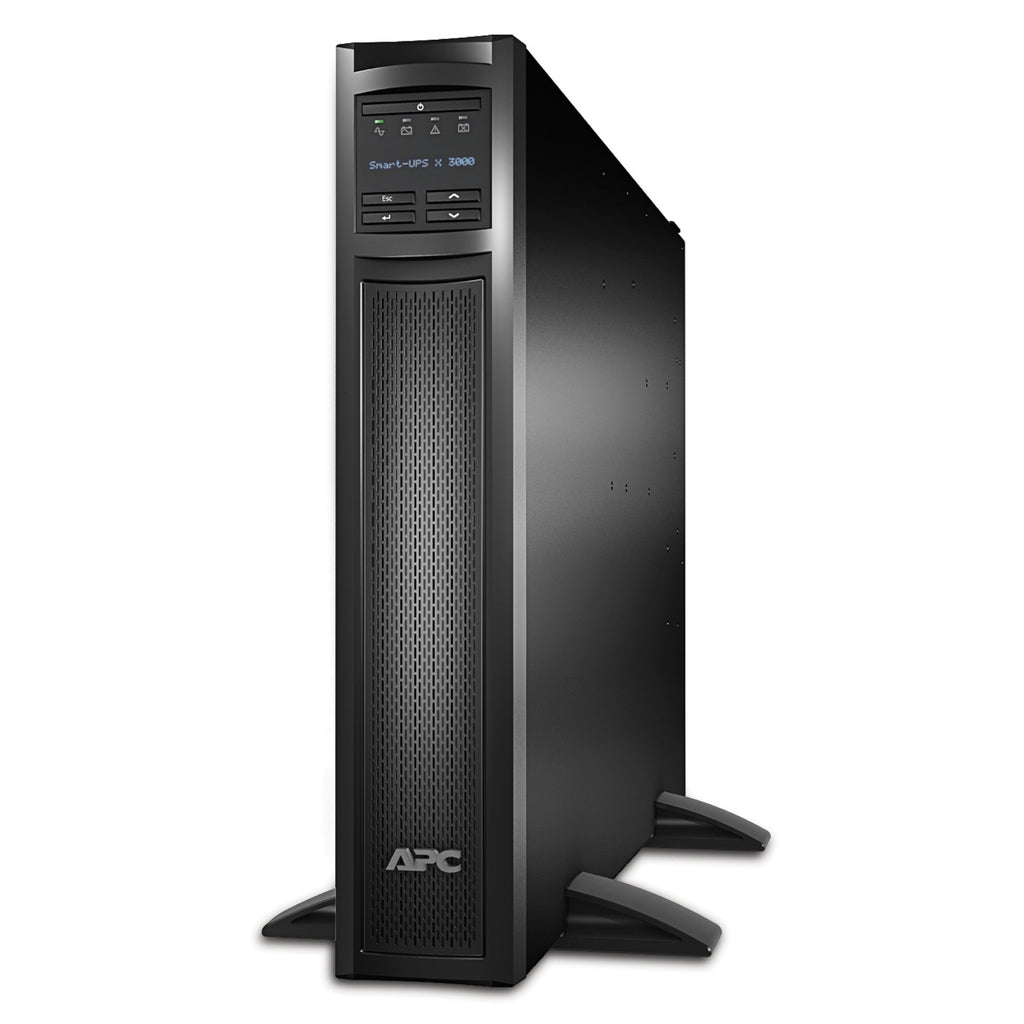

| Form Factor | Rack/tower convertible (2U) |
| Power Capacity | 3000VA / 2700W |
| Input Voltage | 100V to 127V |
| Input Connection | NEMA L5-30P |
| Output Voltage | 100V / 110V / 120V / 127V |

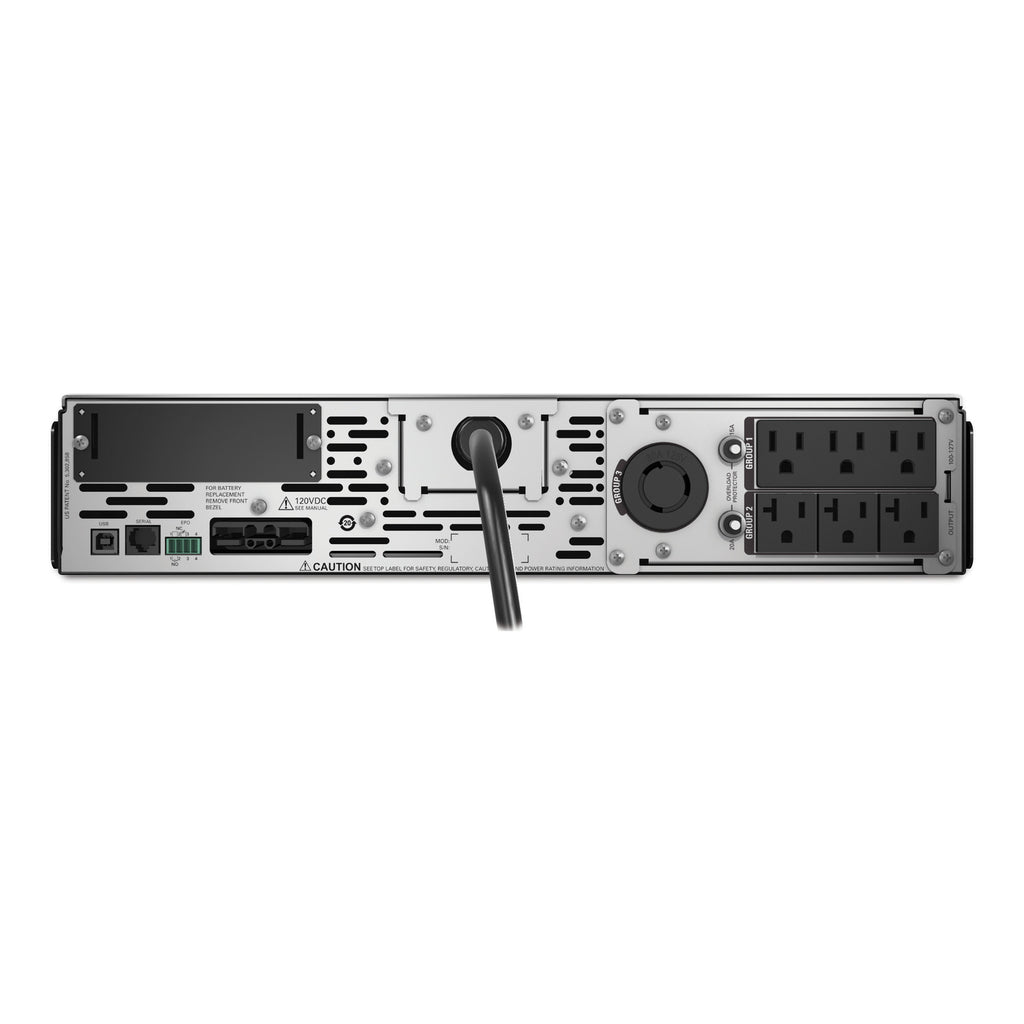

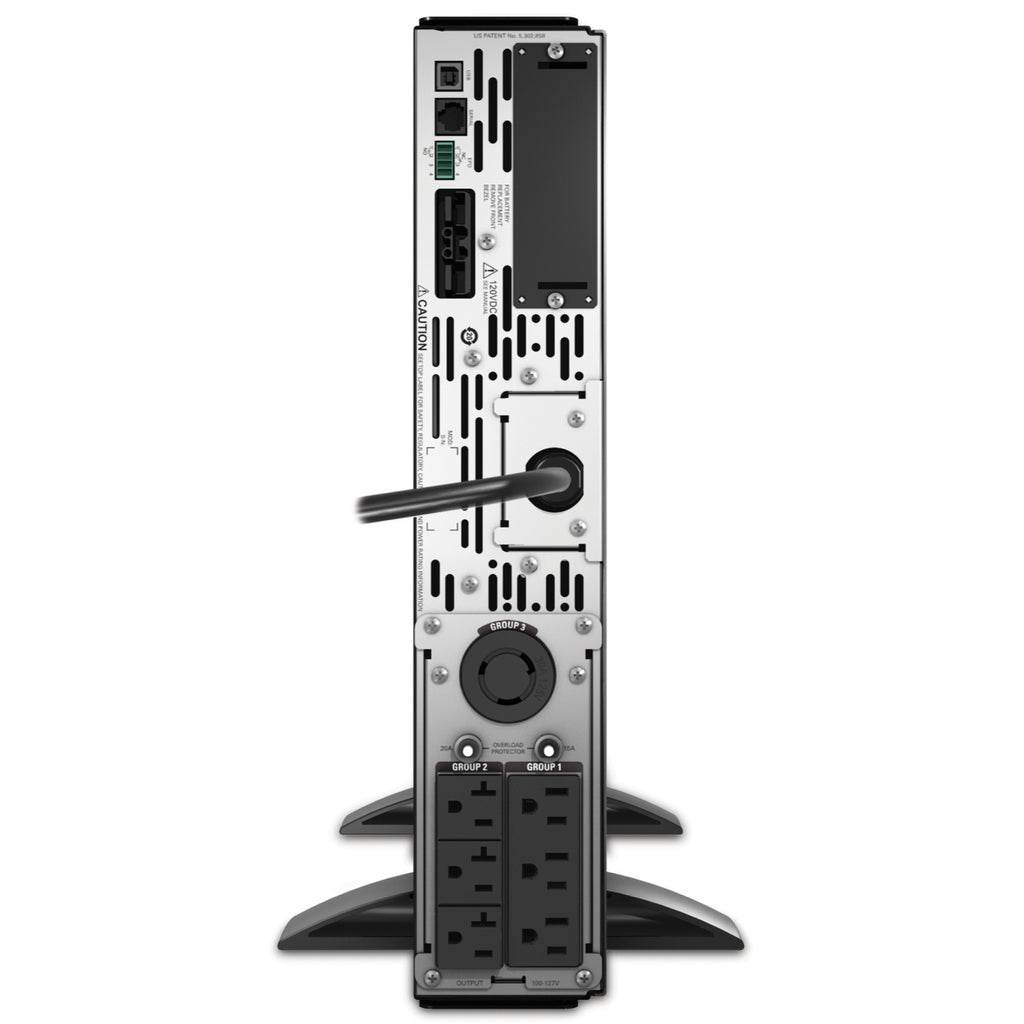

| Output Connections | 3x NEMA 5-15R, 3x NEMA 5-20R, 1x NEMA L5-30R |
| Battery Type | Lead-acid, User-replaceable (APCRBC117) |
| Recharge Time | 3 hours |

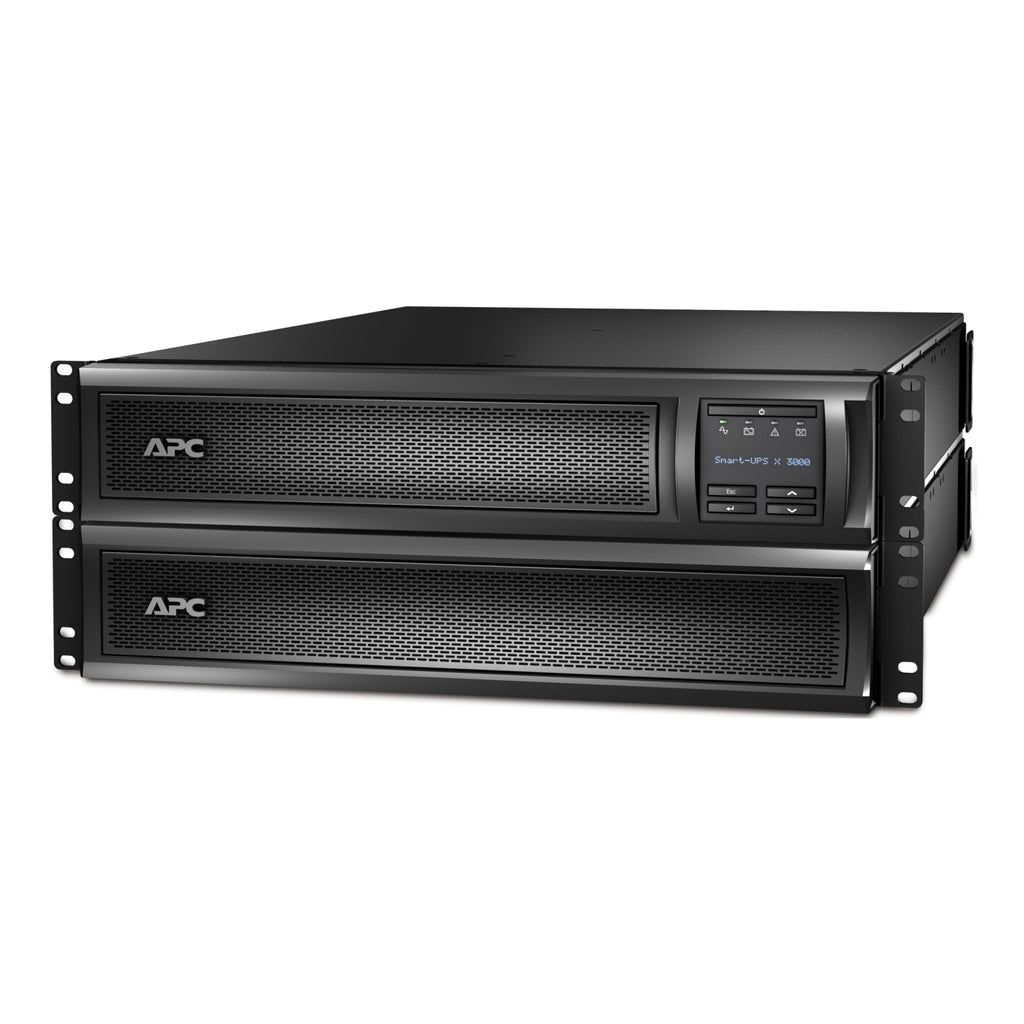

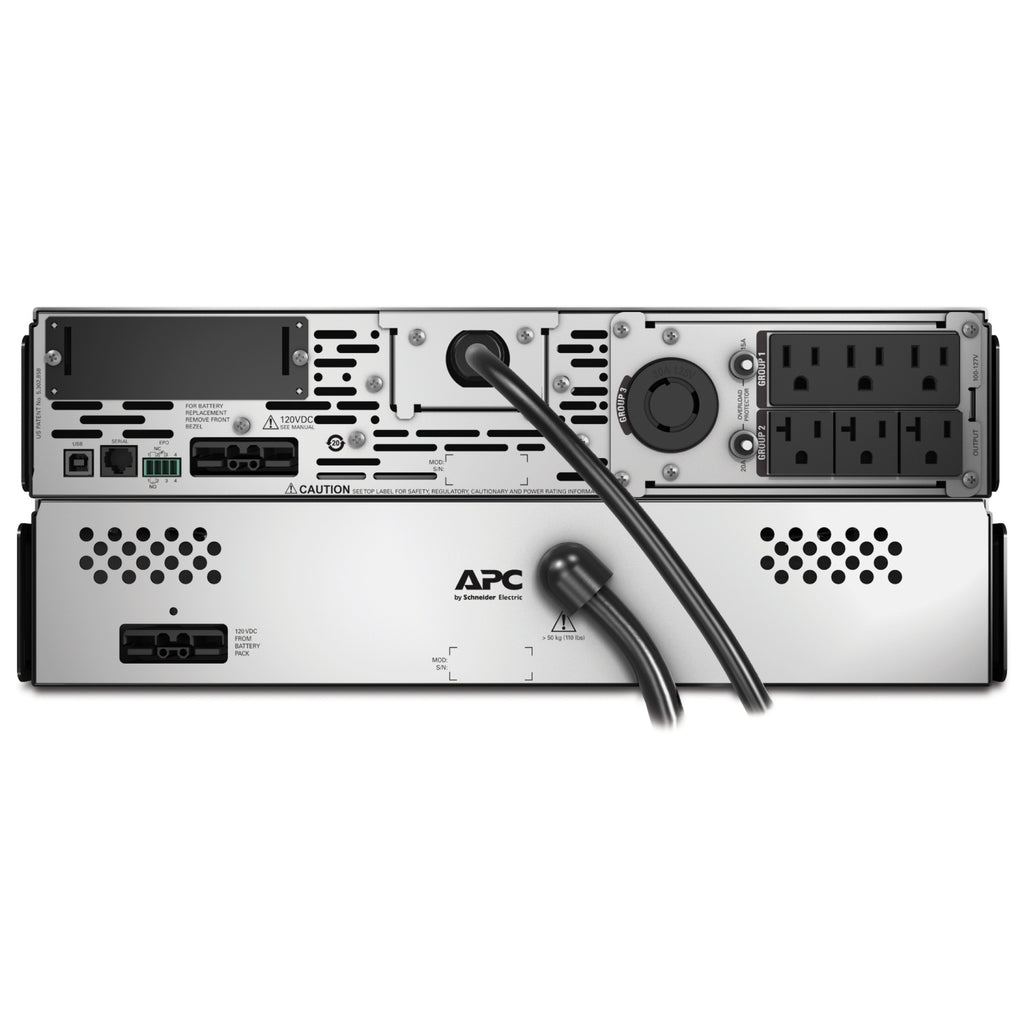

| External Battery Support | Yes, up to 10 packs (SMX120RMBP2U) |
| Runtime at Full Load | Approx. 6 minutes (2700W) |
| Communication Ports | USB, RS-232, SmartSlot |
| Network Management | Optional (SmartSlot compatible) |
| Control Panel | Multifunction LCD + LED indicators |
| Surge Protection | 540 Joules |
| Emergency Power Off (EPO) | Yes |
| Warranty | 3 years on UPS, 2 years on battery |

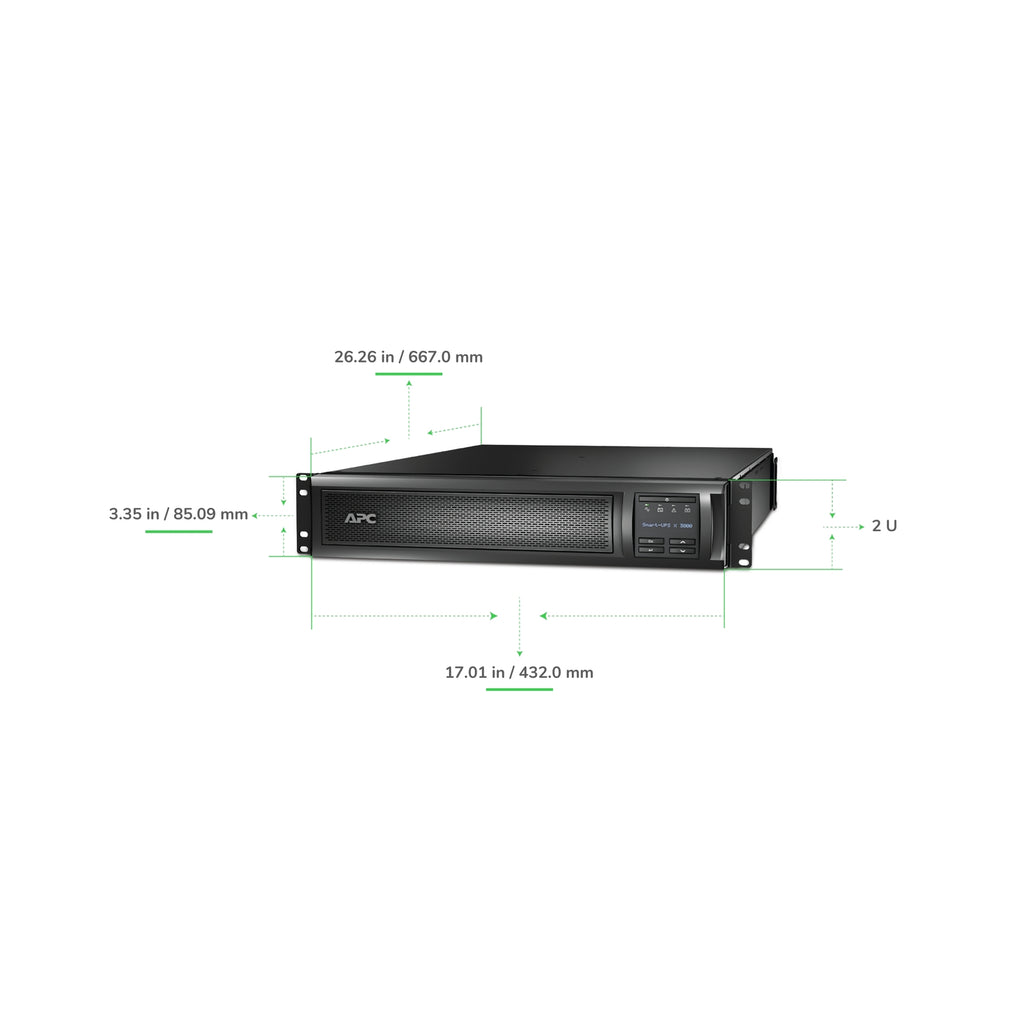

| Dimensions (H x W x D) | 3.35 x 17.01 x 26.26 in (8.5 x 43.2 x 66.7 cm) |
| Weight | 84.77 lbs (38.45 kg) |
| Included Accessories | Rack kit, tower feet, cables, software CD, documentation |
| Certifications | BSMI, CSA, NOM, TÜV, VCCI Class A |
| Environmental Specs | Operating Temp: 0–40°C; Humidity: 0–95%; Altitude: 0–10,000 ft |
| Replacement Battery Cartridge | APCRBC117 – 120V, 5Ah lead-acid battery, 2-year warranty |
