Description
The APC APTF10KT01 Step-Down Transformer efficiently converts high voltage 208V or 240V AC input into a lower 120V output, making it ideal for powering sensitive IT or AC equipment that requires low voltage. Designed to be installed upstream of a UPS, it eliminates inrush current and saturation issues, avoiding the need to oversize your transformer. The unit includes multiple hardwire output configurations and supports both horizontal and vertical rackmounting options.
With a 10kVA load capacity, 95% efficiency, and built-in circuit protection, it ensures reliable and safe operation. Ideal for data centers, server rooms, and industrial environments.
| Category | Details |
|---|---|
| Product Type | Step-Down Transformer |
| Model Number | APTF10KT01 |
| Input Voltage | 208V / 240V |
| Output Voltage | 120V |
| Load Capacity | 10,000 VA (10kVA) |
| Efficiency | 95% |
| Rack Size | 4U |

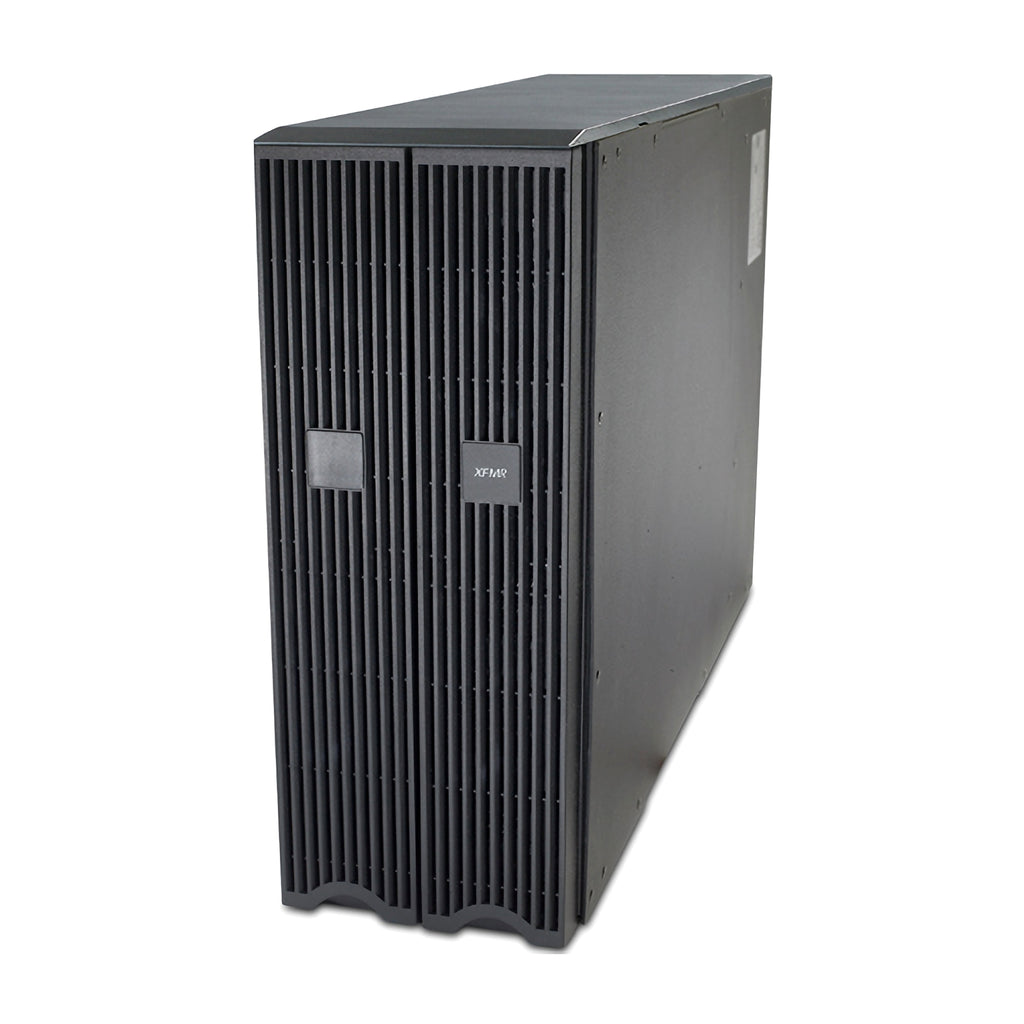

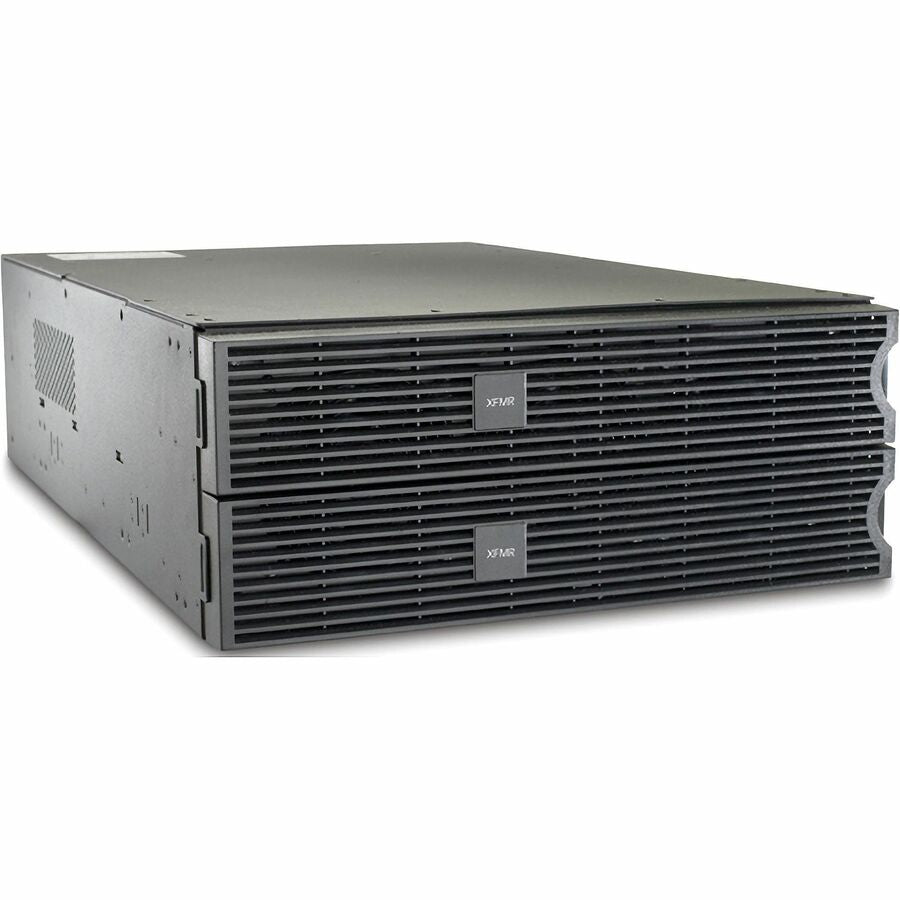

| Mounting | Horizontal, Vertical, Toolless Rack-Mountable |
| Input Connectors | 1 × Hard Wire 3-wire (2PH + G) |

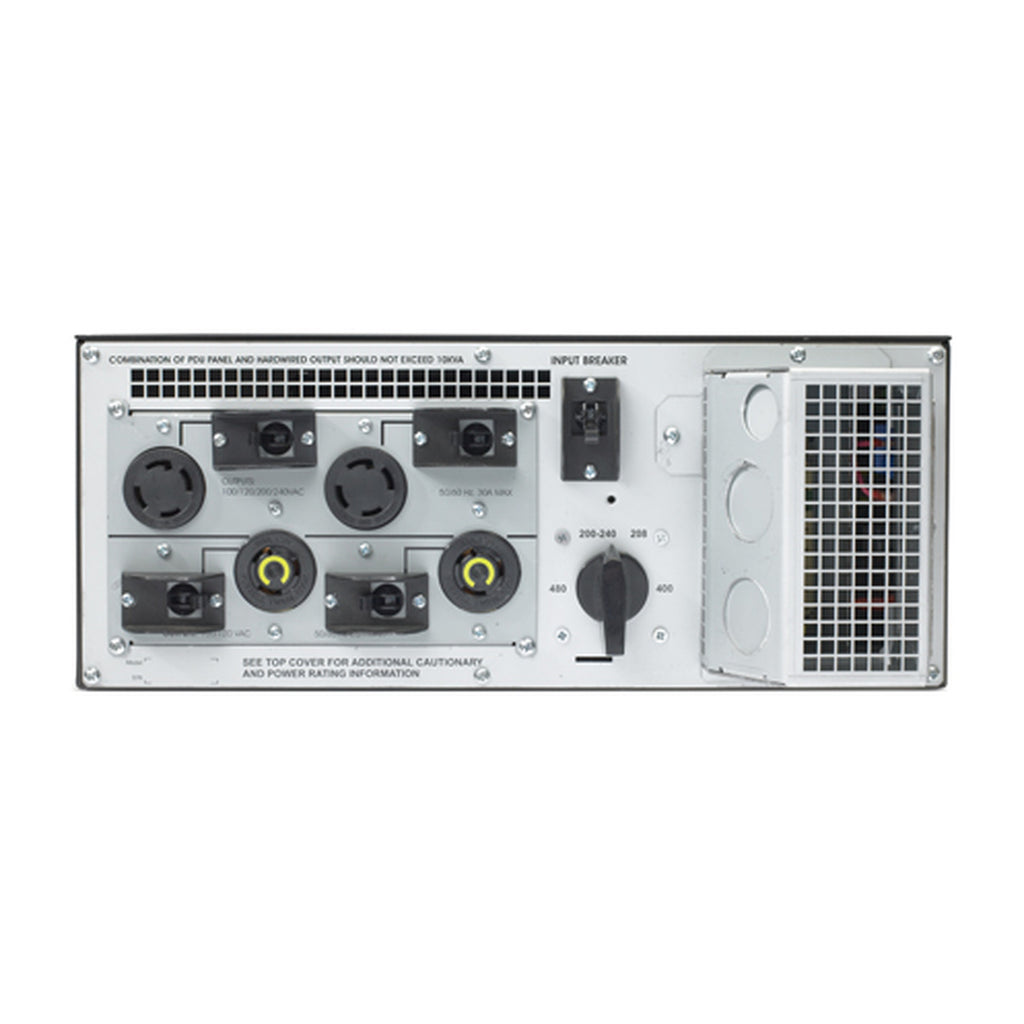

| Output Connectors | 2 × NEMA L5-20R, 2 × NEMA L14-30R, 1 × Hard Wire 4-wire |
| Max Input Current | 60 A |
| Input Frequency | 45–65 Hz |
| Color | Black |
| Dimensions (H × W × D) | 6.89 × 17.01 × 29.49 in (17.5 × 43.2 × 74.9 cm) |
| Net Weight | 220.5 lb (100 kg) |
| Certifications | UL, CSA, CE, C-tick, VDE, GOST |
| Environment | 0–40 °C Operating, -25–65 °C Storage; 0–95% Humidity |
| Altitude Rating | Operating: 0–10,000 ft, Storage: 0–50,000 ft |
| Included Accessories | Rack Mounting Brackets, Hardwire Panel, Manuals, CD |
| Warranty | 2 Years (Repair or Replace) |
