Description

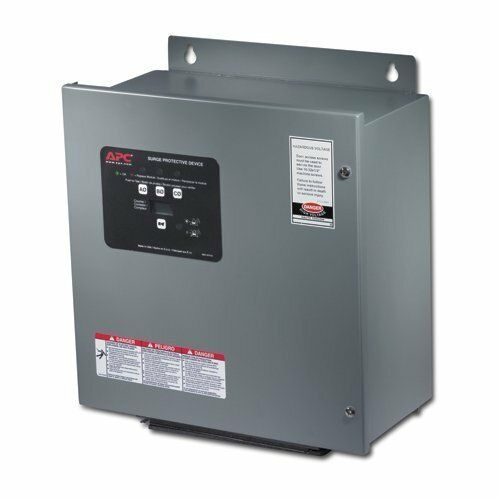

Protect your facility with the APC SurgeArrest PMG3S-A Surge Suppressor, designed for 3-phase systems (3PH + N + G). Ideal for commercial buildings, industrial sites, and data centers, this unit mitigates damage from transient voltage surges caused by lightning strikes, utility anomalies, and internal load switching. With a maximum surge current of 120kA and hard-wired 5-wire input, the PMG3S-A delivers reliable protection right at your service entrance or panel boards.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model | PMG3S-A |
| Product Line | SurgeArrest |
| Input Voltage | 480 V AC |
| Configuration | 3PH + N + G (Three-Phase + Neutral + Ground) |
| Maximum Surge Current | 120 kA |
| Protection Type | Lightning, Surge |
| Plug/Connector Type | Hard Wire 5-Wire |
| Product Type | Surge Suppressor / Protector |
| Dimensions (H x W x D) | 12" x 12" x 6" |
| Shipping Weight | 23 lbs. |
| Product Weight | 19 lbs. |
| Product Condition | New and Factory Fresh |
| Warranty | Limited 10-Year Warranty |
| Included Accessories | Front Panel Sticker(s), User Manual |
