Description

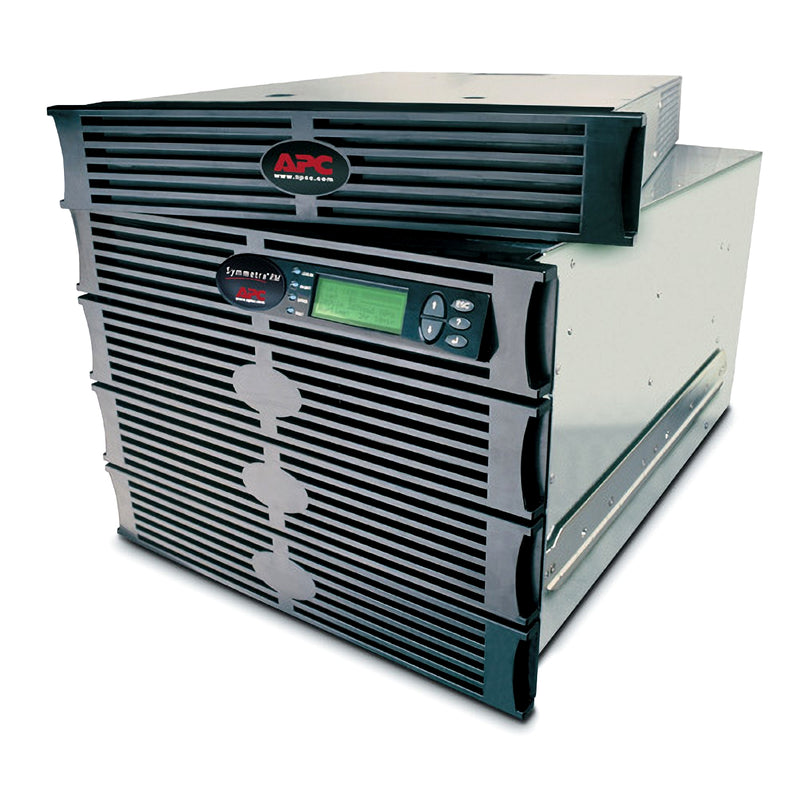

Keep mission-critical servers and network hardware online—even when power conditions aren’t—using APC’s highly available Symmetra RM SYH2K6RMT-TF3.
-
Redundant, scalable power (2 kVA → 6 kVA) thanks to hot-swappable power modules and N+1 architecture.
-
Built-in 208 V → 120 V transformer delivers four L5-20R outlets for mixed-voltage racks while still supporting native 208 V loads.
-
True double-conversion online topology isolates sensitive electronics from surges, sags, and frequency drift.
-
Network Management Card 2 pre-installed for SNMP, web, and environmental monitoring.
-
Expandable runtime—add up to four external battery frames as your load grows.
-
Ships with rails, brackets, 10 ft input whip, and two-year repair-or-replace warranty.
| Category | Spec |
|---|---|
| Capacity | 2 kVA / 1.4 kW (scalable to 6 kVA / 4.2 kW) |
| Topology | Double-Conversion Online, N+1 redundant |
| Input | 208 V, 50/60 Hz, NEMA L6-30P, PF 0.98 |
| Output Voltages | 208 V native • 120 V via step-down |
| Outlets | (4) NEMA L5-20R @ 120 V, (2) NEMA L6-20R @ 208 V |
| Efficiency | 85 % (online, full load) |
| Battery | Hot-swappable lead-acid; 1 × SYBT module included (slots 4 free) |
| Recharge Time | 4 hours to 90 % |
| Expansion | Accepts up to 4 external battery packs |
| Communications | SmartSlot (1 free), LCD console, EPO, NMC 2 installed |
| Certifications | UL 1778, CSA, FCC Class A |
| Operating Range | 0 – 40 °C • 0 – 95 % RH • 0 – 10 000 ft |
| Dimensions (H×W×D) | 17.5 × 19.0 × 28.7 in (445 × 483 × 730 mm) |
| Weight | 259.6 lb (117.7 kg) |
| Warranty | 2-year repair/replace; on-site & extended options available |
