Description

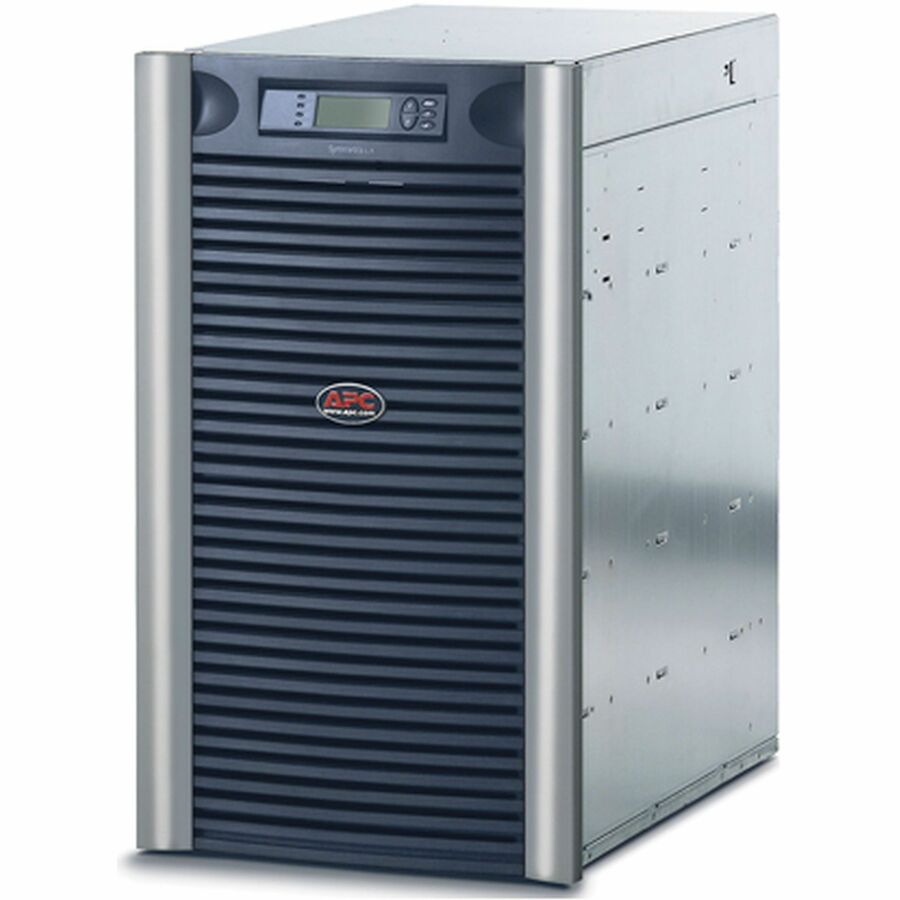

Keep mission-critical servers and edge infrastructure running no matter what with the APC Symmetra LX SYA12K16RMP. This modular, double-conversion online UPS delivers 12 kVA of redundant power, scalable to 16 kVA N+1 simply by adding power modules—ideal for growing data rooms that can’t afford downtime. Hot-swappable batteries and power modules, an internal automatic & manual bypass, and 96 % online efficiency combine to slash maintenance windows and energy costs while boosting availability. A pre-installed Network Management Card with environmental monitoring plus an LCD interface gives you crystal-clear visibility and remote control from day one.
| Category | Specification |
|---|---|
| Topology / Form Factor | Double-conversion online; 19 U rack-mount |
| Power Capacity | 12 kVA / 9.6 kW • Scalable to 16 kVA / 12.8 kW (N+1) |
| Input | 208 / 240 V, 45–65 Hz, Hard-wire 4-wire (2Φ+N+G), PF 0.98 |
| Output | 120 / 208 / 240 V selectable • 8 × NEMA L5-20R, 4 × NEMA L14-30R, 1 × Hard-wire |
| Efficiency | Up to 96 % (online) |
| Battery | 3 × hot-swappable lead-acid modules (1 slot free) • 3 h typical recharge • Extendable runtime |
| Runtime (Full / Min Load) | 5 min 57 s @ 9.6 kW • scalable with external battery cabinets |

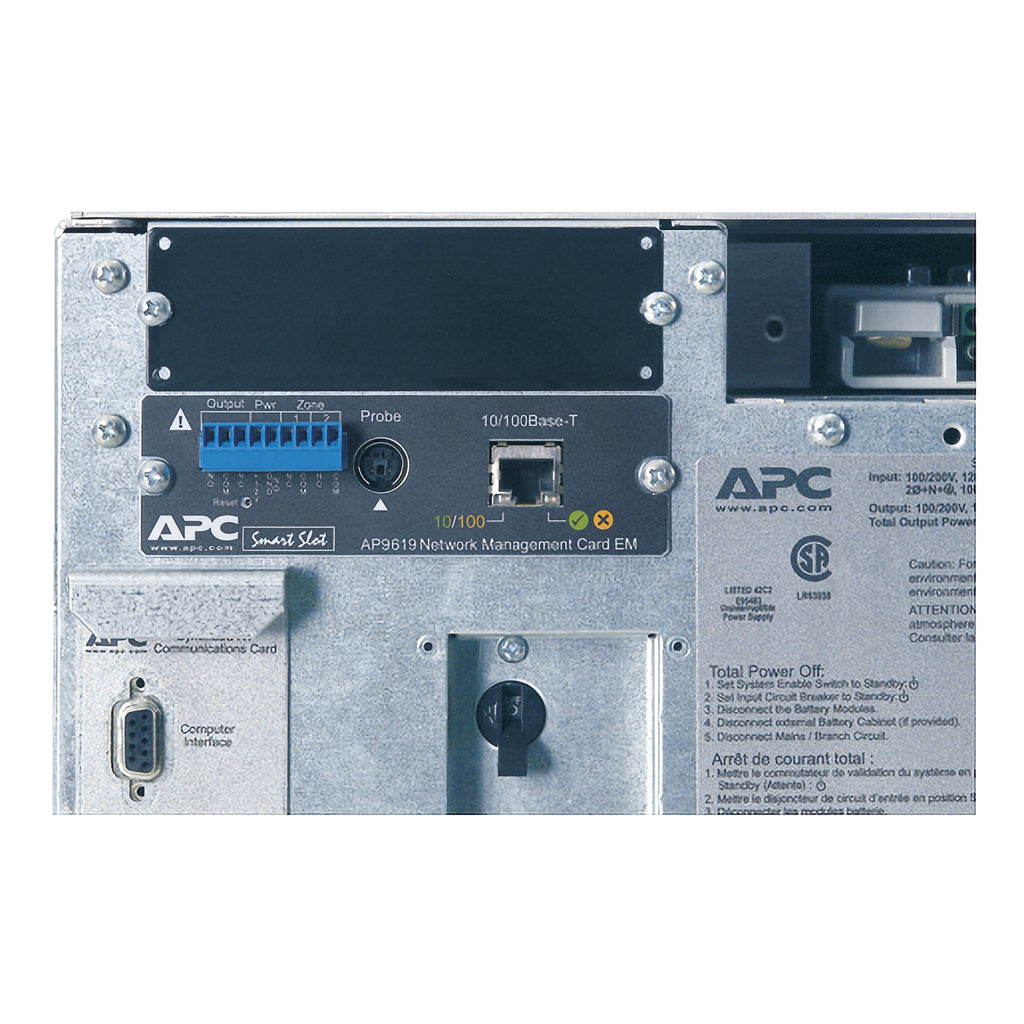

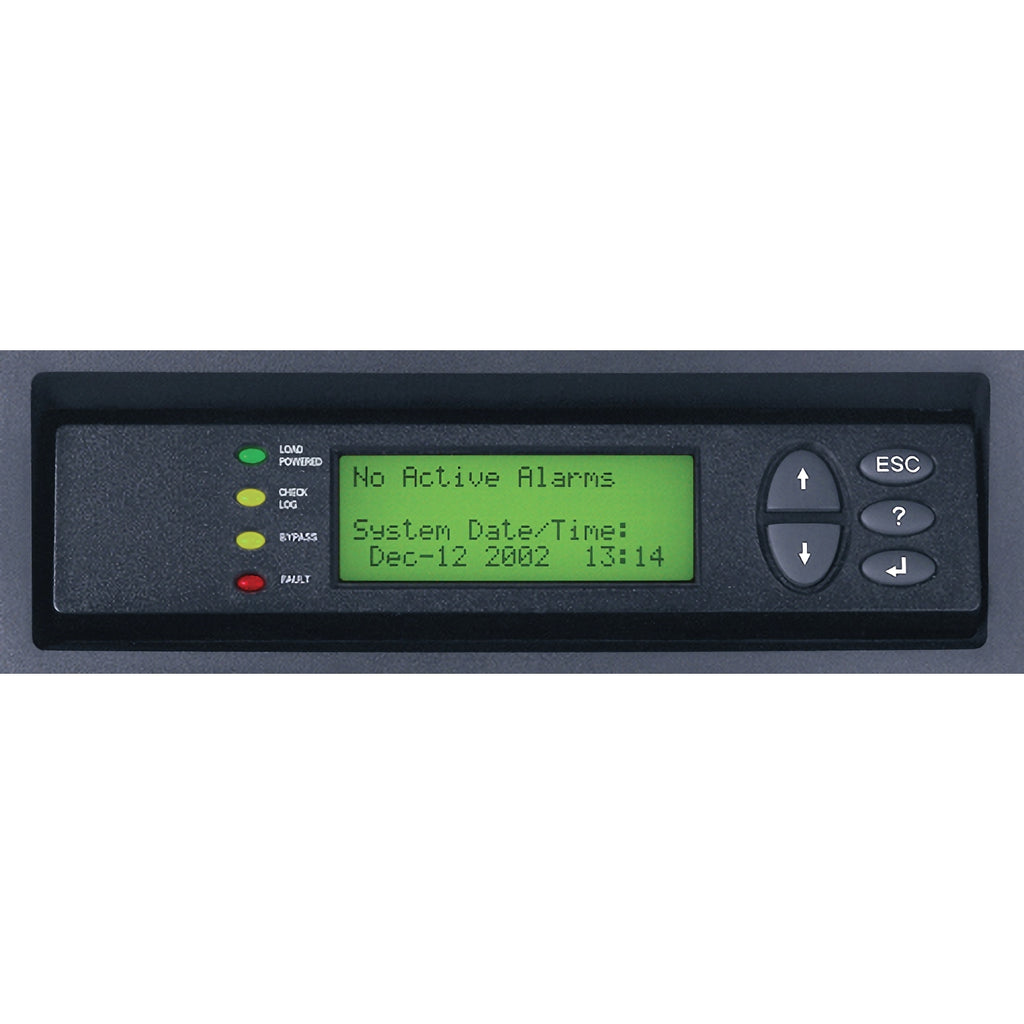

| Management | LCD control panel, 1 × SmartSlot (NMC 2 pre-installed), EPO, audible/visual alarms |
| Dimensions (H × W × D) | 32.91 × 18.58 × 27.09 in / 83.6 × 47.2 × 68.8 cm |
| Weight | 535 lb / 242.7 kg (ship: 639 lb / 290 kg) |
| Environment | 0–40 °C (32–104 °F) • 0–95 % RH • 0–10 000 ft operating |
| Certifications | UL 1778, CSA, FCC Class A, OSHPD |
| Warranty | 2-year repair or replace |
