Description

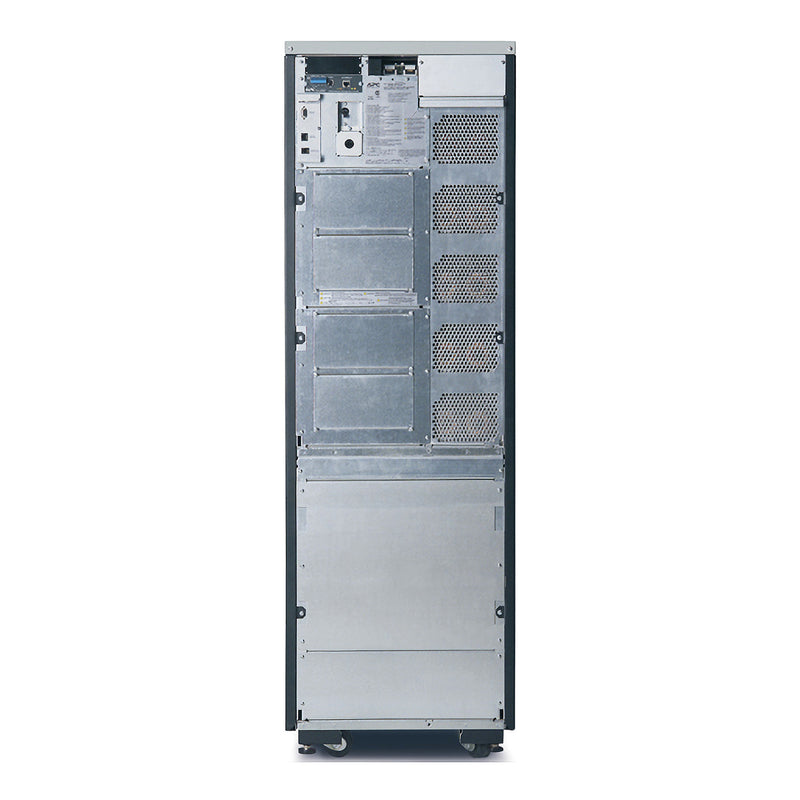

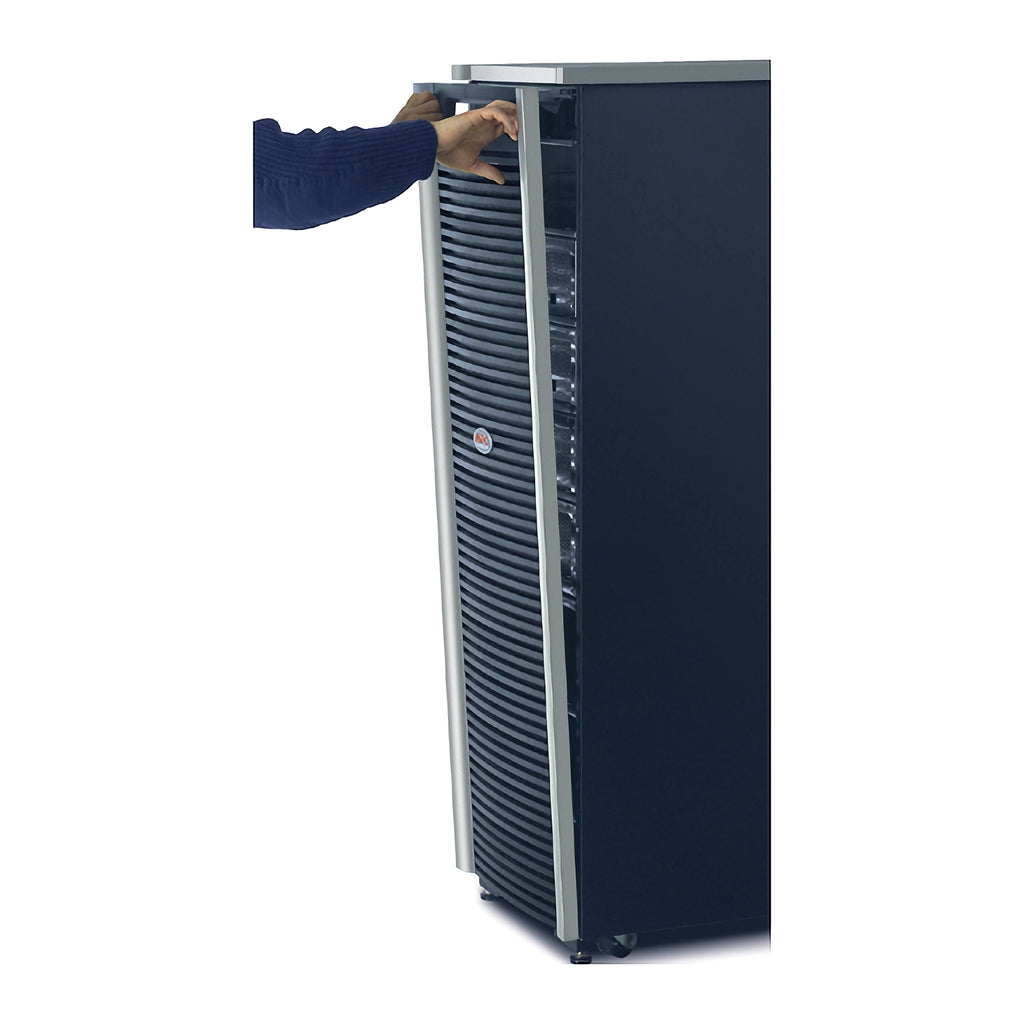

The APC Symmetra LX SYA12K16PXR delivers high-performance, scalable, and redundant power protection in a compact tower form factor. With extended runtime and N+1 modularity, it supports mission-critical server rooms, voice/data networks, and edge applications. This unit includes 9 battery modules, expandable runtime support, and SmartSlot™ network management for remote monitoring.
| Category | Details |
|---|---|
| Model | APC Symmetra LX SYA12K16PXR |
| Form Factor | Tower |
| Power Capacity | 12kVA scalable to 16kVA N+1 |
| Wattage | 9600W (max) / 12800W (configurable) |
| Input Voltage | 208V / 240V |
| Output Voltage | 120V, 208V, 240V |
| Input Connection | Hard Wire 4-wire (2PH+N+G) |
| Output Type | Hard Wire 4-wire (2PH+N+G) |
| Battery Type | Lead-Acid, Hot-swappable, Modular |
| Battery Modules | 9 included, 4 slots empty (expandable runtime) |
| Runtime at Full Load | Approx. 30 minutes |
| Recharge Time | 7.5 hours |
| Topology | Double Conversion Online |
| Waveform Output | Pure Sine Wave |
| Efficiency | Up to 96% |
| Redundancy | Yes (N+1 Configurable) |
| SmartSlot Cards | 1 x Network Management Card 2 with Env. Monitoring |

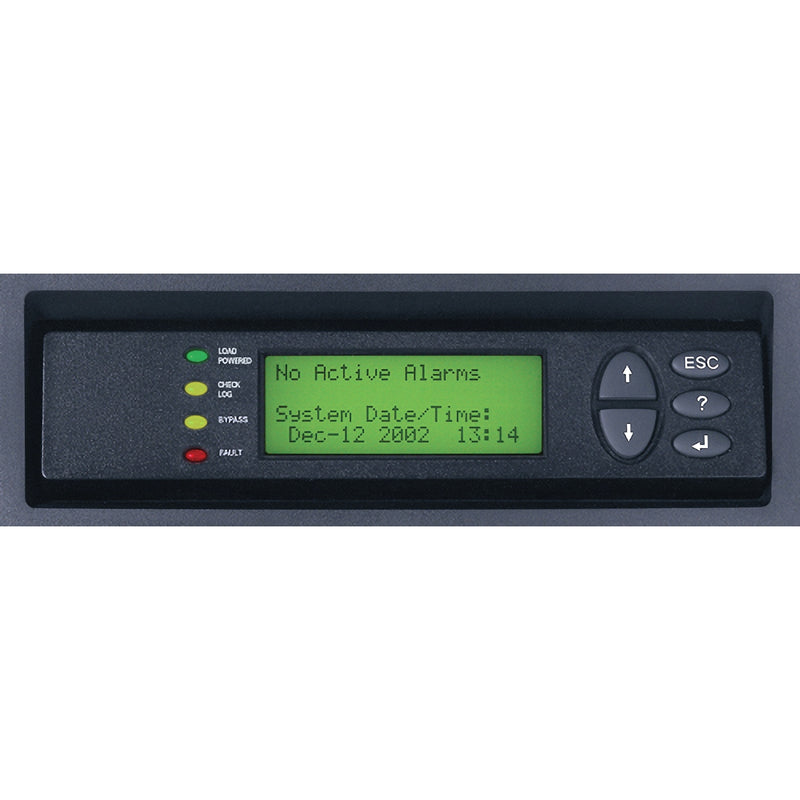

| Control Panel | LCD with multi-function status and control |
| Communications | Audible/visible alarms, EPO, SmartSlot expansion |
| Mounting | Floor standing only |
| Dimensions (HxWxD) | 59.69 x 19.02 x 28.58 in (151.6 x 48.3 x 72.6 cm) |
| Product Weight | 1077.27 lb (488.64 kg) |
| Operating Temp. | 32–104°F (0–40°C) |
| Humidity (Operating) | 0–95% RH (non-condensing) |
| Acoustic Level | 62 dBA |
| Certifications | UL 1778, CSA, FCC Part 15 Class A |
| GTIN | 731304739869 |
| Warranty | 2 Years Repair or Replace |
