Description
Engineered for always-on businesses, the APC Symmetra LX 12 kVA scalable to 16 kVA N+1 Tower UPS (SKU SYA12K16I) delivers enterprise-grade power protection in a modular, fully-redundant design. Three hot-swappable power modules and battery frames work in parallel to create N+1 fault tolerance and allow capacity or runtime to expand on demand—without downtime.
Key benefits
-
Scalable uptime: add a fourth power module to boost capacity to 16 kVA / 16 kVA N+1.
-
True double-conversion online: isolates critical loads from mains disturbances for a perfect sine wave output.
-

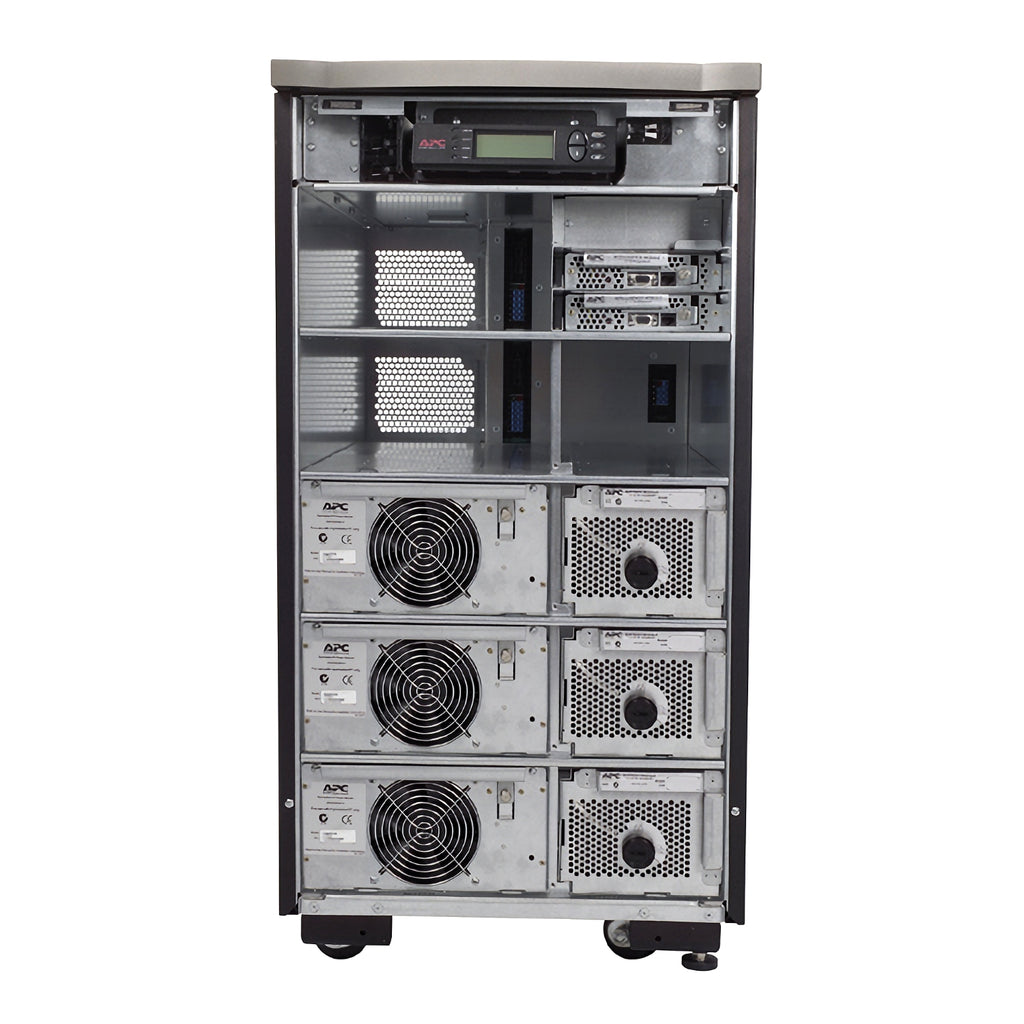

Hot-swappable everything: power modules, batteries, intelligence module and wiring tray remove in minutes for rapid service.
-
Wide-range input: accepts 220/230/240 V single-phase or 380/400/415 V three-phase feeds, ideal for global datacentres and industrial sites.
-

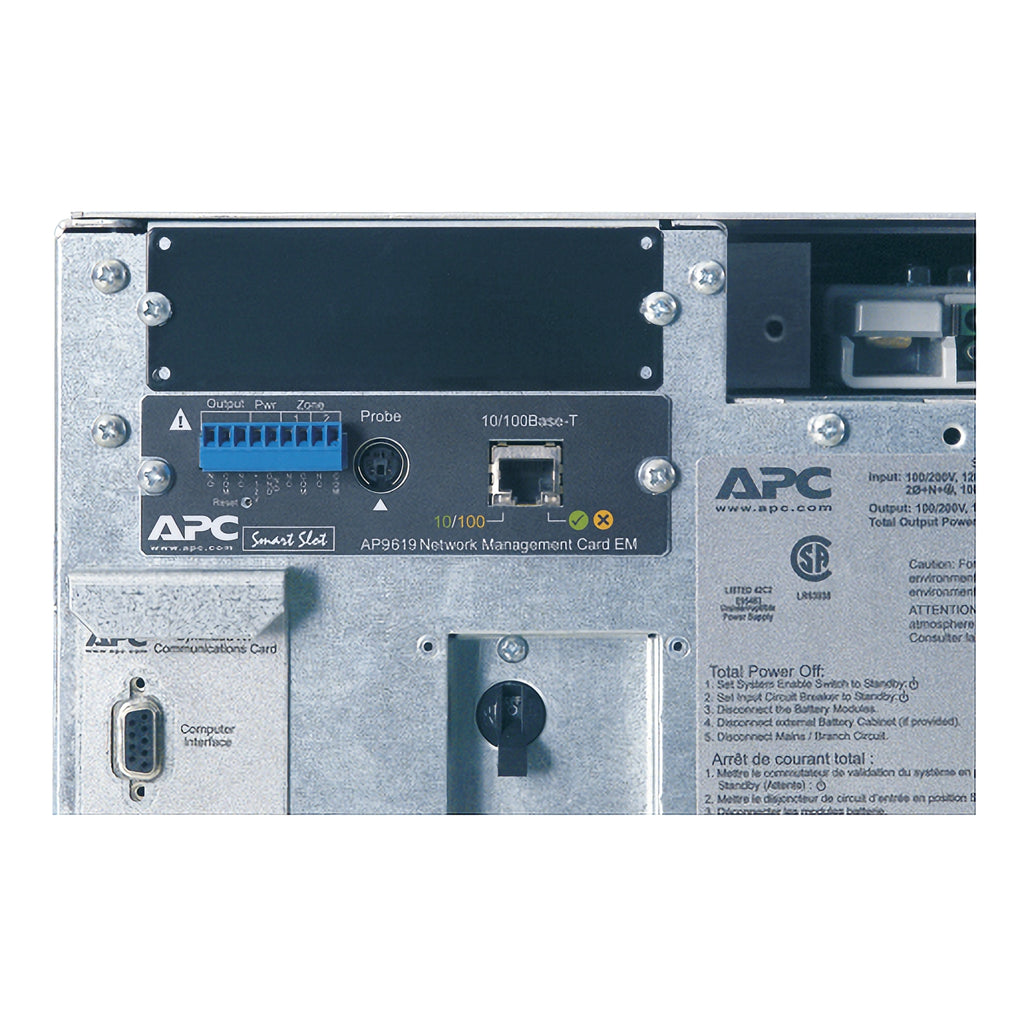

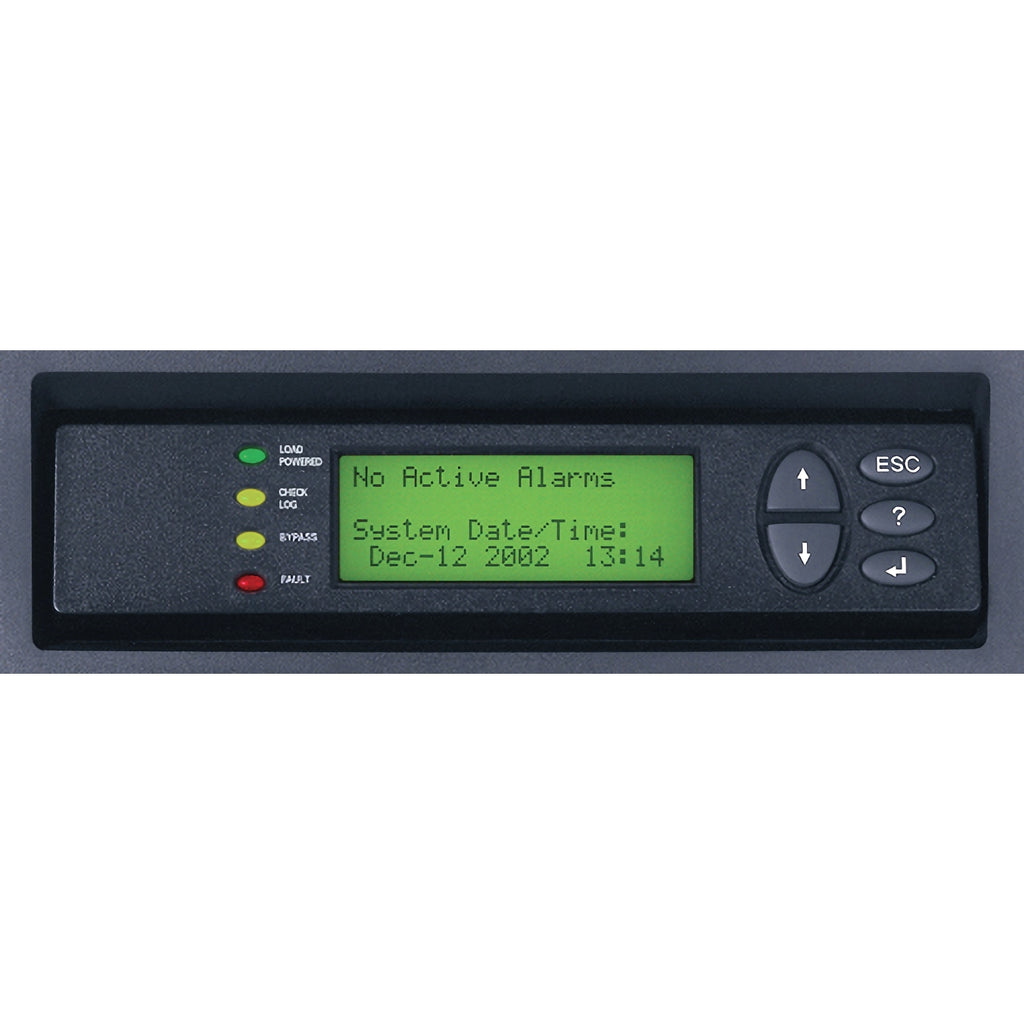

Integrated management: factory-installed Network Management Card 2 with environmental monitoring plus multilingual LCD for local control.
-
Space-saving tower footprint: 93.7 × 48.3 × 72.6 cm keeps floor usage low versus multi-rack solutions.
-
Peace-of-mind warranty: 2-year repair/replace from APC by Schneider Electric.
| Attribute | Details |
|---|---|
| SKU | SYA12K16I |
| Topology | Double-conversion online, modular N+1 |
| Capacity | 12 kVA / 8.4 kW (ships), scalable to 16 kVA / 11.2 kW |
| Runtime @ full load | 7 min 32 s (8.4 kW) with 3 × SYBT5 battery frames |
| Input Voltage | 220/230/240 V (1-phase) or 380/400/415 V (3-phase) |
| Input Connection | Hard-wire 3-wire (1P + N + E) & 5-wire (3P + N + E) |
| Input PF / THDi | 0.98 PF, <7 % THDi |
| Output Voltage | Factory-set 230 V; configurable 220/240 V |
| Waveform / Crest Factor | Pure sine wave / 5:1 |
| Max. Output Current | 55 A |
| Hot-swappable Power Modules | 3 installed / 2 free slots |
| Hot-swappable Battery Frames | 3 installed / 1 free slot (lead-acid) |
| Battery Recharge Time | 3 h to 90 % |
| Network Management | Pre-installed NMC2 (SNMP/Web, temp + humidity probe ready) |
| Dimensions (H × W × D) | 93.7 × 48.3 × 72.6 cm |
| Weight | 263.6 kg |
| Compliance | CE, C-Tick, VDE, GOST; EN 50091 & IEC 60950 |
| Operating Environment | 0–40 °C, 0–95 % RH (non-condensing) |
| Warranty | 2-year repair or replace |
