Description

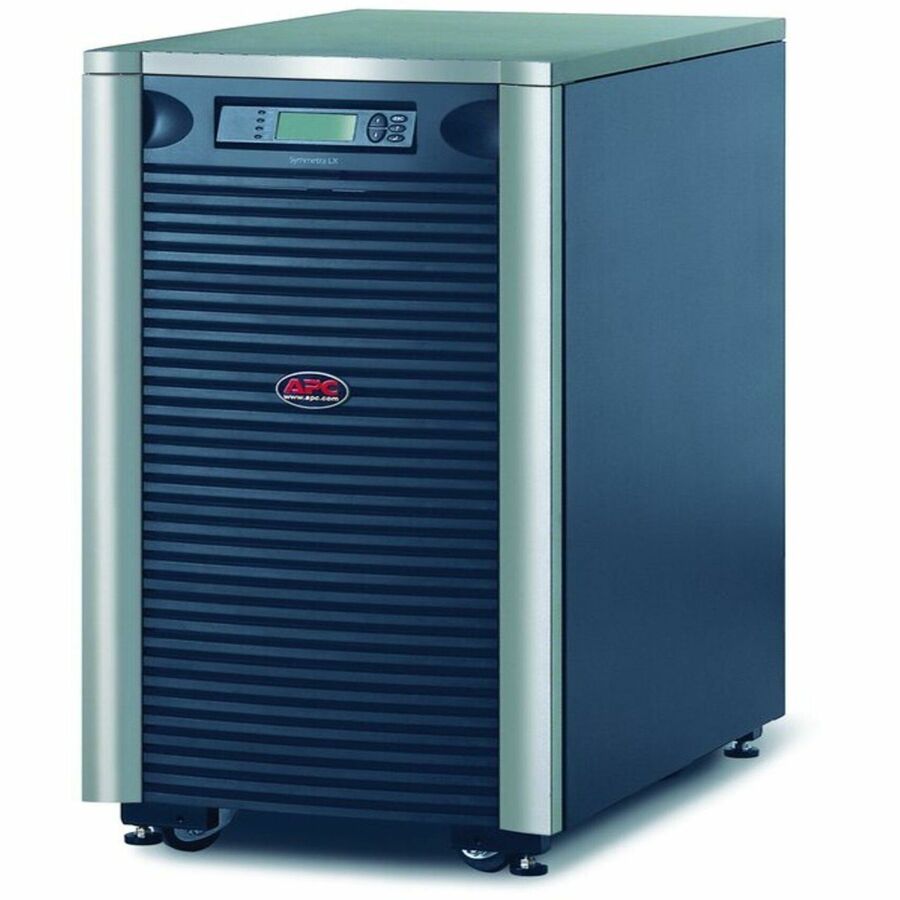

The APC Symmetra LX SYA12K16P provides scalable, redundant, and high-performance power protection for mission-critical IT environments. With 12kVA of double-conversion online capacity scalable to 16kVA N+1, this tower UPS delivers continuous, clean power for servers, voice/data networks, and sensitive electronics. Its modular architecture supports easy upgrades, battery expansion, and integrated network management for space-constrained server rooms.
| Category | Details |
|---|---|
| Model | SYA12K16P |
| Power Capacity | 12kVA / 9600W (Scalable to 16kVA / 12800W) |
| Topology | Double Conversion Online |
| Input Voltage | 208V / 240V |
| Output Voltage | 120V / 208V / 240V (Configurable) |
| Output Connection | Hard Wire 4-wire (2PH+N+G) |
| Battery Type | Lead-Acid |

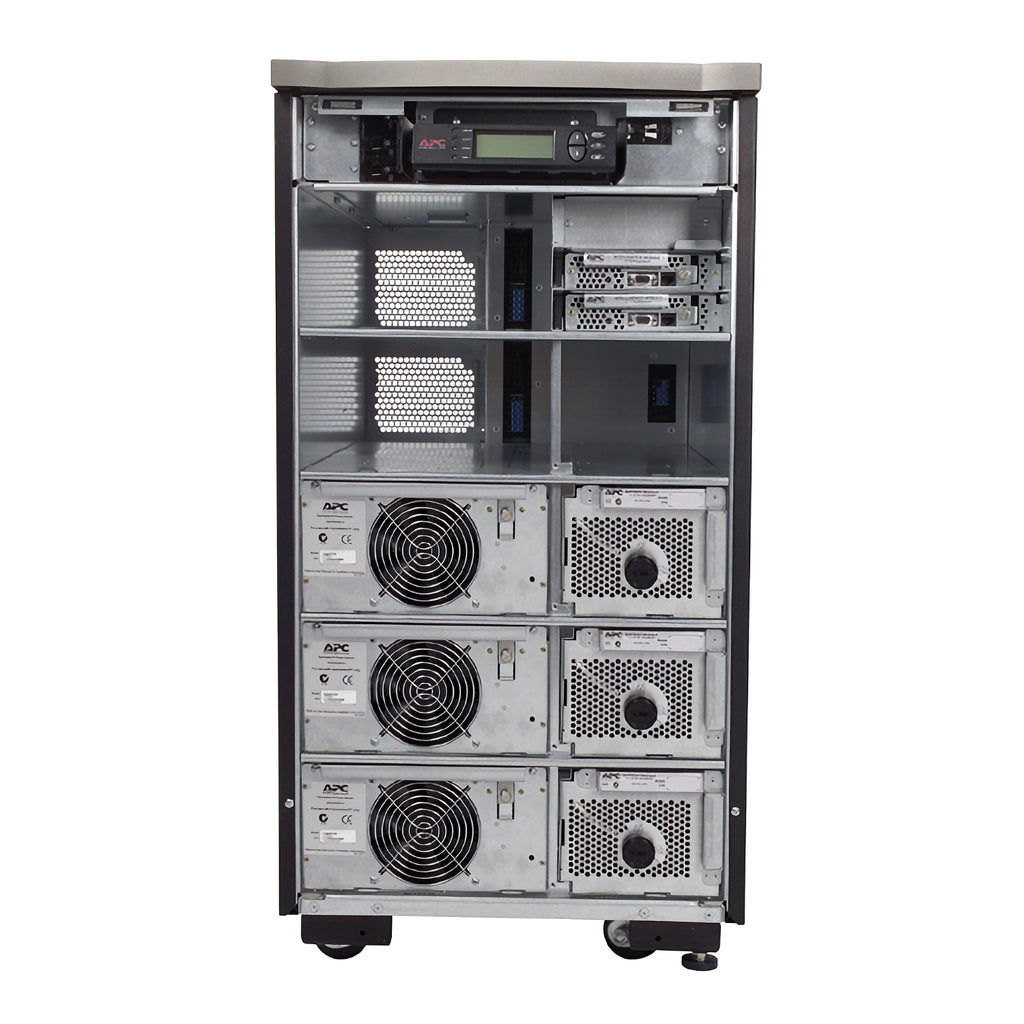

| Included Battery Modules | 3 (1 empty slot for expansion) |
| Typical Recharge Time | 3 hours |
| Redundancy | N+1 |
| Run Time at Full Load | 5 minutes 57 seconds @ 9600W |
| Max Configurable Power | 12800W / 16000VA |
| Efficiency | High efficiency with up to 0.98 power factor |
| Input Harmonics | <7% THD |
| Output Harmonics | <5% THD |
| Waveform | Pure Sine Wave |
| Certifications | UL 1778, CSA, FCC Part 15 Class A |

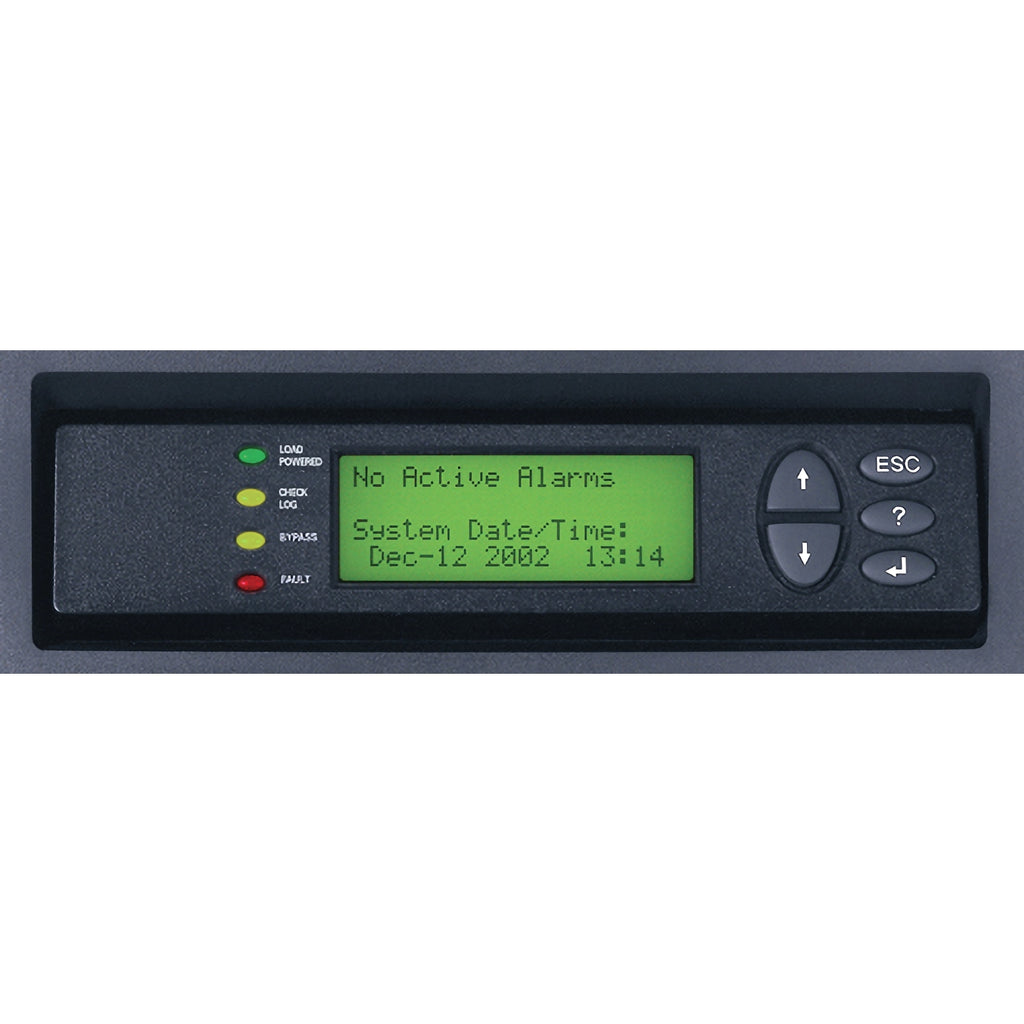

| Interface | LCD Control Panel, Audible & Visual Alarms, EPO |

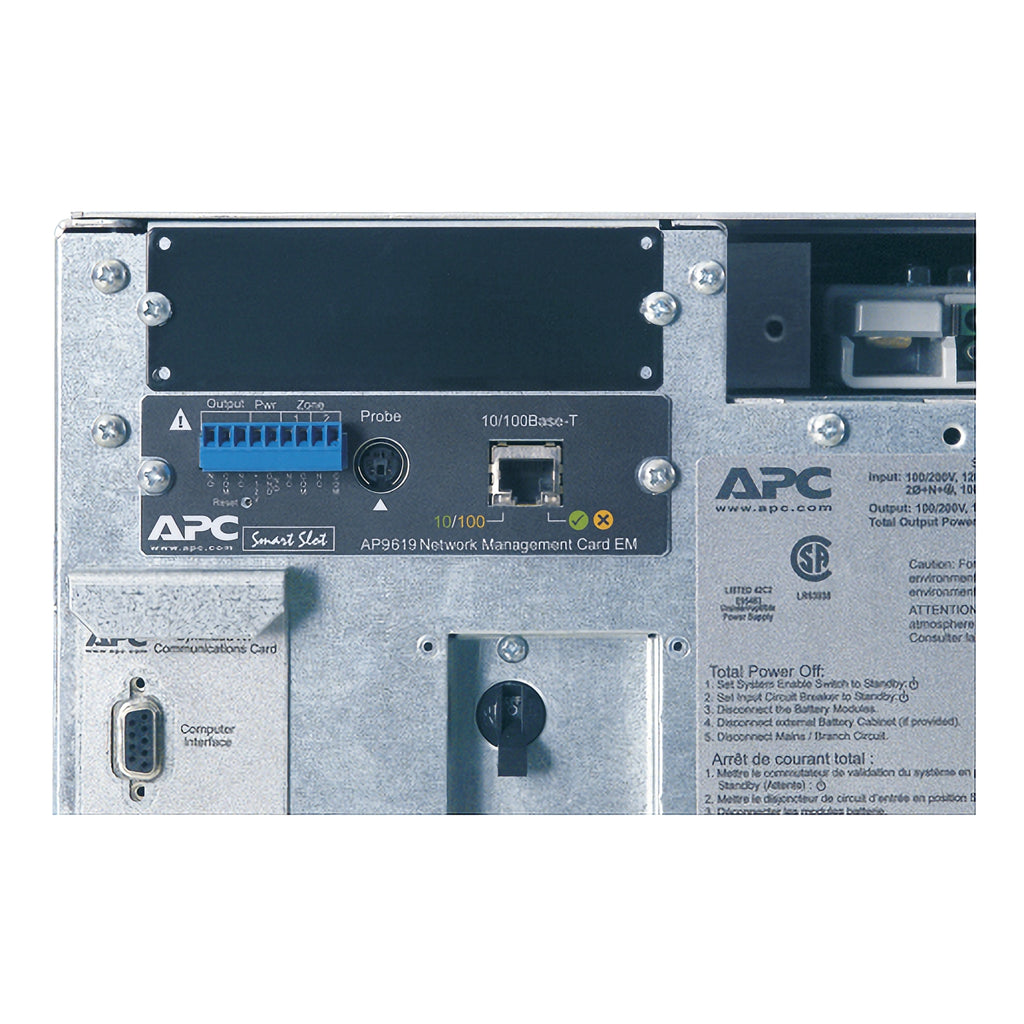

| Network Management | Pre-installed Network Management Card 2 |
| Dimensions (HxWxD) | 36.89 x 19.02 x 28.58 in (93.7 x 48.3 x 72.6 cm) |
| Weight | 581.23 lbs (263.64 kg) |
| Warranty | 2-Year Repair or Replace |
