Description

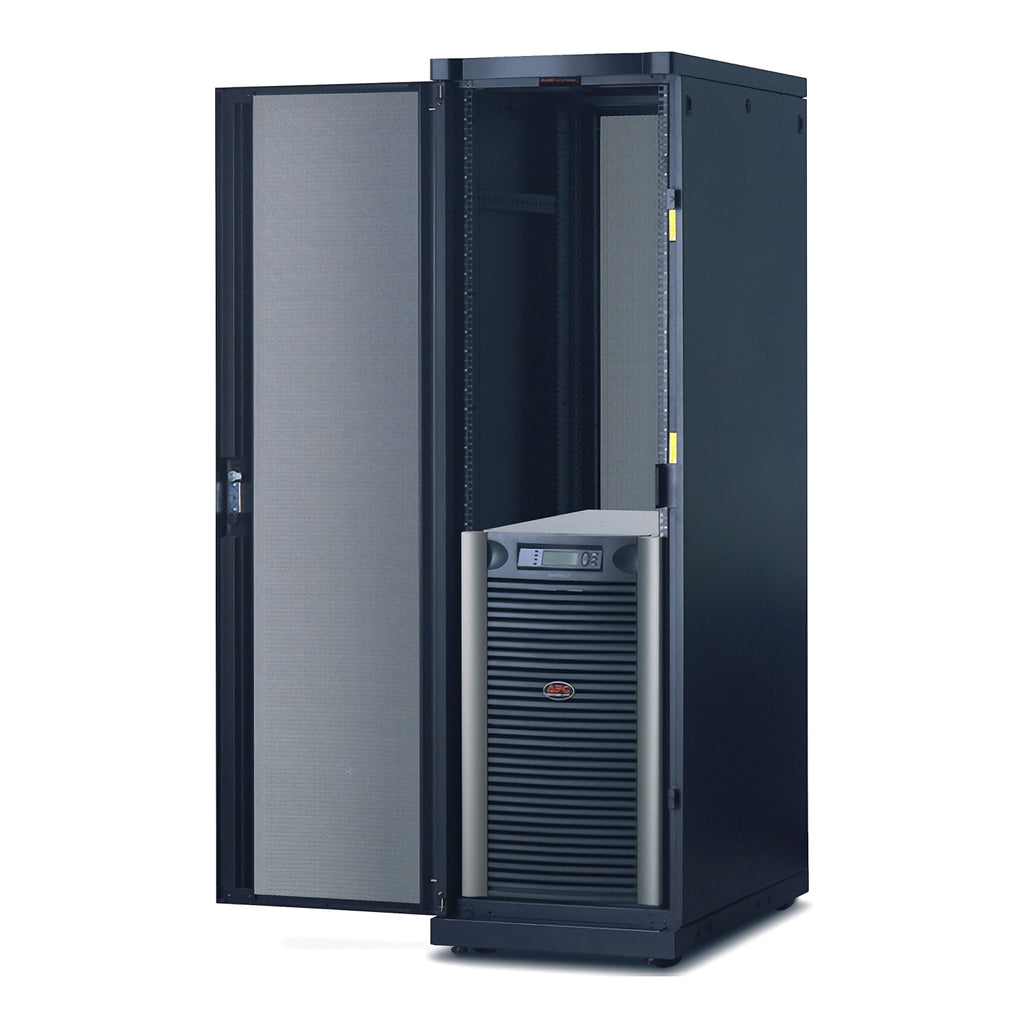

Ensure continuous uptime and scalable power protection with the APC Symmetra LX SYA16K16RMP UPS. Designed for high-density server rooms, network closets, and mission-critical environments, this 16kVA N+1 redundant rackmount UPS delivers double-conversion online protection and flexible runtime scalability. With modular architecture, hot-swappable batteries and power modules, and robust management tools, the Symmetra LX keeps your business running even in the harshest power conditions.
| Category | Details |
|---|---|
| Model | SYA16K16RMP |
| Brand | APC by Schneider Electric |
| Power Capacity | 16,000 VA / 12,800 W |
| Output Voltage | 120V / 208V / 240V |
| Input Voltage | 208V / 240V |
| Input Frequency | 45–65 Hz auto-sensing |

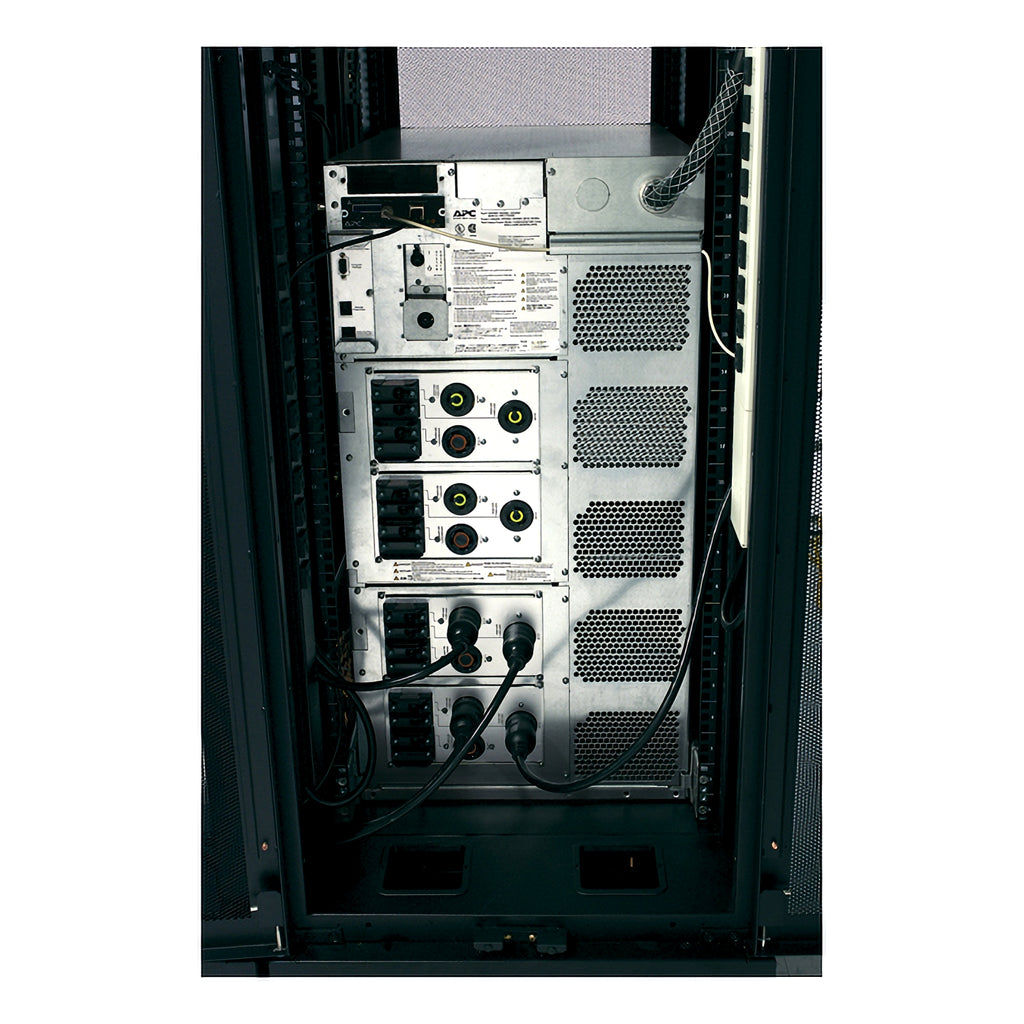

| Output Connections | 8x NEMA L5-20R, 4x NEMA L14-30R, 1x Hard Wire (4-wire: 2PH+N+G) |
| Redundancy | N+1 Redundant Architecture |
| Battery Type | Hot-swappable Lead-Acid (4 Modules Included) |
| Runtime at Full Load | Approx. 5 min 57 sec (12.8 kW load) |
| Recharge Time | 3 hours |
| Scalability | Expandable runtime and power with additional modules |
| Mounting | Rackmount, 19U |
| Dimensions (HxWxD) | 32.91 x 18.58 x 27.09 in (83.6 x 47.2 x 68.8 cm) |
| Weight | 632.33 lbs (286.82 kg) |
| Efficiency | High efficiency double-conversion topology |
| Bypass | Internal (auto/manual), optional external bypass |

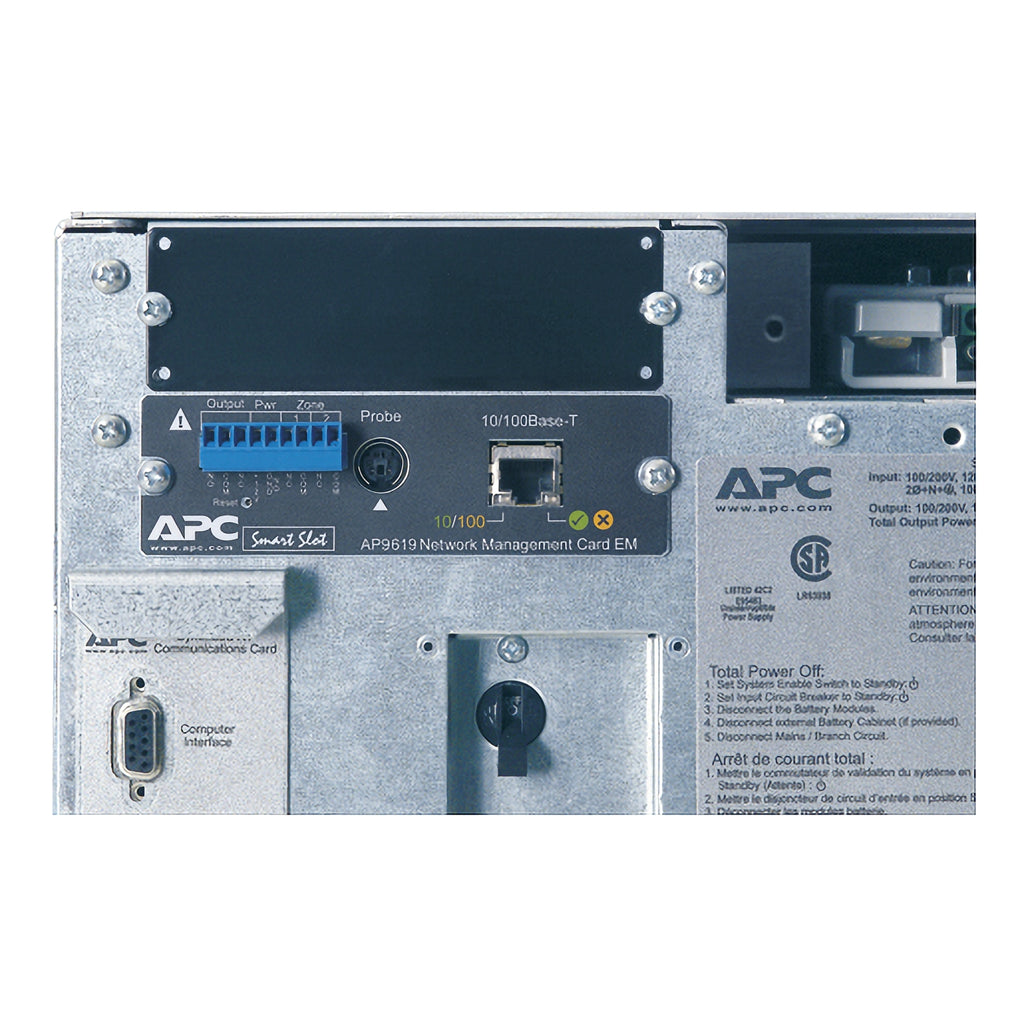

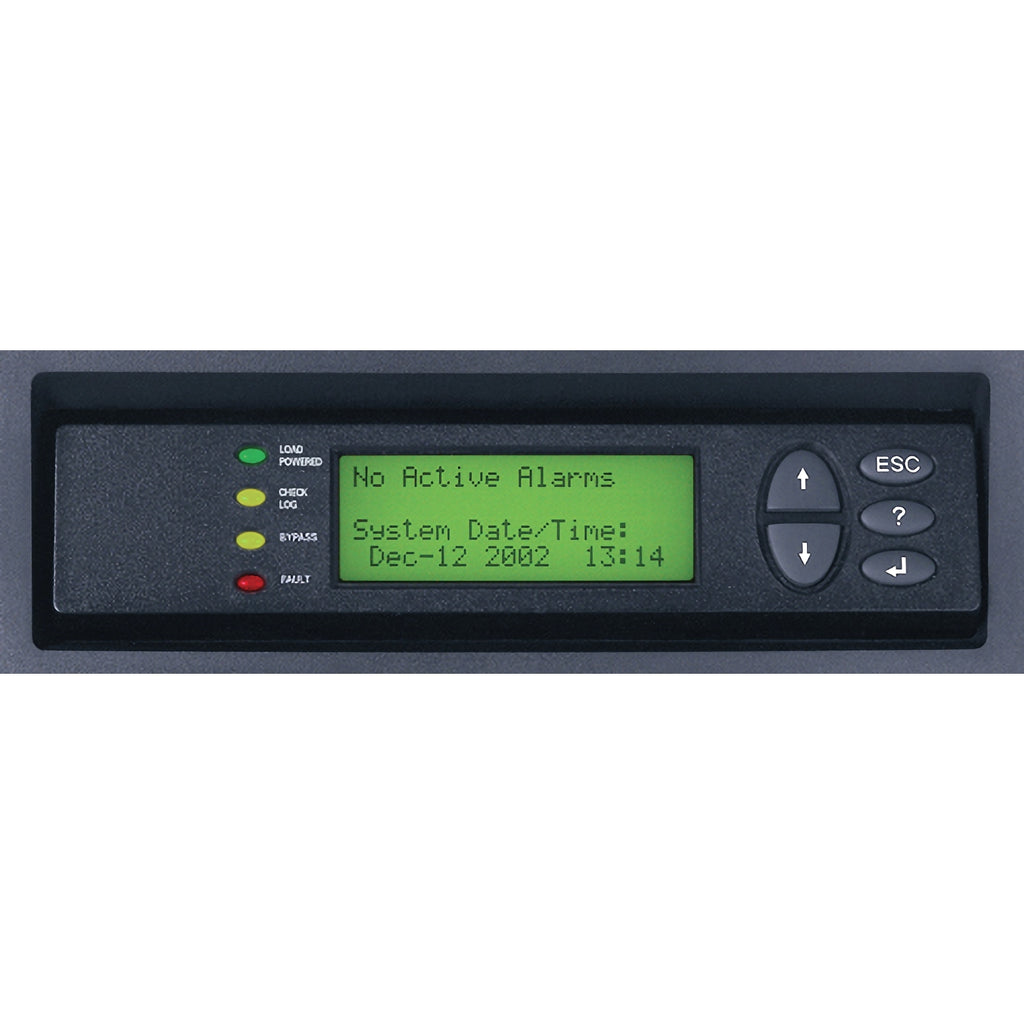

| Management | LCD Console, Web/SNMP Card, Environmental Monitoring |
| Certifications | UL 1778, CSA, FCC Class A, OSHPD |
| Warranty | 2-Year Repair or Replace |
