Description

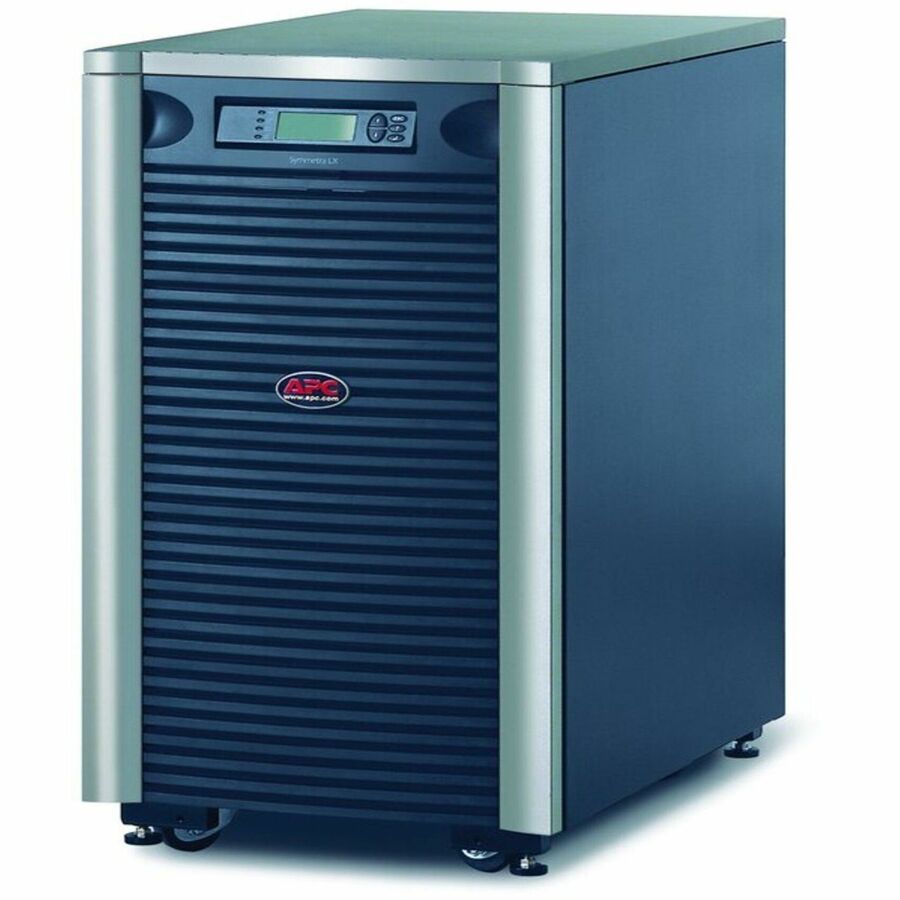

The APC Symmetra LX SYA16K16P is a high-performance, N+1 redundant, double-conversion online UPS system designed for mission-critical applications. Offering 16kVA scalable power in a compact tower format, it delivers reliable backup power and runtime scalability ideal for server rooms and network closets. With advanced features like internal bypass, SmartSlot management, and modular batteries, this UPS ensures seamless power protection for sensitive IT environments.
| Category | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
| Model | SYA16K16P |
| Range | APC Symmetra LX |
| Form Factor | Tower |
| Power Capacity | 16,000 VA / 12,800 W |
| Scalability | Scalable to 16kVA N+1 |
| Runtime | 5 mins 57 secs at full load (12800W) |
| Battery Type | Lead-Acid, 4 modules included |
| Recharge Time | 3 hours |
| Extendable Runtime | Yes |
| Input Voltage | 208/240V |
| Input Frequency | 45–65 Hz auto-sensing |
| Output Voltage | 120V / 208V / 240V configurable |
| Waveform | Pure Sine Wave |
| Topology | Double Conversion Online |
| Bypass Type | Internal (Automatic and Manual) |
| Max Output Current | 75 A |
| Output Connectors | Hard Wire 4-wire (2PH+N+G) |
| Management | Web/SNMP Card, LCD Display, Audible/Visible Alarms |
| EPO Support | Yes |
| Certifications | UL 1778, CSA, FCC Part 15 Class A |
| Operating Temp | 32 to 104 °F (0 to 40 °C) |
| Humidity | 0–95% non-condensing |
| Noise Level | 62 dBA |
| Thermal Dissipation | 4995 BTU/hr |
| Color | Black / Silver |
| Dimensions (HxWxD) | 36.89 x 19.02 x 28.58 in |
| Net Weight | 678.45 lbs (307.74 kg) |
| Warranty | 2 years repair or replace |
