Description

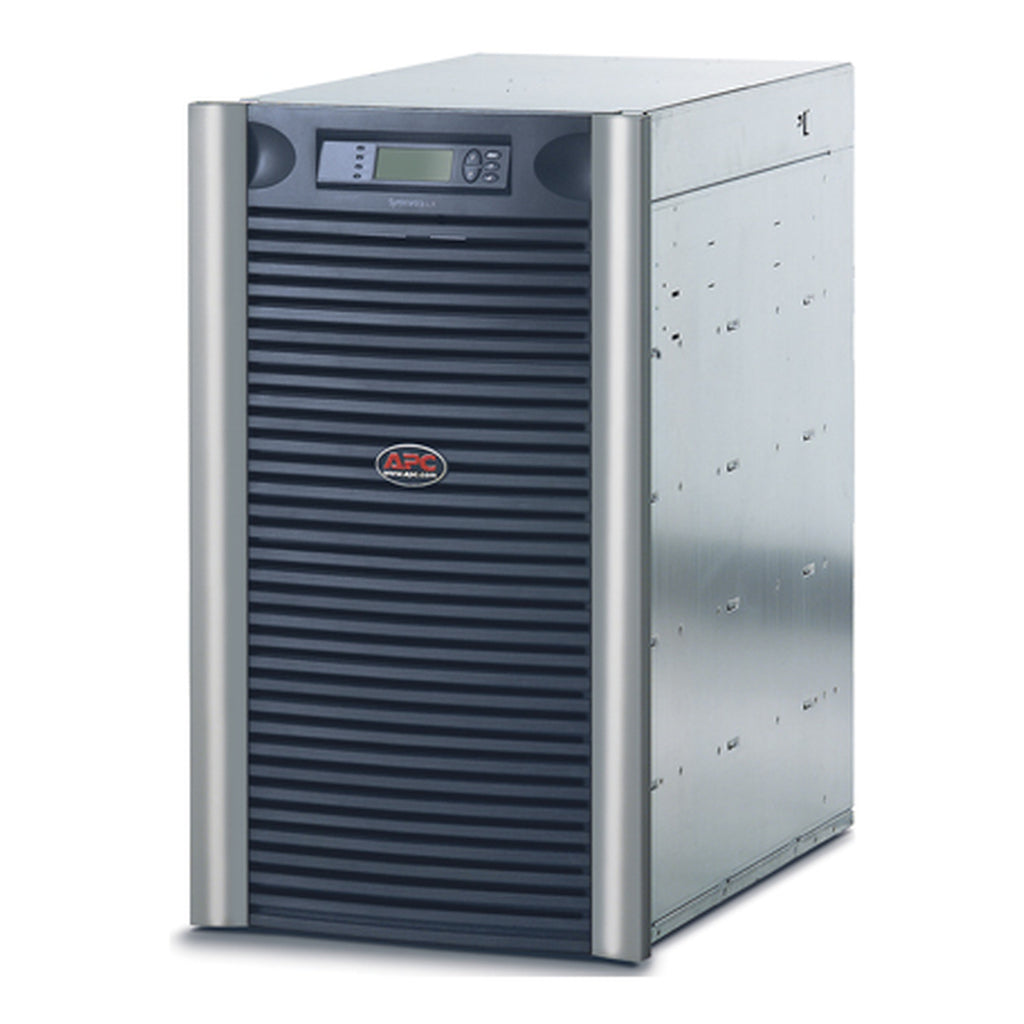

The APC Symmetra LX SYA16K16IXR is a high-performance, modular UPS system designed for scalable power protection in demanding IT environments. With N+1 redundancy and a true on-line double conversion architecture, it ensures continuous uptime for mission-critical equipment. This 16kVA tower model supports extended runtime configurations, advanced monitoring via SNMP/Web cards, and hot-swappable components—making it ideal for server rooms and small data centers requiring resilient and efficient power protection.
| Category | Details |
|---|---|
| Model | SYA16K16IXR |
| Topology | Double conversion online |
| Form Factor | Tower (Standalone) |
| Rated Power | 16,000 VA / 11,200 W |
| Scalability | Fully populated; supports extended runtime |
| Input Voltage | 220/230/240V Single-phase or 380/400/415V Three-phase |
| Input Frequency | 45–65 Hz (auto-sensing) |
| Input Connection | Hard wire 3-wire (1P+N+E), 5-wire (3P+N+E) |
| Output Voltage | 220/230/240V |
| Output Connections | Hard wire 3-wire (H N + E) |
| Battery Type | Lead-acid, hot-swappable modules |
| Battery Slots (Filled/Free) | 9 filled / 4 free |
| Battery Recharge Time | 7.5 hours |
| Redundancy | N+1 redundant architecture |
| Runtime at Full Load | ~24 minutes (11200W) |
| Efficiency | >92% (typical, online mode) |
| Output Waveform | Pure sine wave |
| Certifications | CE, C-Tick, VDE, GOST, EN/IEC compliance |

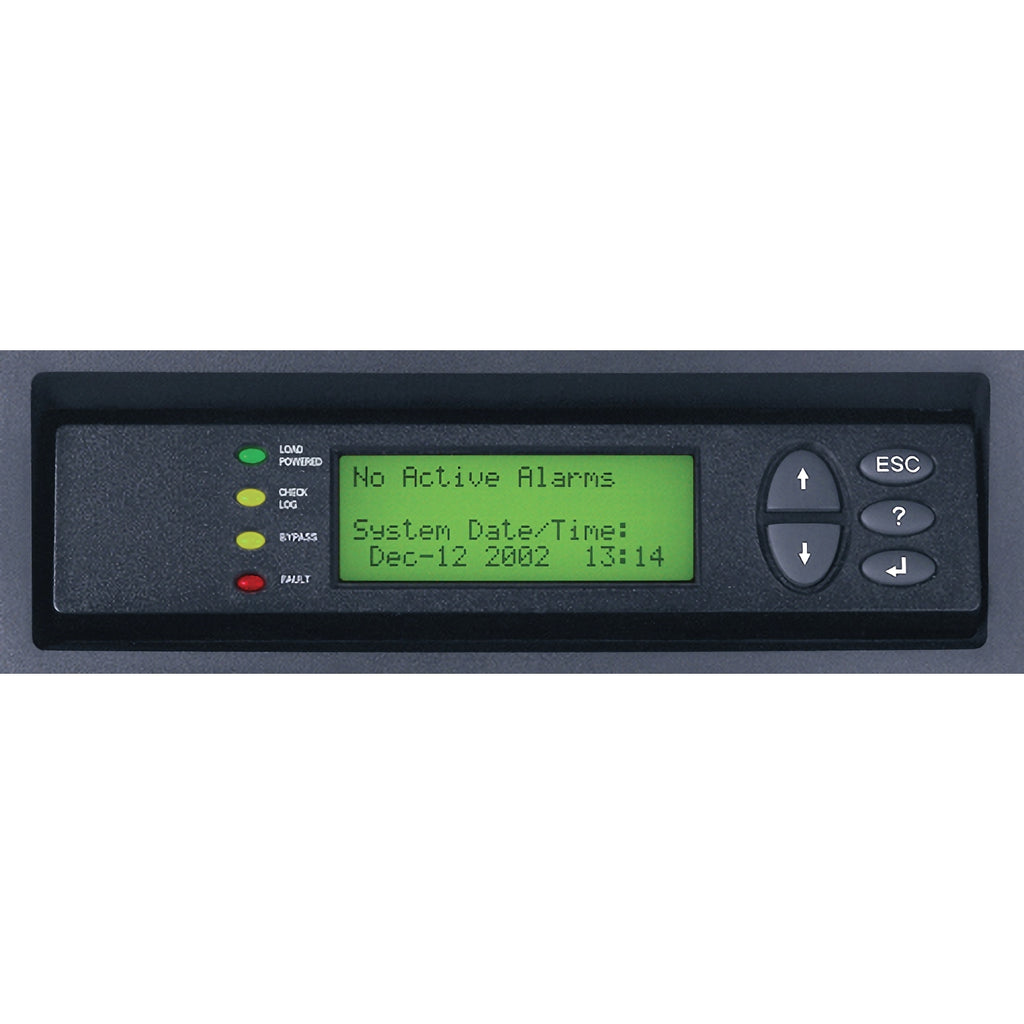

| Interfaces | LCD Control Panel, SNMP/Web Management Card (pre-installed) |
| Alarms | Visual and audible with severity levels |
| Emergency Power Off (EPO) | Yes |
| Color | Black/Silver |
| Dimensions (H x W x D) | 151.6 x 48.3 x 72.6 cm |
| Weight | 503.64 kg |
| Warranty | 2-Year Repair or Replace |
