Description

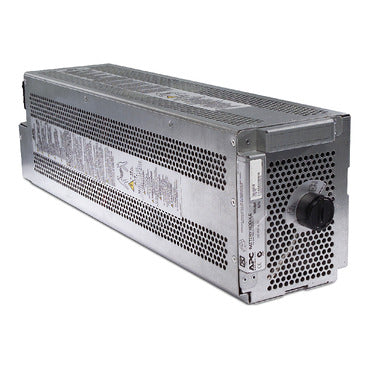

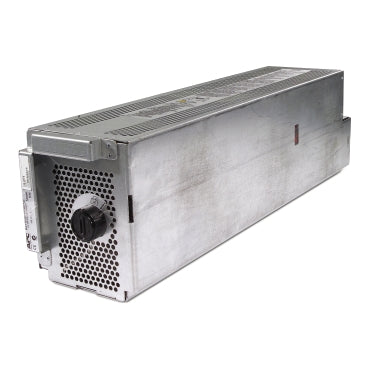

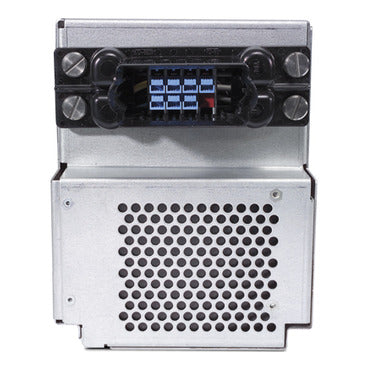

The Schneider Electric APC SYBT5 Symmetra LX Battery Module is a reliable lead-acid battery accessory designed for extended runtime protection in mission-critical environments. Built for Symmetra Battery Systems, this enclosed battery cartridge ensures continuous, scalable backup power for servers, networks, and telecommunications equipment.
With 10 battery blocks per string and a 120V internal configuration, the SYBT5 is engineered for easy installation, optimized energy efficiency, and compliance with UL 1778 and CSA standards. Its robust design supports Schneider Electric’s sustainability goals, utilizing recyclable packaging and eco-conscious materials under the “Use Better, Use Longer, Use Again” initiative.
Ideal for data centers, enterprise networks, and telecommunications facilities requiring reliable power continuity and environmental responsibility.
| Category | Details |
|---|---|
| Brand | Schneider Electric |
| Product Range | APC Symmetra Battery Systems |
| Model / SKU | SYBT5 |
| Product Type | Battery Accessory Module |
| Application | Extended runtime power protection for servers, networks, and telecom systems |
| Battery Type | Lead-acid |
| Battery Voltage | 120 V |
| Number of Battery Blocks per String | 10 |
| Battery Location | Internal |
| Battery Replacement Quantity | 1 |
| Mounting Mode | Enclosed battery cartridge (not rack-mountable) |
| Rack Units | 0U |
| Cables Included | 1 |
| Provided Equipment | Installation guide |
| Certifications | UL 1778, CSA |
| Operating Temperature | 0–40 °C |
| Operating Altitude | 0–10,000 ft |
| Relative Humidity (Operation) | 0–95% |
| Storage Temperature | –15–45 °C |
| Storage Altitude | 0–4,572 m |
| Storage Relative Humidity | 0–95% |
| Height | 140 mm |
| Width | 210 mm |
| Depth | 546 mm |
| Net Weight | 29.1 kg |
| Package Dimensions (W × H × L) | 29 cm × 27 cm × 76 cm |
| Package Weight | 30.5 kg |
| Warranty | 24 months |
| Environmental Compliance | EU RoHS (Pro-active), REACh Declaration, WEEE directive compliant |
| Packaging | Recycled cardboard; no single-use plastic |
| Energy Efficiency | Optimized, eco-friendly product |
| Take-Back Policy | No (refer to End-of-Life Information) |
