Description

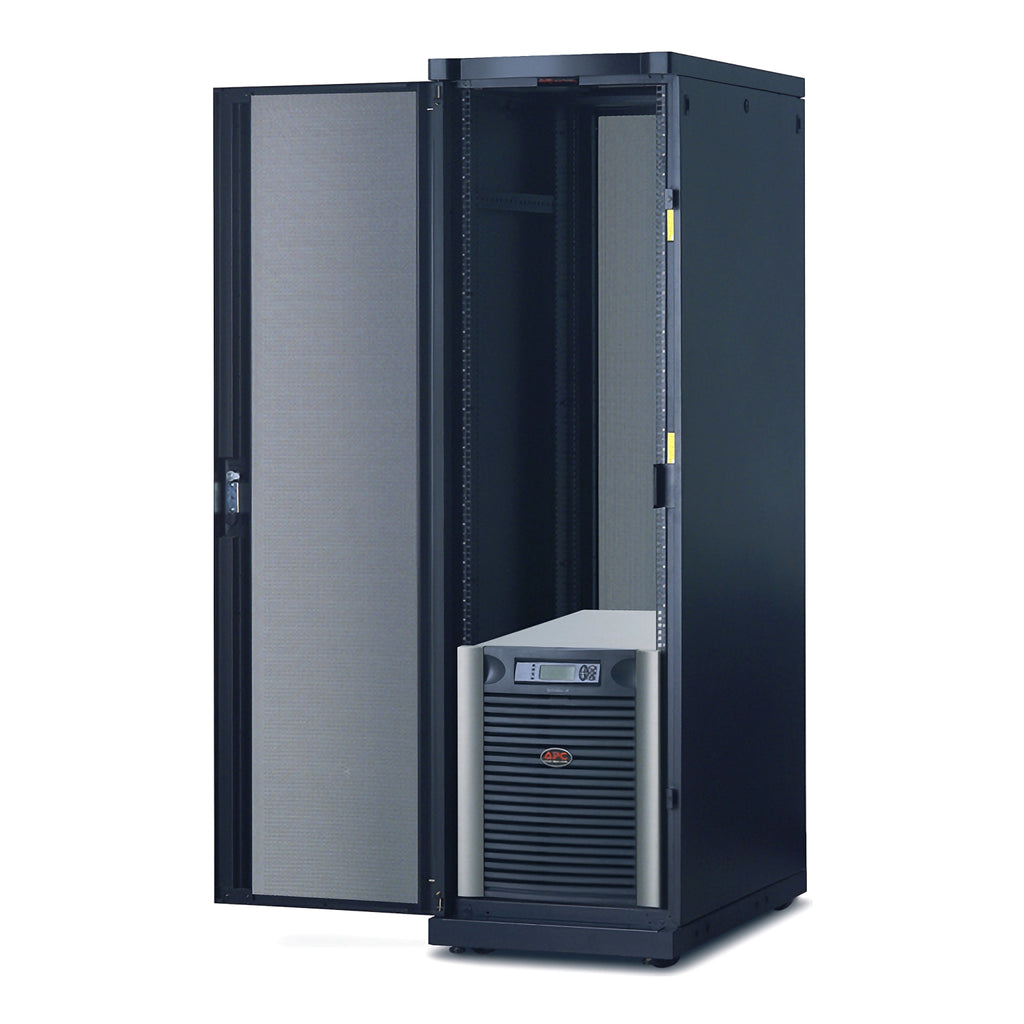

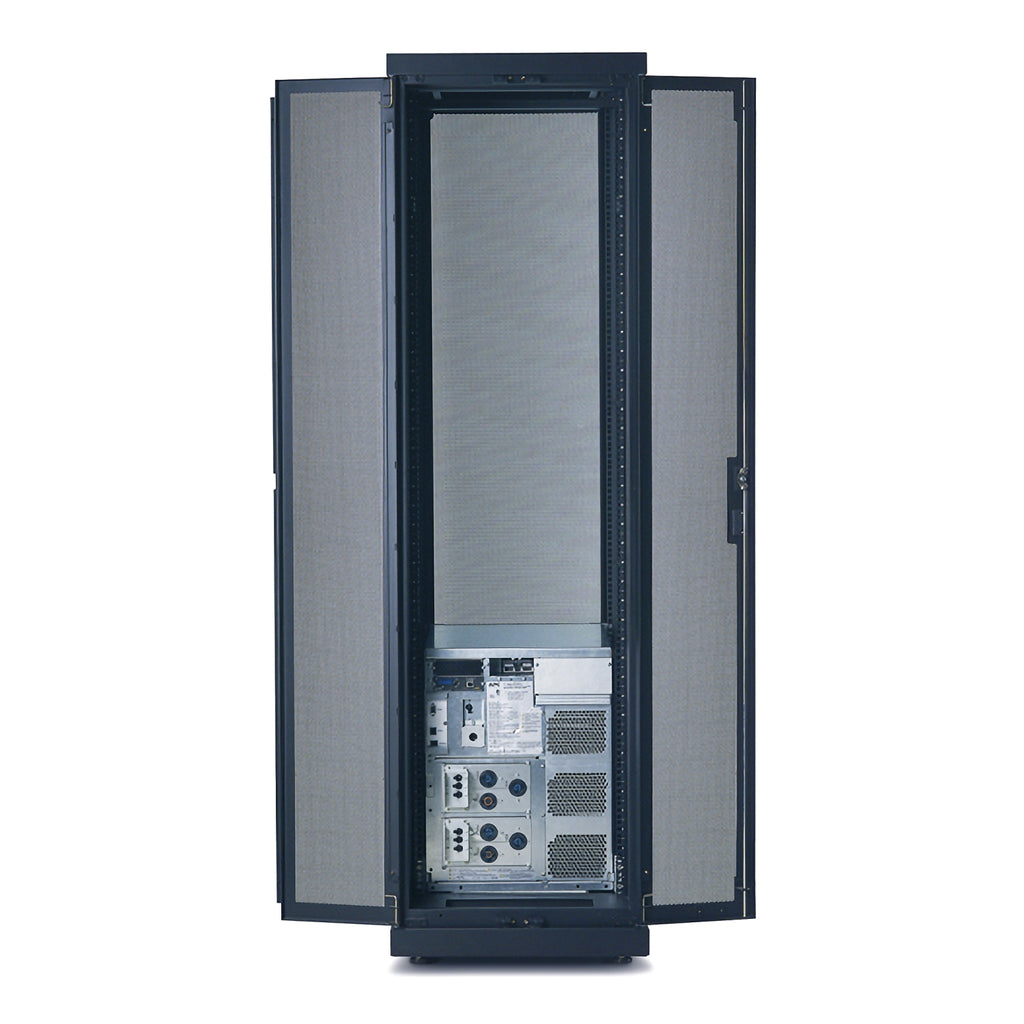

The APC Symmetra LX SYA4K8RMP is a high-performance, scalable UPS that delivers N+1 redundant power protection for critical IT environments. Designed for server rooms and data centers with space constraints, this 13U rack-mountable UPS system provides double-conversion online protection and offers flexible output configurations of 120/208V or 120/240V. With modular batteries and power modules, it ensures uninterrupted operation, scalable runtime, and quick maintenance. Ideal for voice, data, and network infrastructure requiring reliability, this UPS includes SmartSlot management, an intuitive LCD console, and full support for external monitoring and emergency power-off functionality.
| Category | Specification |
|---|---|
| Model | SYA4K8RMP |
| Product Type | Uninterruptible Power Supply (UPS) |
| Form Factor | Rack-mount, 13U |
| Input Voltage | 208V / 240V (Auto-sensing) |
| Output Voltage | Configurable: 120V/208V or 120V/240V |
| Power Capacity | 4000VA / 3200W (scalable up to 8000VA / 6400W) |
| Redundancy | N+1 Redundant |
| Battery Type | Lead-Acid, Hot-swappable |
| Included Batteries | 1 Battery Module (1 Empty Slot for Expansion) |
| Recharge Time | 3 Hours (Typical) |
| Runtime (Full Load) | Approx. 5 minutes 54 seconds |
| Bypass Type | Internal (Automatic & Manual), Optional External |
| Waveform | Sine Wave (Double Conversion Online) |

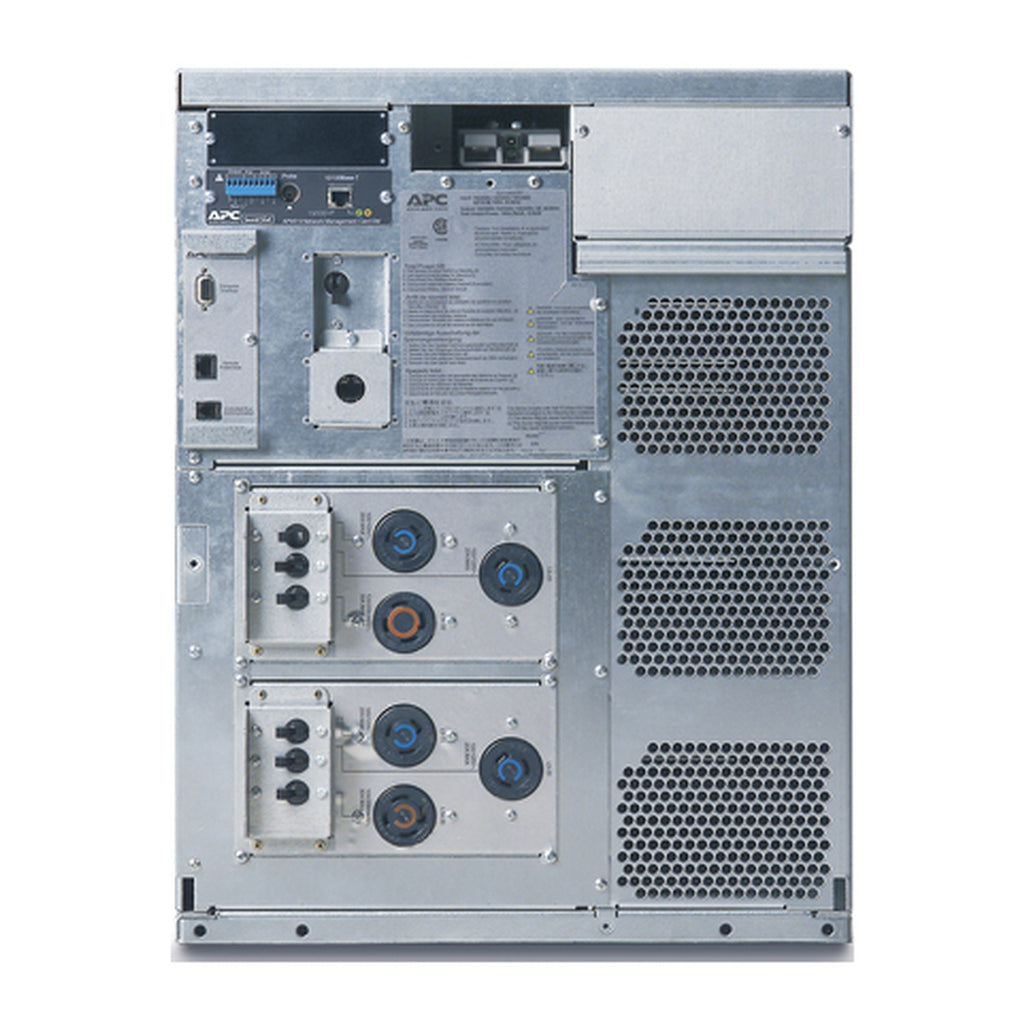

| Output Connections | 4x NEMA L5-20R, 2x NEMA L14-30R, 1x Hard Wire (4-wire) |
| Input Connection | 1x Hard Wire (4-wire, 2PH+N+G) |
| Efficiency (Full Load) | 90% |
| Max Output Current | 18A |
| Interface & Control | LCD Status Console, SmartSlot, Audible/Visual Alarms, EPO |
| Network Management | Pre-installed Network Management Card with Environmental Monitoring |
| Certifications | UL 1778, CSA, FCC Part 15 Class A, OSHPD |
| Operating Temp. | 32ā104Ā°F (0ā40Ā°C) |
| Relative Humidity | 0ā95% (non-condensing) |
| Dimensions (H x W x D) | 22.52" x 18.58" x 27.09" (57.2 x 47.2 x 68.8 cm) |
| Net Weight | 295.62 lbs (134.09 kg) |
| Acoustic Level | 62 dBA |
| Thermal Dissipation | 3707 BTU/h |
| Warranty | 2-Year Repair or Replace |
