Description

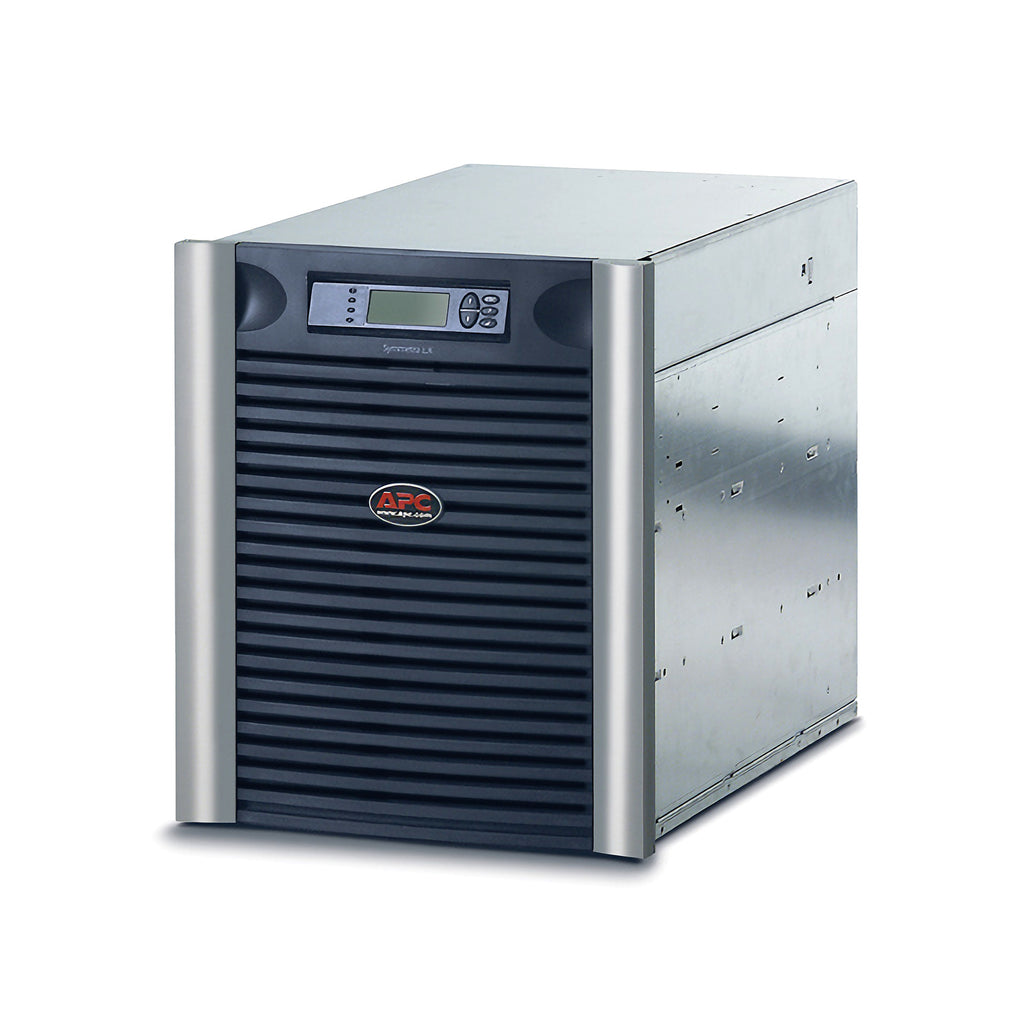

Safeguard critical servers and network infrastructure with the APC Symmetra LX SYA8K8RMP—an 8 kVA, double-conversion on-line UPS engineered for zero-downtime power. Its modular N+1 architecture lets you scale both power and runtime while maintaining full redundancy, so you can grow without compromise. Hot-swappable power and battery modules, an integral network management card, and an intuitive LCD interface streamline maintenance and monitoring. With class-leading efficiency, flexible 120/208 V or 120/240 V output, and robust environmental tolerances, the Symmetra LX delivers enterprise-grade protection in a compact 13 U rack-mount chassis—ideal for space-constrained server rooms, edge data centers, and voice/data networks.
| Category | Specification |
|---|---|
| Capacity & Topology | 8 kVA / 8 kVA N+1 scalable, double-conversion on-line |
| Max Configurable Power | 6,400 W / 8,000 VA |
| Runtime @ Full Load | 5 min 56 s @ 6,400 W (expandable) |
| Input | 208 V primary (240 V secondary); 45-65 Hz auto-sensing; 1× Hard-Wire 4-wire (2 PH + N + G); PF 0.98; THDi < 7 % |
| Output | 120/208 V or 120/240 V configurable; 4× NEMA L5-20R, 2× NEMA L14-30R, 1× Hard-Wire 4-wire; sine-wave; < 5 % THD |
| Redundancy / Scalability | Hot-swappable N+1 power modules (1 empty slot) |
| Battery System | 2× hot-swappable lead-acid modules (0 empty slots); 3 h recharge; external battery cabinets supported |
| Efficiency | 90 % (online, full load) |
| Communications | Pre-installed Network Management Card 2 with environmental monitoring; 1× SmartSlot free |
| Alarms & Controls | Multi-function LCD, audible/visual alarms, EPO |
| Certifications | UL 1778, CSA, FCC Part 15 Class A, OSHPD |
| Physical | 13 U; 22.52 × 18.58 × 27.09 in (57.2 × 47.2 × 68.8 cm); 392.8 lb (178.2 kg); rack-mount |
| Environment | 0–40 °C operating; 0–95 % RH (non-cond.); 62 dBA |
| Thermal Dissipation | 3,707 BTU/h (online) |
| Warranty | 2-year repair or replace (UPS) |
