Description
Keep business-critical servers and network gear online, even as your power demands grow.

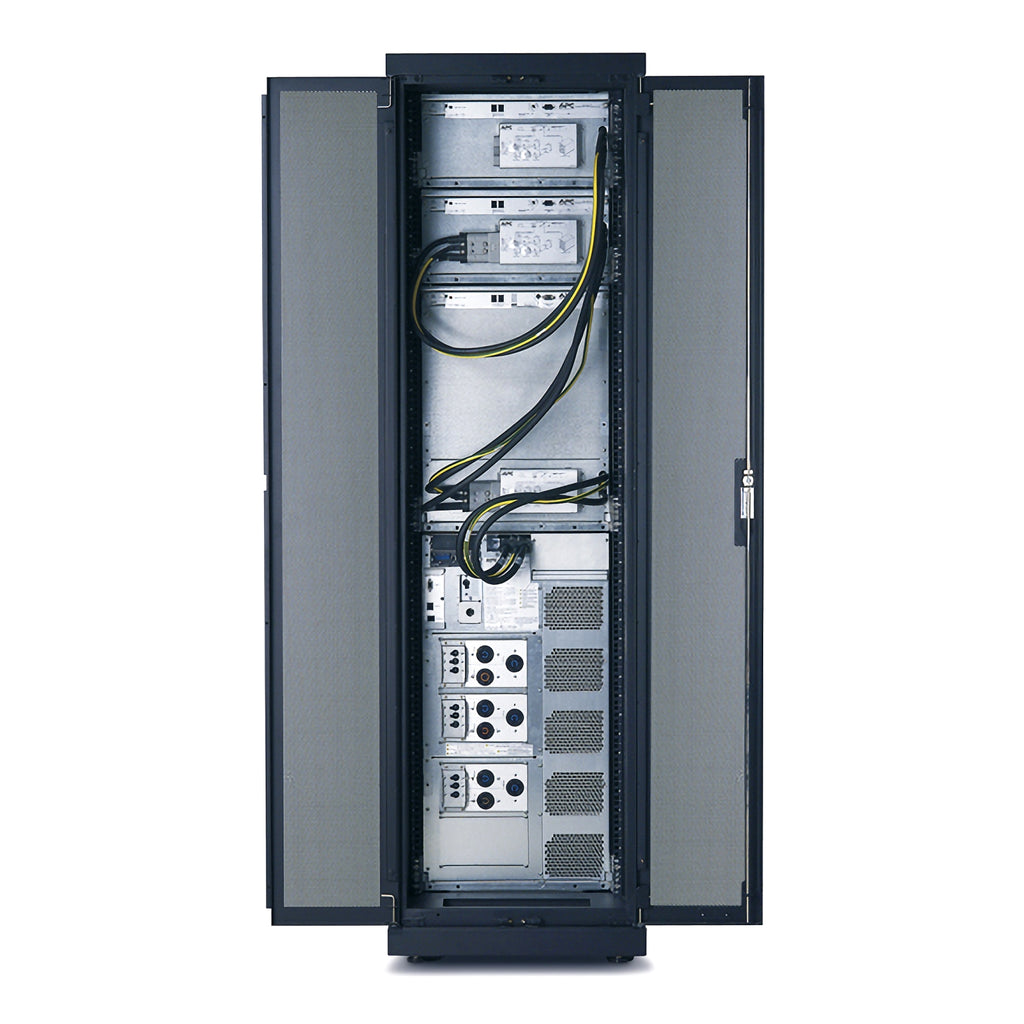

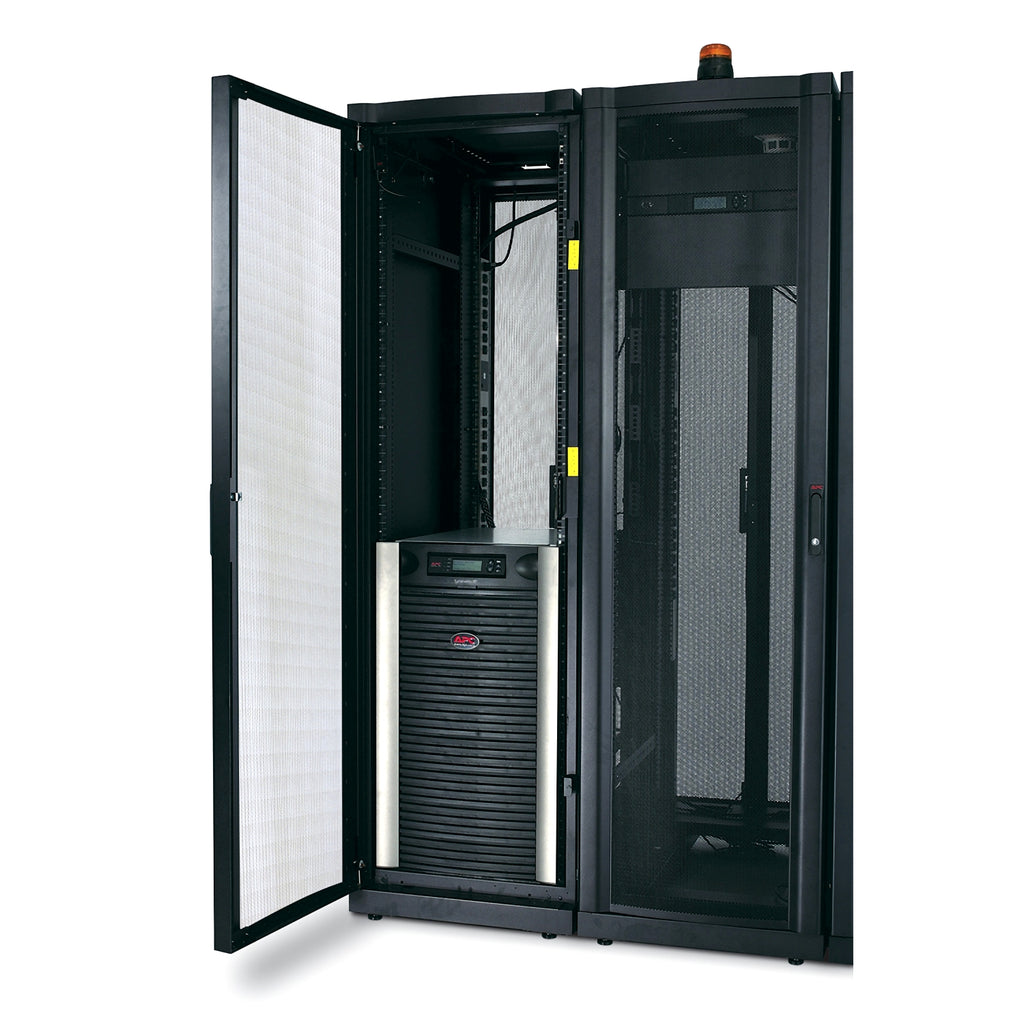

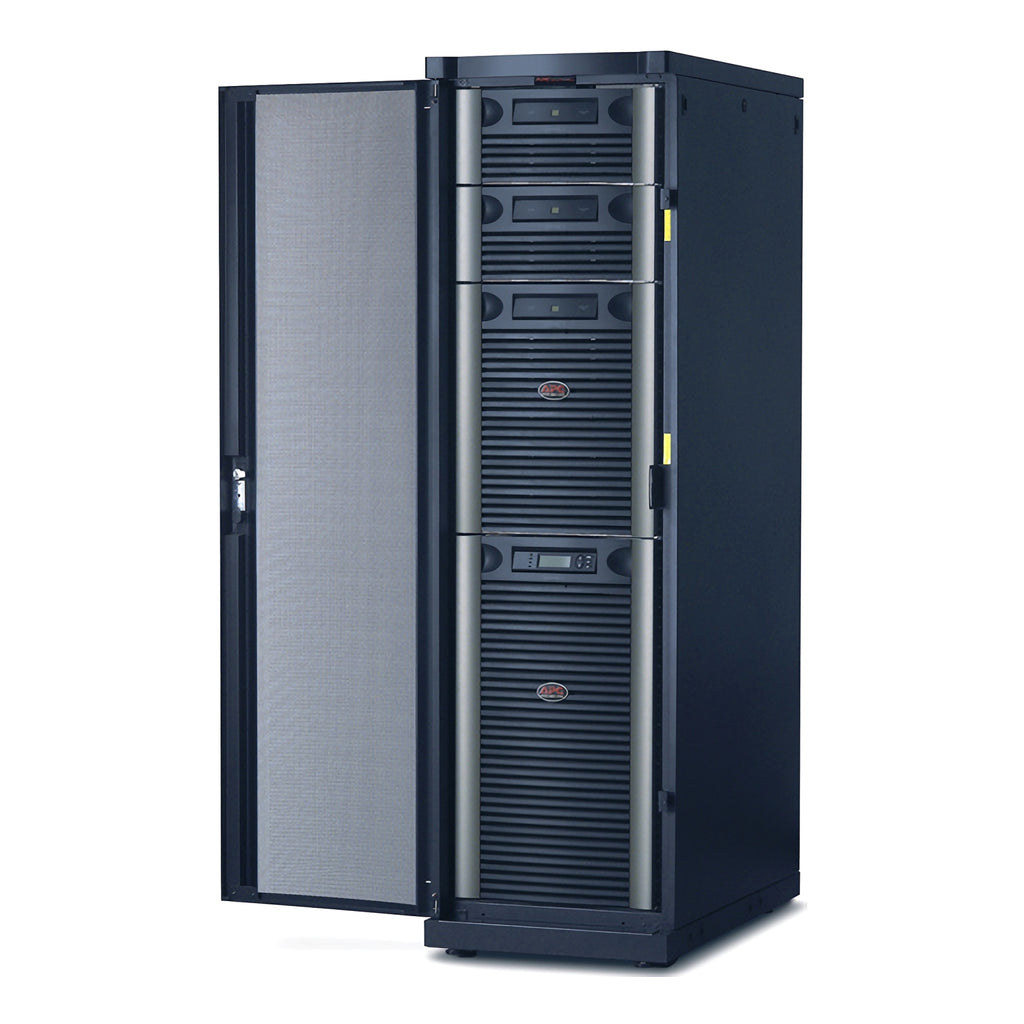

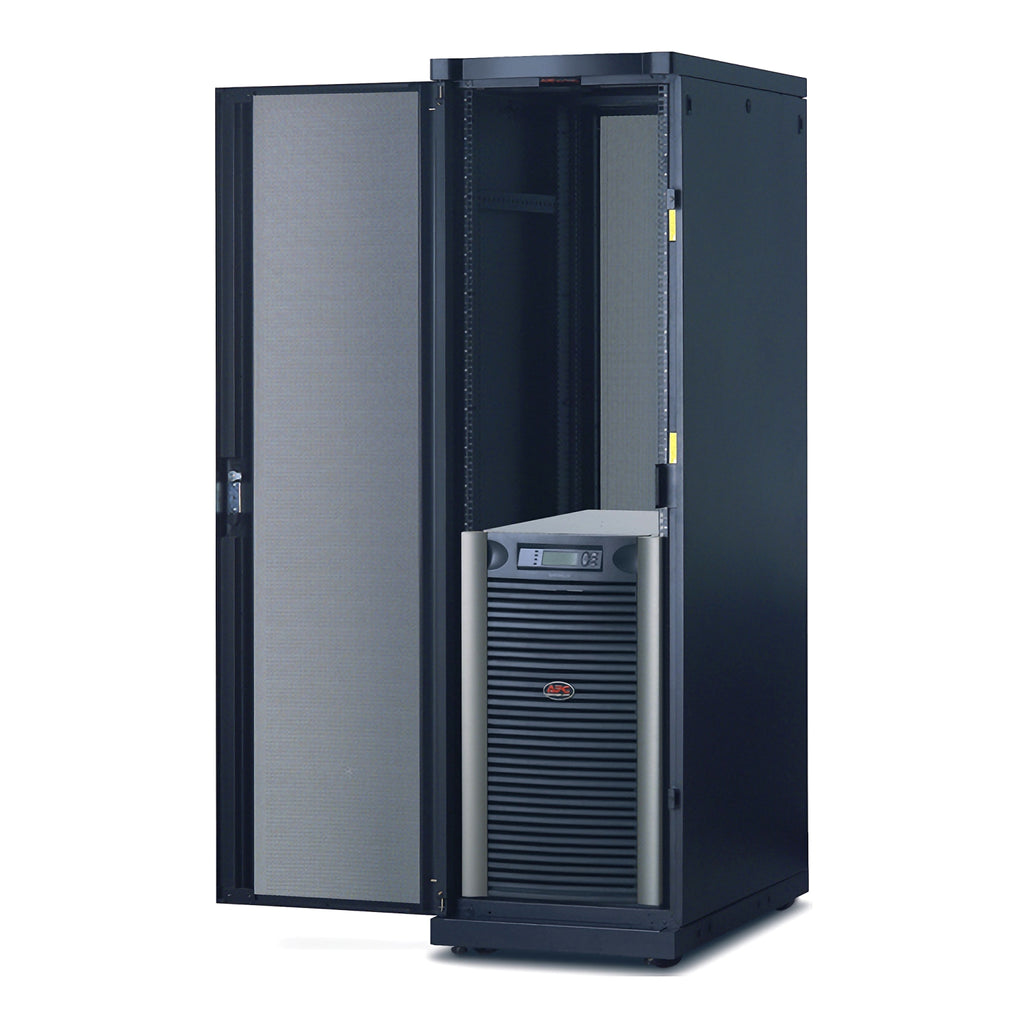

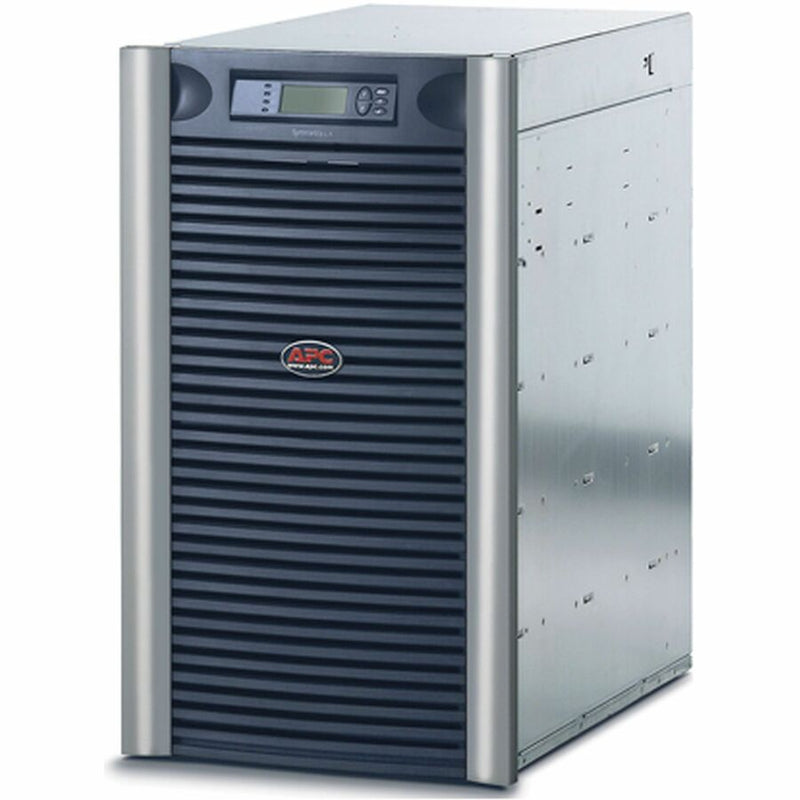

The APC Symmetra LX SYA8K16RMP delivers true double-conversion online protection and modular N+1 redundancy in a 19-U rack chassis that scales from 8 kVA to 16 kVA without downtime. Hot-swappable power, battery and intelligence modules simplify maintenance, while the pre-installed Network Management Card with environmental monitoring lets you manage and monitor the UPS anywhere, anytime.
Key benefits
-
Scalable power & runtime – add power or battery modules in minutes as load increases.
-
N+1 redundant architecture – avoids single points of failure; maintenance with zero interruption.
-
True online topology – isolates equipment from surges, sags & harmonics for a perfect sine wave output.
-
Hot-swappable modules – replace or add capacity without shutting down protected loads.
-
Smart monitoring – LCD console plus remote web/SNMP management and EPO interface.
-
Flexible output – field-configurable 120/208 V or 120/240 V distribution for mixed-voltage racks.
| Category | Details |
|---|---|
| Power Capacity | 8 kVA / 6.4 kW, scalable to 16 kVA / 12.8 kW (modular) |
| Topology | Double-Conversion Online |
| Redundancy | N+1 with hot-swappable power & battery modules |
| Input | 208 V (nominal) / 240 V selectable • Frequency 45-65 Hz • 1× Hard-Wire 4-wire (2 Φ + N + G) |
| Input PF / THDi | 0.98 PF at full load • < 7 % THDi |
| Output Voltages | 120 V & 208 V or 120 V & 240 V user-selectable |

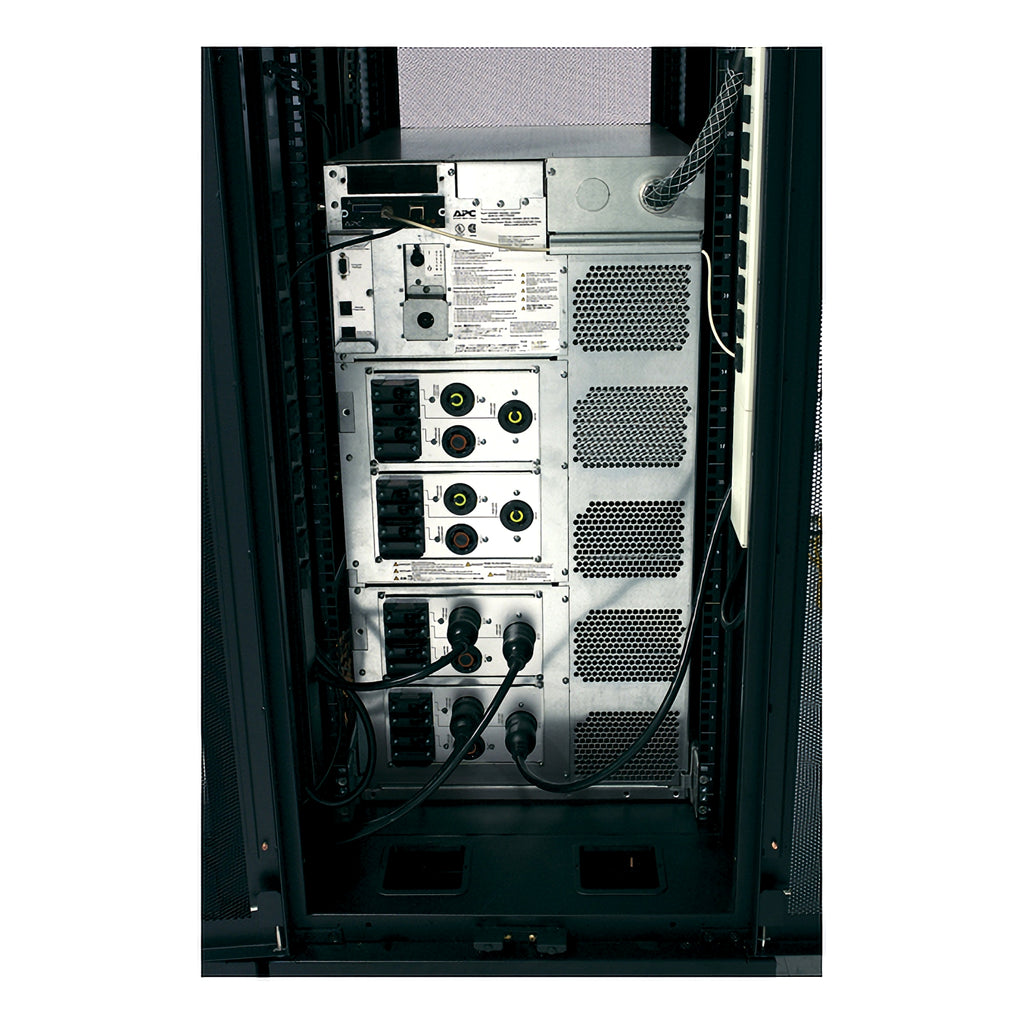

| Output Connections | 8 × NEMA L5-20R, 4 × NEMA L14-30R, 1 × Hard-Wire 4-wire (2 Φ + N + G) |
| Waveform / Crest Factor | Pure sine wave • Up to 5 : 1 |
| Transfer & Bypass | Internal automatic & manual bypass; optional external MBC |
| Runtime @ Full Load | 6 min (6.4 kW) with 2 battery modules • Extendable with extra battery frames |
| Battery System | Hot-swappable, lead-acid; 2 modules included / 2 slots free • 3 h typical recharge |
| Efficiency | Up to 96 % (online); Eco-mode not required |
| Rack Form Factor | 19 U, rack-mounted |
| Dimensions (H × W × D) | 32.91 × 18.58 × 27.09 in (83.6 × 47.2 × 68.8 cm) |
| Net Weight | 438 lb / 199 kg |
| Operating Environment | 0 – 40 °C • 0 – 95 % RH (non-condensing) • up to 3 000 m ASL |
| Acoustics / Heat | 62 dBA • 4 995 BTU h⁻¹ dissipation |

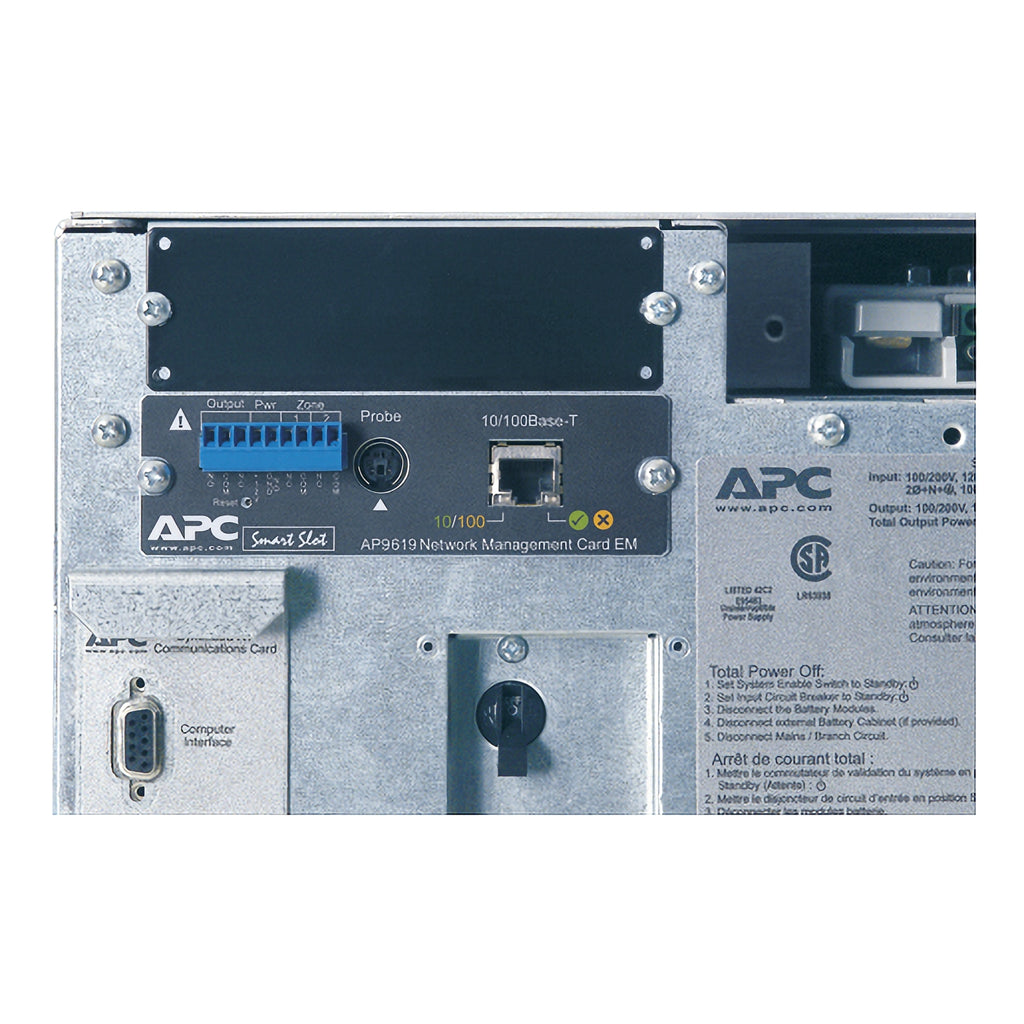

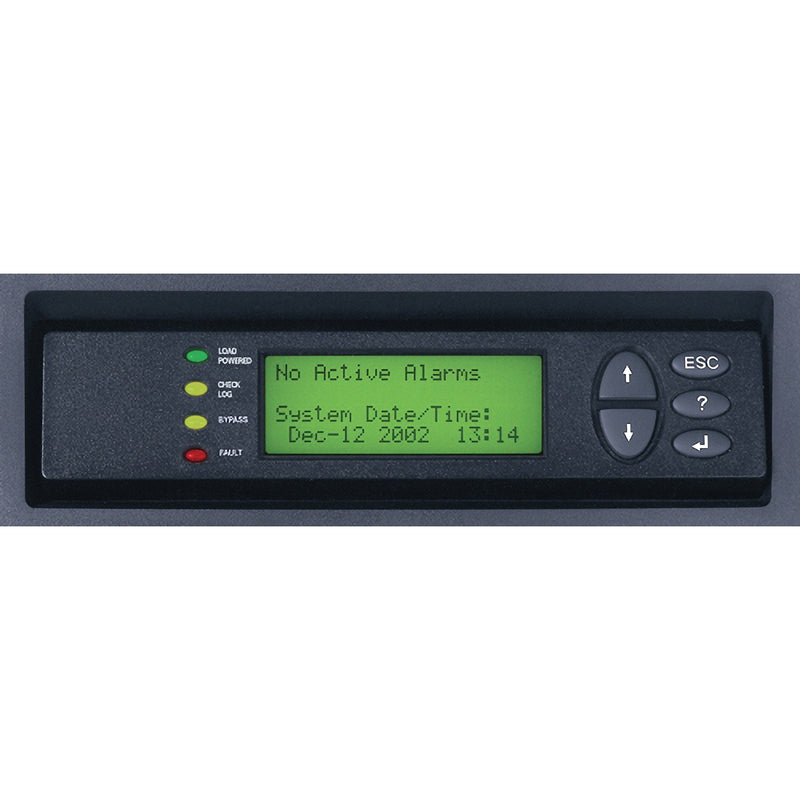

| Management | LCD status panel • 1 × SmartSlot (Network Mgmt Card 2 included) • Audible & visual alarms • EPO |
| Certifications | UL 1778, CSA, FCC Class A, OSHPD |
| Included Accessories | Rack rails, Web/SNMP card, software & documentation CDs, installation guide |
| Warranty | 2-year repair or replace (UPS) |
