Description

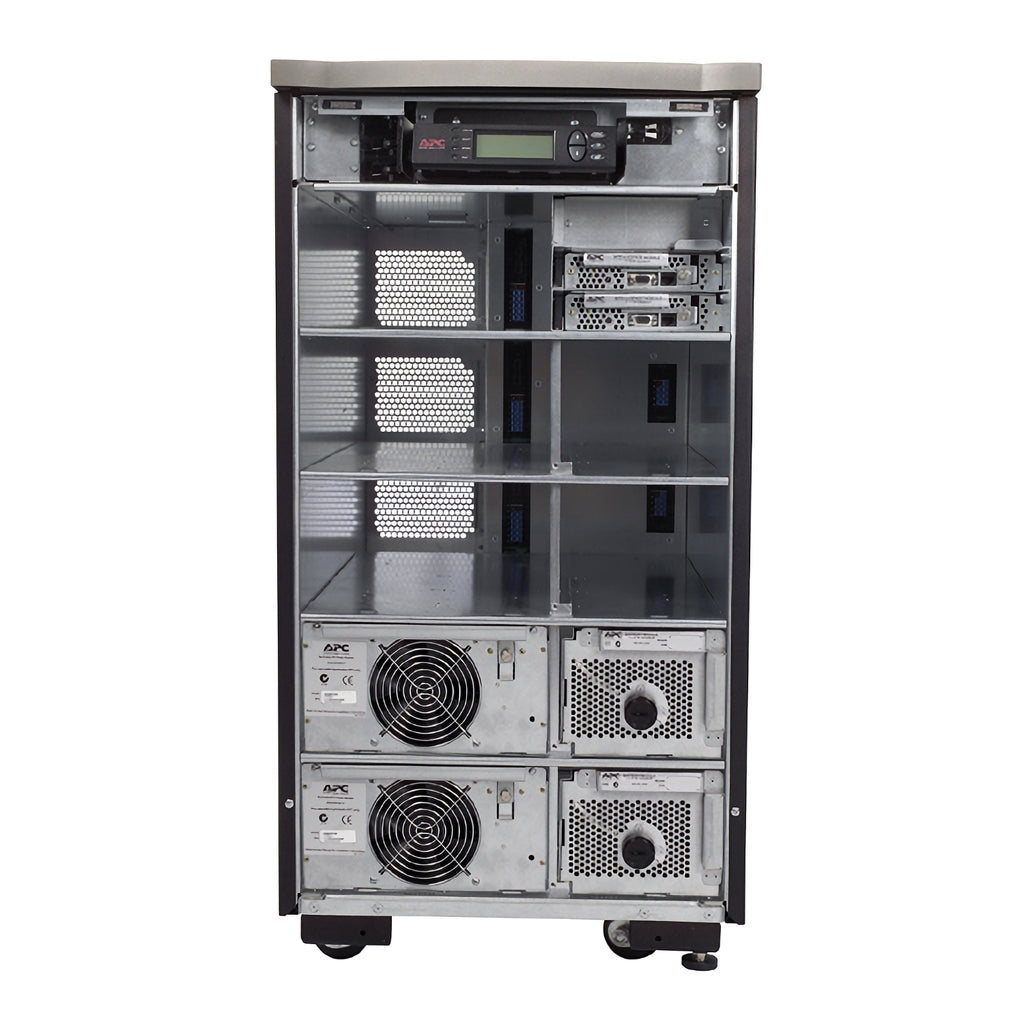

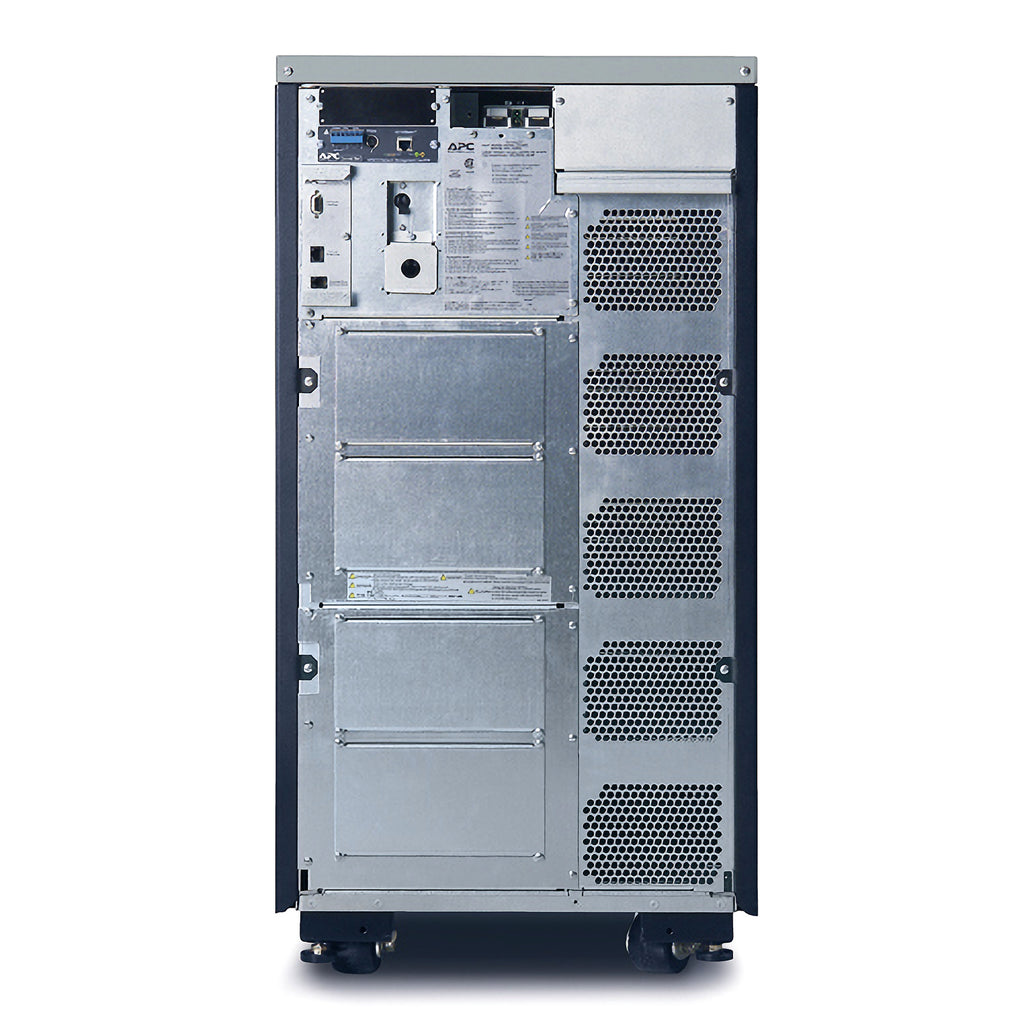

Ensure continuous, scalable power protection for mission-critical environments with the APC Symmetra LX SYA8K16P. This high-performance, N+1 redundant UPS supports up to 16kVA of power, scalable from 8kVA, and delivers reliable double-conversion online protection for sensitive equipment. Ideal for server rooms and data centers, it features hot-swappable modules, extended runtime capabilities, and advanced network management.
| Category | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
| Model | APC SYA8K16P |
| Power Capacity | 8kVA scalable to 16kVA |
| Max Configurable Power | 12.8kW / 16kVA |
| Nominal Input Voltage | 208V / 240V |
| Nominal Output Voltage | 120V / 208V (Configurable to 120/240V) |
| Output Power Factor | 0.8 |
| Topology | Double Conversion Online |
| Waveform Type | Sine Wave |
| Battery Type | Lead-Acid (Hot-swappable) |
| Battery Recharge Time | 3 hours (typical) |
| Runtime @ Full Load (6400W) | 5 min 56 sec |
| Included Battery Modules | 2 (expandable) |
| Redundant Capable | Yes (N+1) |
| Efficiency at Full Load | 96–138V line to neutral |
| Input Connections | Hard Wire 4-wire (2PH+N+G) |
| Output Connections | Hard Wire 4-wire (2PH+N+G) |
| Bypass Type | Automatic & Manual Internal |
| Dimensions (H x W x D) | 36.89 x 19.02 x 28.58 in (93.7 x 48.3 x 72.6 cm) |
| Product Weight | 484.03 lbs (219.55 kg) |

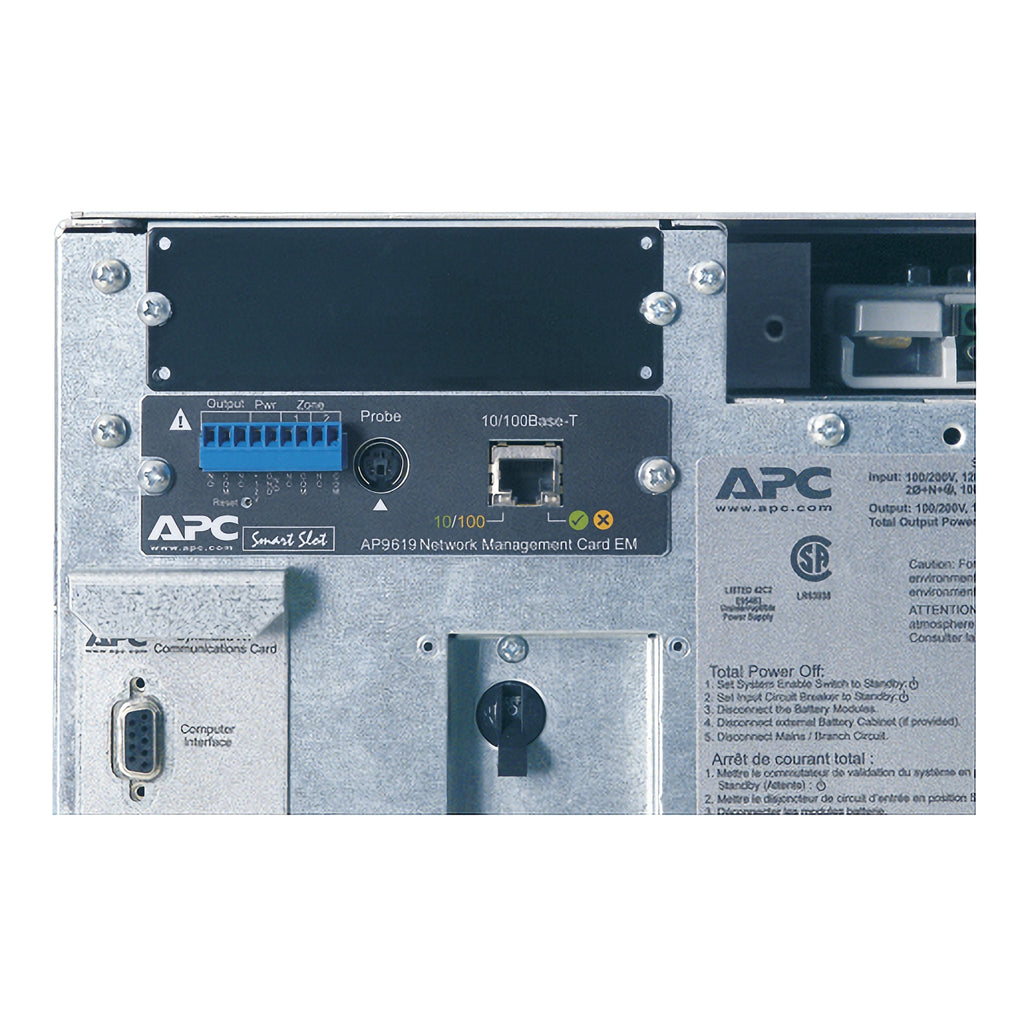

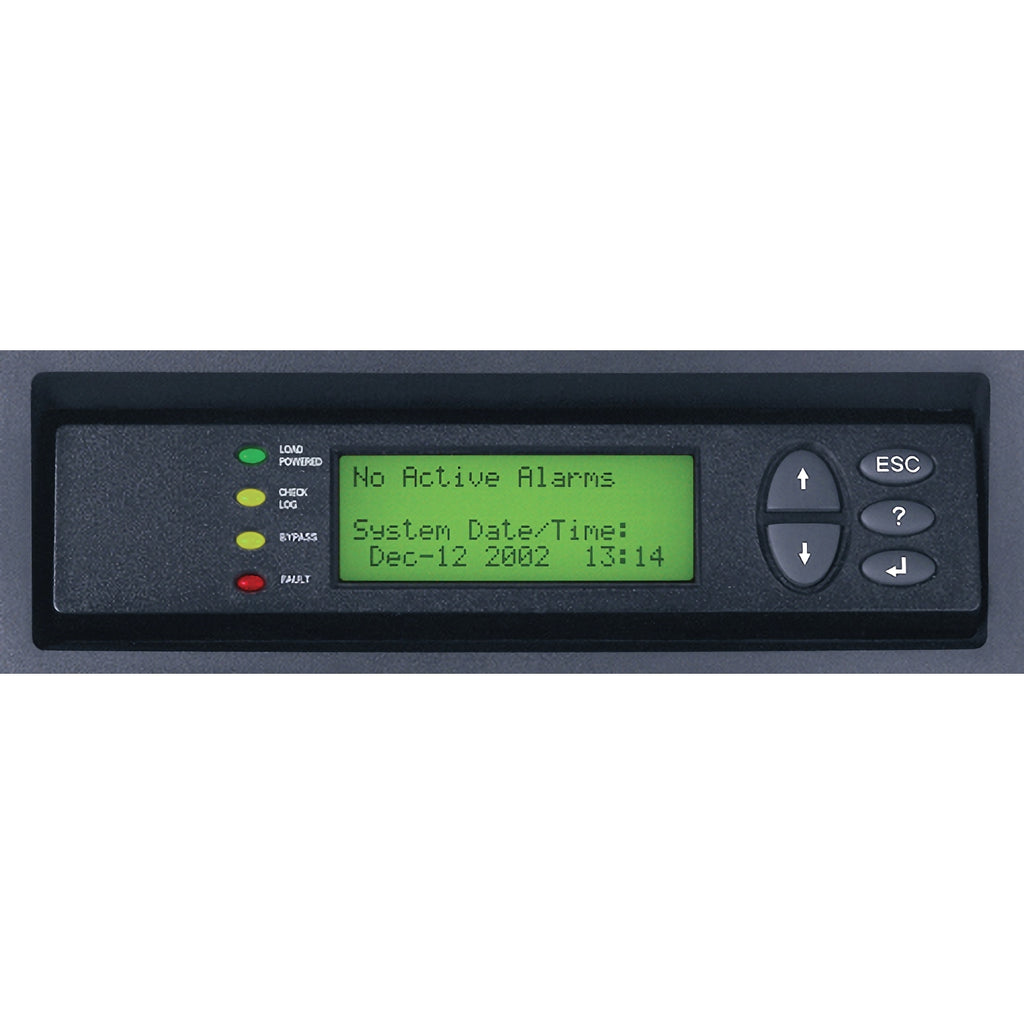

| Network Management | Web/SNMP Card + LCD Console |
| Certifications | UL 1778, CSA, FCC Part 15 Class A |
| Operating Temperature | 0–40°C (32–104°F) |
| Warranty | 2 Years Repair or Replace |
| GTIN | 731304221777 |
