Description

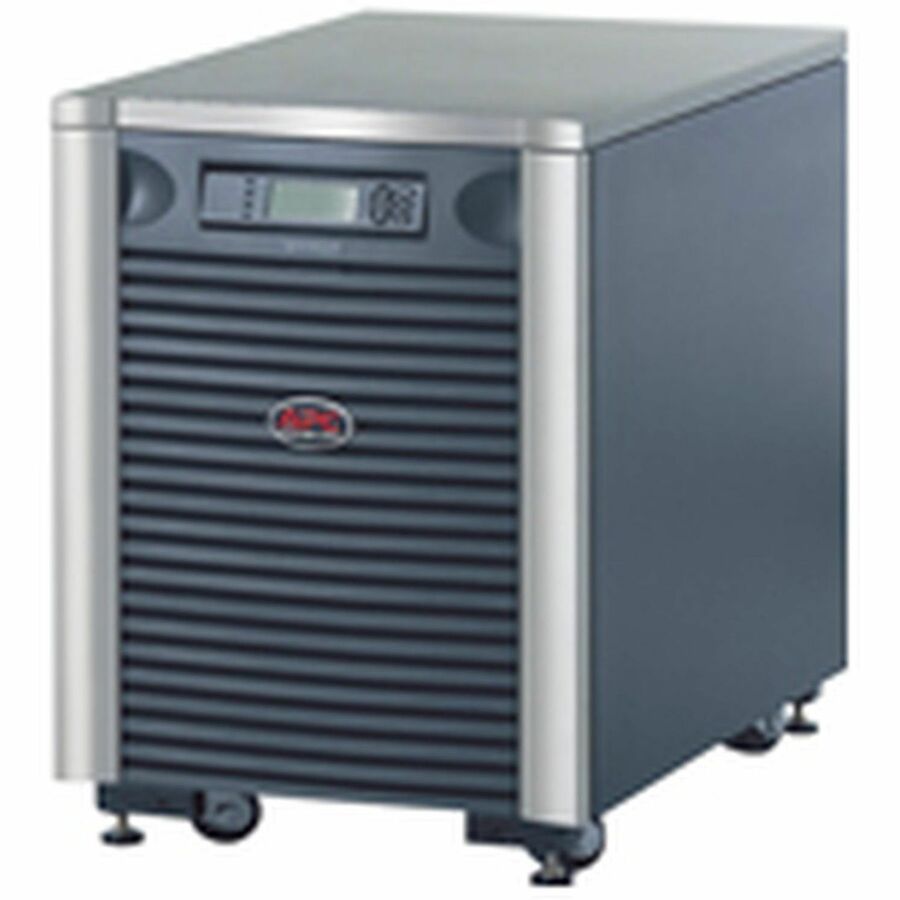

The APC Symmetra LX SYA8K8P is a high-performance, scalable 8kVA N+1 uninterruptible power supply (UPS) designed for mission-critical environments such as server rooms and voice/data networks. Built for redundancy and reliability, it features double-conversion online topology, intelligent battery management, and modular power architecture. With a scalable runtime and hot-swappable components, it minimizes downtime and simplifies maintenance, making it ideal for space-constrained IT environments.
| Category | Details |
|---|---|
| Model | SYA8K8P |
| Brand | APC by Schneider Electric |
| Product Type | Uninterruptible Power Supply (UPS) |
| Topology | Double Conversion Online |
| Form Factor | Tower, Non-Rack-Mountable |
| Power Capacity | 8kVA / 6400W |
| Scalability | Scalable to 8kVA N+1 |
| Input Voltage | 208V / 240V |
| Input Connection Type | Hard Wire 4-wire (2PH+N+G) |
| Output Voltage | 120V / 208V / 240V |
| Output Power Factor | 0.8 |
| Efficiency (Full Load) | Up to 96% |
| Battery Type | Lead-Acid (2 modules included) |
| Battery Runtime | ~5 mins at full load (6400W) |
| Battery Recharge Time | 3 hours |
| Expandable Runtime | Yes |
| Bypass Type | Internal (Automatic & Manual), Optional External |

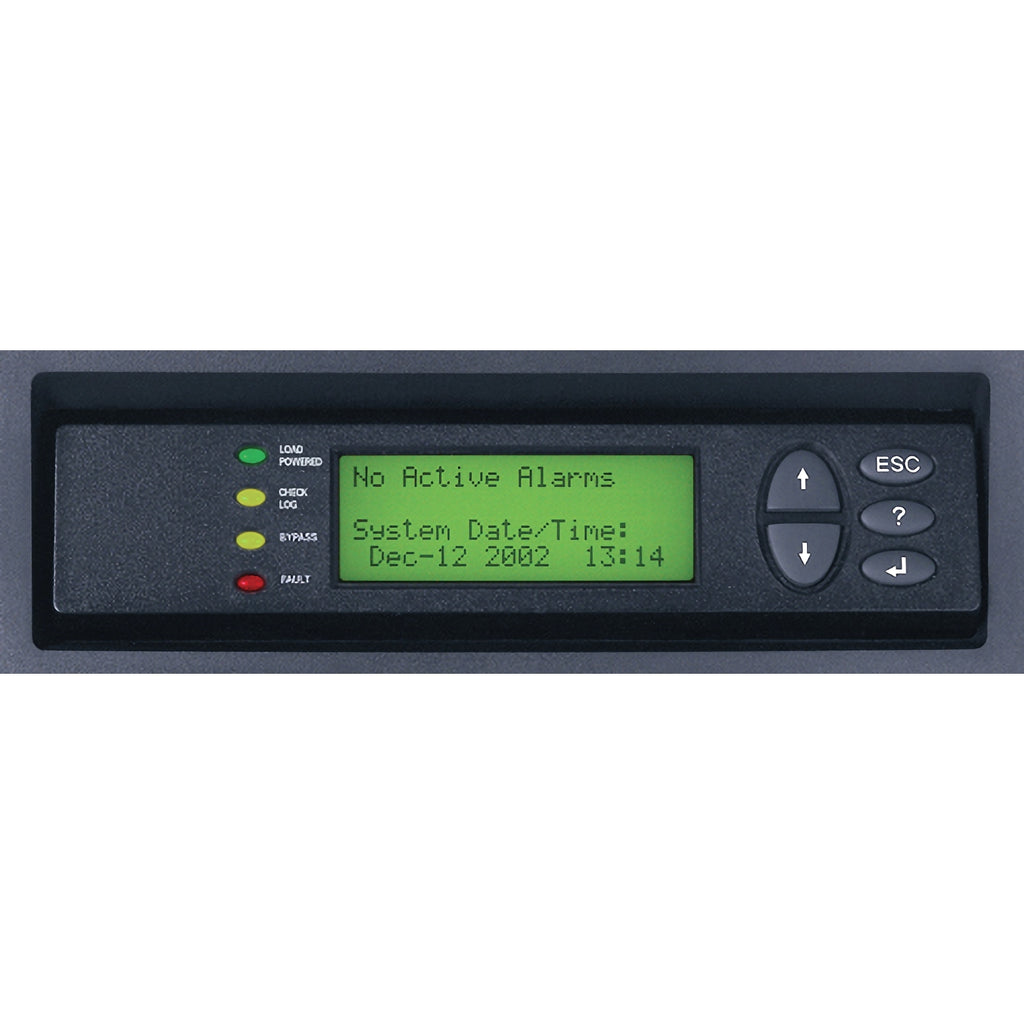

| LCD Interface | Multifunction LCD control panel |

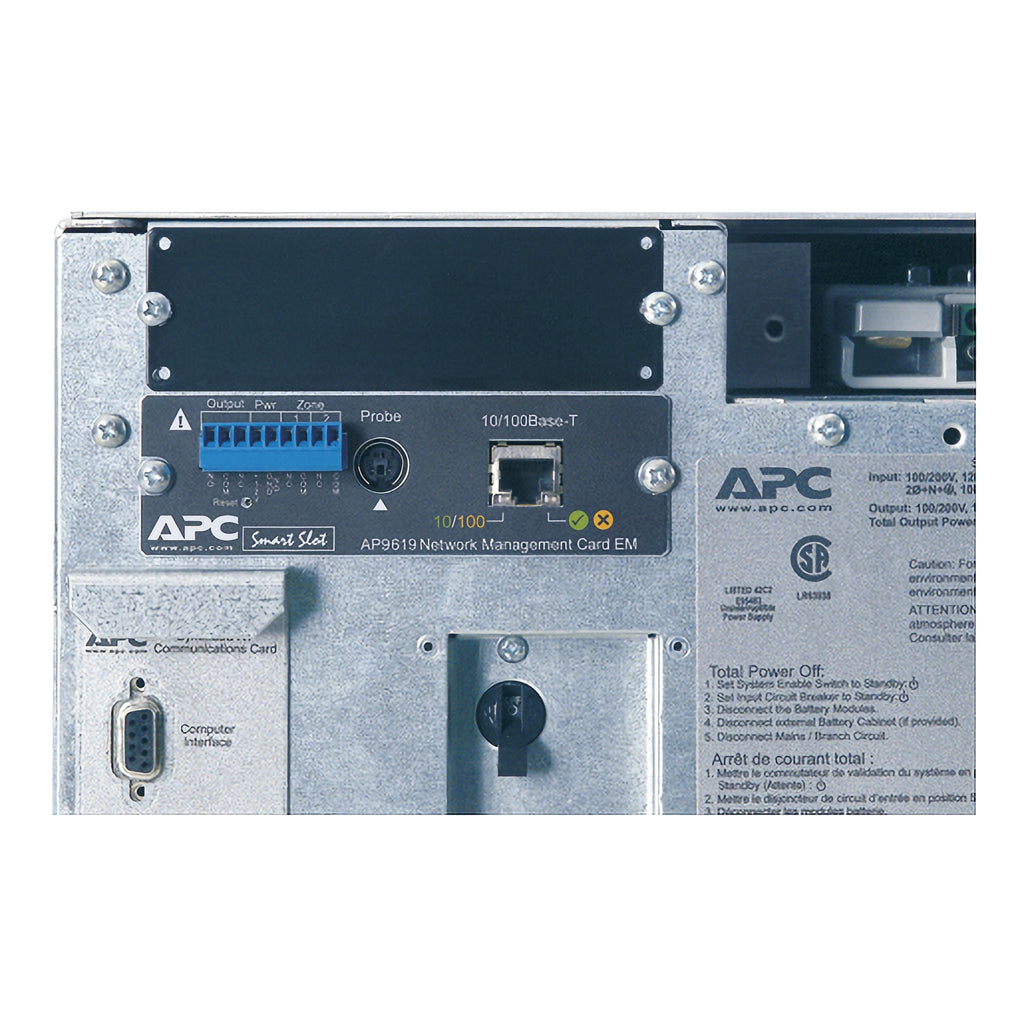

| Communication | Network Management Card 2 with Environmental Monitoring |
| Emergency Power Off (EPO) | Yes |
| Certifications | UL 1778, CSA, FCC Part 15 Class A |
| Operating Temp. Range | 32–104°F (0–40°C) |
| Relative Humidity | 0–95% non-condensing |
| Audible Noise | 62 dBA |
| Thermal Dissipation | 3485 BTU/hr |
| Product Dimensions | 26.42 x 19.02 x 28.58 in (H x W x D) |
| Product Weight | 444.94 lb (201.82 kg) |
| Shipping Dimensions | 35.98 x 39.25 x 23.58 in (H x W x D) |
| Shipping Weight | 506.09 lb (229.56 kg) |
| Warranty | 2-Year Repair or Replace |
| GTIN | 731304221760 |
