Description
Scalable Power Protection for Growing Data Centers

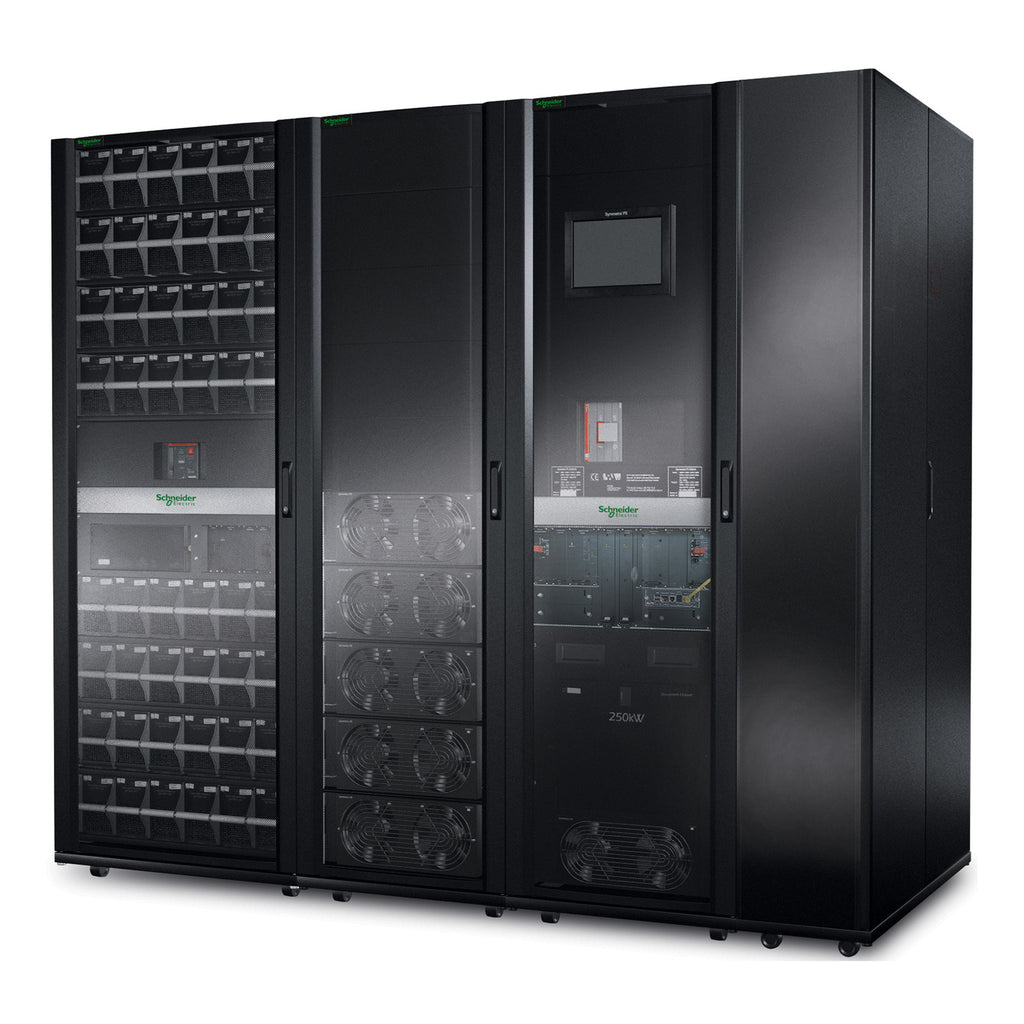

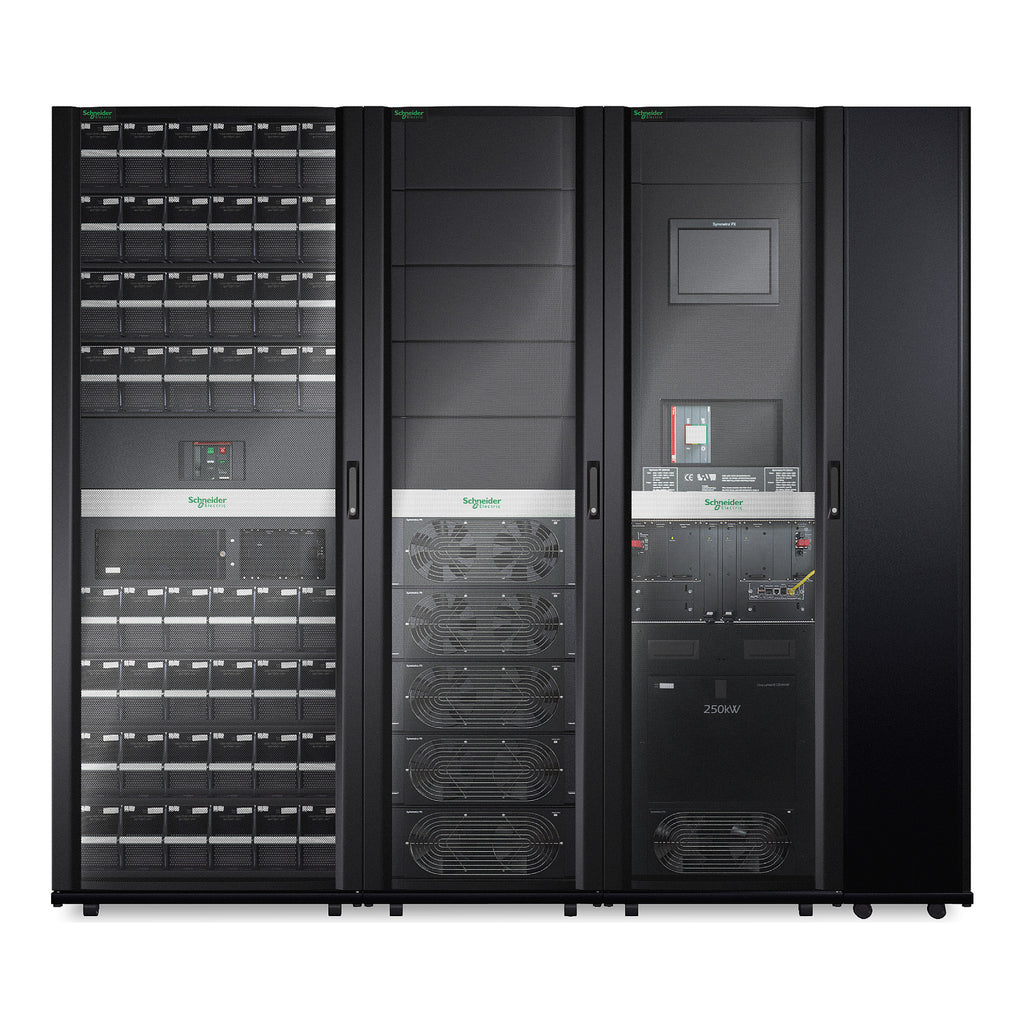

The APC Symmetra PX SY125K250DR-PD is a modular, high-efficiency 3-phase UPS that delivers 125kW of power and scales seamlessly to 250kW with integrated right-mounted maintenance bypass and distribution. Designed for high-density, mission-critical environments, this UPS supports up to 500kW in a parallel configuration and delivers exceptional availability, flexibility, and manageability.
With built-in redundancy, advanced battery modules, a smart touchscreen interface, and integrated sub-feed distribution, this UPS is ideal for medium to large data centers looking to future-proof their infrastructure with maximum uptime and efficiency.
| Category | Details |
|---|---|
| Product Type | Modular 3-Phase UPS |
| Power Capacity | 125kW scalable to 250kW (500kW with parallel systems) |
| Input Voltage | 400V/415V/480V 3-phase |
| Output Voltage | 400V/415V/480V 3-phase |
| Max Configurable Power | 250,000W / 500,000VA |
| Battery Type | VRLA, 8 modules included |
| Recharge Time | 3.5 hours |
| Runtime at Full Load | Approx. 5 minutes 56 seconds |
| Bypass Options | Integrated Maintenance & Static Bypass |
| Efficiency | Up to 96% in double conversion |
| Waveform Type | Pure Sine Wave |
| Harmonic Distortion | <2% linear / <3% non-linear |
| Redundancy | Yes, N+1 configurable |
| Mounting | Floor-standing |
| Height | 78.39 in (199.1 cm) |
| Width | 92.52 in (235 cm) |
| Depth | 42.13 in (107 cm) |
| Weight | 6228.06 lbs (2825 kg) |
| Display | Touchscreen LCD |
| Environmental Monitoring | Yes, via Network Management Card |
| Certifications | UL, cUL, CSA, EN/IEC 62040, NEMA 1, IP20 |
| Included Accessories | Assembly & Start-Up Service, NMC Card, User Manual |
