Description

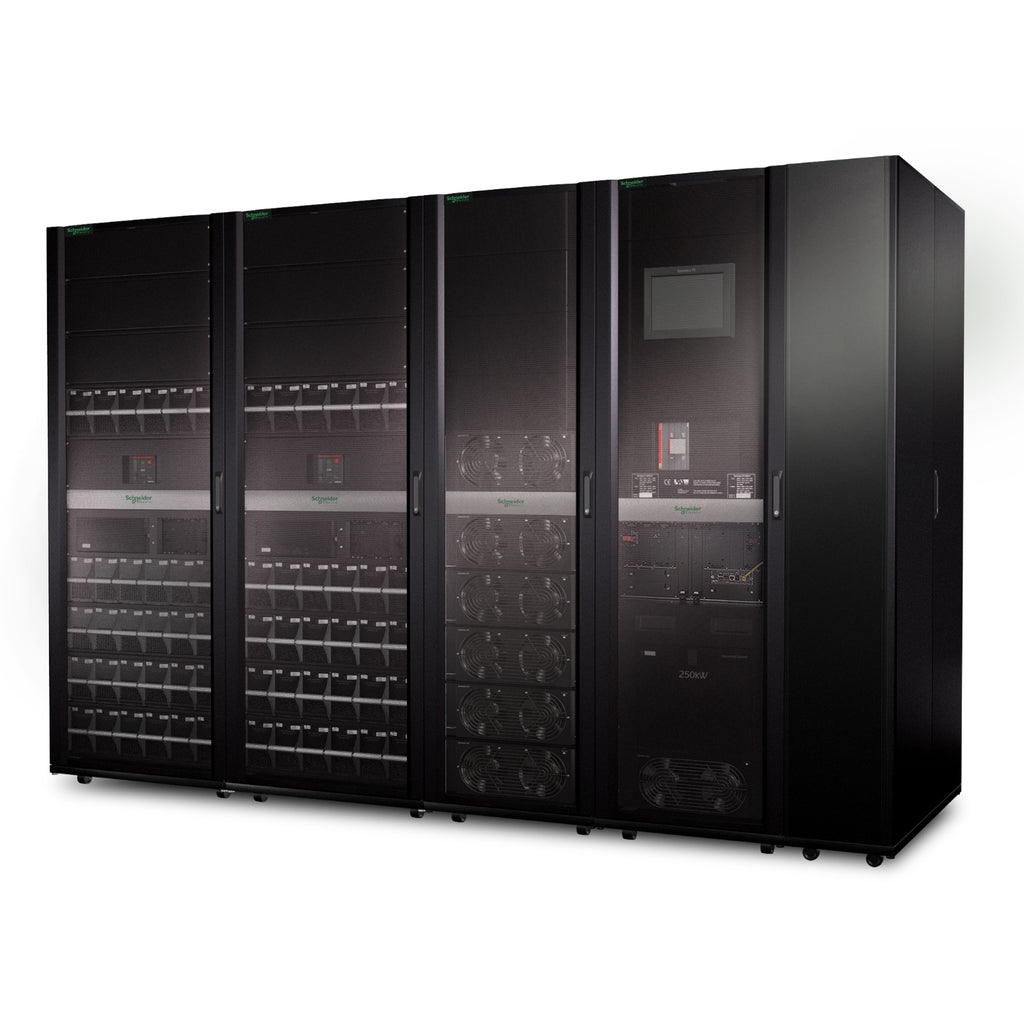

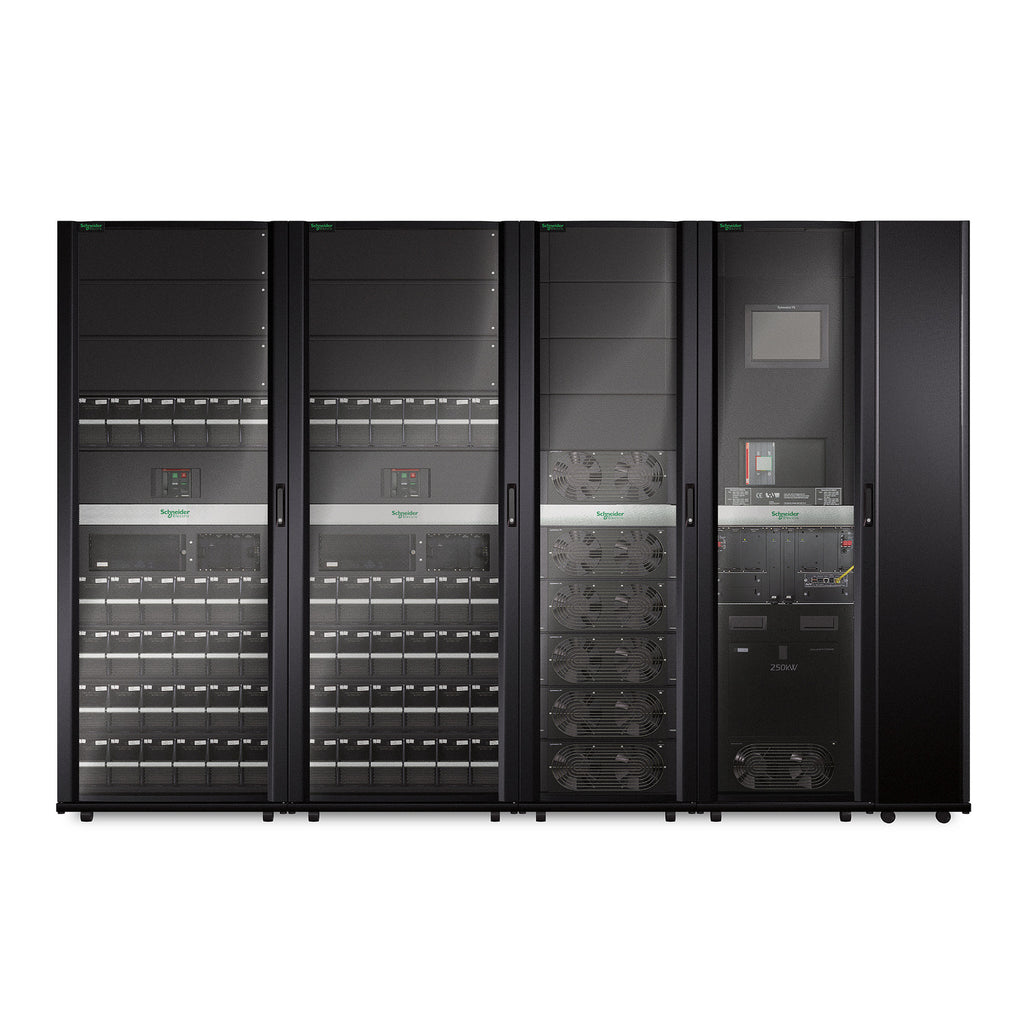

The APC Symmetra PX SY150K250DR-PD is a modular, scalable 3-phase uninterruptible power supply (UPS) system offering high efficiency and flexibility for medium to large data centers. This unit provides 150kW of power scalable up to 250kW and can further expand to 500kW with parallel units. It features a right-mounted integrated maintenance bypass and power distribution module for streamlined installation and serviceability. With VRLA batteries, hot-swappable modules, built-in redundancy, and a touch-screen LCD interface, it ensures seamless protection for mission-critical applications.
| Category | Details |
|---|---|
| Model Number | SY150K250DR-PD |
| Power Capacity | 150 kW / 150 kVA (scalable to 250 kW / 250 kVA; configurable to 500 kW) |
| Input Voltage Options | 400V / 415V / 480V 3-phase |
| Output Voltage Options | 400V / 415V / 480V 3-phase |
| Input Connections | Hard Wire 4-wire (3PH + G), 5-wire (3PH + N + G) |
| Output Connections | Hard Wire 4-wire / 5-wire |
| Bypass Type | Built-in Static & Maintenance Bypass |
| Topology | Double Conversion Online |
| Battery Type | VRLA (10 battery modules included, 36 slots available) |
| Typical Recharge Time | 3.5 hours |
| Efficiency | Up to 97% |
| THD (Input/Output) | <5% Input, <2% Output |
| Display Interface | Touch Screen LCD |
| Included Accessories | Installation guide, NMC, Start-Up Service, User Manual, Assembly Service |
| Dimensions (H x W x D) | 1991 mm x 3100 mm x 1070 mm |
| Weight | 3547 kg (shipping: 3907 kg) |
| Certifications | UL 1778, EN/IEC 62040-1/2/3, CSA, RoHS, REACH |
| Warranty | 1-year on-site repair/replacement with factory-authorized Start-Up |
