Description

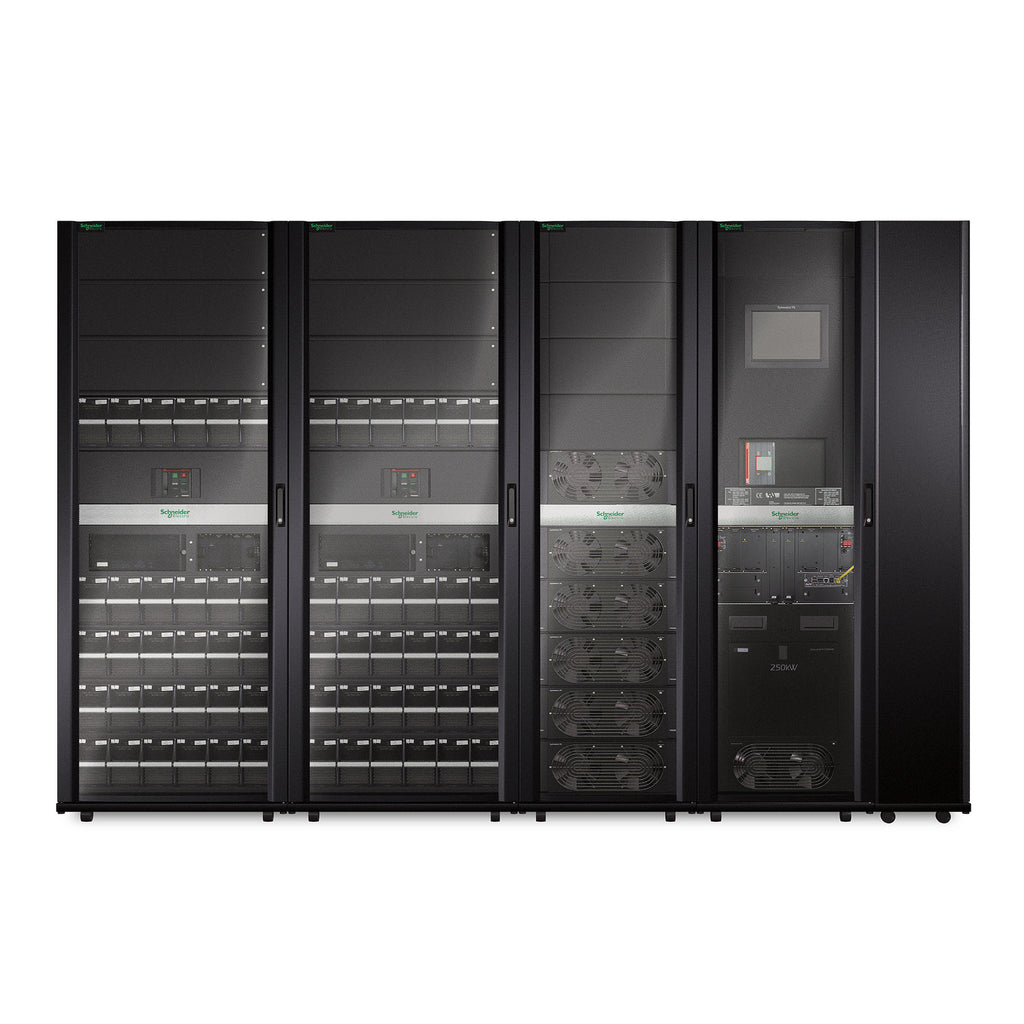

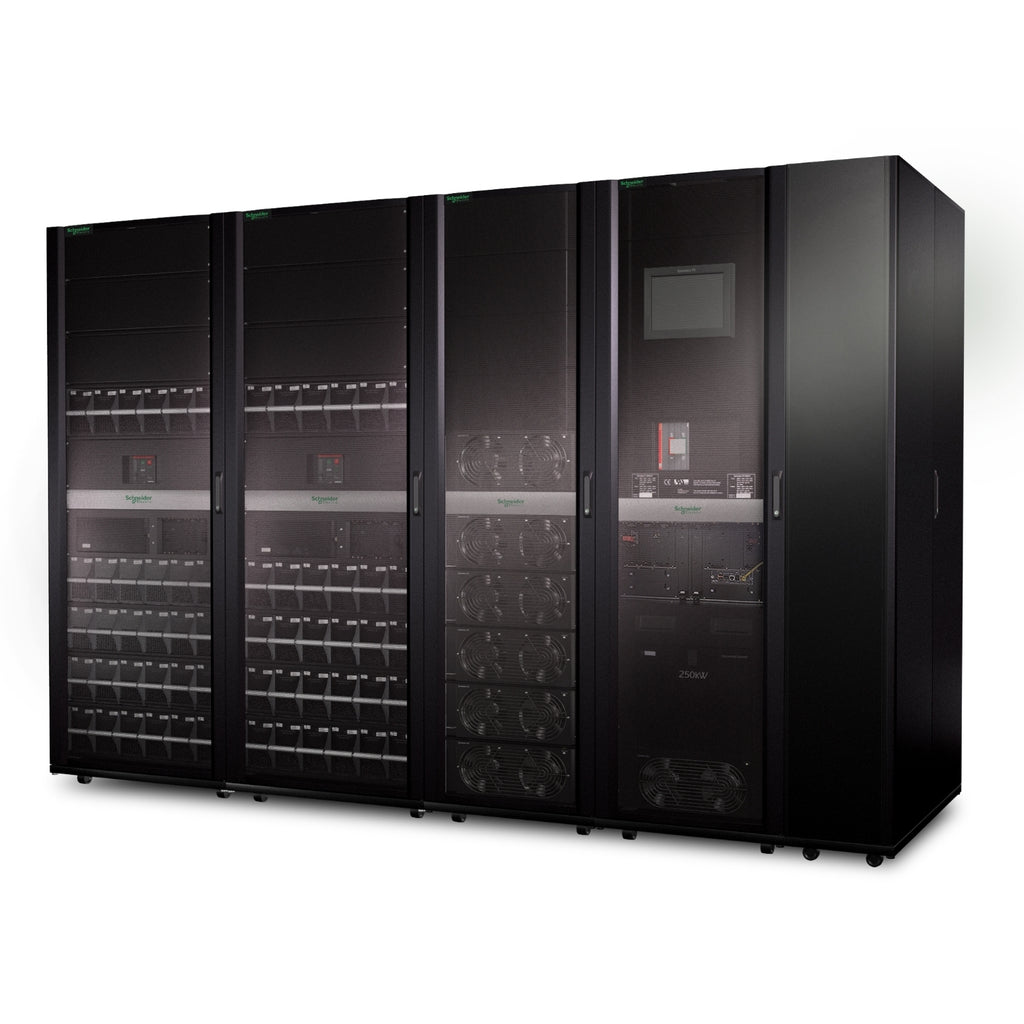

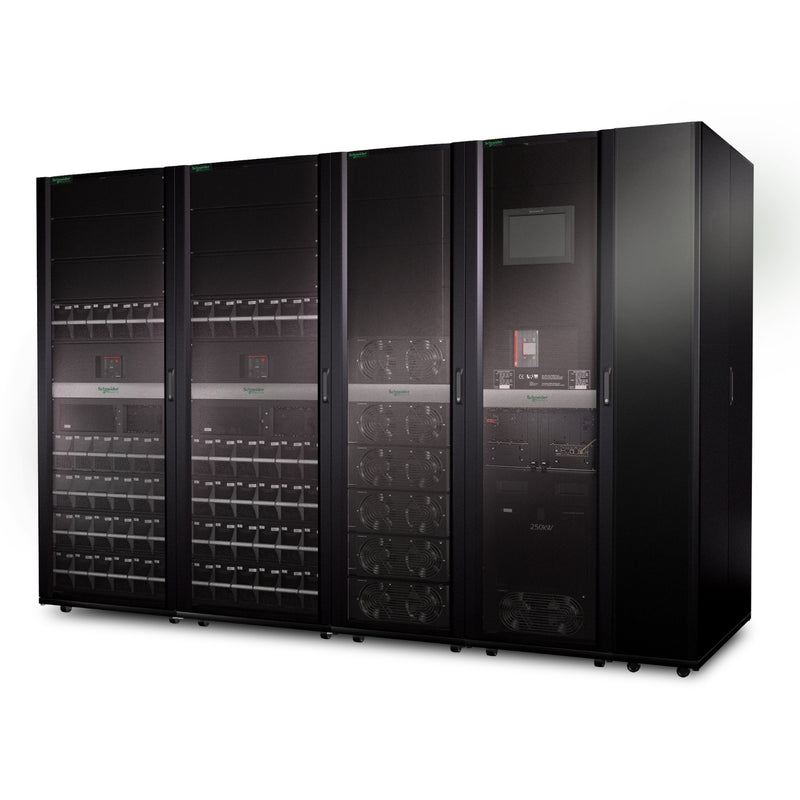

The APC Symmetra PX SY150K250DL-PD is a high-performance, scalable UPS system engineered for data centers and critical applications. Starting at 150kW and scalable to 250kW, this modular UPS features integrated maintenance bypass (left-mounted) and power distribution, ensuring uninterrupted power and simplified servicing. With a pure sine wave output, extended battery runtime, and intelligent power management, it delivers efficiency, redundancy, and space-saving power protection in a compact footprint. The system supports hardwired 4-wire and 5-wire 3-phase connections, making it ideal for modern IT environments.
| Specification | Details |
|---|---|
| Brand | APC by Schneider Electric |
| Model Number | SY150K250DL-PD |
| Power Capacity | 150 kVA (Scalable to 250 kW) |
| Output Power | 150,000 W |
| Input Frequency | 40–70 Hz |
| Battery Runtime | Up to 3.5 hours |
| Battery Type | VRLA |
| Output Connections | 1x Hard Wire 4-wire (3PH + G),1x Hard Wire 5-wire (3PH + N + G) |
| Input Connection Type | Hard Wire 4-wire (3PH + G),Hard Wire 5-wire (3PH + N + G) |
| Form Factor | Modular, Scalable UPS System |
| Color | Black |
| Dimensions (W x D x H) | 3100 x 1070 x 1991 mm |
| Package Dimensions (W x D x H) | 4110 x 1270 x 2150 mm |
| Weight | 3550.9 kg |
| Shipping Weight | 3928.6 kg |
| Operating Temp. Range | 0 to 40 °C |
| Storage Temp. Range | -15 to 40 °C |
| Operating Altitude | 0 – 999.9 m |
| Storage Altitude | 0 – 15000 m |
| Relative Humidity (Op/Storage) | 0 – 95% |
